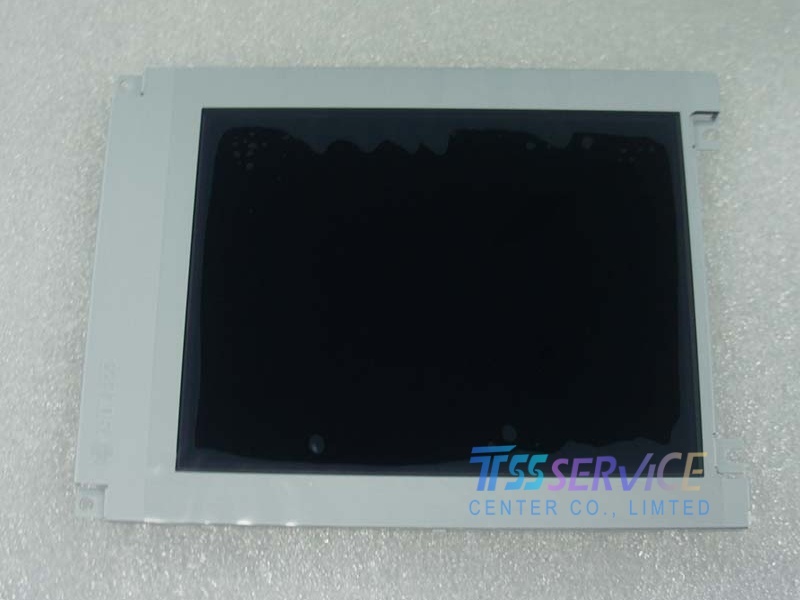

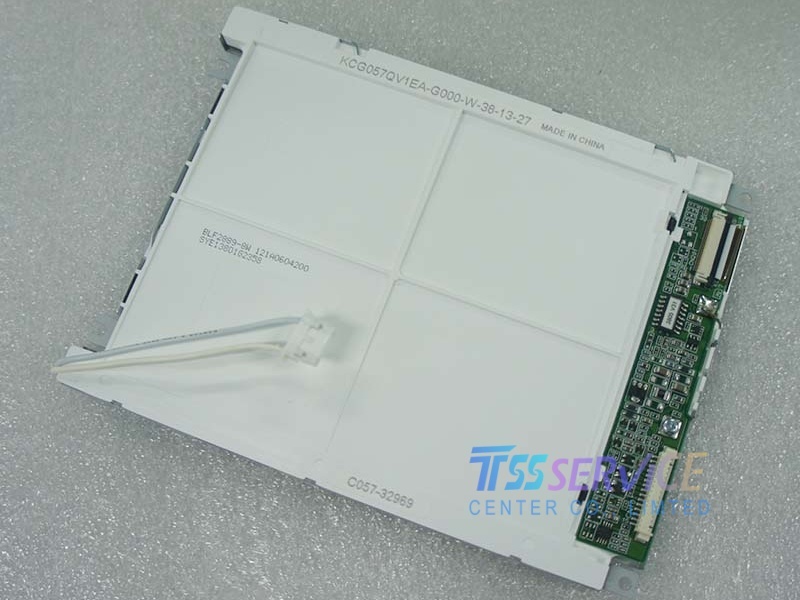

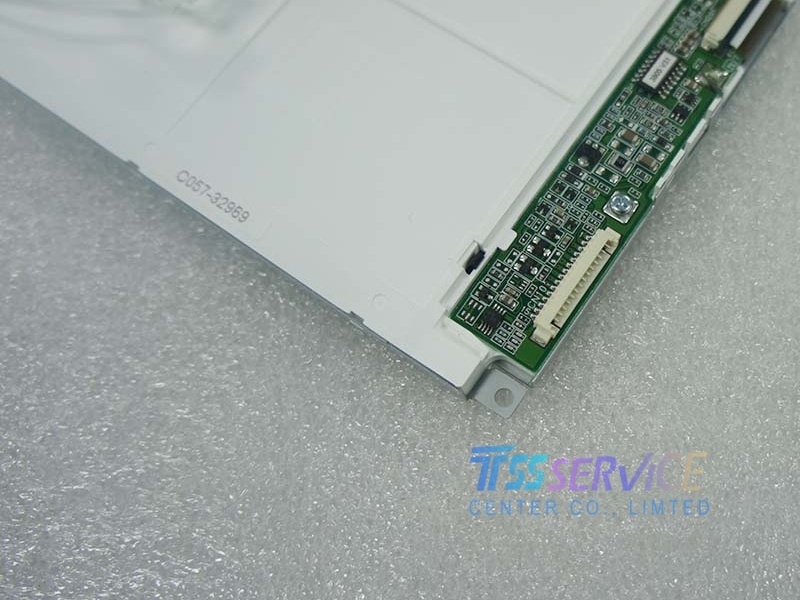

Part no : KCG057QV1EA-G000-08-16-4
Brand : Kyocera
INCH :5.7 Inch
Resolution 320*240
LCD Panel for Industrial Machine
| Parameter | Specification |
|---|---|
| Model Number | KCG057QV1EA-G000 (Series) |
| Manufacturer | Kyocera |
| Display Size | 5.7 inches (Diagonal) |
| Resolution | 320 (RGB) × 240 pixels (QVGA) |
| Display Type | CSTN-LCD (Color Super Twisted Nematic) |
| Pixel Pitch | Approx. 0.36 mm (H) × 0.36 mm (V) |
| Active Area | 115.2 mm (H) × 86.4 mm (V) |
| Outline Dimensions | Approx. 154.6 mm (H) × 114.8 mm (V) × 9.0 mm (D) |
| Brightness | Typically 200 cd/m² (Transmissive mode) |
| Contrast Ratio | Typically 40:1 |
| Viewing Angle | Limited (Typical CSTN characteristics: 30°~50° depending on direction) |
| Backlight | CCFL (Cold Cathode Fluorescent Lamp), 1 tube |
| Interface | 8-bit / 16-bit Parallel RGB Interface |
| Operating Voltage | Logic: 3.3V or 5.0V (Dependent on specific driver config); Backlight: High Voltage AC |
| Operating Temperature | Typically -20°C to +70°C |
| Storage Temperature | Typically -30°C to +80°C |
| Weight | Approx. 175g - 200g |
| Mounting | Rear mounting holes (Standard 4-corner) |
