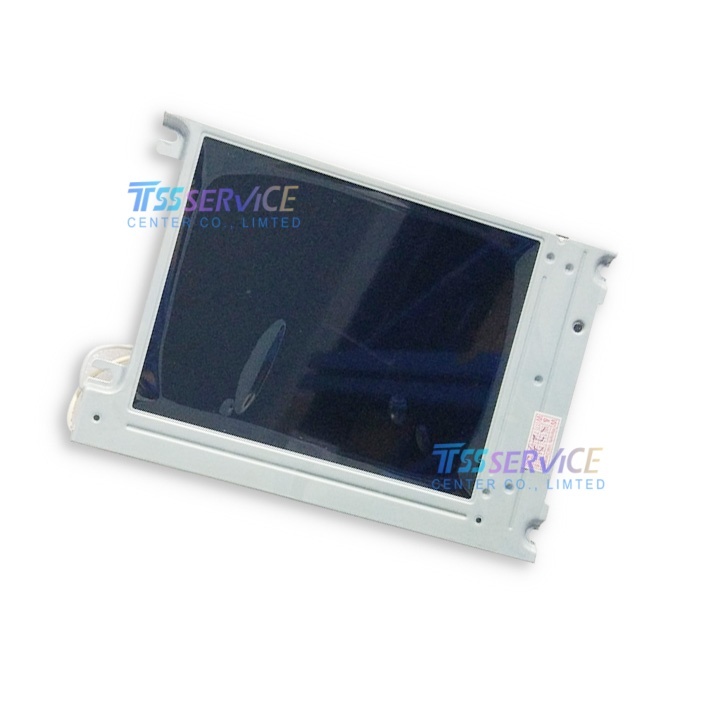

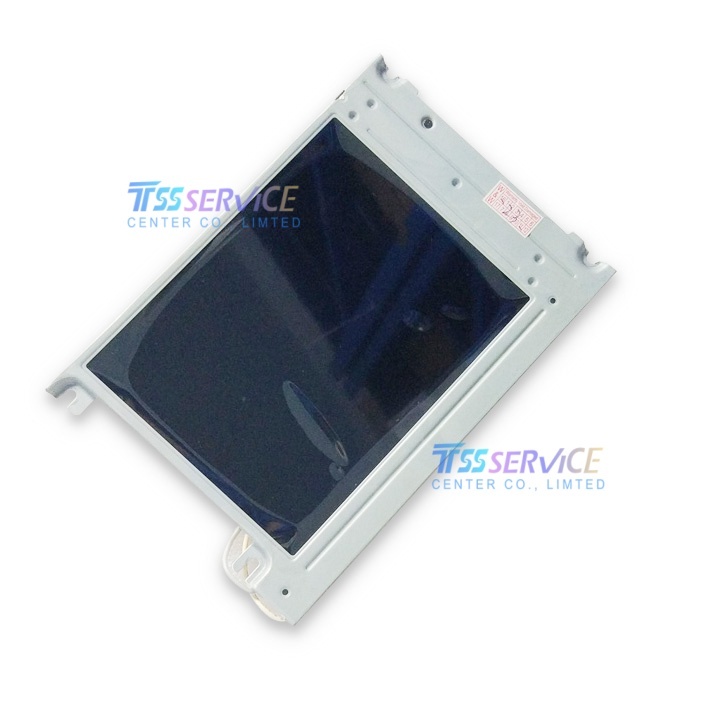

Part no : LFSHBL601A
Brand : -
INCH : 5.7"
Resolution 320×240
LCD Panel for Industrial Machine
| Parameter Item | Specification Details |
|---|---|
| Part Number | LFSHBL601A（Siemens PN:A5E00220741） |
| Manufacturer | ALPS, Japan |
| Screen Size | 5.7 inch, 4:3 Aspect Ratio |
| Native Resolution | 320(RGB)×240 Pixels(QVGA) |
| Display Type | Color TFT-LCD, Normally White |
| Backlight | Single CCFL Cold Cathode Lamp |
| Interface | Standard 30Pin Parallel LVDS Connector |
| Supply Voltage | DC 5V Typical Input |
| Operating Temp | 0℃ ~ +60℃ |
| Storage Temp | -20℃ ~ +70℃ |
| Surface Hardness | 2H Hardened Front Glass |
| Outline Dimension | 142.0mm × 106.5mm |
| Active View Area | 115.2mm × 86.4mm |
| Brightness | 220cd/m² Standard |
| Contrast Ratio | 300:1 |
| Life of Backlight | ≥50,000 Hours |
| Certification | RoHS Industrial Grade Standard |
| Status | Original Discontinued, Replacement Spare Screen Available |
