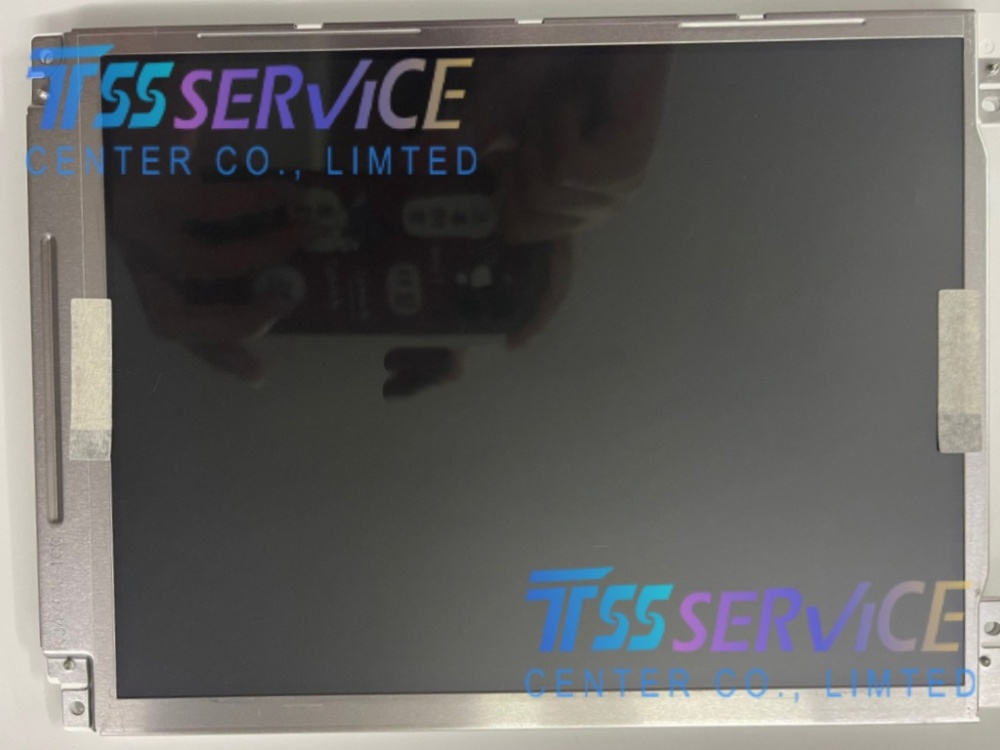

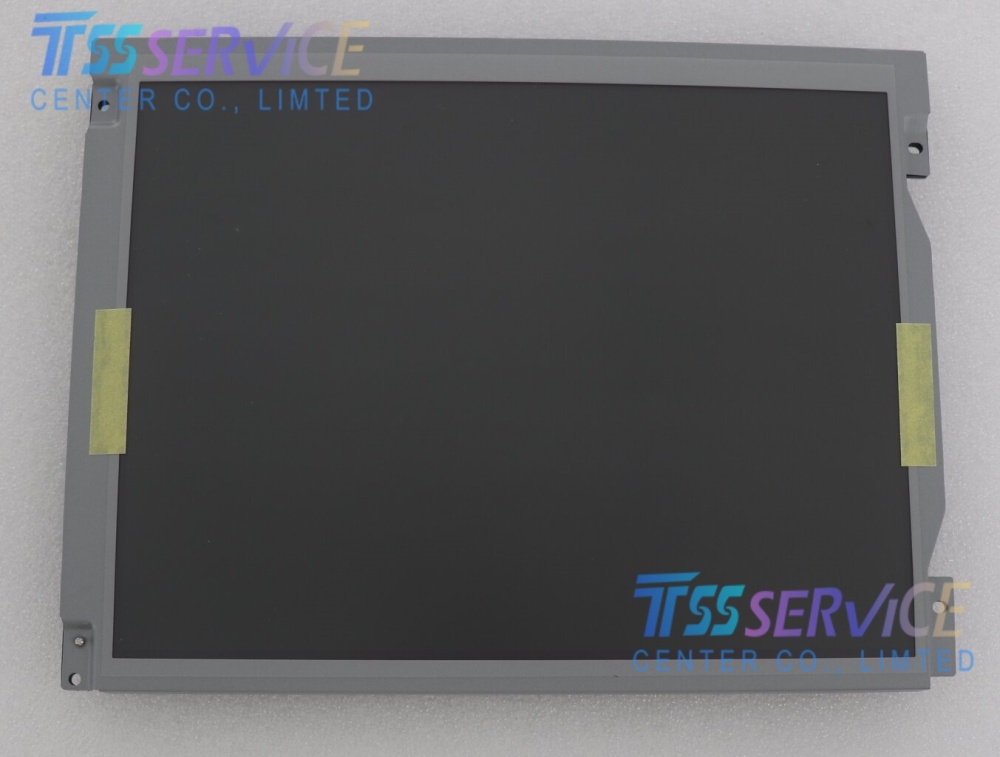

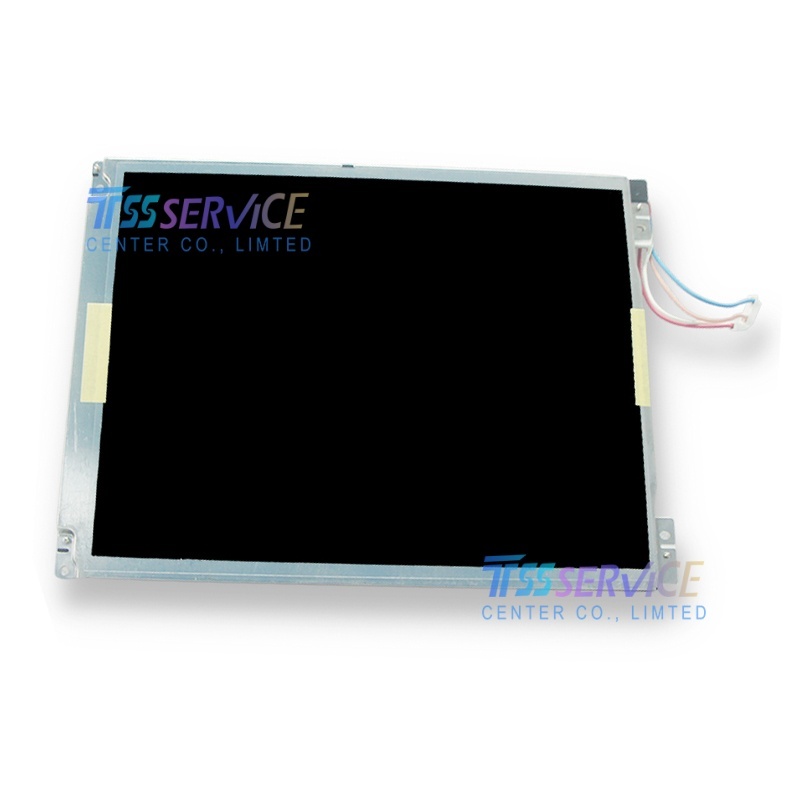

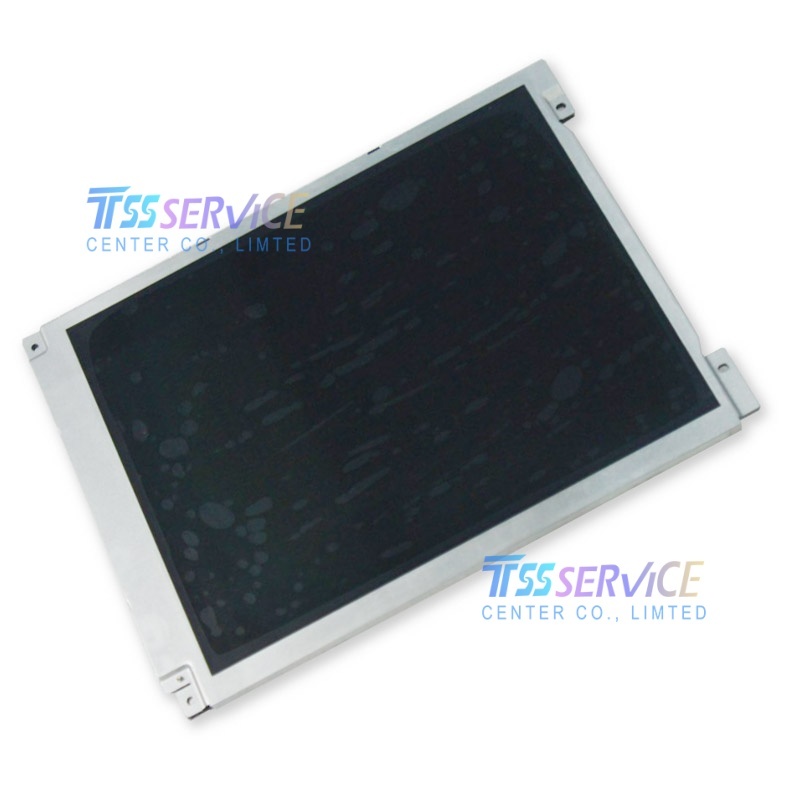

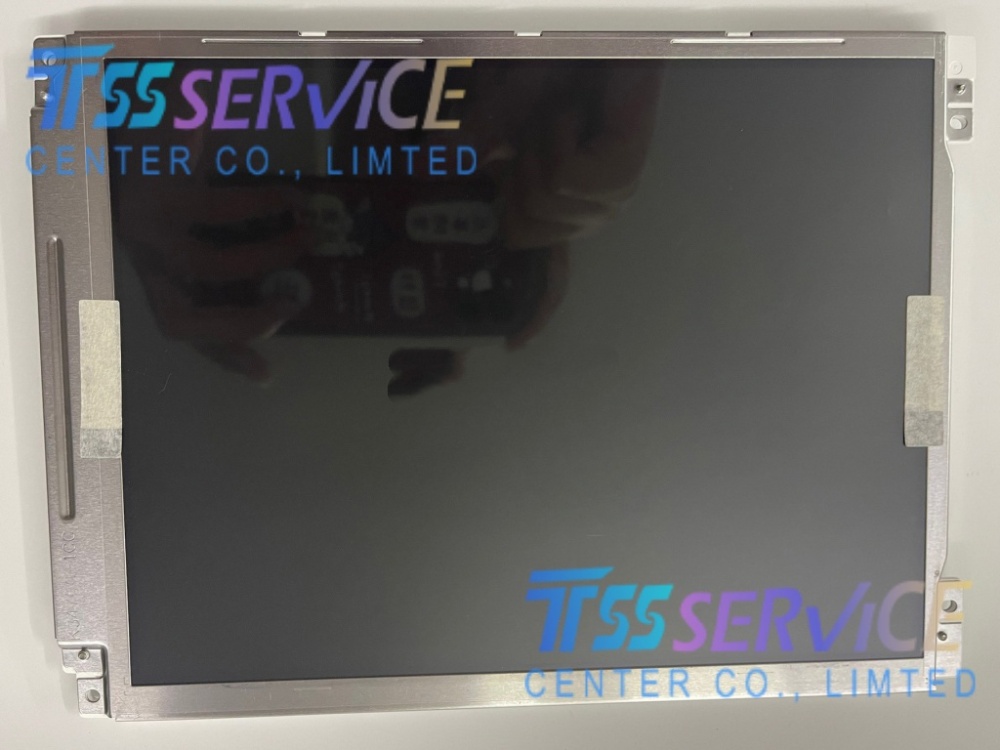

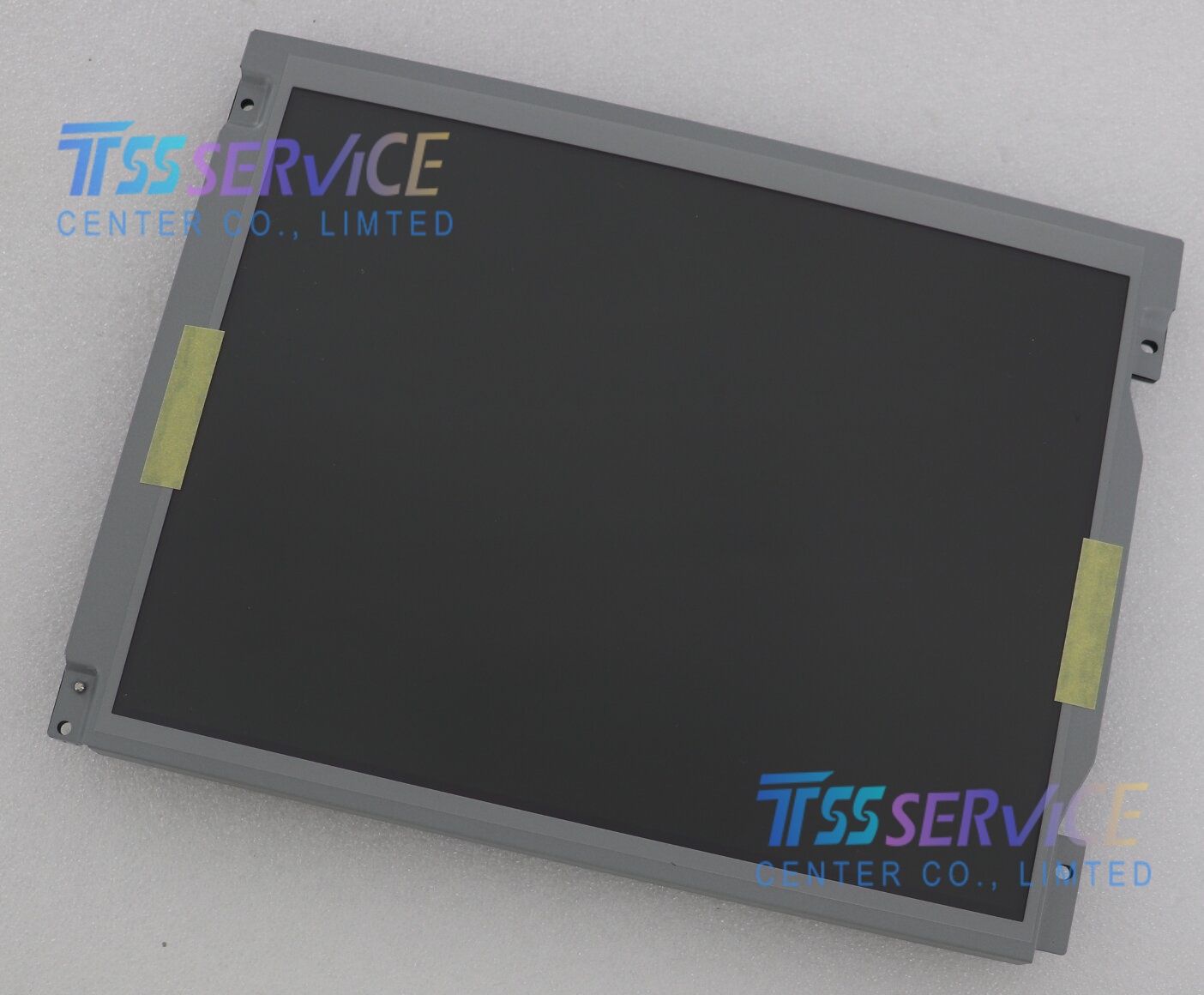

LQ104S1LG76 | Sharp 10.4" SVGA Ultra High Bright Wide Temp Industrial TFT-LCD Panel
LQ104S1LG76 is a 10.4-inch SVGA industrial TFT LCD panel manufactured by Sharp, featuring ultra-high 1100 cd/m² sunlight-readable brightness, wide temperature range (-30℃ ~ +80℃), WLED backlight, single-channel 6-bit LVDS 20-pin interface, TN normally white transmissive technology and metal reinforced frame. It can maintain clear display under direct outdoor sunlight, withstand extreme cold and high-temperature harsh environments, widely used for semi-outdoor industrial HMI, construction machinery onboard monitors, outdoor equipment control terminals, environmental monitoring displays and maintenance replacement spare screens for discontinued industrial equipment.
| Parameter Item |
Specification Details |
| Full Part Number |
LQ104S1LG76 |
| Manufacturer |
Sharp Corporation (Japan) |
| Diagonal Size |
10.4 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
800(H) × 600(V) pixels (SVGA, 96 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.264 mm (H) × 0.264 mm (V) |
| Active Area (AA) |
211.2 mm (W) × 158.4 mm (H) |
| Overall Outline Dimension |
242 mm (W) × 185 mm (H) × 13.4 mm (Thickness) |
| Typical Brightness |
1100 cd/m² (sunlight readable ultra-high brightness) |
| Typical Contrast Ratio |
600:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
60° / 60° / 50° / 60°, optimal viewing direction: 6 o'clock |
| Total Response Time (Tr+Td) |
25 ms typical |
| Display Color Depth |
262K colors (6-bit single channel), 43% NTSC color gamut |
| Backlight System |
Edge-lit WLED (10S3P), service life ≥ 50,000 hours, no built-in driver |
| Signal Interface |
Single-channel LVDS, 6-bit, 20-pin FPC connector |
| Logic Supply Voltage |
3.3 VDC (3.0~3.6V allowable range) |
| Refresh Rate |
60 Hz standard |
| Touch Function |
Without integrated touch panel (4-wire resistive/capacitive touch overlay customizable) |
| Surface Treatment |
Standard hard coating, optional anti-reflection film for outdoor use |
| Housing Structure |
Metal shielding frame, anti-electromagnetic interference, shock & vibration resistant |
| Operating Temperature |
-30°C ~ +80°C (ultra-wide industrial temperature) |
| Storage & Transport Temp |
-40°C ~ +85°C |
| Net Weight |
Max 520 g |
| Compliance Standard |
RoHS compliant, industrial UL certification |
| Production Status |
Discontinued original mass production, sufficient stock for equipment maintenance replacement |
