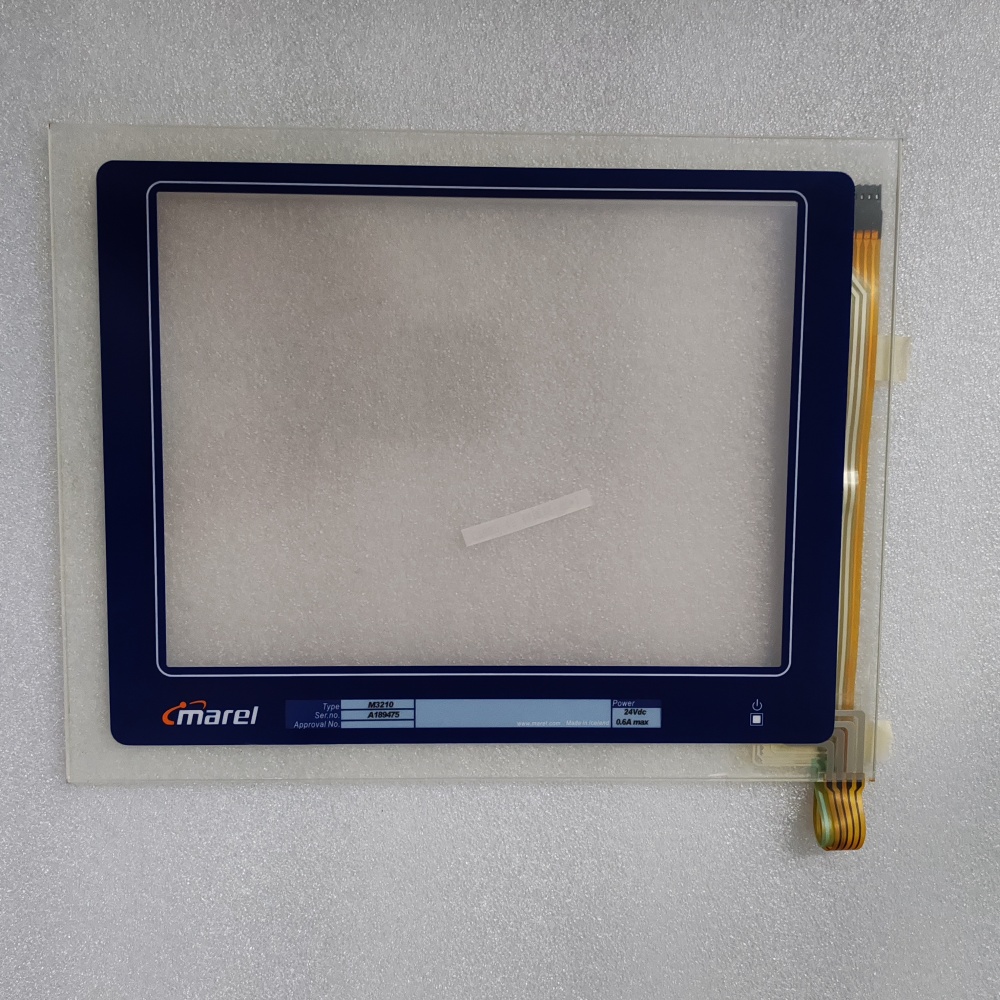

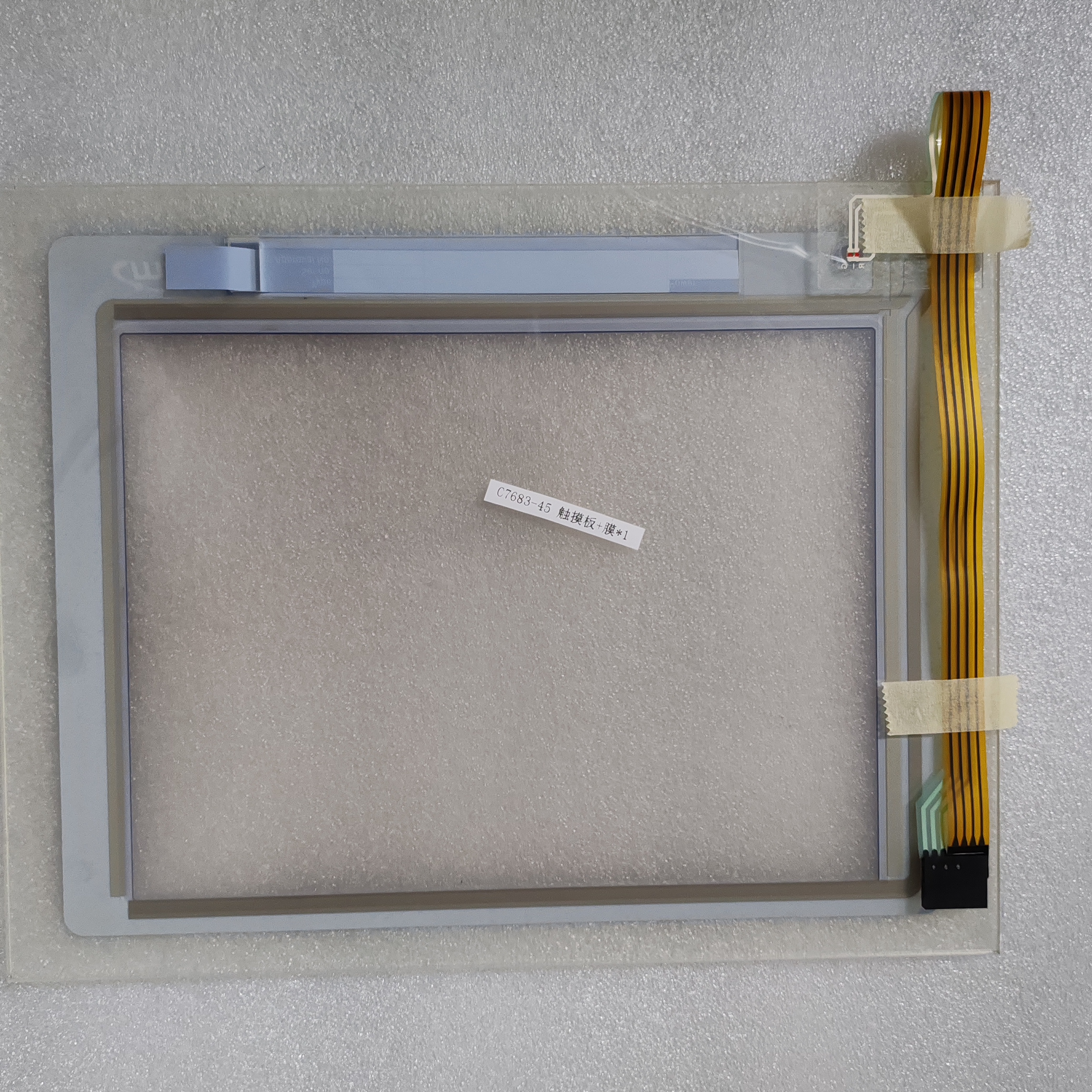

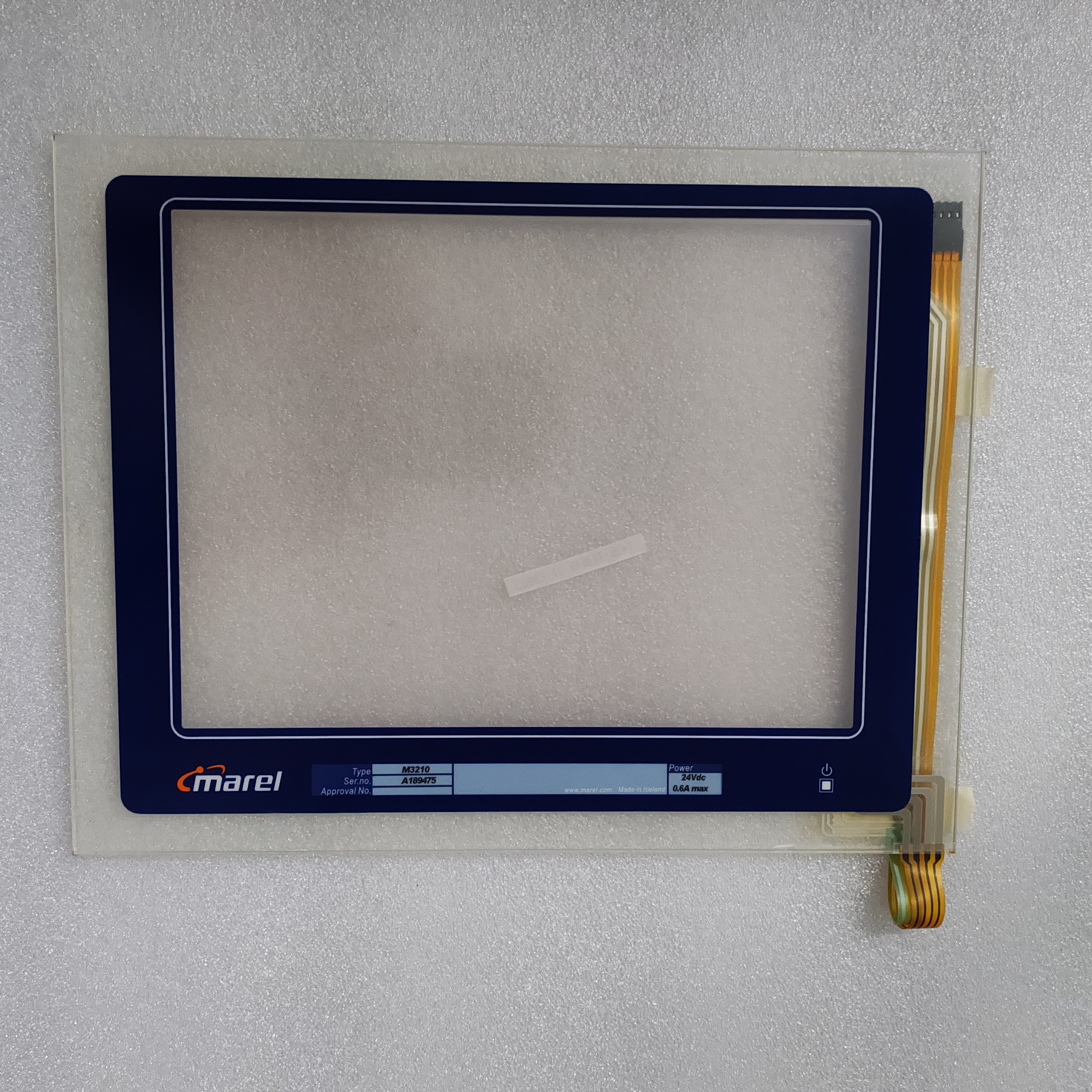

NEW Marel 604805-7091 C7683-45 12.1 inch 280*220mm Touch Screen Glass Panel

SKU: VT1665HS-VTBD

Part no : 604805-7091 C7683-45
Brand :  -
INCH :   12.1 "

12.1-inch 4-wire resistive touch digitizer glass

0.0 (0 Reviews)
0 Sold
$49.00 $47.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • NEW Marel 604805-7091 C7683-45 12.1 inch 280*220mm Touch Screen Glass Panel
  • NEW Marel 604805-7091 C7683-45 12.1 inch 280*220mm Touch Screen Glass Panel
  • NEW Marel 604805-7091 C7683-45 12.1 inch 280*220mm Touch Screen Glass Panel
  • NEW Marel 604805-7091 C7683-45 12.1 inch 280*220mm Touch Screen Glass Panel
1/1
  • NEW Marel 604805-7091 C7683-45 12.1 inch 280*220mm Touch Screen Glass Panel
  • NEW Marel 604805-7091 C7683-45 12.1 inch 280*220mm Touch Screen Glass Panel
  • Description

604805-7091 / C7683-45 | Danielson 12.1

604805-7091 (C7683-45) is a 12.1-inch 4-wire resistive touch digitizer glass designed by Danielson for Marel industrial food processing HMI equipment. It features 280×220mm outer dimension, 213.5×160mm active touch area, oil-proof, dust-proof, shock-resistant industrial glass coating, flat FPC ribbon cable, 5V operating voltage, and stable touch performance in humid, greasy food workshop environments. It matches 800×480 (WVGA) 12.1-inch industrial TFT LCD panels, widely used as replacement touch overlay for Marel M3210 series meat processing control terminals.

Parameter Item Specification Details
Part Number 604805-7091, C7683-45 (C7683-45C compatible version)
Manufacturer Danielson (OEM for Marel Food Systems)
Touch Type 4-wire analog resistive touch screen digitizer
Matching Display Size 12.1 inch, landscape, 16:10 WVGA
Matched LCD Resolution 800(RGB) × 480 pixels
Overall Outline Dimension 280 mm (W) × 220 mm (H)
Active Touch Area (AA) 213.5 mm (W) × 160 mm (H)
Surface Material Hard anti-oil glass, anti-corrosion coating
Surface Hardness 3H scratch resistance
FPC Cable Flat flexible yellow ribbon cable, industrial pin definition
Operating Supply Voltage 5.0 VDC
Touch Resistance Range 300Ω ~ 1200Ω standard 4-wire resistive
Touch Accuracy ±1.5 mm linear precision
Lifespan Over 1,000,000 touch presses
Operating Temperature 0°C ~ +55°C
Storage Temperature -20°C ~ +70°C
Environmental Feature Waterproof, dustproof, oil-proof, anti-moisture, shock-resistant
Compatible HMI Model Marel M3210 food processing control terminal
Matching Interface LVDS industrial TFT display, RS232/485 HMI mainboard
Weight Approx. 180 g
Compliance RoHS industrial standard
Production Status Spare replacement touch glass for legacy food industrial HMI
