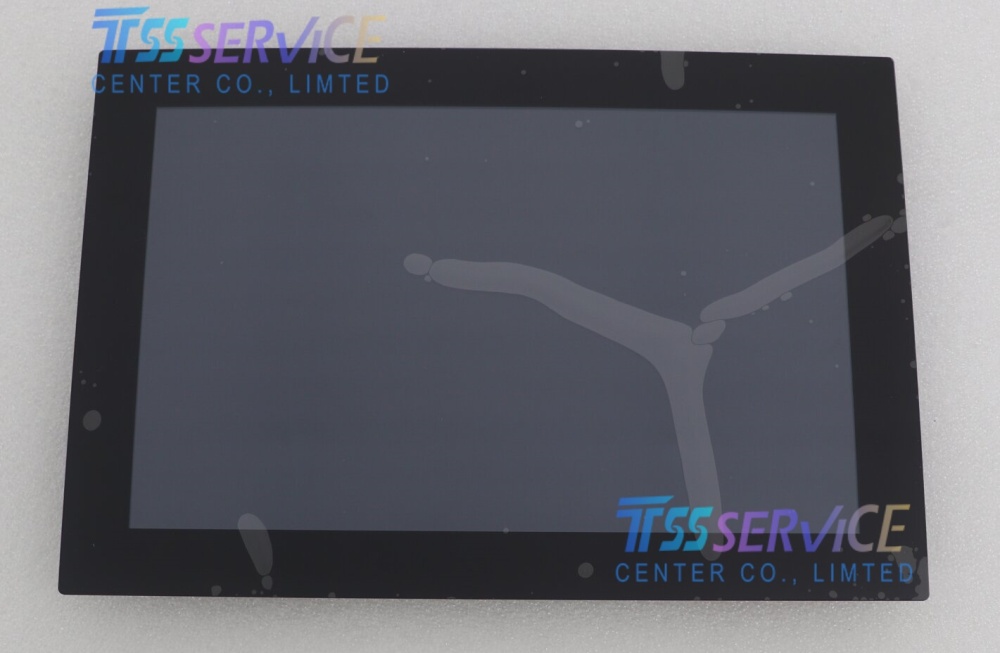

TM101JVHG32-00 (Tianma 10.1” Industrial TFT-LCD with PCAP Touch)
TM101JVHG32-00 is a 10.1-inch SFT IPS industrial TFT-LCD module developed by Tianma, featuring 1280×800 WXGA resolution, 850 cd/m² high brightness, full 85° symmetrical viewing angle and built-in 5-point projected capacitive touch screen. Equipped with integrated WLED driver, wide operating temperature from -20℃~+70℃ and 3H hardened front cover glass, it targets outdoor readable and rugged embedded industrial display projects.
| Parameter |
Specifications |
| Model |
TM101JVHG32-00 |
| Manufacturer |
Tianma Micro-electronics |
| Diagonal Size |
10.1 inch, 16:10 Aspect Ratio |
| Native Resolution |
1280(RGB) × 800 WXGA |
| Display Mode |
SFT IPS, Normally Black, Transmissive |
| Active Area(W×H) |
216.96 mm × 135.60 mm |
| Overall Dimension |
258.66 × 177.30 × 12.50 mm |
| Typical Brightness |
850 cd/m² (High Bright for Outdoor readable) |
| Contrast Ratio |
700:1(Typ.) |
| View Angle(L/R/U/D) |
85°/85°/85°/85° (CR≥10) |
| Response Time(Tr+Td) |
25ms(Typ.) |
| Color Depth |
6bit+FRC, 16.7M Colors, 72% sRGB Coverage |
| Backlight |
Side-entry WLED, Built-in LED Driver, 50,000H Lifespan |
| Touch Option |
Integrated 5-point PCAP Capacitive Touch, 1.1mm Chemically Strengthened Glass |
| Surface Treatment |
3H Hard Anti-scratch Coating |
| Signal Interface |
Single-channel 6/8-bit LVDS, 20Pin Connector |
| Supply Voltage |
3.3V DC |
| Refresh Rate |
60Hz |
| Operating Temp |
-20℃ ~ +70℃ |
| Storage Temp |
-30℃ ~ +80℃ |
| Compliance |
RoHS Certified |
