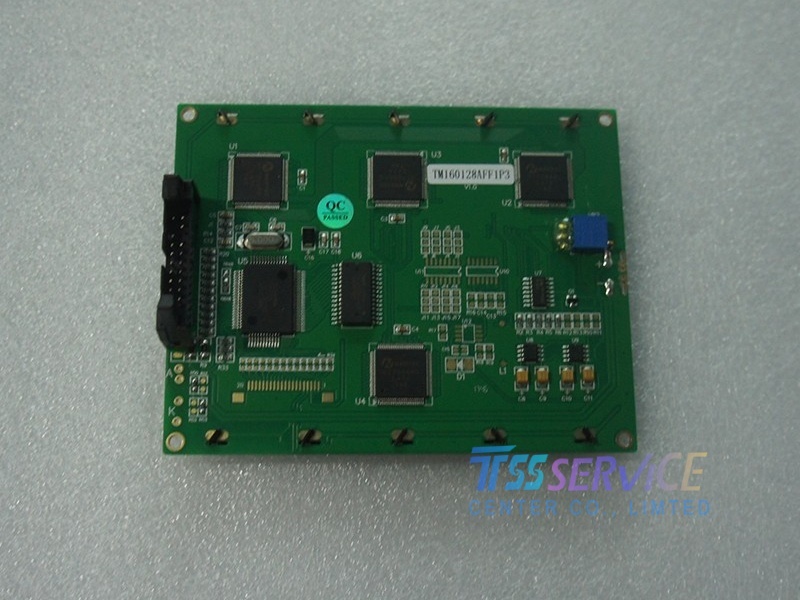

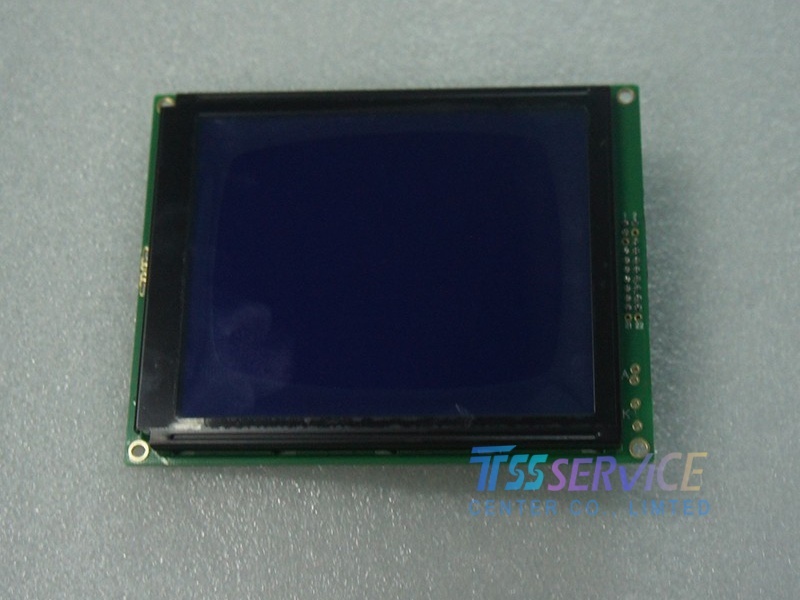

TM160128ABA1（4.7-inch STN Monochrome Graphic LCD Module）
TM160128ABA1 is a 4.7-inch industrial-grade STN monochrome graphic dot-matrix LCD module with 160×128 pixels, equipped with built-in T6963C controller and LED backlight, parallel MCU interface, low power consumption, wide working temperature range, robust anti-interference performance, widely used as original replacement screen for legacy industrial control equipment, handheld measuring devices and medical portable instruments。
| Parameter Item |
Specification Value |
| Part Number |
TM160128ABA1 |
| Display Size |
4.7 inch STN Graphic LCD |
| Native Resolution |
160(Column) ×128(Row) dots |
| Active View Area |
101.0mm(W) ×82.0mm(H) |
| Overall Module Dimension |
129.0mm(W) ×120.0mm(H) ×12.8mm(T) |
| Dot Pitch / Dot Size |
0.58mm / 0.54mm |
| Display Type |
STN Positive Monochrome(Yellow-Green Background, Black Font) |
| Backlight |
Built-in Constant Current LED Backlight |
| Typical Contrast Ratio |
100:1 |
| Built-in Driver IC |
T6963C Graphic Controller |
| Signal Interface |
8-bit Parallel 6800-series MCU Bus |
| Supply Voltage |
DC 5V Typical |
| Operating Temperature |
-20℃ ~ +70℃ |
| Storage Temperature |
-30℃ ~ +80℃ |
| Feature |
Low power, anti-vibration, industrial wide temp, RoHS compliant |
