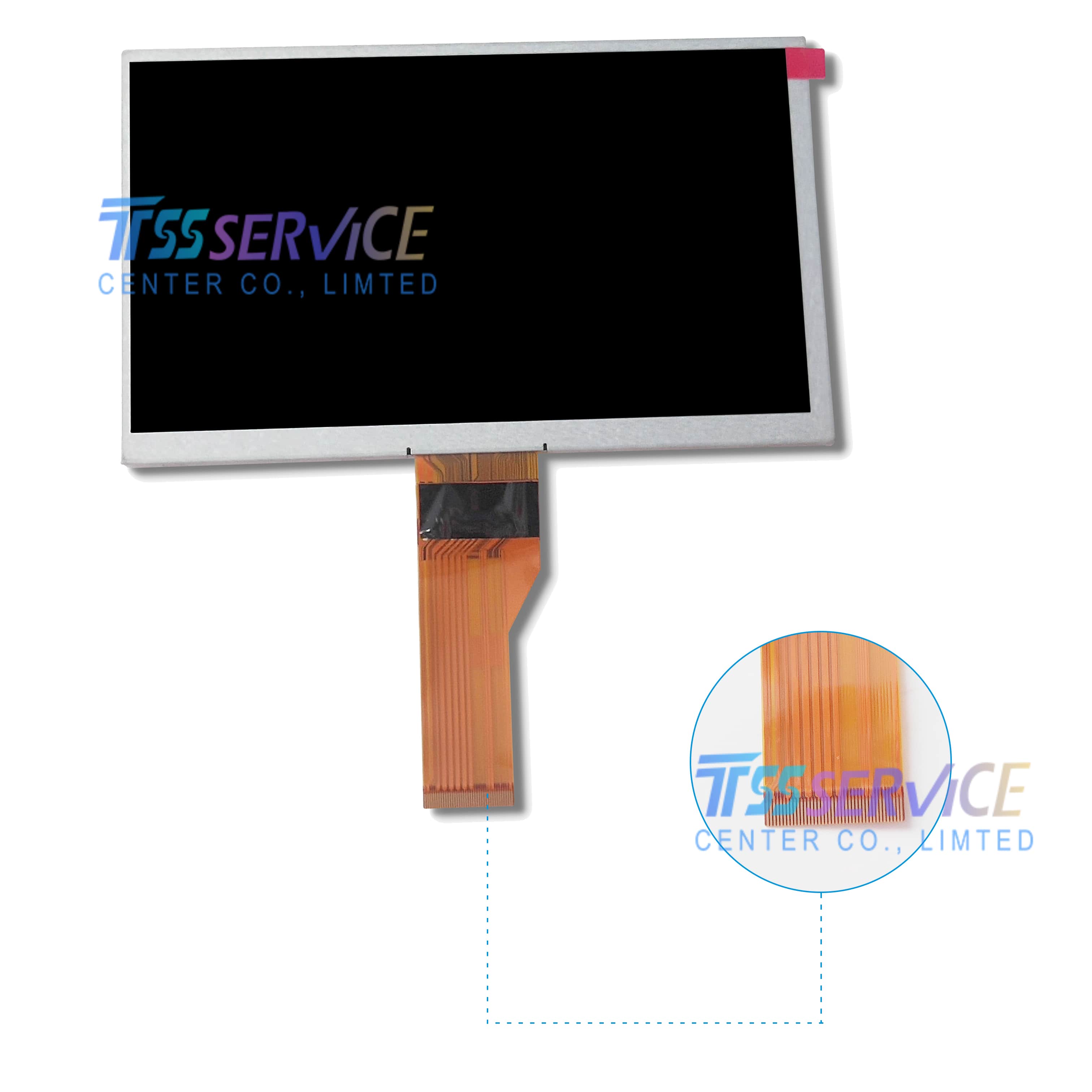

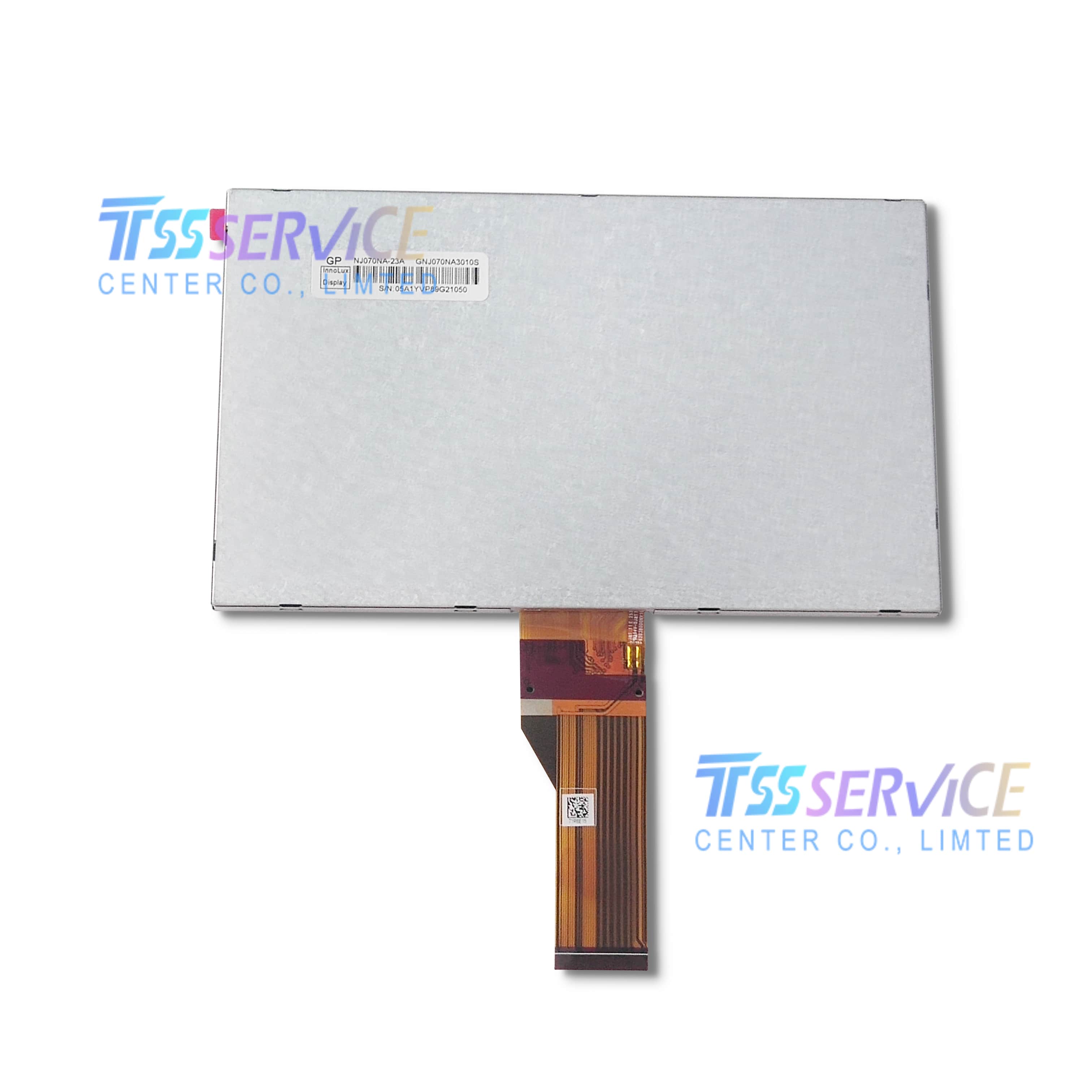

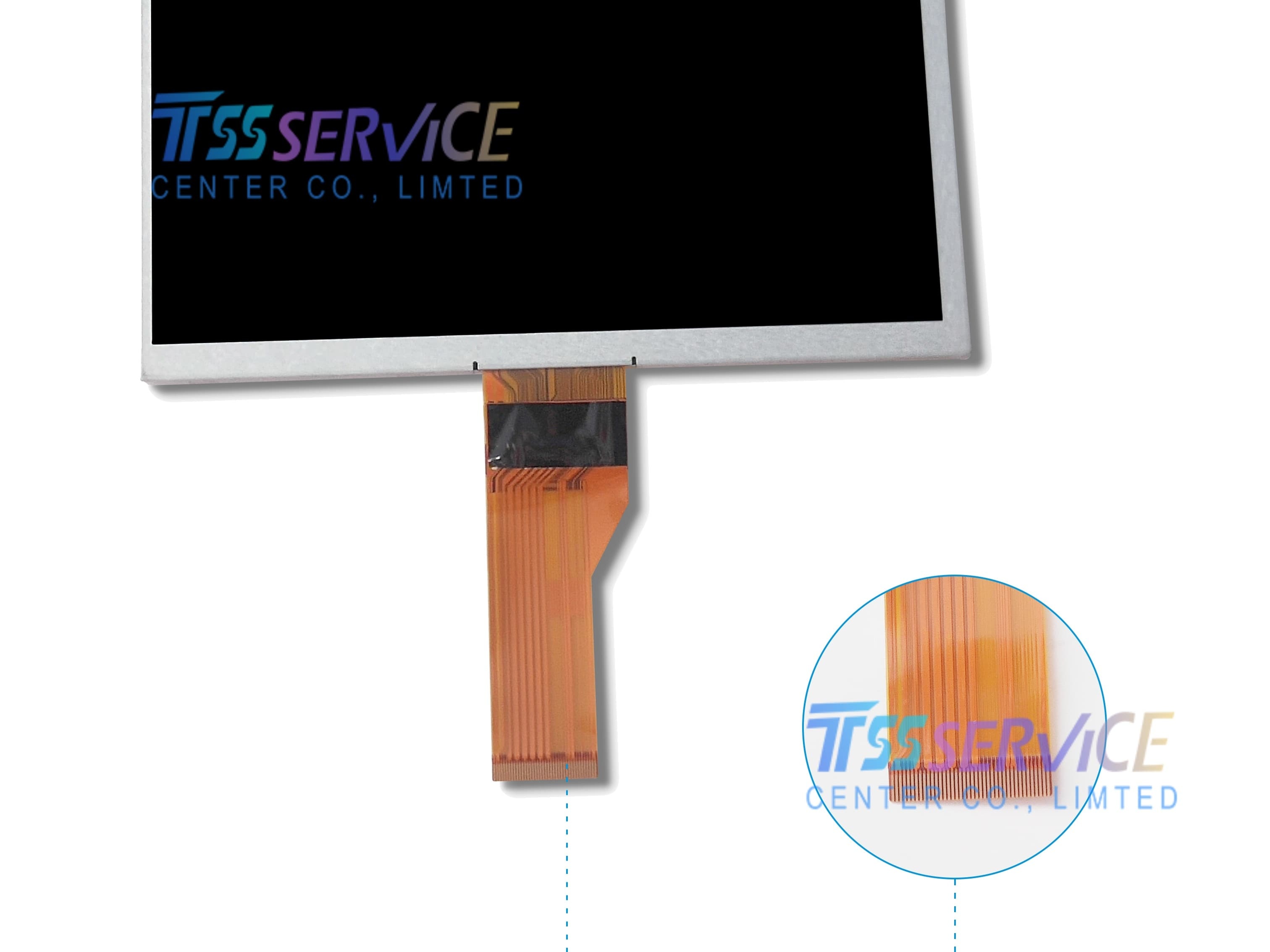

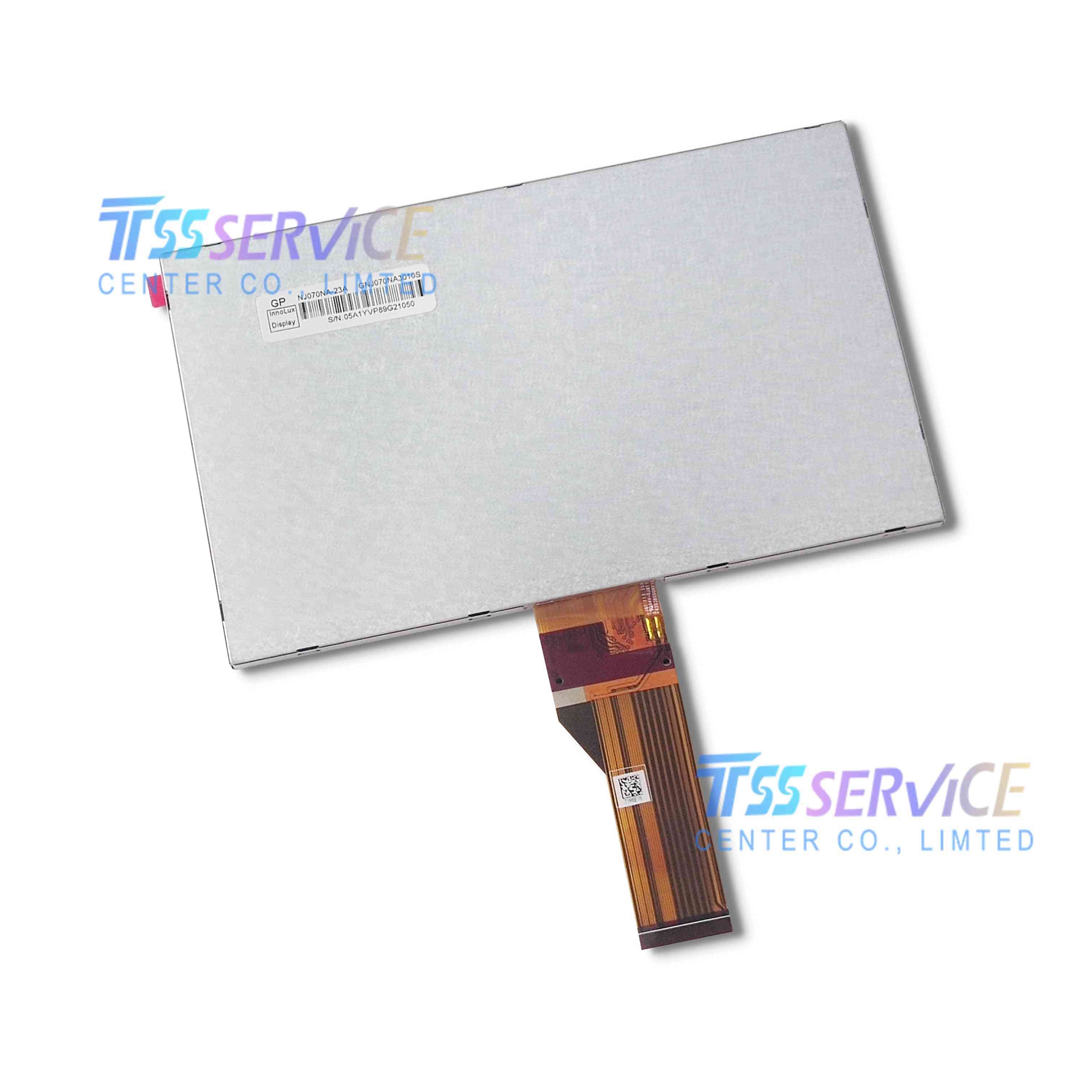

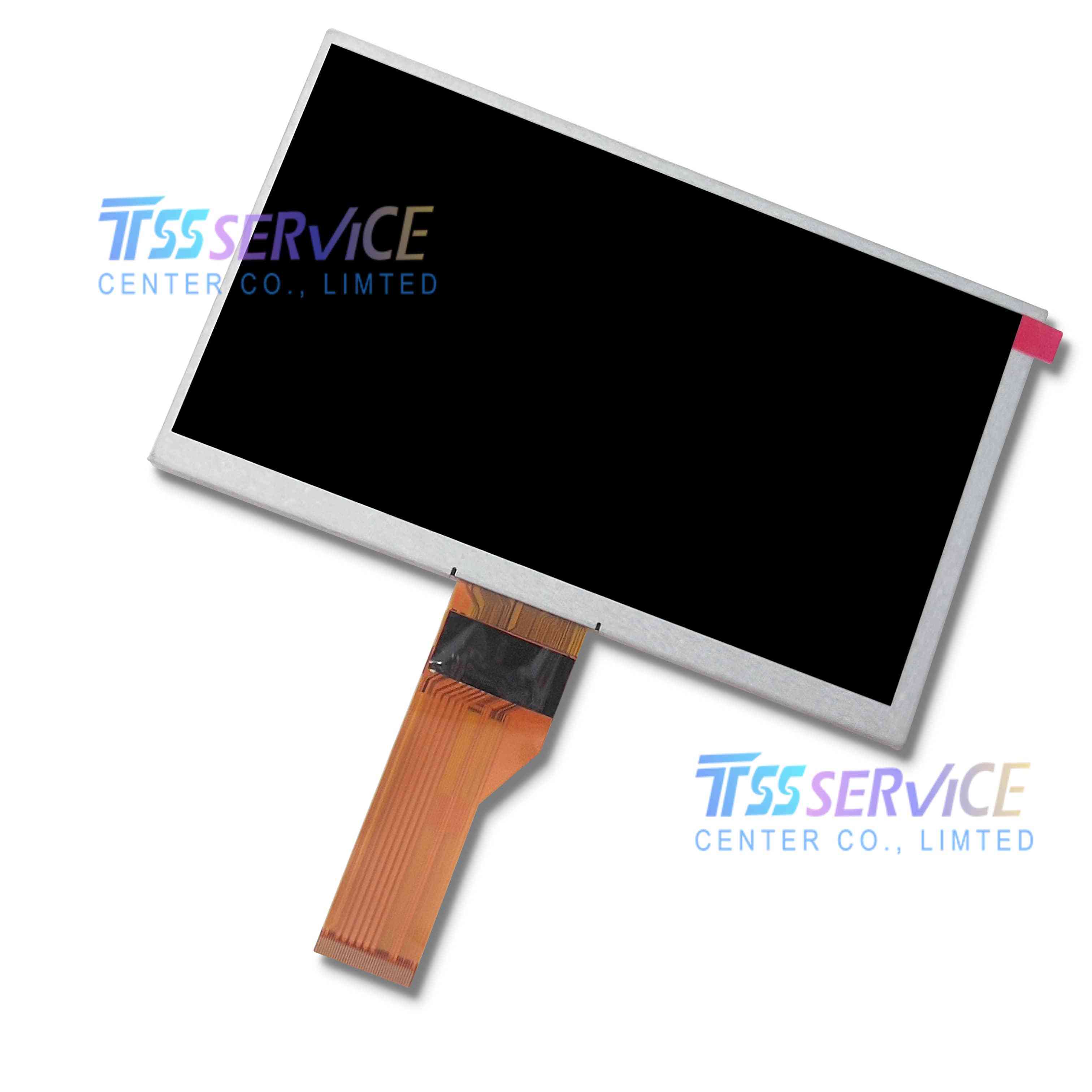

Innolux NJ070NA-23A 7 inch 1024(RGB)×600 LCD Panel Screen For Industrial

Name: Innolux NJ070NA-23A 7 inch 1024(RGB)×600 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NJ070NA-23A
Price: 42 USD
Availability: InStock

SKU: NJ070NA-23A

Model: NJ070NA-23A
Brand" Innolux
Size: 7.0 inch (diagonal)
Display Type：a‑Si TN TFT‑LCD, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$45.00~~ $42.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Innolux NJ070NA-23A 7 inch 1024(RGB)×600 LCD Panel Screen For Industrial

Parameter	Specification
Model	NJ070NA-23A
Brand	Innolux
Size	7.0 inch (diagonal)
Display Type	a‑Si TN TFT‑LCD, Normally White, Transmissive
Resolution	1024 × 600 (WSVGA, 16:9)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle	80°/80°/60°/70° (L/R/U/D, CR≥10)
Color Depth	262K / 16.7M colors
Response Time	10/15 ms (Tr/Td, Typ.)
Backlight	Edge‑type WLED, lifespan ≥20,000 hrs (no driver board)
Interface	LVDS (1 ch, 6/8‑bit), 40‑pin FPC
Supply Voltage	3.3V (logic), 12V (backlight)
Operating Temp.	−20 °C ~ +70 °C (Industrial Wide Temp)
Storage Temp.	−30 °C ~ +80 °C
Active Area	154.21 × 85.92 mm
Outline Dimensions	164.9 × 100 × 5.1 mm
Weight	Approx. 135 g
Surface Treatment	Hard coating (anti‑scratch)
Features	Industrial grade, wide temp, high brightness, compact & slim, LVDS, RoHS compliant

Applications

Industrial HMI & Control Panels
Factory automation, PLC panels, CNC machinery, industrial workstations.
Automotive & Onboard Displays
Vehicle instrumentation, rear‑seat entertainment, commercial vehicle HMIs.
Medical Equipment
Portable patient monitors, diagnostic terminals, medical handheld devices.
Embedded & Smart Devices
Industrial controllers, test & measurement instruments, smart home panels.
Kiosks & POS Terminals
Self‑service kiosks, vending machines, factory data terminals.
