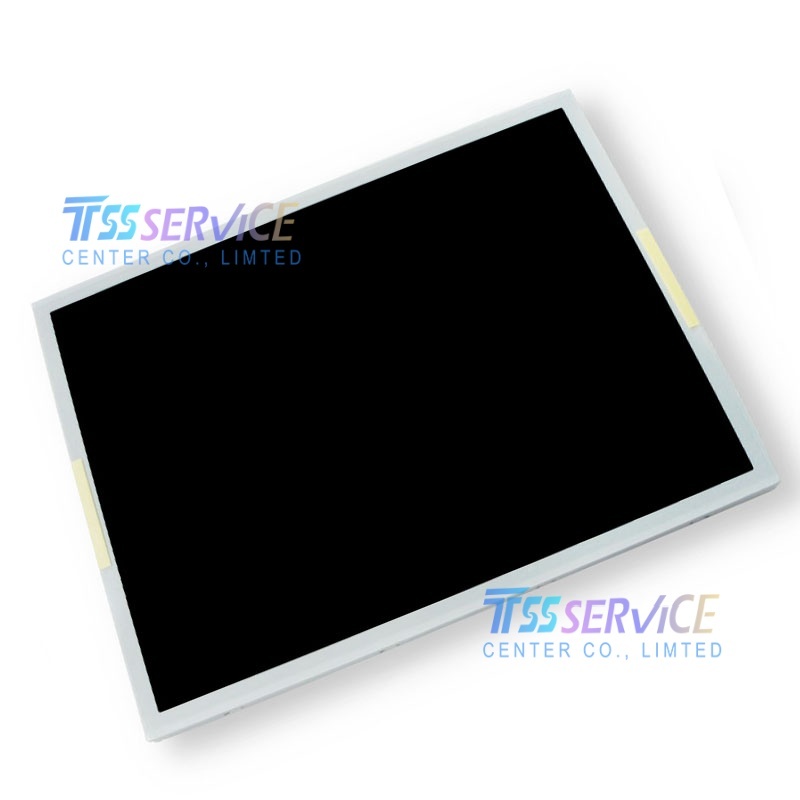

NL10276AC30-48D 15.0inch 1024×768 industrial lcd panel

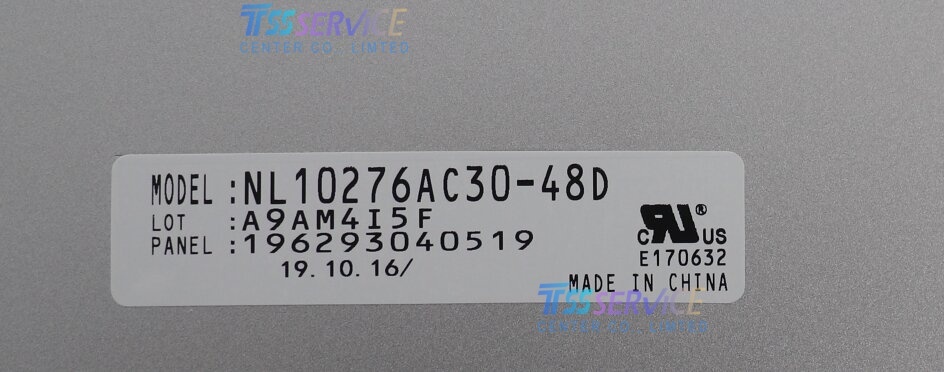

SKU: NL10276AC30-48D
Model P/N:NL10276AC30-48D
Diagonal Size:15"
Panel Type:a-Si TFT-LCD, LCM
Resolution:1024(RGB)×768, XGA  85PPI
Pixel Format:RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$190.00 $188.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • NL10276AC30-48D  15.0''  1024(RGB)×768 industrial lcd panel
  • NL10276AC30-48D  15.0''  1024(RGB)×768 industrial lcd panel
  • NL10276AC30-48D  15.0inch 1024×768 industrial lcd panel
  • NL10276AC30-48D  15.0''  1024(RGB)×768 industrial lcd panel
  • NL10276AC30-48D  15.0''  1024(RGB)×768 industrial lcd panel
  • NL10276AC30-48D  15.0inch 1024×768 industrial lcd panel
1/1
  • NL10276AC30-48D  15.0''  1024(RGB)×768 industrial lcd panel
  • NL10276AC30-48D  15.0''  1024(RGB)×768 industrial lcd panel
  • NL10276AC30-48D  15.0inch 1024×768 industrial lcd panel
  • Description

NL10276AC30-48D — 15.0" 1024×768 Industrial LCD Panel

NEC / NLT (Tianma) · a-Si TFT-LCD Module

Overview

The NL10276AC30-48D is a 15.0-inch XGA (1024×768) industrial LCD panel manufactured by NEC / NLT (now Tianma). Featuring SFT (Super Fine TFT) technology for an ultra-wide viewing angle, a long-life WLED backlight with integrated LED driver, and a wide operating temperature range, this panel is a proven, in-production solution for demanding industrial, medical and automation applications.

Key Specifications

Parameter Value
Brand NEC / NLT (Tianma)
Diagonal Size 15.0 inch (38.1 cm)
Resolution 1024(RGB) × 768, XGA
Aspect Ratio 4:3
Luminance 350 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.)
Viewing Angle 88/88/88/88 (L/R/U/D) (CR≥10)
Display Mode SFT, Normally Black, Transmissive
Response Time 14/11 ms (Tr/Td)
Display Colors 262K / 16.2M (6-bit / 6-bit+FRC)
Backlight WLED, 50,000 hrs + integrated LED Driver
Interface LVDS (1 ch, 6/8-bit), 20 pins
Supply Voltage 3.3V (Typ.)
Operating Temperature −20 ~ +70 °C
Storage Temperature −20 ~ +80 °C
Production Status In Production

Typical Applications

  • Industrial HMI & Automation — machine control panels, PLC HMIs, CNC interfaces
  • Medical & Laboratory Equipment — patient monitors, diagnostic instruments, analyzers
  • Test & Measurement — oscilloscopes, spectrum analyzers, bench instruments
  • POS, Kiosk & Self-Service — point-of-sale terminals, information kiosks, ticketing
  • Security & Monitoring — surveillance monitors, control-room displays
  • Building & Transportation — building automation, HVAC controls, marine/vehicle displays
