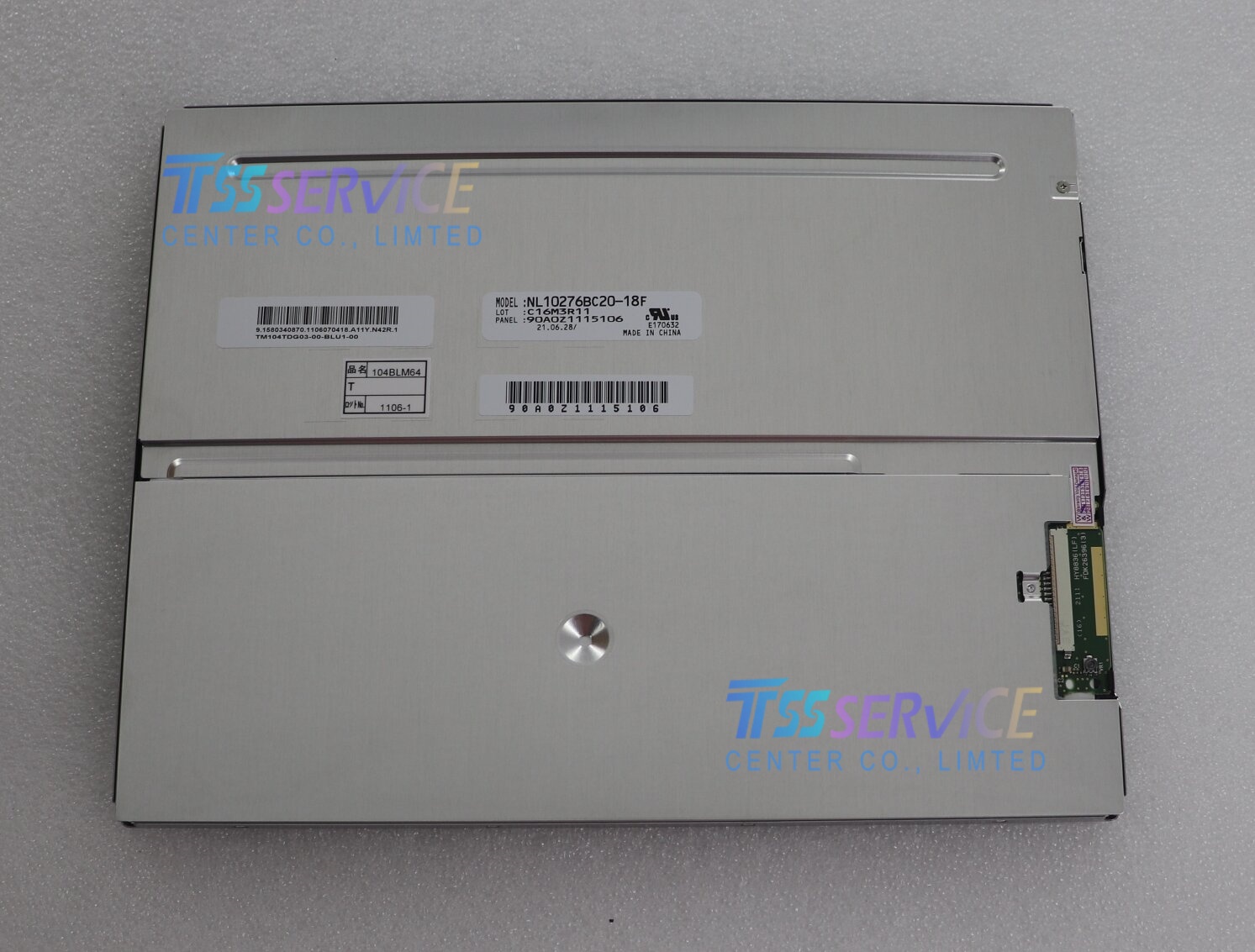

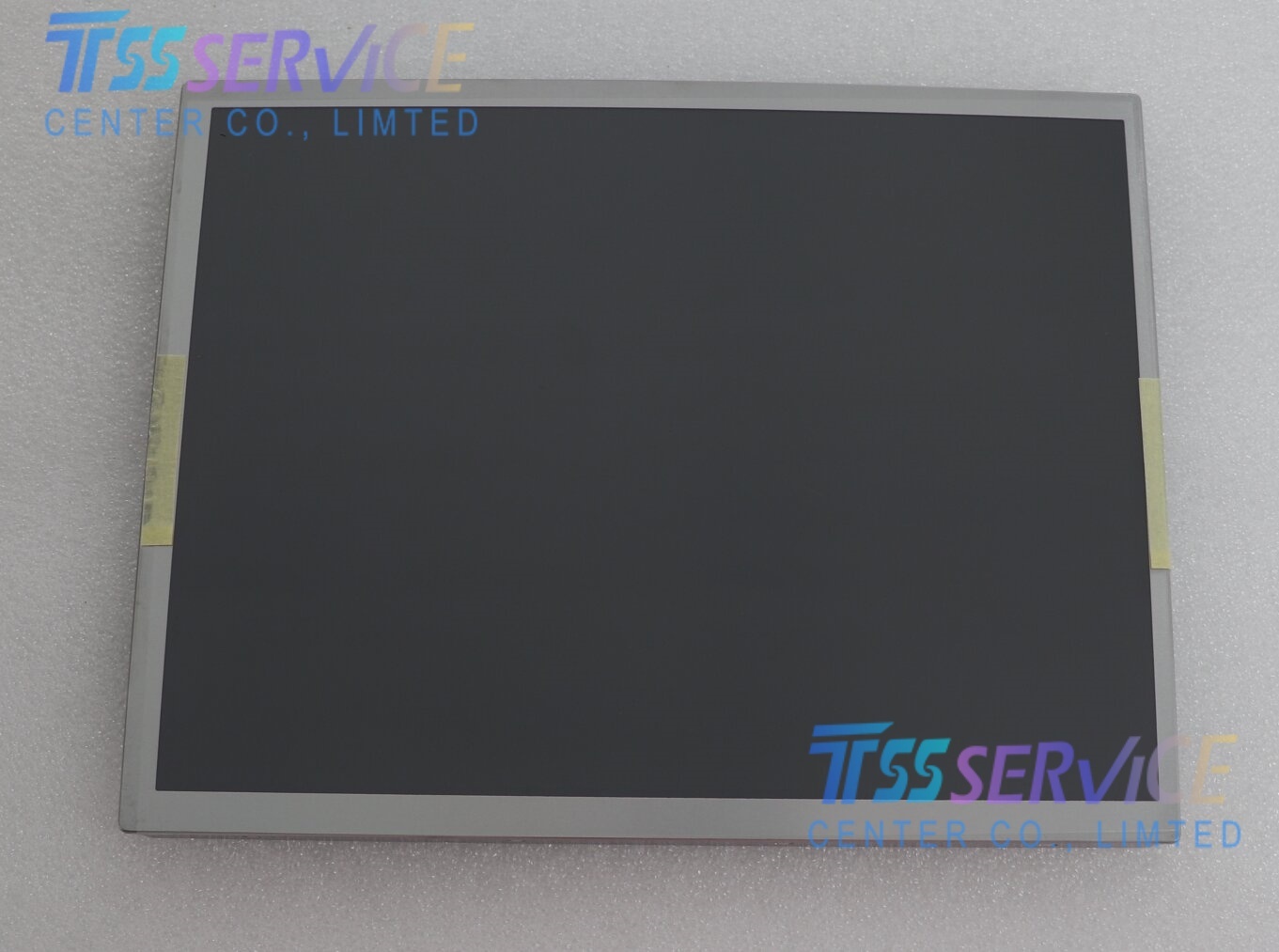

NL10276BC20-18F NEC 10.4" XGA Industrial TFT LCD Panel

Name: NL10276BC20-18F NEC 10.4" XGA Industrial TFT LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL10276BC20-18F
Price: 278 USD
Availability: InStock

SKU: NL10276BC20-18F

Model P/N：NL10276BC20-18F
Diagonal Size: 10.4"
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×768, XGA 123PPI
Pixel Format： RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$280.00~~ $278.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

NL10276BC20-18F NEC 10.4" XGA Industrial TFT LCD Panel

The NEC NL10276BC20-18F is a 10.4-inch industrial-grade a-Si TFT-LCD display module (LCM) with XGA (1024×768) resolution, developed and manufactured by NEC, a global leader in industrial display technology.

As an authorized supply partner for industrial LCD panels, TSS SERVICE CENTER CO., LIMITED provides 100% original genuine NL10276BC20-18F panels, fully compliant with NEC's factory quality standards. This panel is designed for high-reliability applications in harsh industrial environments, featuring 800 cd/m² high brightness, 900:1 high contrast ratio, an ultra-wide operating temperature range of -30°C to 80°C, and a stable LVDS signal interface. It is widely used in industrial HMI, automation equipment, medical devices, outdoor monitoring systems, and vehicle-mounted display terminals that require long-term stable operation.

Parameter Category	Detailed Specification
Basic Product Information
Model Number	NL10276BC20-18F
Original Manufacturer	NEC
Panel Type	a-Si TFT-LCD, LCM, Transmissive Type
Diagonal Screen Size	10.4 Inches
Resolution	1024 (RGB) × 768 (XGA)
Pixel Format	RGB Vertical Stripe
Pixel Density (PPI)	123 PPI
Active Display Area	210.432 (W) × 157.824 (H) mm
Optical Characteristics
Typical Brightness	800 cd/m²
Typical Contrast Ratio	900:1 (TM)
Viewing Angle (Typ., CR≥10)	80° (Left) / 80° (Right) / 80° (Up) / 80° (Down)
Display Color	262K/16.7M (6-bit/8-bit LVDS)
Backlight System
Backlight Type	WLED (White LED), 5 strings in series
Backlight Lifetime (Typ.)	≥50,000 hours
Electrical & Interface Specifications
Signal Interface	LVDS (1 Channel, 6/8-bit), 20-pin Connector
Input Voltage	Standard industrial voltage (refer to official datasheet)
Environmental & Reliability
Operating Temperature Range	-30°C ~ 80°C
Storage Temperature Range	-40°C ~ 90°C
RoHS Compliance	Yes
Vibration Resistance	Compliant with global industrial reliability standards

The NL10276BC20-18F is a classic industrial LCD panel with proven long-term stability in harsh environments, and its core advantages are fully adapted to the stringent requirements of industrial applications:

Ultra-Wide Operating Temperature for Extreme EnvironmentsWith an operating temperature range of -30°C to 80°C, this panel maintains stable display performance in extreme cold and high-temperature environments, making it ideal for outdoor industrial equipment, vehicle-mounted terminals, and factory floor automation systems facing large temperature fluctuations.
High Brightness for Clear Display in Strong LightThe 800 cd/m² typical brightness is 2-3 times higher than consumer-grade displays, ensuring clear and readable content even in direct sunlight or high-brightness industrial workshops, solving the problem of screen glare and blurred display in strong light environments.
Industrial-Grade Long-Term ReliabilityEquipped with a high-life WLED backlight system with a typical lifespan of over 50,000 hours, it supports 7×24-hour uninterrupted operation, fully suitable for industrial equipment, security monitoring, and medical devices that require long-term non-stop operation.

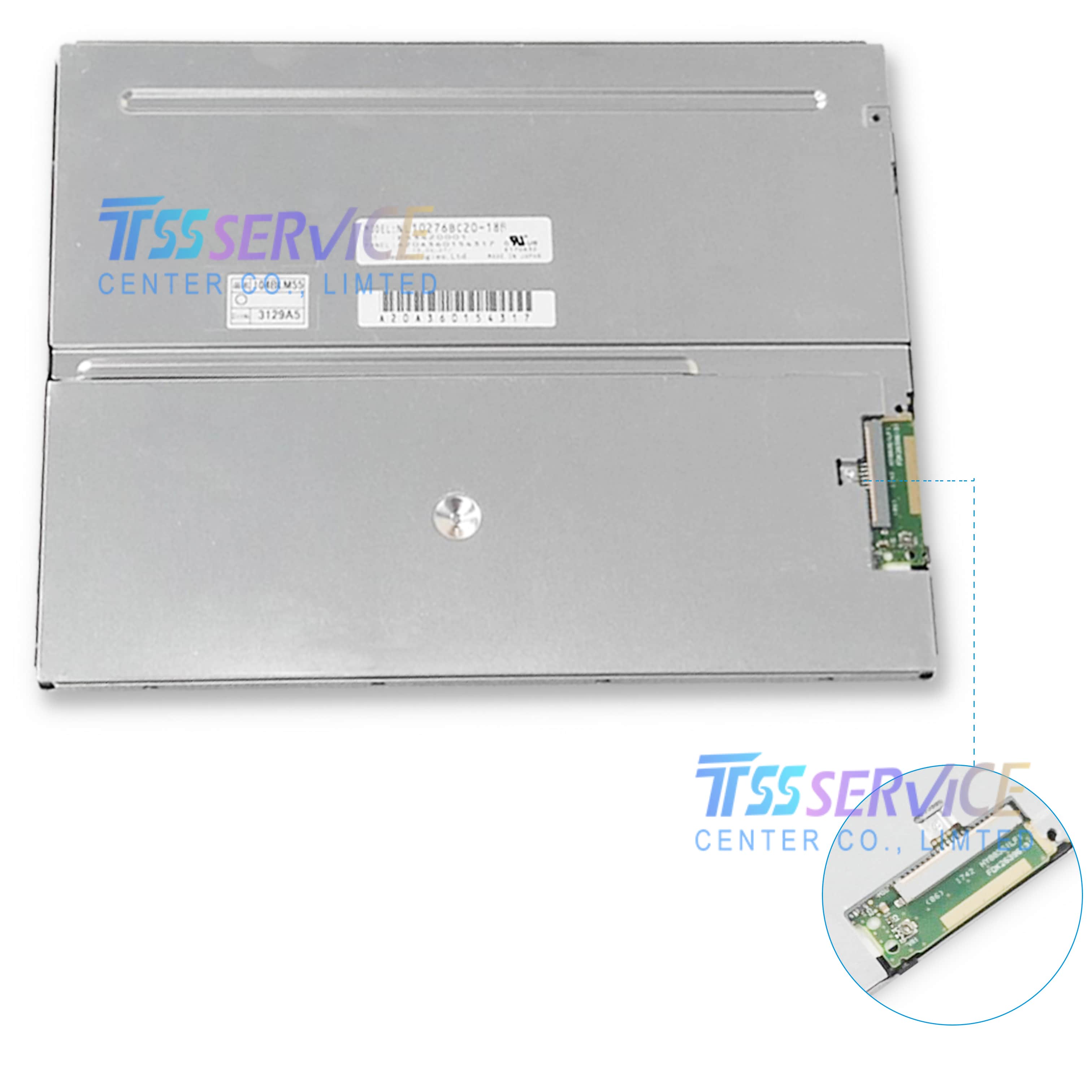

Stable LVDS Signal Interface & Wide CompatibilityThe 1-channel 6/8-bit LVDS interface with a 20-pin connector has strong anti-interference capability, ensuring stable signal transmission in complex industrial electromagnetic environments. It is compatible with most mainstream industrial control motherboards and drive boards on the market, reducing customer integration difficulty.
Full Industrial Compliance CertificationThis panel is RoHS compliant, meets global industrial environmental protection standards, and has passed strict vibration and shock reliability tests, fully adapting to the compliance requirements of global industrial equipment exports.

The NEC NL10276BC20-18F industrial LCD panel is widely used in fields requiring high-reliability display:

Industrial Automation & HMI (Human-Machine Interface)
CNC Machine Tools & Industrial Control Equipment
Medical Diagnostic Devices & Portable Medical Equipment
Outdoor Security Monitoring & Surveillance Systems
Vehicle-Mounted Display Terminals (Construction Machinery, Agricultural Machinery)
Smart Grid & Power Distribution Equipment
Marine & Shipboard Display Systems
Self-Service Kiosks & Vending Machines
