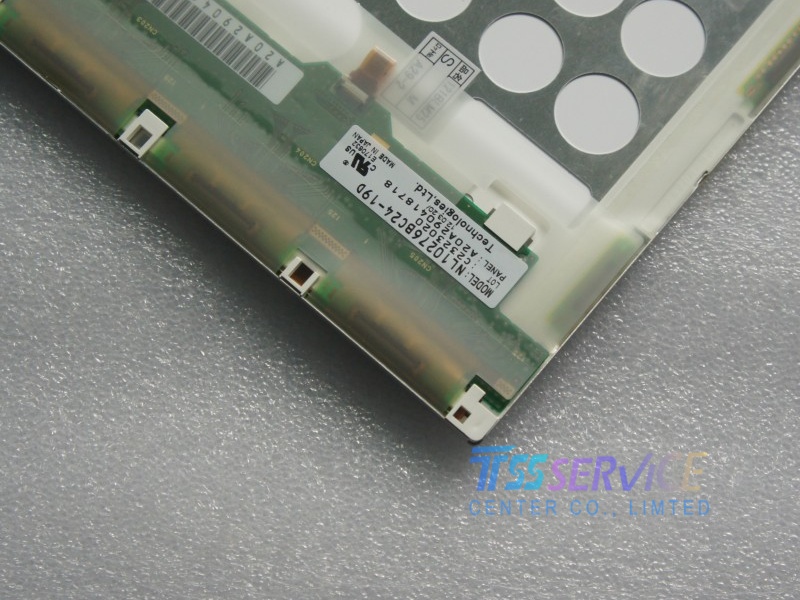

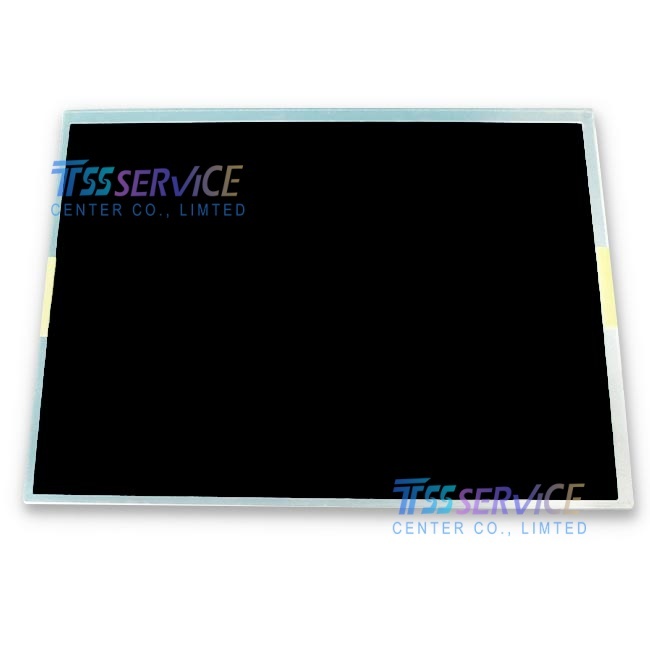

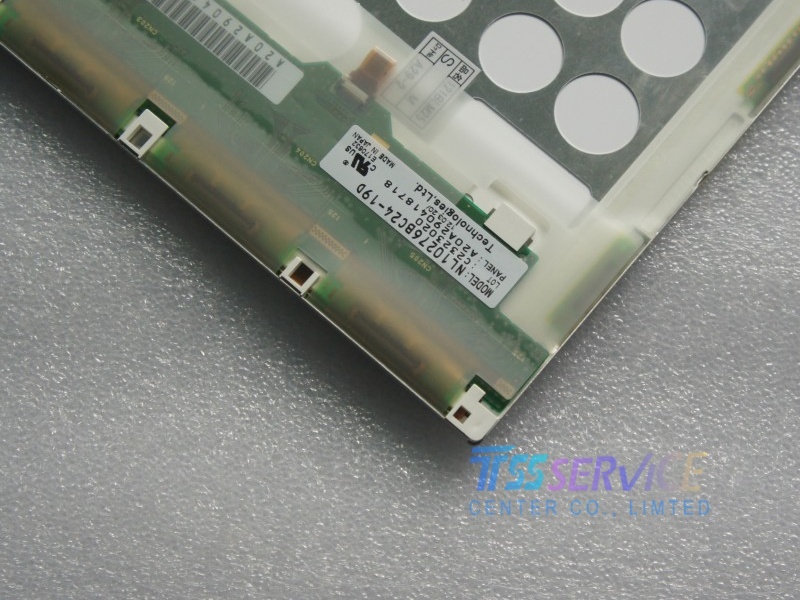

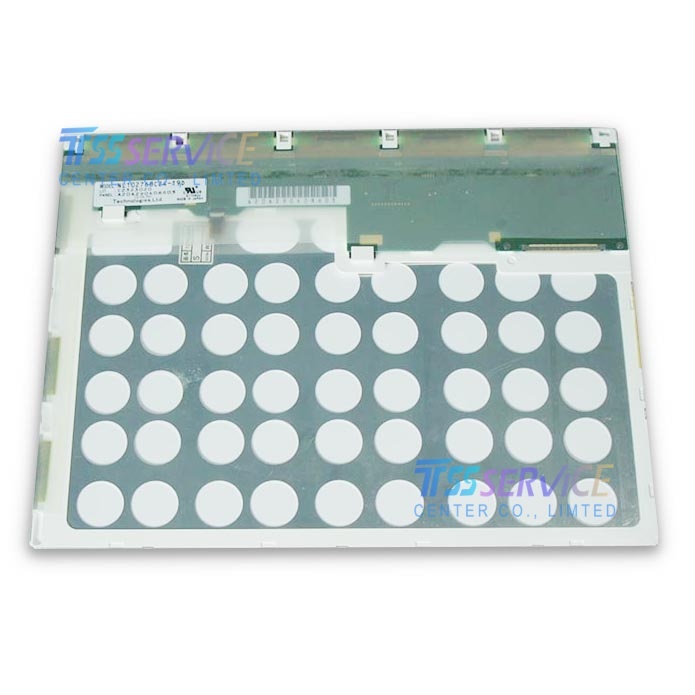

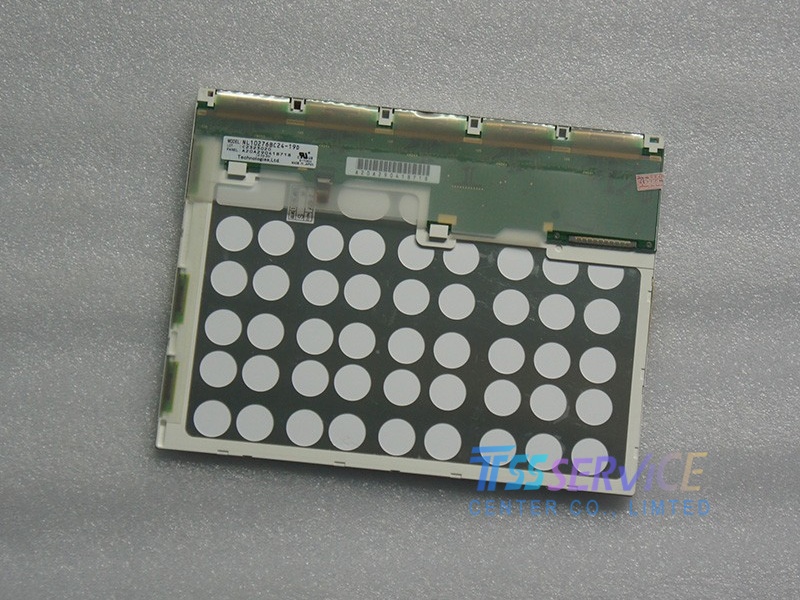

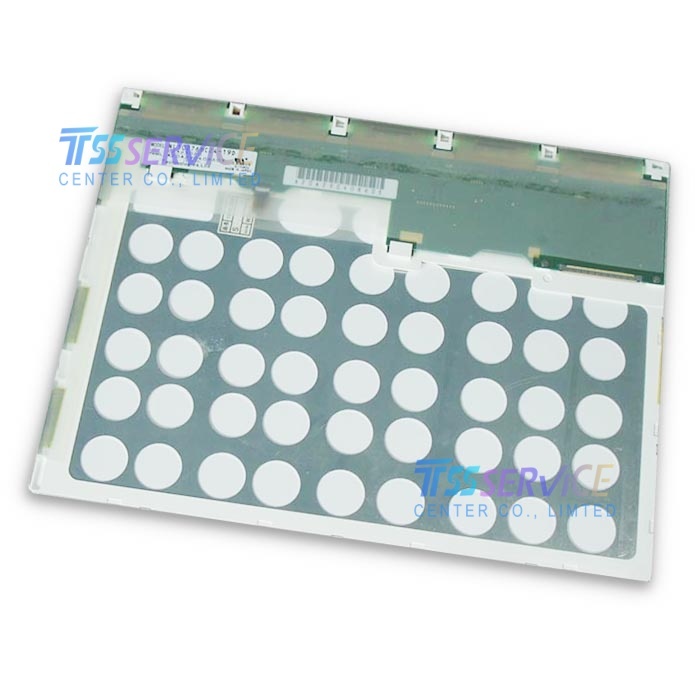

NL10276BC24-19D 12.1" 1024*768 industrial lcd panel

Name: NL10276BC24-19D 12.1" 1024*768 industrial lcd panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL10276BC24-19D
Price: 170 USD
Availability: InStock

SKU: NL10276BC24-19D

Model P/N: NL10276BC24-19D
Diagonal Size: 12.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1024(RGB)×768, XGA 105PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$175.00~~ $170.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The NL10276BC24-19D is a high-performance 12.1-inch TFT-LCD module engineered specifically for demanding industrial and professional applications. Manufactured by a leading display supplier (commonly associated with brands like NEC, Sharp, or their industrial line), this panel is built to the robust XGA (1024 x 768) standard, offering a balance of high resolution, reliability, and long-term availability crucial for industrial systems.

Its core strength lies in its industrial-grade specifications, including a wide operating temperature range, high brightness, and a rugged design, making it suitable for environments where commercial-grade displays would fail.

Feature Category	Specification	Details / Significance
Basic Information	Model	NL10276BC24-19D
	Display Type	a-Si TFT LCD
	Screen Size (Diagonal)	12.1 inches
Display Performance	Resolution	1024 (H) × 768 (V) pixels
	Aspect Ratio	4:3 (Standard XGA)
	Active Area (W×H)	245.76(W)×184.32(H) mm
	Color Depth	262K 40% NTSC
	Brightness (Typ.)	650 cd/m² (Typ.)
	Contrast Ratio (Typ.)	600:1 (Minimum)
	Viewing Angle (CR≥10)	70/70/60/60 (Typ.)(CR≥10)
	Response Time	6/19 (Typ.)(Tr/Td) ms
Interface & Power	Signal Interface	LVDS (1 ch, 6-bit) , 30 pins Connector
	Power Supply (VCC)	3.3V or 5.0V (Must verify with exact datasheet)
	Backlight Type	WLED
	Surface Treatment	Anti-Glare (Hard Coating, 3H+)
	Operating Temperature	-20°C ~ +70°C (Extended industrial range)
	Storage Temperature	-30°C ~ +80°C
Key Applications	Target Markets	Factory Automation HMIs, Medical Imaging Displays, Test & Measurement Equipment, Transportation Systems, Ruggedized Computers, Military and Aerospace Interfaces.

FAQ

Q: How long will I receive my goods ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX

Q:Can you give me a discount if I need a large quantity of ?

A:Of course!If you make a large order, we will give you a discount.

Q:Can I pay my order via credit card ?

A:Yes!you can use your credit card through your Paypal account.

Q: May I ask what kind of packaging you use?

A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.

Q: Do you conduct tests before shipment?

A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
