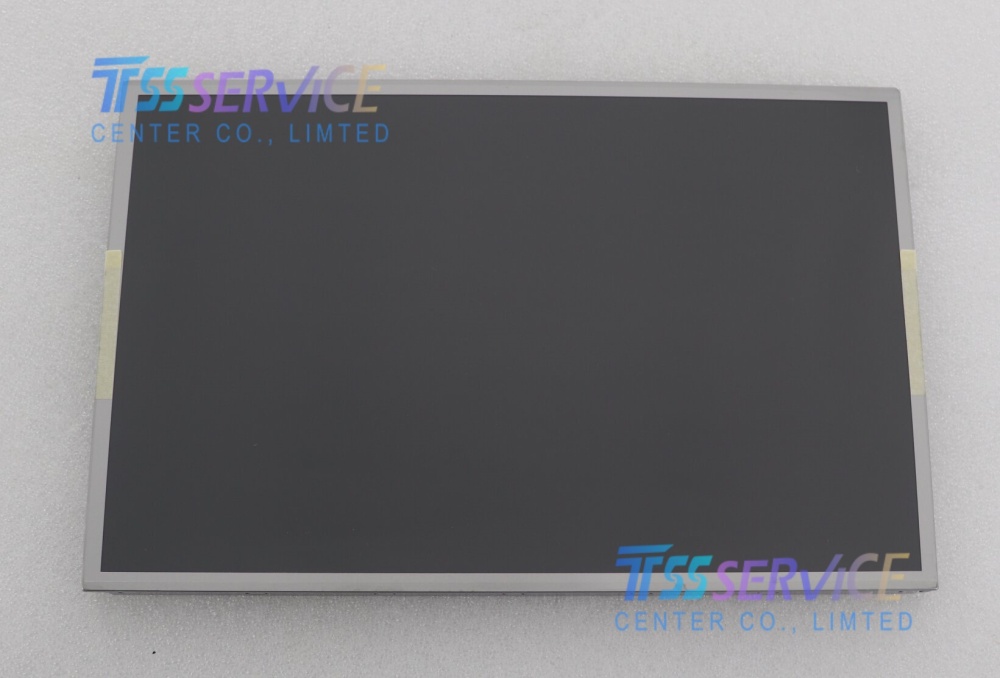

NL12880AC20-14D 12.1inch 1280×800 a-Si TFT-LCD Display Panel

Name: NL12880AC20-14D 12.1inch 1280×800 a-Si TFT-LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL12880AC20-14D
Price: 185 USD
Availability: InStock

SKU: NL12880AC20-14D

1，Condition: New，Grade A

2，Description: NL12880AC20-14D 12.1 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$188.00~~ $185.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

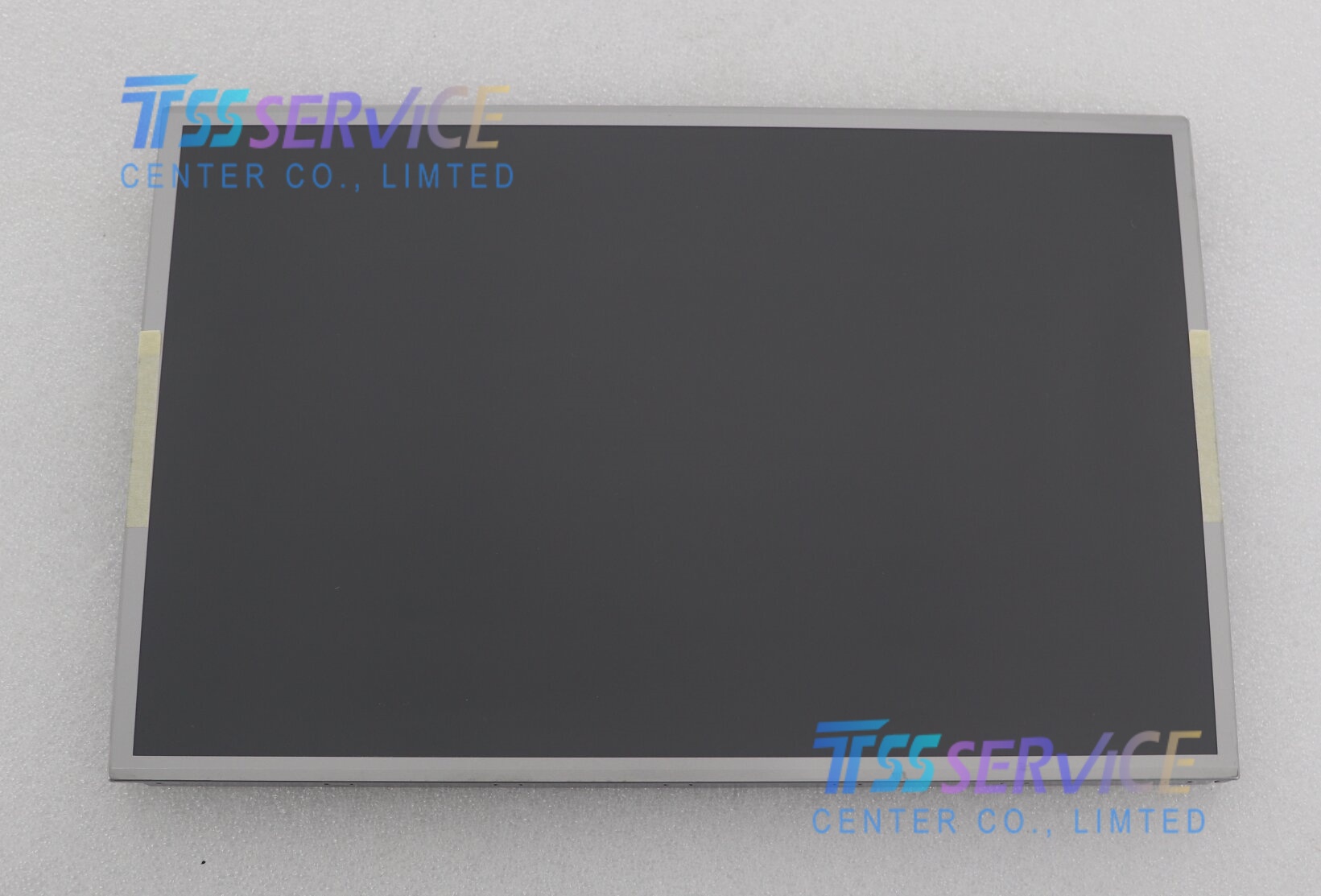

The NL12880AC20-14D is a high-performance 12.1-inch a-Si TFT-LCD (amorphous Silicon Thin-Film Transistor Liquid Crystal Display) module from NLT Technologies. Designed for industrial and embedded applications, this panel delivers reliable operation and excellent image quality across a wide range of environmental conditions.

Parameter	Value
Mfr.	NLT

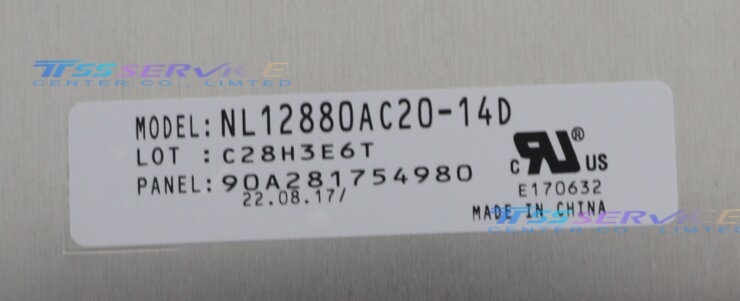

Model Name	NL12880AC20-14D
Display Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA, 16:10
Dot Layout	RGB Vertical Stripe
Display Area	261.12(W)×163.2(H) mm
Panel Weight	470/500g (Typ./Max.)
Outline Size	277.7(W)×180.6(H)×9.2(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	450 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
View Direction	6 o'clock
Response Time	3/12 (Typ.)(Tr/Td) ms
Display Colors	262K/16.7M, 40% NTSC
Touch Screen	Without
Power Usage	5.6W (Typ.)
Light Source	WLED, 100K hrs, With LED Driver
Frequency	60Hz

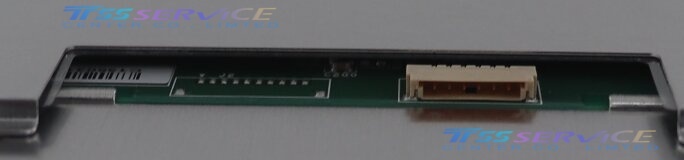

Interface	LVDS (1 ch, 6/8-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Operating Temp.	-30 ~ 80 °C
Storage Temp.	-30 ~ 80 °C
Vibration	2.0G (19.6 m/s²)

Applications

Ideal for industrial control systems, medical equipment, transportation displays, outdoor terminals, and other harsh-environment applications requiring a rugged, wide-temperature, and long-life display solution.
