Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..

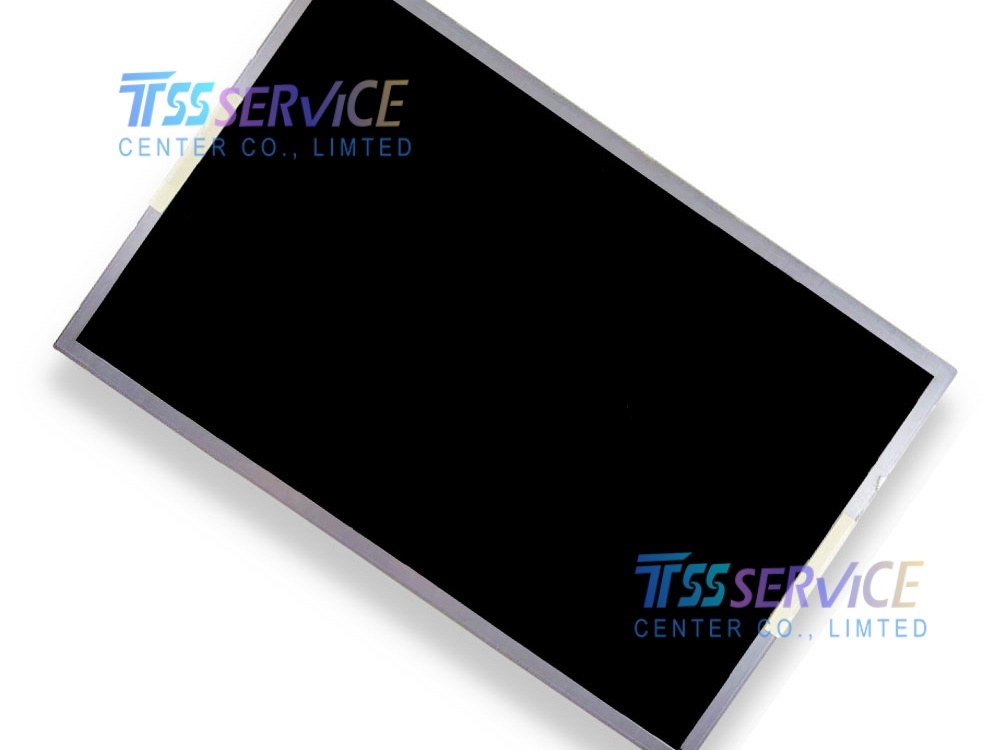

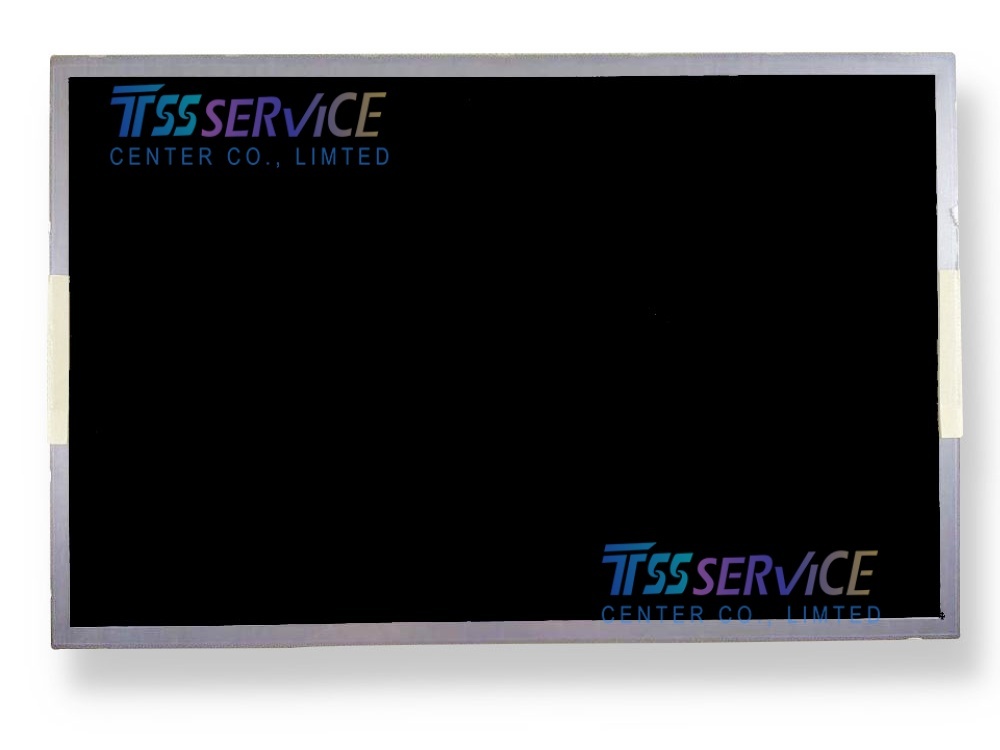

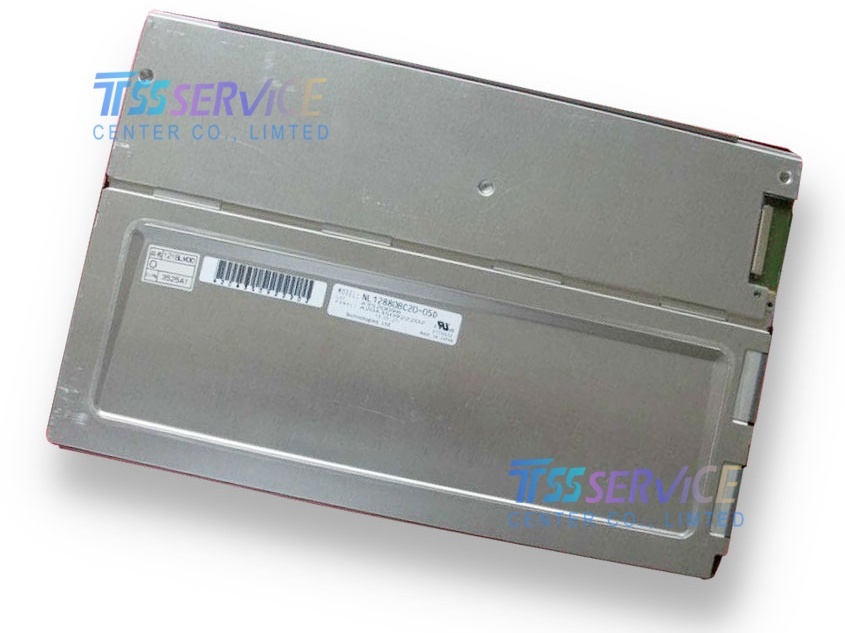

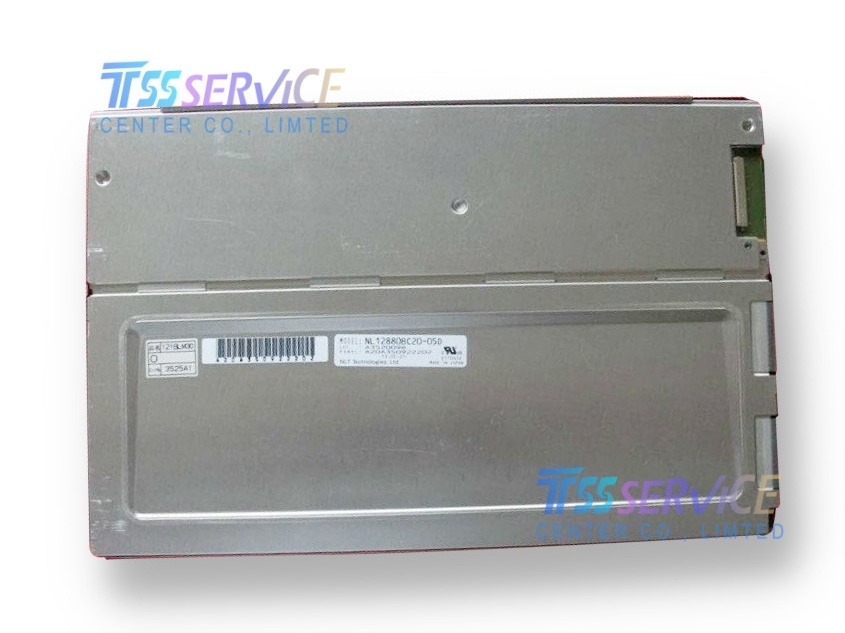

| Brand | NEC |
| Model P/N | NL12880BC20-05D |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 264.1(W)×166.2(H) mm |
| Outline Size | 277.7(W)×180.6(H)×9.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | UA-SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 40% NTSC |
| Lamp Type | 4 strings WLED, 70K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 460/490g (Typ./Max.) |
| Application | Industrial Control HMI, Medical Equipment, Embedded Terminals, Test & Measurement Instruments |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
Q: What if the product doesn't work ?
A: Please test the product as soon as you receive it. If it does not work, take clear photos and videos of the issue and contact us immediately. We will then provide technical support or arrange a return or exchange.
