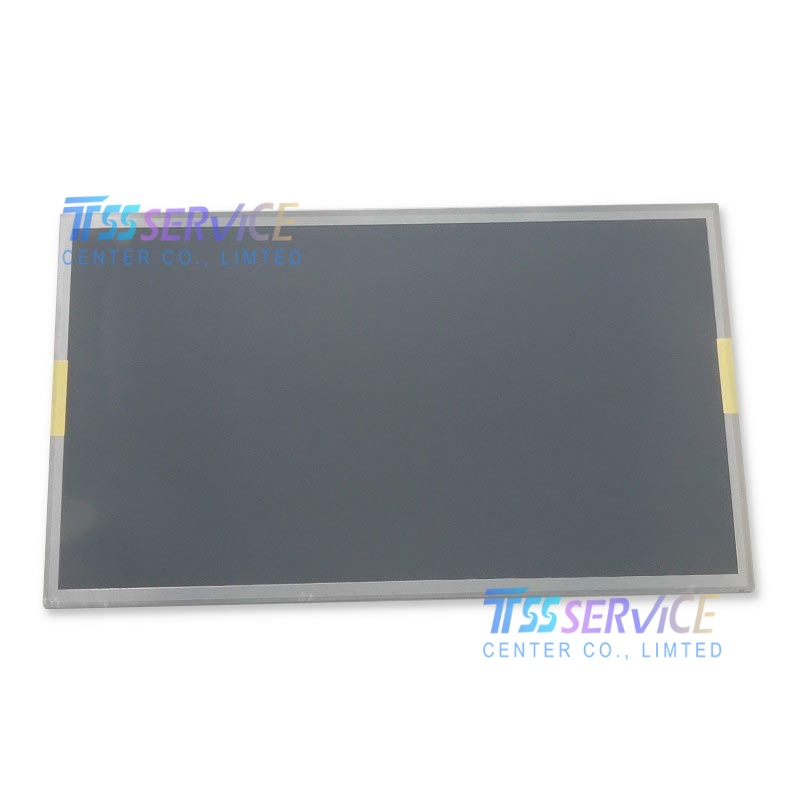

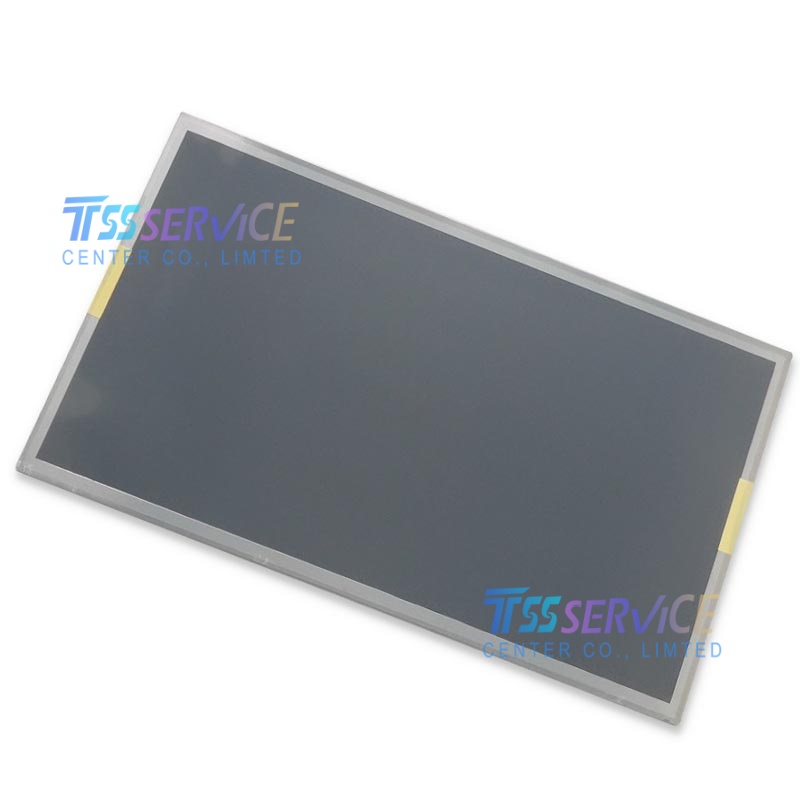

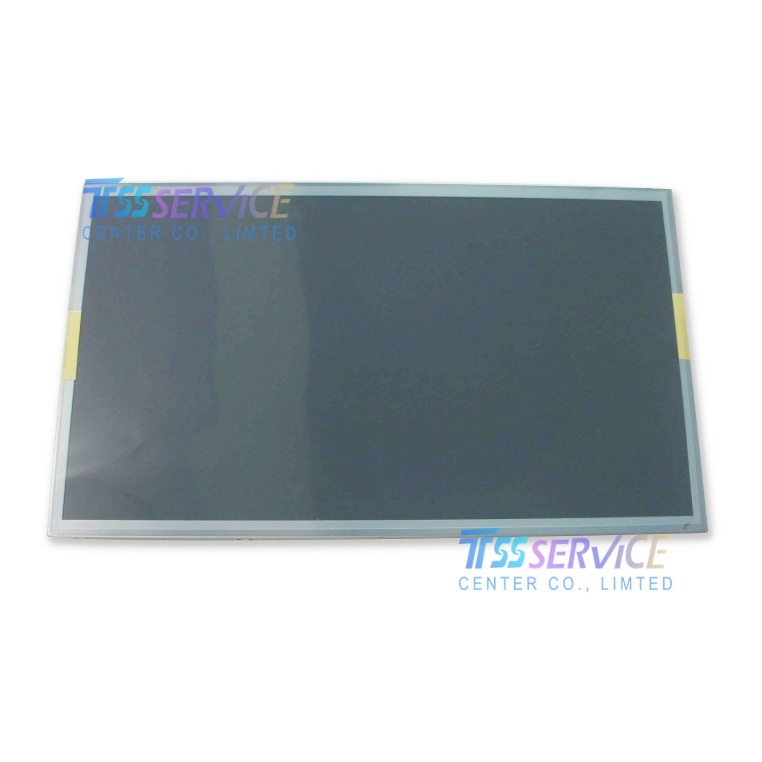

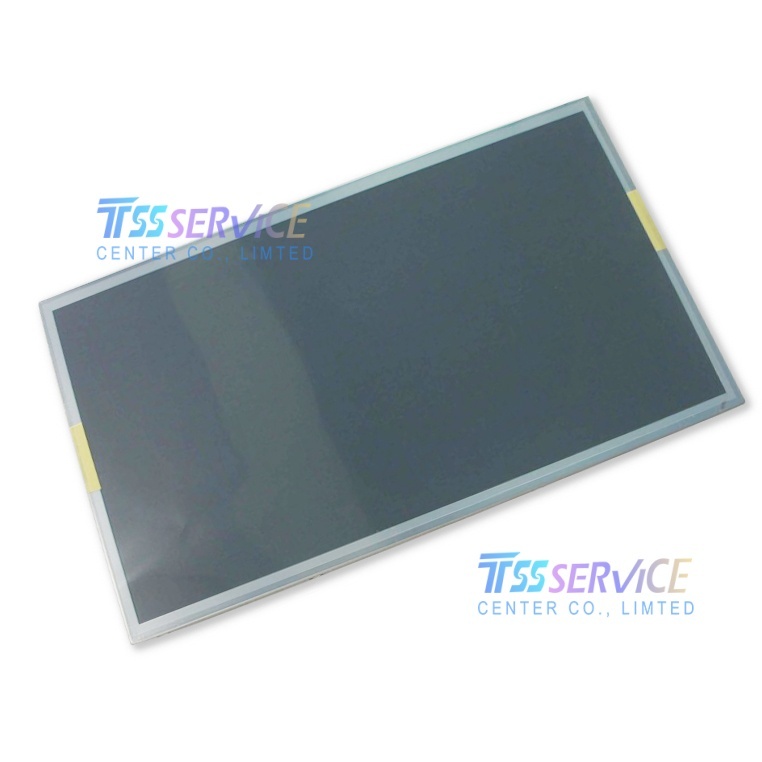

Tianma NL192108JC21-07ND 18.5 inch LCD Display Screen For Industrial

Name: Tianma NL192108JC21-07ND 18.5 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL192108JC21-07ND
Price: 400 USD
Availability: InStock

SKU: NL192108JC21-07ND

Model P/N: NL192108JC21-07ND
Diagonal Size: 18.5"
Panel Type: a-Si TFT-LCD, Assembly
Resolution: 1920(RGB)×1080, FHD 119PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$405.00~~ $400.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Tianma NL192108JC21-07ND 18.5 inch LCD Display Screen For Industrial

Parameter	Specification
Manufacturer	Tianma Microelectronics
Panel Type	a-Si TFT-LCD, Transmissive, Normally Black
Diagonal Size	18.5 inches (396.24 mm)
Resolution	1920 (H) × 1080 (V) pixels (FHD, 16:9 Aspect Ratio)
Pixel Format	RGB Vertical Stripe, 8-bit per channel (16.7M colors)
Pixel Pitch	0.17925 × 0.17925 mm (141 PPI)
Active Area	408.96(W)×230.04(H) mm
Outline Dimensions	455.8(H)×283.4(V)×18.35(D) mm
Surface Treatment	Antiglare, Hard coating (3H min.)
Brightness	380 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical, Transmissive)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Response Time	Tr/Td (Typical)
Color Gamut	72% NTSC (Typical)
Backlight	WLED (White LED), Edge-lit, Built-in LED Driver
Backlight Lifetime	50,000 hours (Typical)
Interface	LVDS (2 channels, 8-bit), 30-pin Connector
Supply Voltage	5.0 V (Typical)
Refresh Rate	60 Hz
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Weight	Approx. 1,050 g (Typical)
Touch Panel	None
RoHS Compliance	Yes

Industrial Control & Factory Automation

HMI & Operator Panels: Integrated into industrial control systems, PLC interfaces, and machine operation consoles for real-time monitoring of production lines, equipment status, and process parameters.
Industrial PCs & Workstations: Used in industrial computers and dedicated workstations for factory automation, data acquisition, and industrial software operation.
Factory Monitoring & Control Rooms: Deployed in control centers for multi-screen monitoring of manufacturing processes, safety systems, and energy management.

Medical & Healthcare Equipment

Medical Device Interfaces: Applied in non-critical medical equipment such as patient monitors, diagnostic devices, and laboratory analyzers, providing stable color reproduction and reliable performance.
Medical Imaging Displays: Suitable for medical imaging equipment interfaces, offering clear image details and consistent color performance for clinical environments.

Transportation & Automotive

In-Vehicle Displays: Used in commercial vehicles, buses, and trains for navigation systems, passenger information displays, and on-board monitoring.
Traffic Control & Logistics Terminals: Deployed in traffic management centers, logistics hubs, and port operations for real-time data visualization and control.

Retail & Commercial Displays

POS & Self-Service Kiosks: Integrated into point-of-sale systems, self-checkout machines, and information kiosks in retail stores, airports, and stations.
Digital Signage & Information Displays: Used in shopping malls, banks, and public buildings for advertising, product promotion, and public information release.

Professional AV & Office Equipment

Desktop Monitors: Suitable for office desktop displays, especially in multi-monitor setups for office automation and data processing.
Security Monitoring Displays: Applied in security control rooms for CCTV monitoring and video wall displays.

Industrial & Outdoor Terminals

Industrial Control Terminals: Used in outdoor industrial control terminals, construction equipment displays, and agricultural machinery interfaces, withstanding harsh environmental conditions.
Marine & Outdoor Displays: Suitable for marine navigation systems and outdoor equipment, providing stable performance in variable temperature and lighting conditions.
