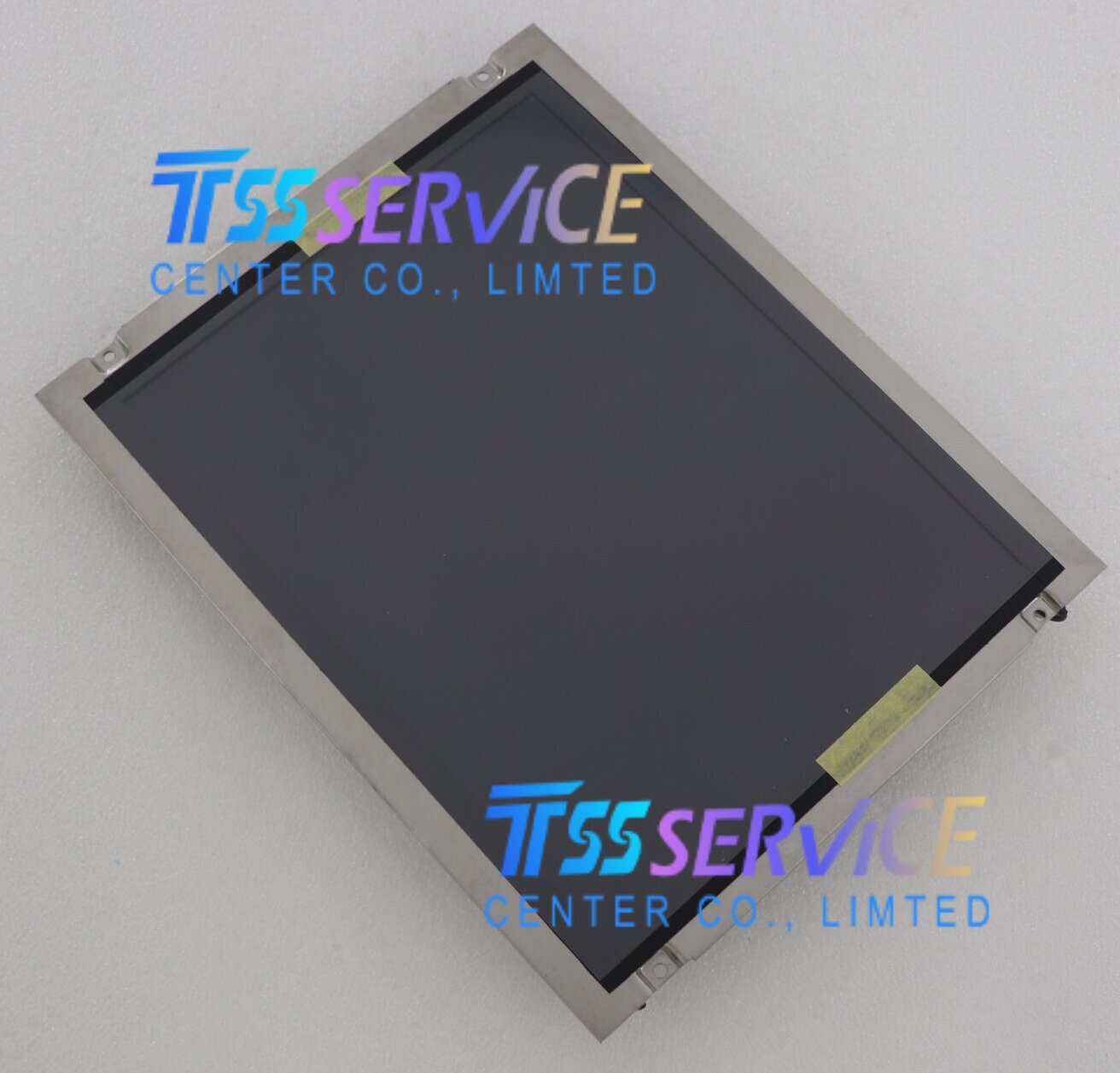

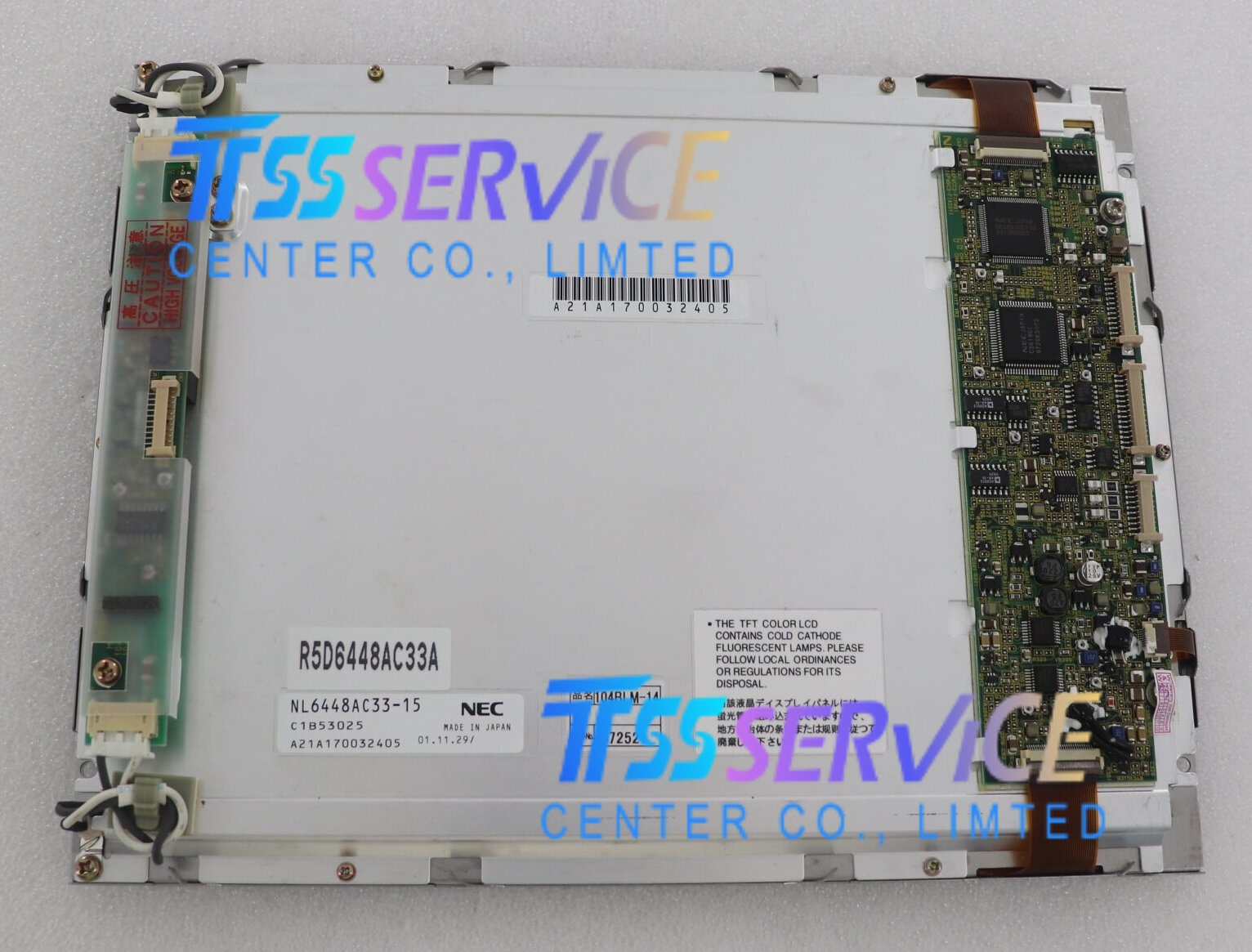

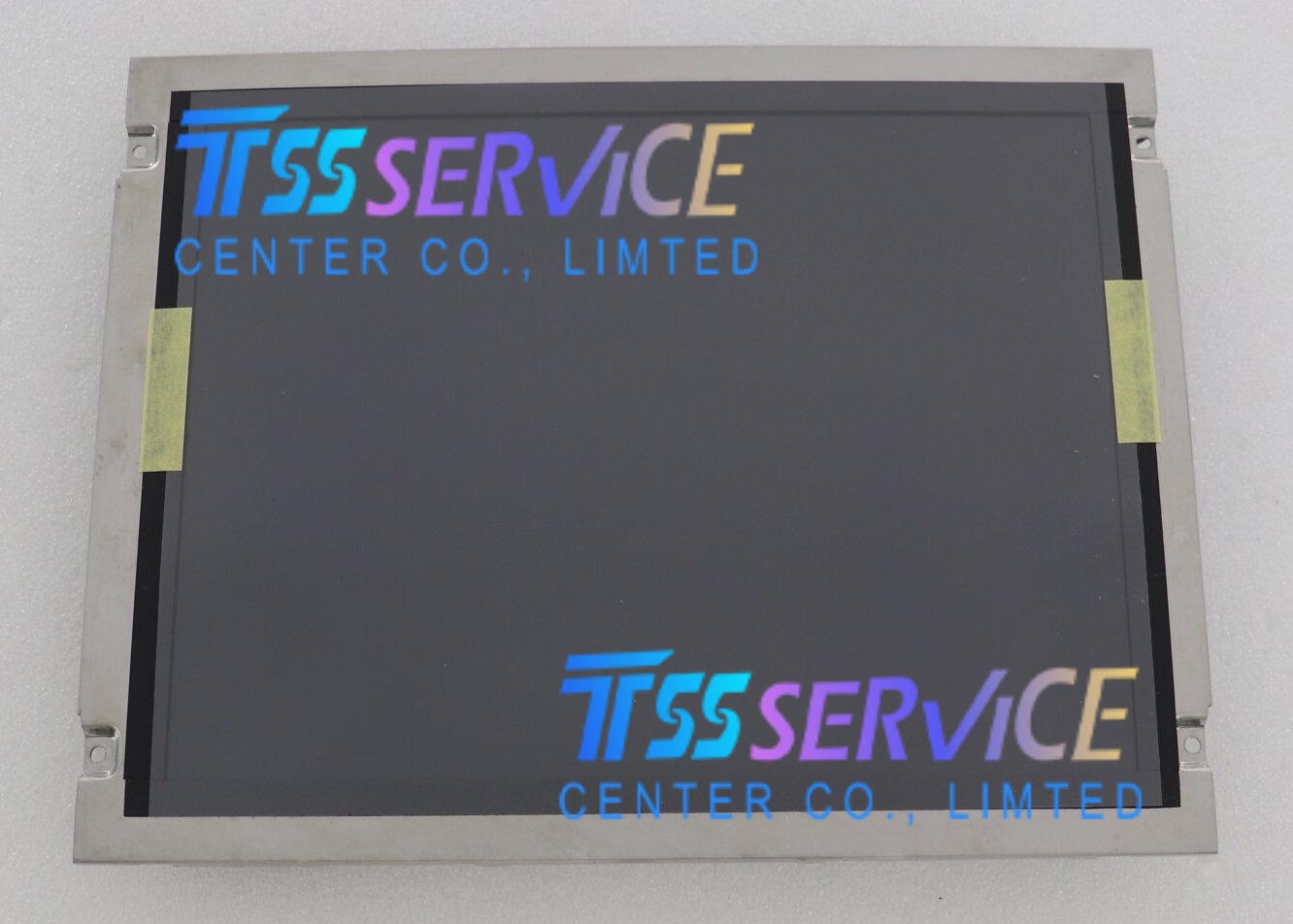

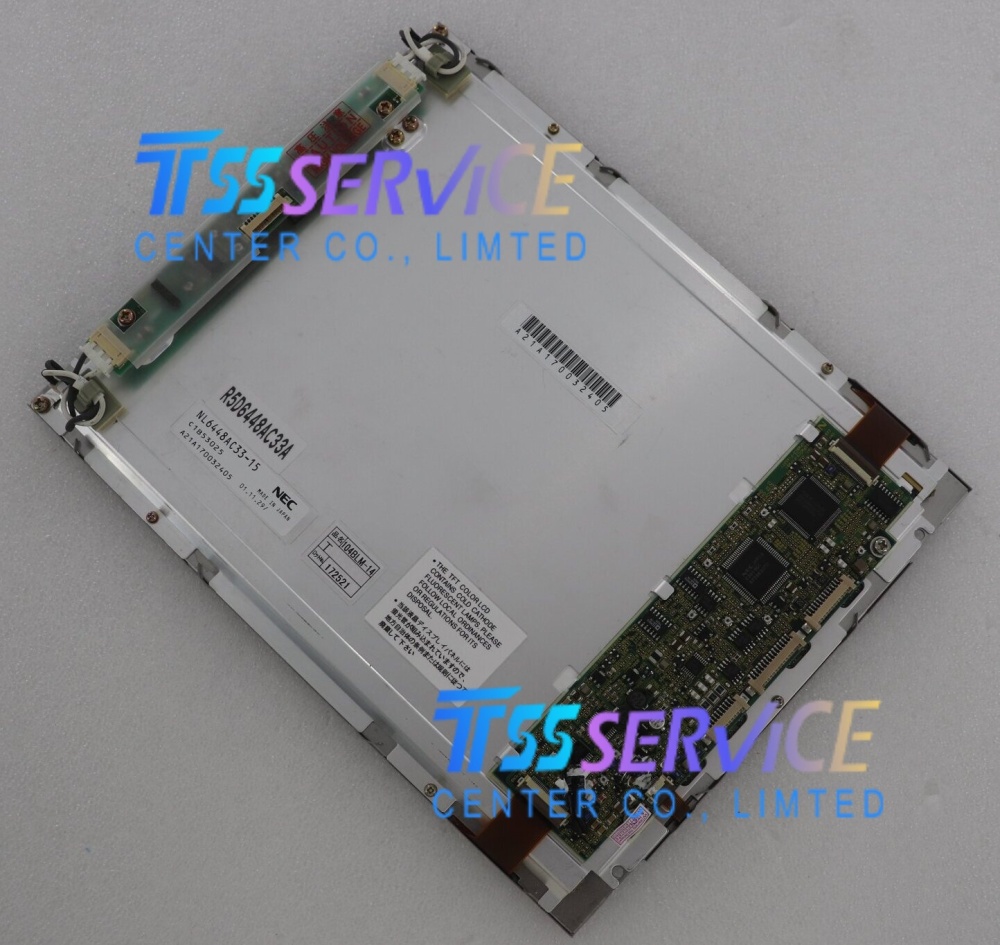

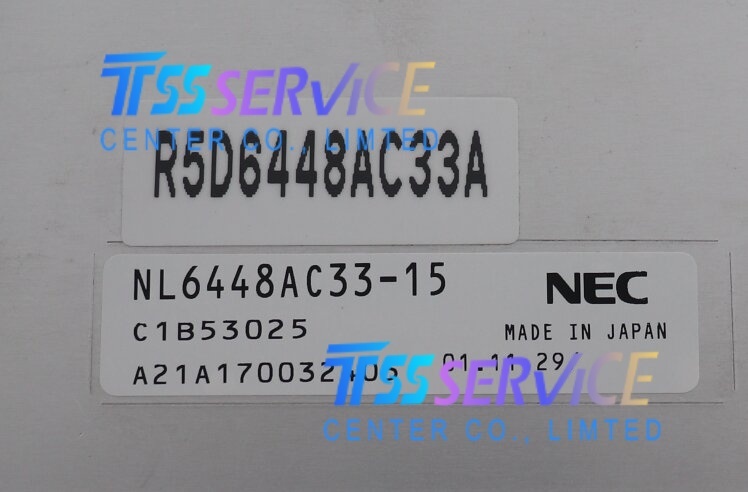

NEC/NLT 10.4 inch LCD Display Panel NL6448AC33-15 for Industrial NEW
The NL6448AC33-15 is an industrial-grade display designed for use in various demanding environments. Its specific applications include:
-
Industrial Control Systems
-
CNC (Computer Numerical Control) Machinery
-
Injection Molding Machines
-
Medical Monitoring Equipment
-
Banking Terminals
-
Vehicle Navigation Systems
-
Process Controllers
-
Personal Computers and Word Processors (historical use)
| Parameter |
Specification |
| Manufacturer |
NEC |
| Display Size |
10.4" (26 cm diagonal) |
| Display Type |
a-Si TFT-LCD Module |
| Resolution |
640 x 480 pixels (VGA) |
| Aspect Ratio |
4:3 |
| Pixel Arrangement |
RGB Vertical Stripe |
| Pixel Pitch (HxV) |
0.33 x 0.33 mm |
| Display Area (WxH) |
211.2 x 158.4 mm |
| Outline Dimensions (WxHxD) |
251.0 x 196.0 x 18.5 mm |
| Weight |
Approx. 750 g (Typ.) |
| Luminance (Brightness) |
200 cd/m² (Typ.) |
| Contrast Ratio |
150:1 (Typ.) |
| Viewing Angle (CR≥10) |
Left/Right: 50° (Typ.), Up: 15° (Typ.), Down: 45° (Typ.) |
| Best View Direction |
6 o'clock |
| Display Mode |
TN, Normally White, Transmissive |
| Response Time (Tr) |
40 ms (Max.) |
| Display Colors |
Full Color |
| Signal Interface |
Analog RGB, 23 pins |
| Backlight |

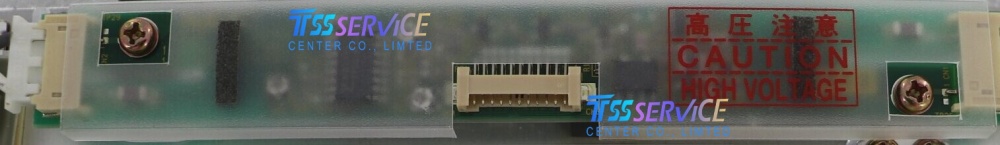

2 x CCFL (edge-light type, with inverter) |
| Supply Voltage |
5.0V / 12.0V (Typ.) (VCC/VDD1) |
| Power Consumption |
9.4 W (Typ.) |
| Operating Temperature |
0 to 50 °C |
| Storage Temperature |
-20 to 60 °C |
