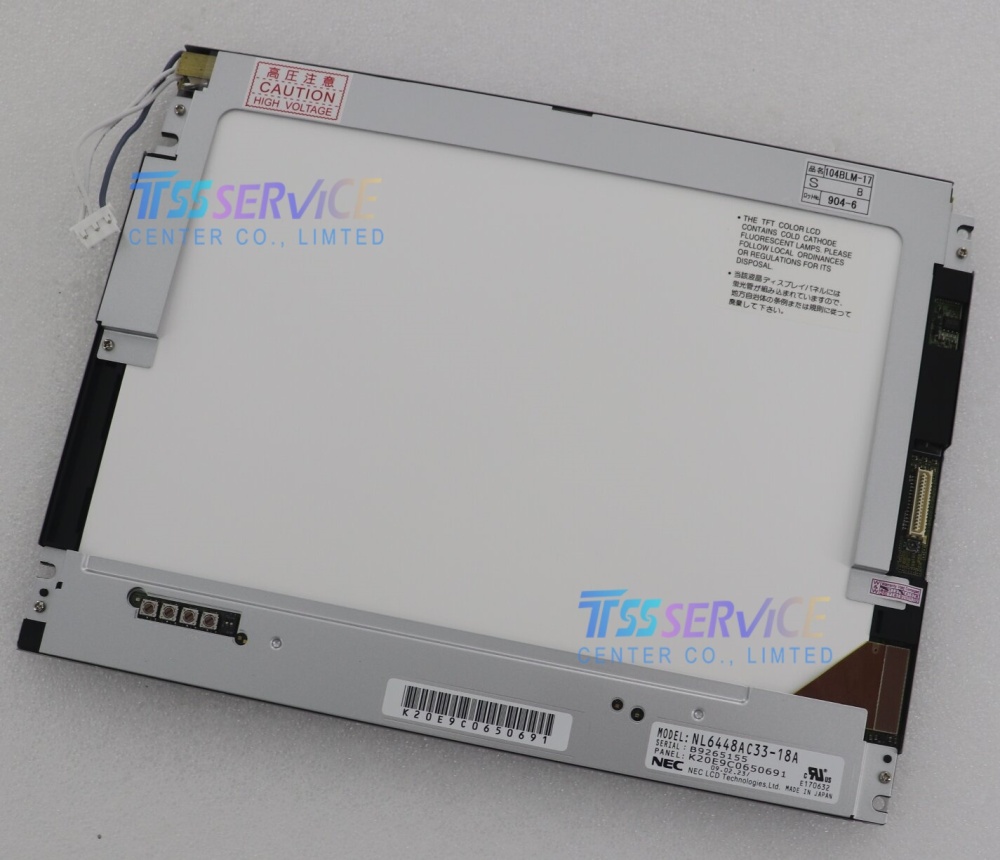

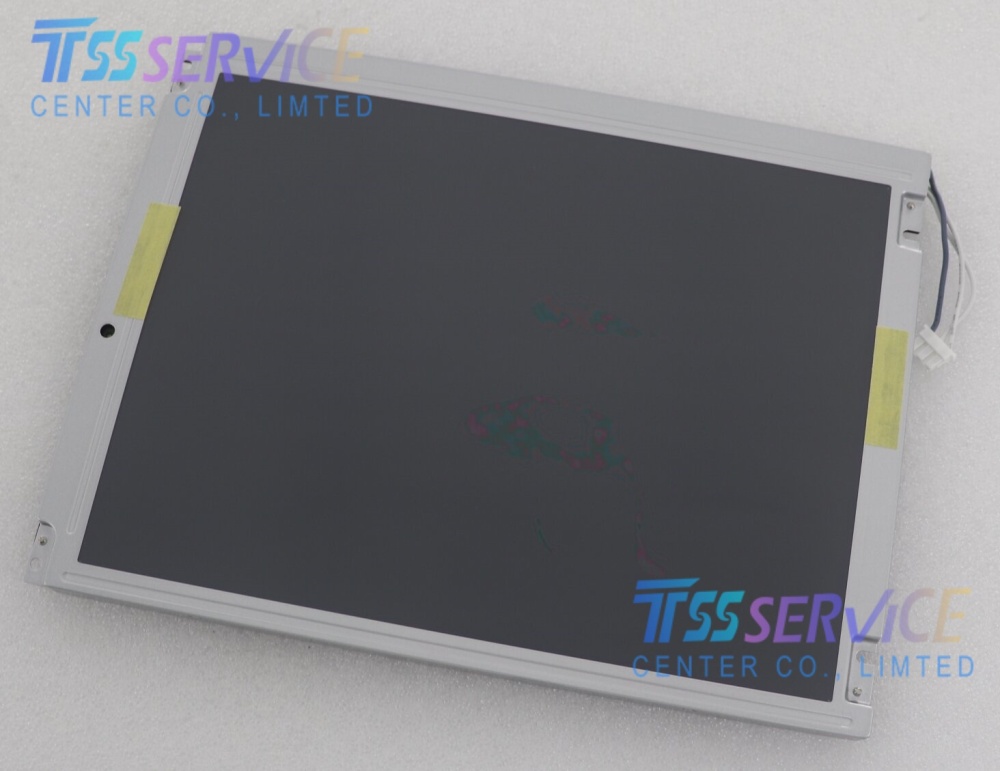

NL6448AC33-18A 10.4inch 640×480 NEC TFT-LCD Panel

Name: NL6448AC33-18A 10.4inch 640×480 NEC TFT-LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL6448AC33-18A
Price: 85 USD
Availability: InStock

SKU: NL6448AC33-18A

1，Condition: New，Grade A

2，Description: NL6448AC33-18A 10.4inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $85.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The NEC NL6448AC33-18A is a 10.4-inch industrial-grade a-Si TFT-LCD display module featuring VGA resolution (640×480) with a classic 4:3 aspect ratio. Designed for legacy industrial applications, this panel offers reliable performance with a built-in CCFL inverter, making it suitable for equipment requiring long-term operation and easy integration.

Parameter	Specification
Mfr.	NEC
Model Name	NL6448AC33-18A
Display Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, 4:3, VGA
Pixel Format	RGB Vertical Stripe
Display Area	211.2(W) × 158.4(H) mm
Panel Weight	470 g (Typ.)
Outline Size	243(W) × 185.1(H) × 11(D) mm
Surface	Clear
Brightness	200 cd/m² (Typ.)
Contrast Ratio	150:1 (Typ.) (TM)
Viewing Angle	45/45/30/20 (Typ.) (CR≥10)
Display Mode	TN, Normally White, Transmissive
View Direction	12 o'clock
Response Time	40 ms (Max.) (Tr)
Display Colors	262K, 56% NTSC
Frequency	60 Hz
Touch Screen	Without
Power Consumption	6.8W (Typ. at 3.3V, 12.0V)
Light Source	2 pcs CCFL, With Inverter
Interface	CMOS (1 ch, 6-bit), 31 pins Connector
Input Voltage	3.3/5.0V (Typ.) (VCC)
Environment	Operating Temp.: 0 ~ 50°C; Storage Temp.: -20 ~ 60°C; Vibration: 2.0G (19.6 m/s²)

Typical Applications

Legacy industrial control panels and HMIs
Medical equipment displays
Factory automation systems
Test and measurement instruments
Banking terminals
Security and surveillance monitors
Embedded systems requiring VGA resolution
