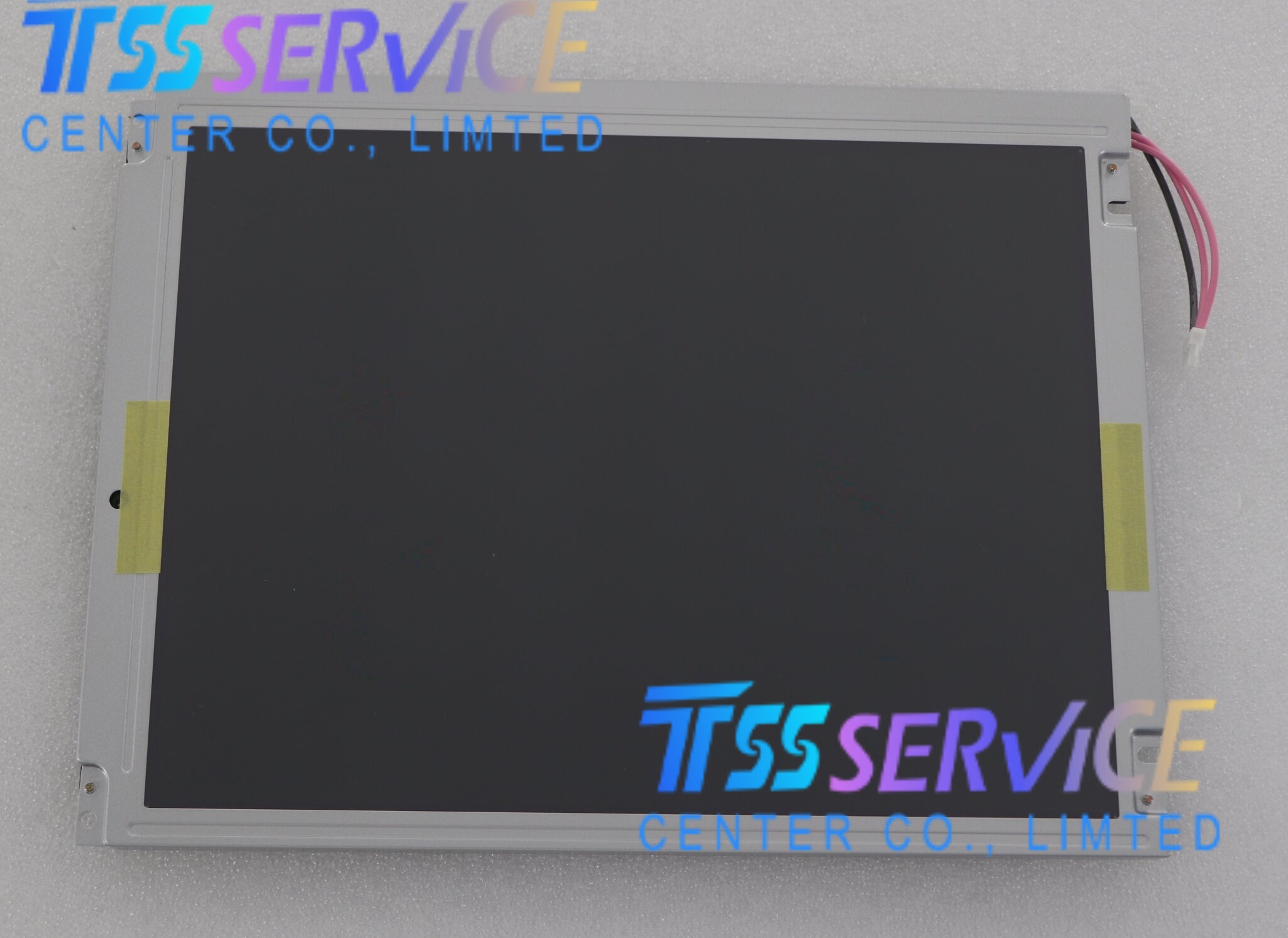

NEC/NLT 10.4 inch LCD Display Panel NL6448AC33-24 for Industrial NEW
The NL6448AC33-24 is an industrial-grade display designed for use in various demanding environments where viewing angle consistency and long-term reliability are critical. Its specific applications include:
-
Industrial Control Systems
-
CNC (Computer Numerical Control) Machinery
-
Process Control Monitoring Stations
-
Injection Molding Machines
-
Medical Monitoring Equipment
-
Banking Terminals (e.g., ATMs)
-
Human-Machine Interfaces (HMIs) in factory automation
-
Legacy System Upgrades and Retrofits
-
Vehicle Navigation Systems
| Parameter |
Specification |
| Manufacturer |
NEC / NLT |
| Display Size |
10.4" (diagonal) |
| Display Type |
a-Si TFT-LCD, SFT (Super Fine TFT) |
| Resolution |
640 x 480 pixels (VGA) |
| Aspect Ratio |
4:3 |
| Pixel Arrangement |
RGB Vertical Stripe |
| Pixel Pitch (HxV) |
0.33 x 0.33 mm |
| Display Area (WxH) |
211.2 x 158.4 mm |
| Outline Dimensions (WxHxD) |
243.0 x 185.1 x 11.2 mm |
| Weight |
Approx. 510g (with inverter) |
| Luminance (Brightness) |
190 cd/m² (Typ.) |
| Contrast Ratio |
150:1 (Typ.) |
| Viewing Angle (CR≥10) |
80/80/80/80° (Typ.) - Ultra-wide symmetrical |
| Best View Direction |
Symmetric (Full viewing angle) |
| Display Mode |
SFT (Super Fine TFT), Normally Black, Transmissive |
| Response Time (Tr+Td) |
50 ms (Typ.) |
| Display Colors |
262,144 (6-bit) |

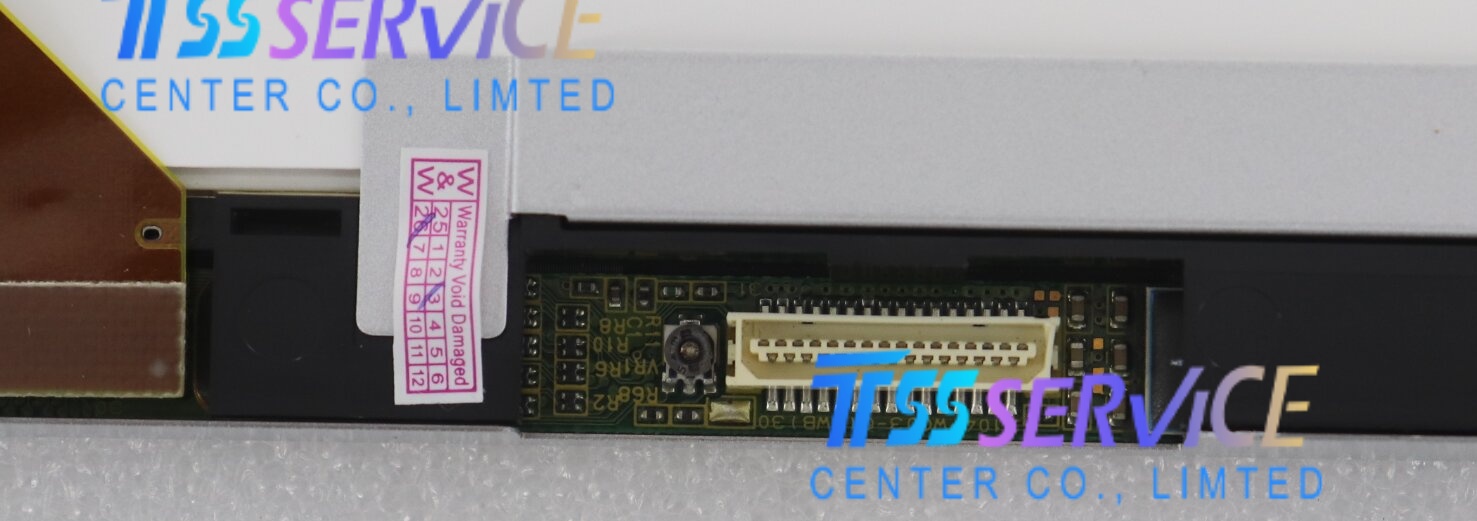

| Signal Interface |
CMOS (1 ch, 6-bit), 31 pins |
| Backlight |
2 x CCFL (edge-light type, with inverter) |
| Supply Voltage (Logic) |
3.3/5.0V (Typ.) |
| Power Consumption |
Information missing |
| Operating Temperature |
0 to 50 °C |
| Storage Temperature |
-20 to 60 °C |
| Vibration Resistance |
2.0G (19.6 m/s²) |
