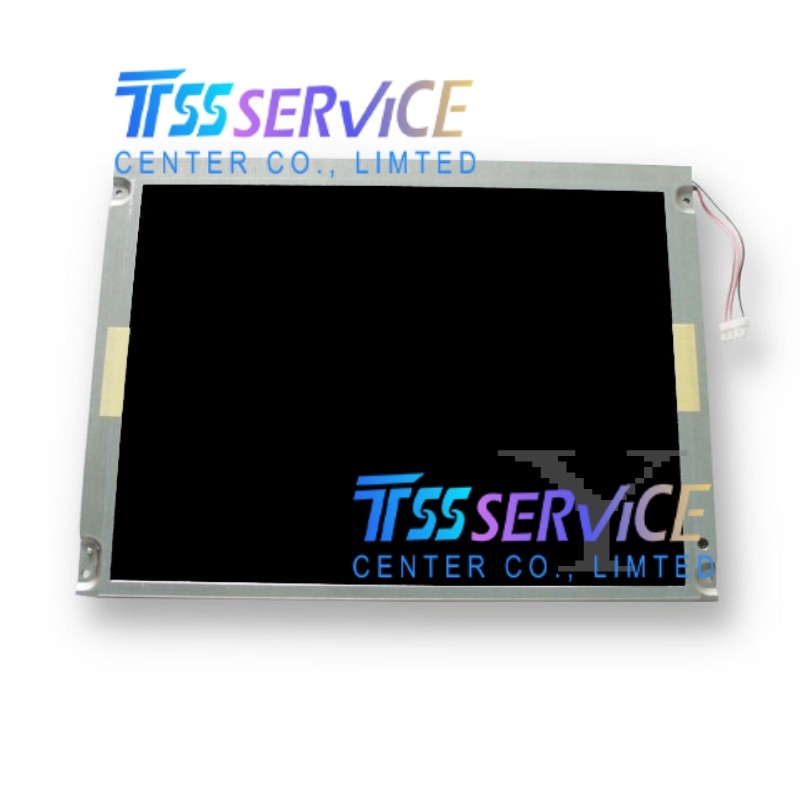

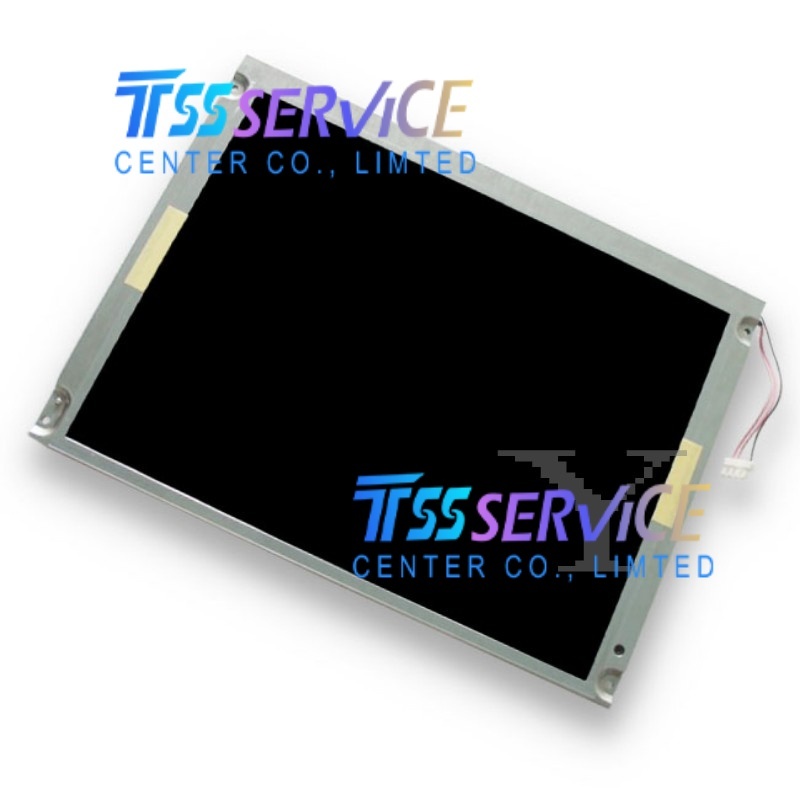

NEC/NLT 10.4 inch LCD Display Panel NL6448AC33-31 for Industrial NEW
| Parameter |
Specification |
| Model Number |
NL6448AC33-31 |
| Manufacturer |
NEC Display Solutions |
| Panel Type |
a-Si TFT Active Matrix LCD |
| Diagonal Size |
10.4 inches |
| Resolution |
640 (RGB) × 480 pixels (VGA) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Display Colors |
262K (6-bit) |
| Active Area (H×V) |
211.2 × 158.4 mm |
| Outline Dimensions (W×H×D) |
Approx. 247.0 × 190.0 × 13.5 mm (Typical for AC33 series) |
| Interface Type |
TTL (Parallel RGB, 18-bit or 24-bit configurable) |
| Input Voltage |
5.0V (Logic); High Voltage for CCFL Inverter |
| Brightness |
350 – 400 cd/m² (Typical) |
| Contrast Ratio |
400:1 – 500:1 (Typical) |
| Response Time |
15 ms (Typical, Rise + Fall) |
| Viewing Angle |
70°/70°/60°/50° (Left/Right/Up/Down, CR≥10) |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp), 2 lamps |
| Backlight Life |
50,000 hours (Typical to 50% brightness) |
| Surface Treatment |
Anti-Glare (Matte), Hard Coating (3H) |
| Operating Temperature |
-20°C to +70°C (Wide Industrial Range); Some AC variants support -30°C to +80°C |
| Storage Temperature |
-30°C to +80°C |
| Weight |
Approx. 650g - 700g |
| Power Consumption |
Approx. 6.0 W (Typical with backlight on) |
| Mounting |
Standard screw holes on metal bezel |
NEC/NLT
The NL6448AC33-31 is a high-reliability 10.4-inch a-Si TFT-LCD module manufactured by NEC Display Solutions. Designed specifically for industrial, medical, and embedded systems, this panel features a standard VGA resolution (640×480) and supports 262,144 colors (6-bit).
The "AC" series designation indicates an enhanced industrial grade compared to the standard "BC" series, often featuring a wider operating temperature range, superior vibration resistance, and longer lifecycle support. The display utilizes a TTL (Parallel RGB) interface, allowing for direct connection to industrial controllers, PLCs, and single-board computers without the need for complex LVDS converters. It is typically backlit by dual CCFL lamps, providing uniform illumination with a brightness suitable for indoor industrial environments. The module includes a rugged metal bezel and an anti-glare surface treatment, making it ideal for harsh conditions found in factory automation, transportation, and medical equipment.
-
Industrial Automation & Control Systems:
- HMI (Human-Machine Interfaces): Used as the display unit for PLCs and SCADA systems in factories.
- CNC Machines: Display panels for numerical control systems in lathes, milling machines, and laser cutters.
- Robotics Controllers: Teaching pendants and status monitors for industrial robots.
-
Medical Equipment:
- Patient Monitors: Bedside monitoring systems requiring stable, continuous operation.
- Diagnostic Imaging: Older generation ultrasound or X-ray console displays where SVGA resolution is sufficient.
- Infusion Pumps & Analyzers: Embedded displays in laboratory and clinical devices.
-
Transportation & Marine:
- Railway Control Panels: Driver consoles and passenger information systems (due to vibration resistance).
- Marine Navigation: Chart plotters and engine room monitoring systems.
- Specialty Vehicles: Displays in agricultural machinery, construction equipment, and military vehicles.
-
Point of Sale (POS) & Banking:
- ATM Machines: Customer interface screens.
- Industrial POS Terminals: Ruggedized checkout systems for harsh retail environments.
-
Test & Measurement Instruments:
- Oscilloscopes, signal generators, and power analyzers requiring a clear, readable interface in lab or field settings.
