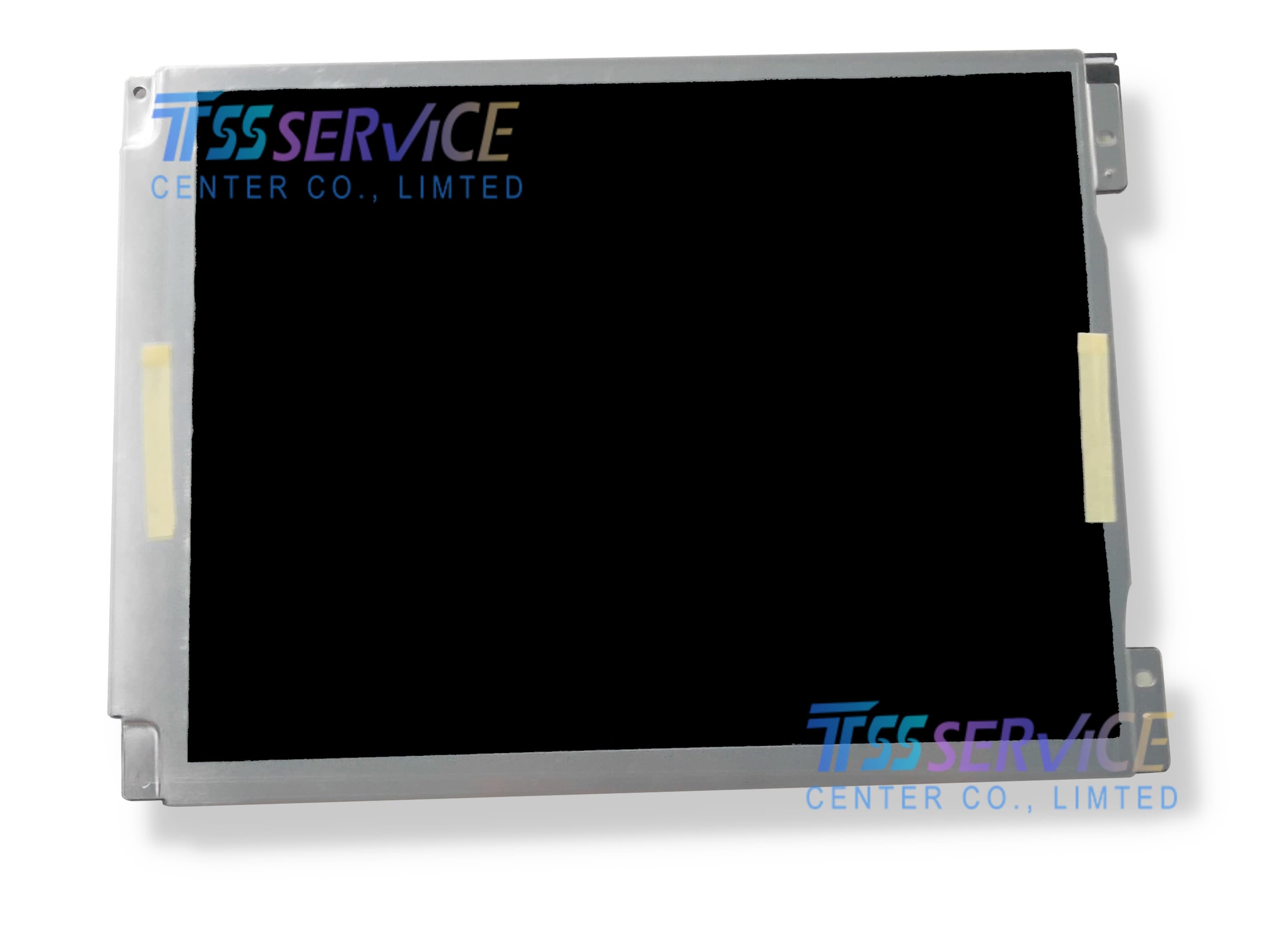

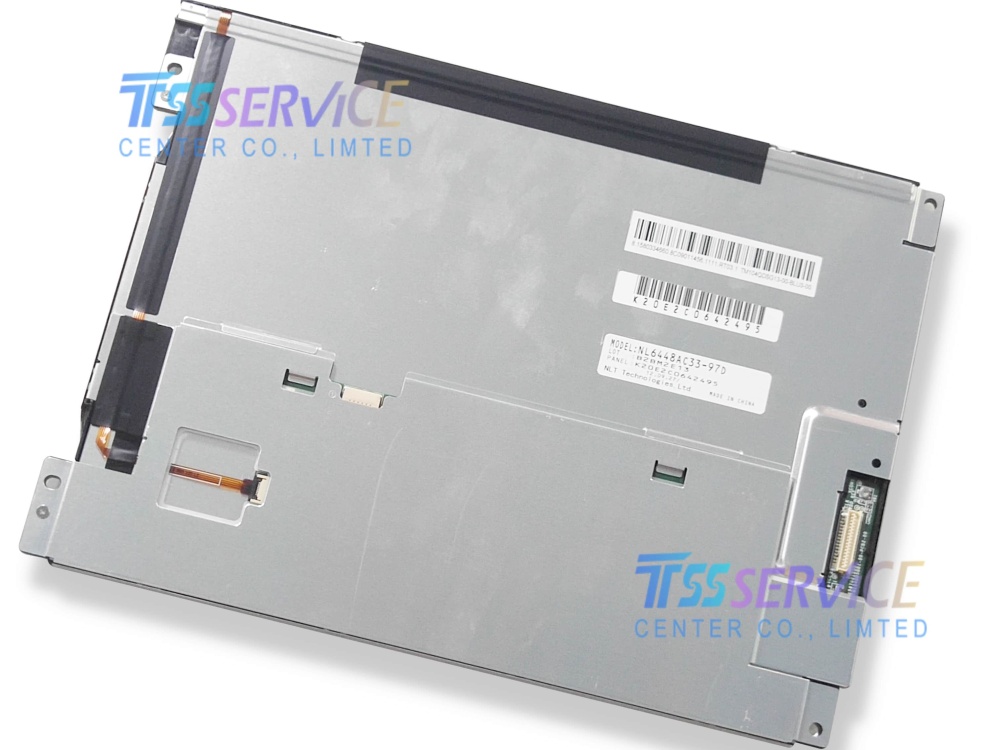

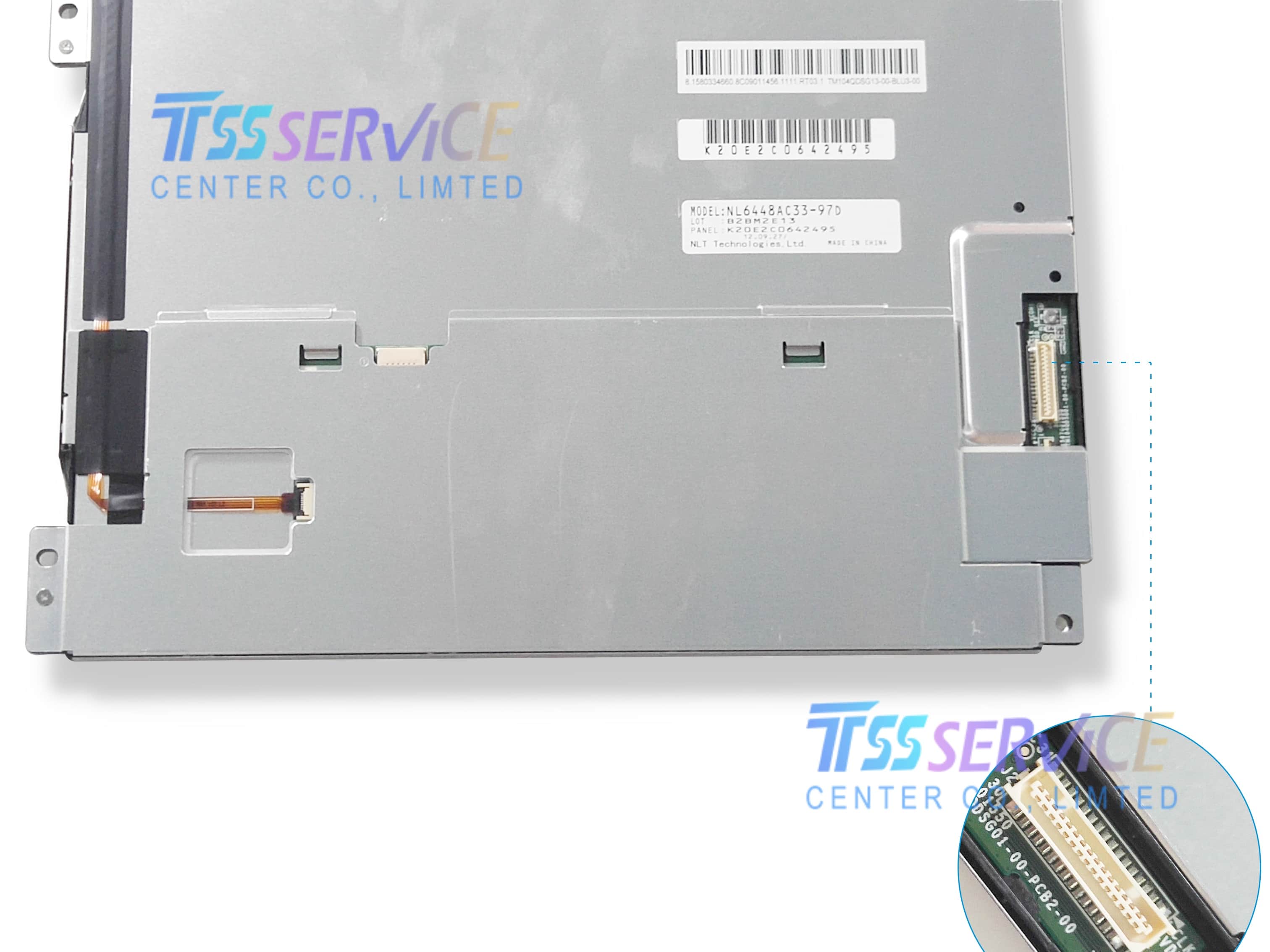

NLT 10.4INCH LCD Panel Display NL6448AC33-97D For Industrial

Name: NLT 10.4INCH LCD Panel Display NL6448AC33-97D For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL6448AC33-97D
Price: 130 USD
Availability: InStock

SKU: NL6448AC33-97D

Condition: New Original
Warranty: 90 days
Shipping: DHL/ Fedex/ 4PX express/ SF express
Lead time: 1-3 days
Packaging: Bubble pad+Paper box

0.0 (0 Reviews)

0 Sold

~~$135.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

NL6448AC33-97D LCD Display is a 10.4-inch LCD screen from NLT brand without touch. It has a resolution of 640x480 pixels (VGA), a brightness of 370 cd/m ², a input voltage of 3.3/5.0V, and a working frequency of 60Hz. With a contrast ratio of 900:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.

SPECIFICATION

Resolution	640(RGB)×480, VGA 76PPI	Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm	Bezel Opening	215.3(W)×162.4(H) mm
Outline Dim.	246.5(H)×179.4(V)×10(D) mm	Treatment	Antiglare, Hard coating (3H)
Luminance	370 cd/m² (Typ.)	Contrast Ratio	900:1 (Typ.) (TM)
