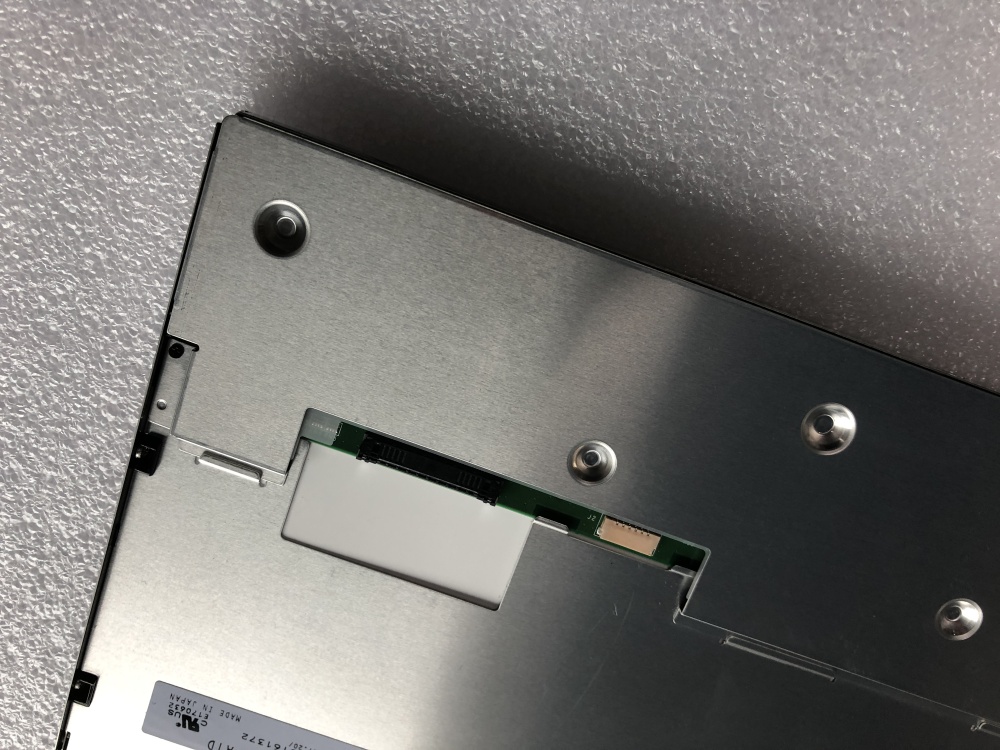

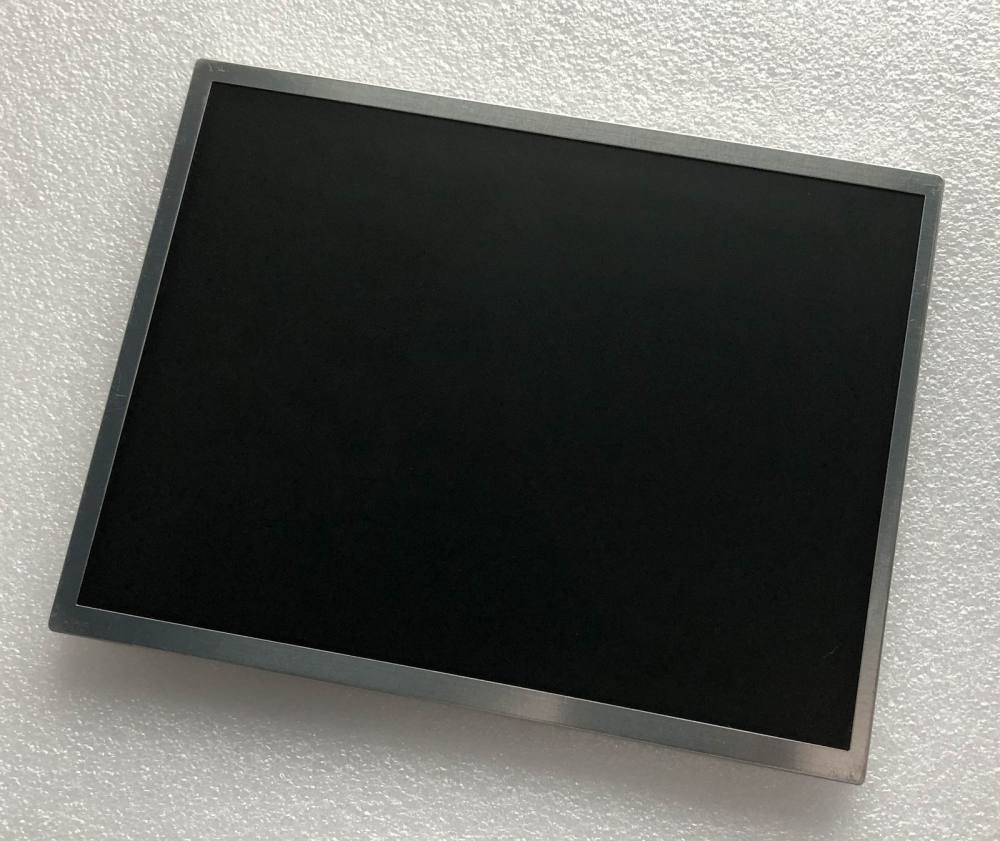

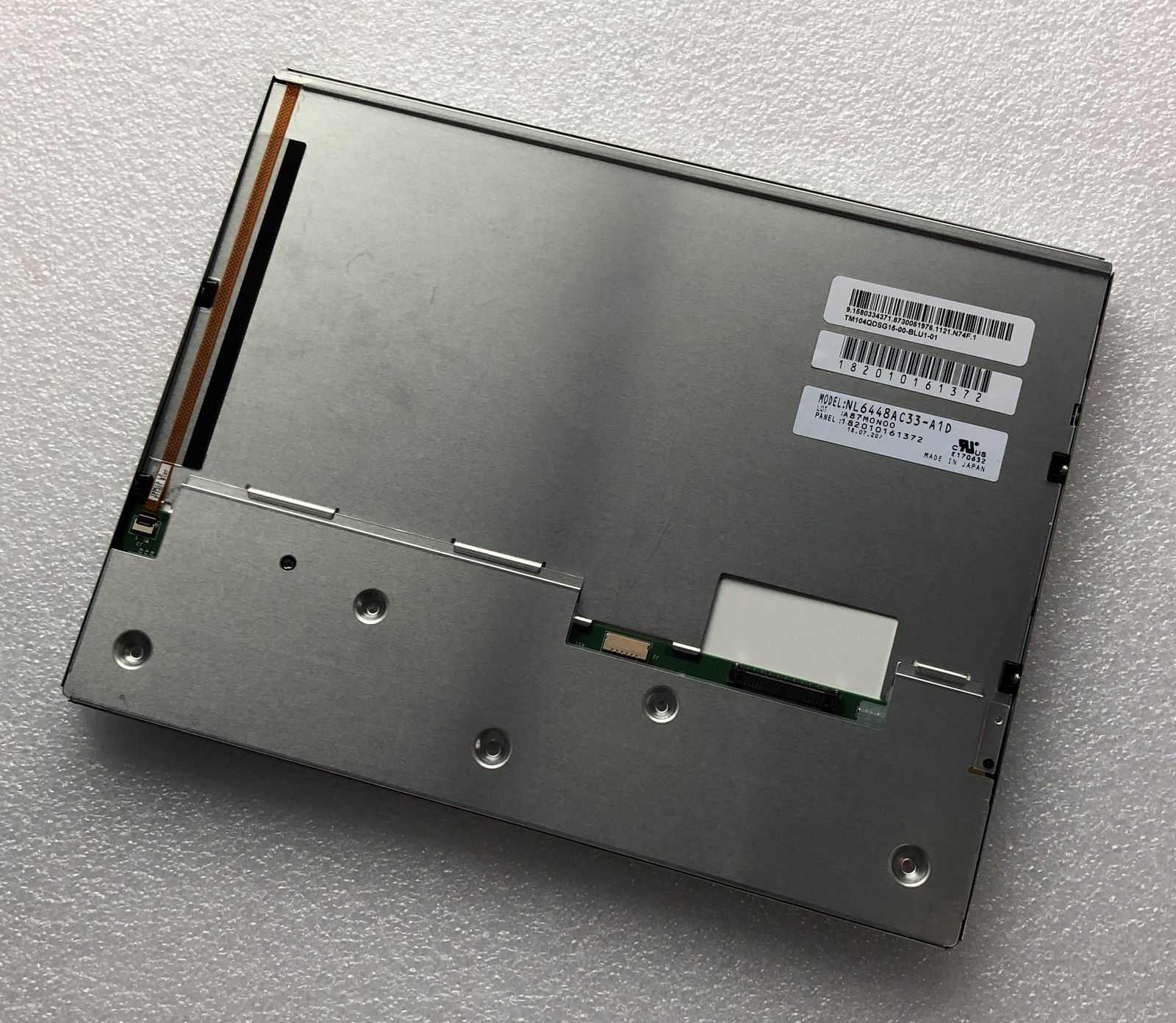

The NLT NL6448AC33-A1D is a 10.4-inch industrial-grade a-Si TFT-LCD display module engineered for demanding applications requiring exceptional durability, wide temperature tolerance, and long-term reliability. Built with NLT's robust design philosophy, this panel features a high-brightness WLED backlight rated for 100,000 hours, extended operating temperature range, and anti-glare surface treatment, making it ideal for industrial control systems, outdoor equipment, automotive displays, and medical devices.
| Parameter |
Specification |
| Brand |
NLT |
| Model P/N |
NL6448AC33-A1D |
| Diagonal Size |
10.4" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
640(RGB)×480, VGA 76PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
211.2(W)×158.4(H) mm |
| Bezel Opening |
215.4(W)×161.8(H) mm |
| Outline Size |
227.3(W)×177.5(H)×9.8(D) mm |
| Surface |
Antiglare, Hard coating (3H) |
| Brightness |
370 cd/m² (Typ.) |
| Contrast Ratio |
900:1 (Typ.) (TM) |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
6 o'clock |
| Response Time |
3/15 (Typ.)(Tr/Td) |
| Display Colors |
262K 40% NTSC |
| Lamp Type |
WLED , 100K hours , With LED Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Panel Weight |
380/420g (Typ./Max.) |
| Signal Interface |
CMOS (1 ch, 6-bit), 40 pins Connector |
| Input Voltage |
3.3/5.0V (Typ.)(VCC) |
| Environment |
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
Applications
-
Industrial Control Panels and HMIs
-
Factory Automation Equipment
-
Outdoor Kiosks and Information Displays
-
Marine and Transportation Systems
-
Medical Diagnostic Equipment
-
Automotive Instrument Clusters
-
Military and Ruggedized Devices
