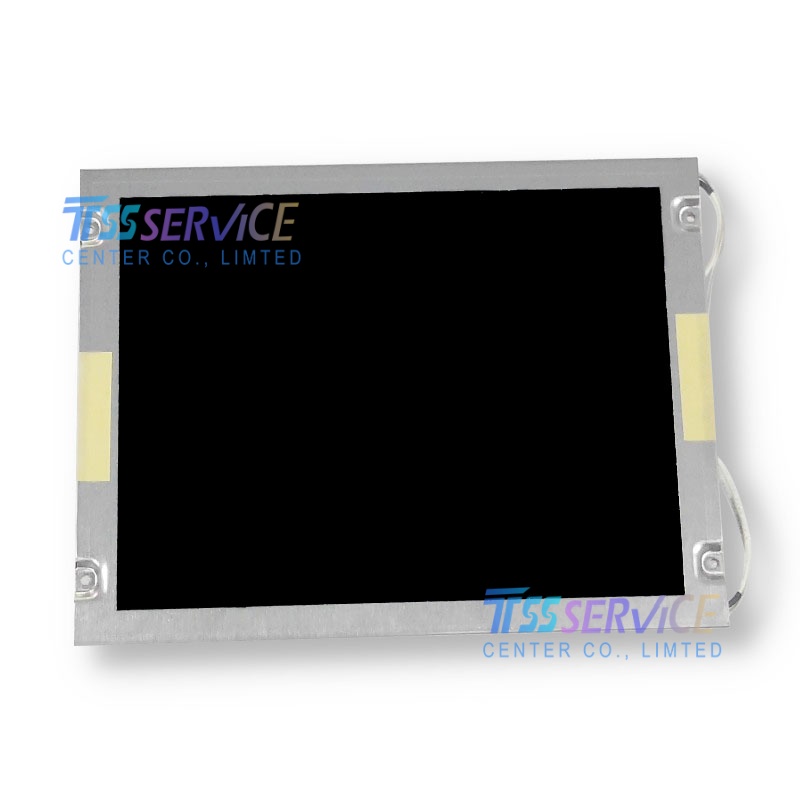

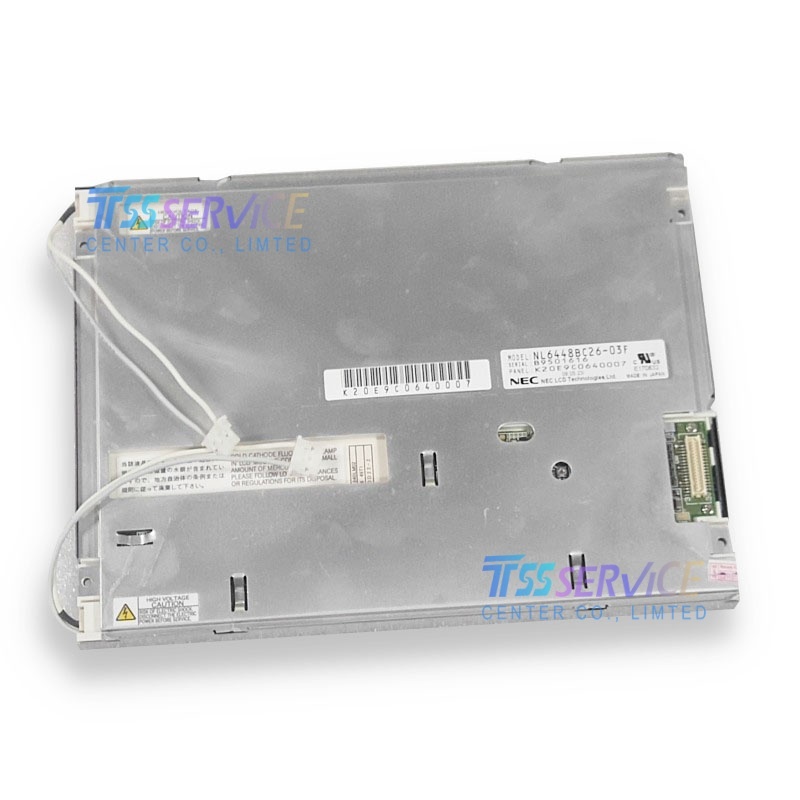

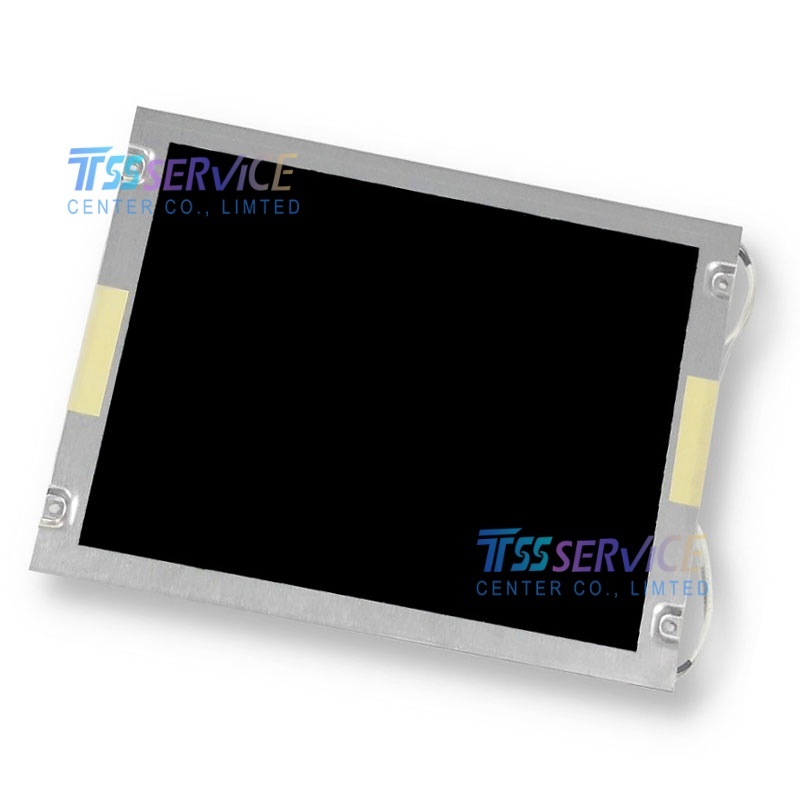

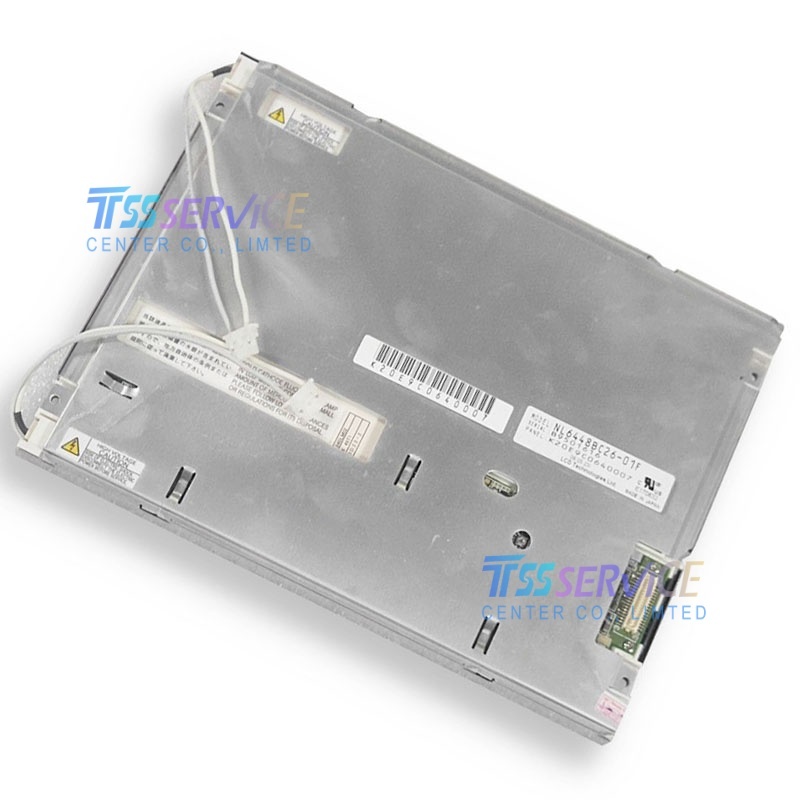

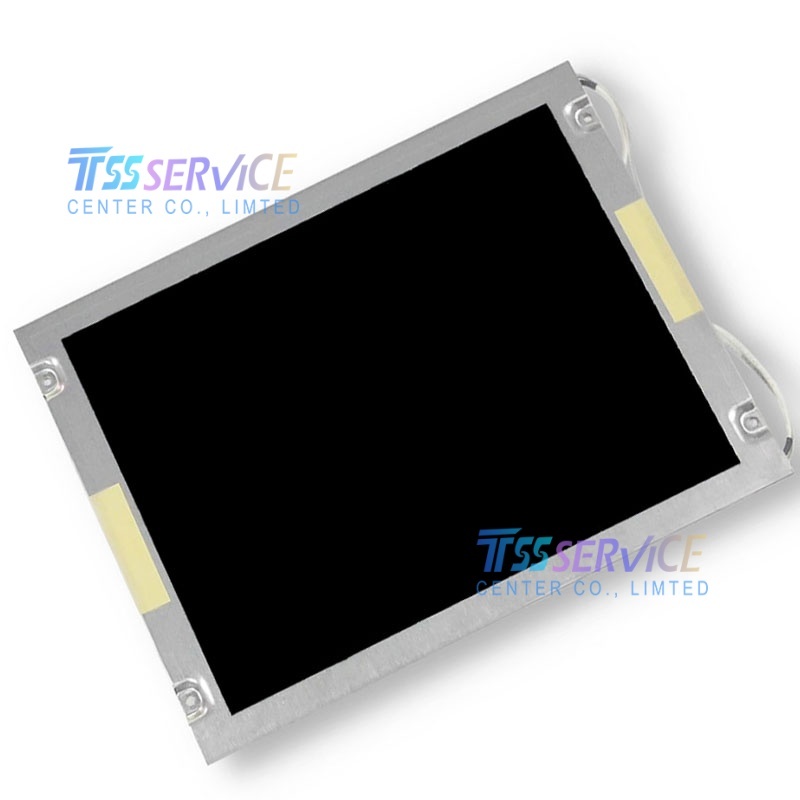

8.4 Inch NLT/ NEC NL6448BC26-01F 640×480 Industrial TFT LCD Screen Display Panel

Name: 8.4 Inch NLT/ NEC NL6448BC26-01F 640×480 Industrial TFT LCD Screen Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL6448BC26-01F
Price: 100 USD
Availability: InStock

SKU: NL6448BC26-01F

Model Number: NL6448BC26-01F
Brand: NLT / NEC Industrial TFT-LCD
Diagonal Size: 8.4 Inch
Native Resolution: 640(RGB) × 480 VGA, 4:3 Aspect Ratio
Panel Type: a-Si TN TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$105.00~~ $100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

8.4 Inch NLT/ NEC NL6448BC26-01F 640×480 Industrial TFT LCD Screen Display Panel

Item	Specification Parameter
Model Number	NL6448BC26-01F
Brand	NLT / NEC Industrial TFT-LCD
Diagonal Size	8.4 Inch
Native Resolution	640(RGB) × 480 VGA, 4:3 Aspect Ratio
Panel Type	a-Si TN TFT-LCD, Normally White Transmissive
Typical Brightness	600 cd/m² High Bright
Contrast Ratio	600:1 (Typical)
Viewing Angle L/R/U/D (CR≥10)	55/55/40/70 (Typ.)(CR≥10)
Color Depth	262K Colors (6-bit RGB)
Signal Interface	Single Channel 6-bit LVDS, 20Pin Connector
Logic Supply Voltage	3.3V Industrial Standard
Refresh Rate	60Hz
Active Display Area	170.88 (W) × 128.16 (H) mm
Overall Outline Dimension	200 (W) × 152 (H) × 12.0 (T) mm
Surface Treatment	Anti-Glare Hard Coating (2H), Anti-scratch
Touch Function	Without touch panel
Operating Temperature	0℃ ~ +60℃
Storage Temperature	-20℃ ~ +70℃
Shock & Vibration Resistance	Industrial grade anti-shock, anti-vibration structure
Net Weight	Approx 980g

Applications

Legacy Industrial HMI & CNC Automation Equipment
Vintage CNC machine operation panels, discontinued PLC control terminals, old injection molding machine display screens, packaging machinery HMI, robotic controller monitors, assembly line industrial monitoring consoles.
Medical Diagnostic & Monitoring Instruments
Legacy patient bedside monitors, portable ultrasound auxiliary displays, clinical lab analyzers, vintage ECG diagnostic devices, medical infusion control terminals, veterinary medical testing equipment.
Laboratory Precision Test & Measuring Instruments
Oscilloscope main displays, spectrum analyzers, power quality monitoring testers, optical inspection equipment, environmental gas detection analyzers, industrial pipeline inspection monitors.
Construction & Agricultural Engineering Machinery Displays
Forklift parameter dashboards, tractor control panels, mini excavator operation screens, engineering vehicle secondary monitoring terminals, agricultural spraying machine display modules.
Industrial Self-service & Special Monitoring Devices
Old industrial vending machine control screens, factory access control monitoring panels, mining safety parameter displays, marine miniature instrument terminals, fixed industrial environmental monitoring equipment.
