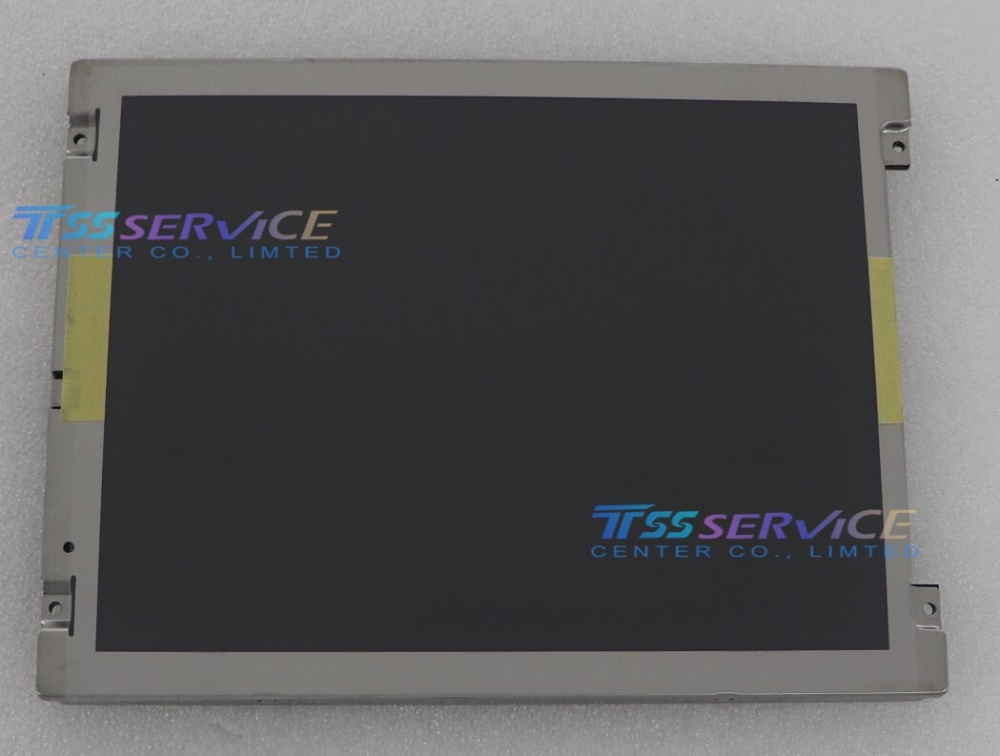

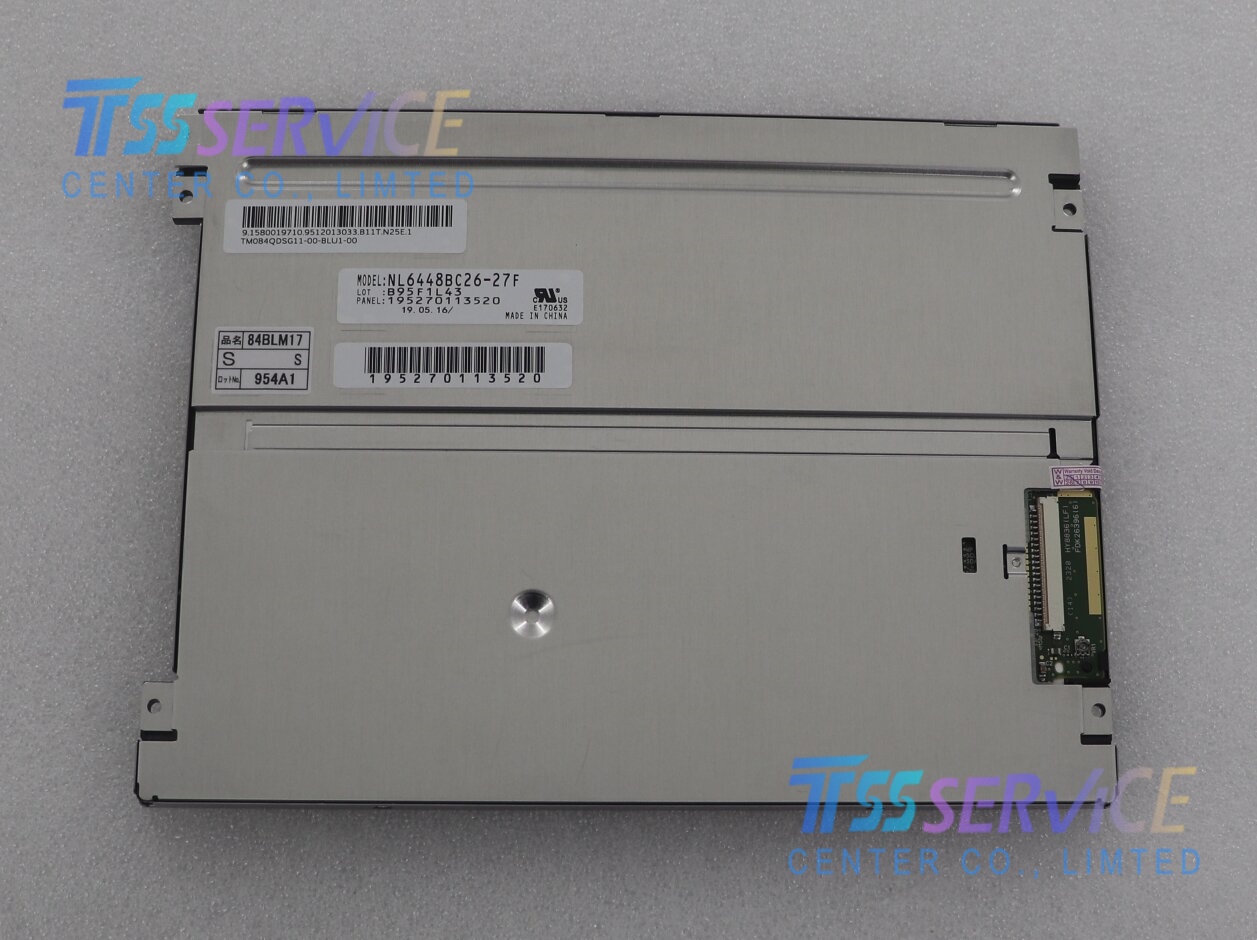

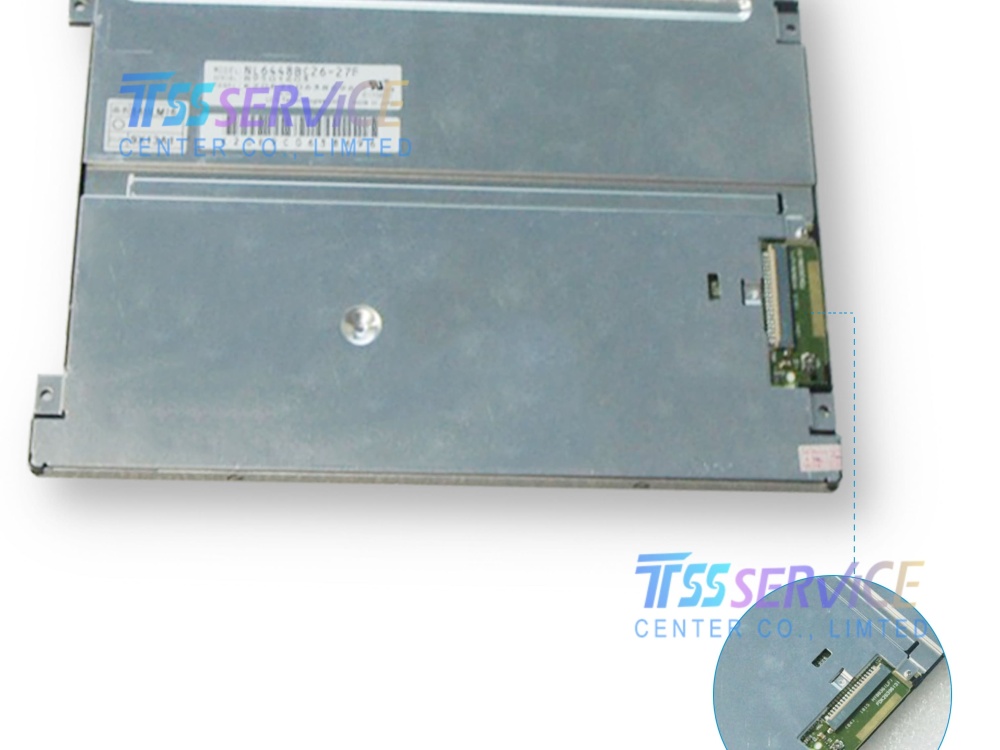

NL6448BC26-27F 8.4inch 640×480 LCD Panel – NEC Display

SKU: NL6448BC26-27F
Model P/N:NL6448BC26-27F
Diagonal Size: 8.4"
Panel Type:a-Si TFT-LCD, LCM
Resolution:640(RGB)×480, VGA  95PPI
Pixel Format:RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$176.00 $168.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
1/1
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • NL6448BC26-27F 8.4 inch 640(RGB)×480 lcd panel
  • Description
This module is an a-Si TFT-LCD that uses a TN (Twisted Nematic) transmissive display mode, delivering a bright, clear image . It features a high-luminance WLED backlight and a robust mechanical design to withstand harsh conditions.
Parameter Specification
Model NL6448BC26-27F
Screen Size (Diagonal) 8.4 inches
Display Area 170.88(W)×128.16(H) mm
Resolution 640 (RGB) × 480 dots (VGA)
Display Colors 262K colors (6-bit + FRC)
Brightness 900 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle (CR≥10) 80/80/80/80 (Typ.)(CR≥10)
Interface

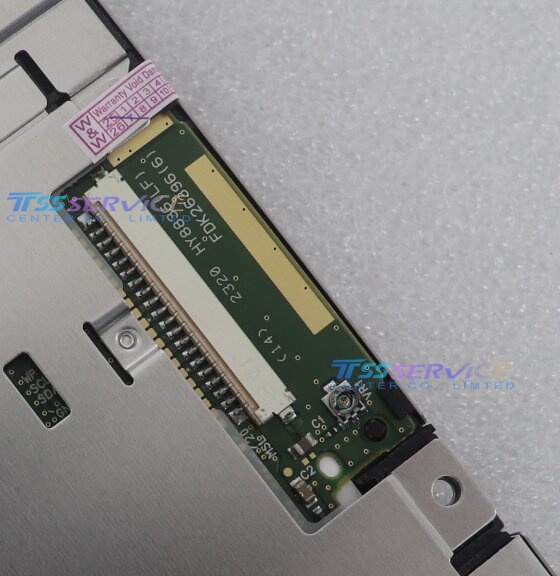

  • LVDS (1 ch, 8-bit) , 20 pins Connector
Backlight WLED  [4 strings]
Backlight Life Typically70,000 hours
Supply Voltage
  • 3.3V (Typ.)
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Surface Treatment Anti-glare, Hard coating (optional)

Applications

This panel is specifically designed for the professional and industrial sectors. Typical applications include :

  • Industrial Control Panels and Human-Machine Interfaces (HMI)

  • Outdoor Kiosks and Ticketing Systems

  • Test and Measurement Instruments

  • Avionics and Transportation Displays

  • Medical Equipment
