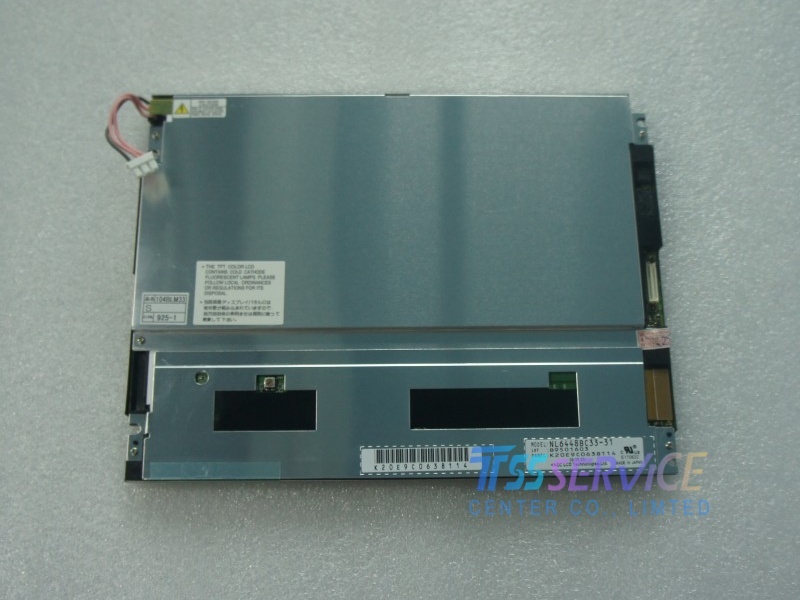

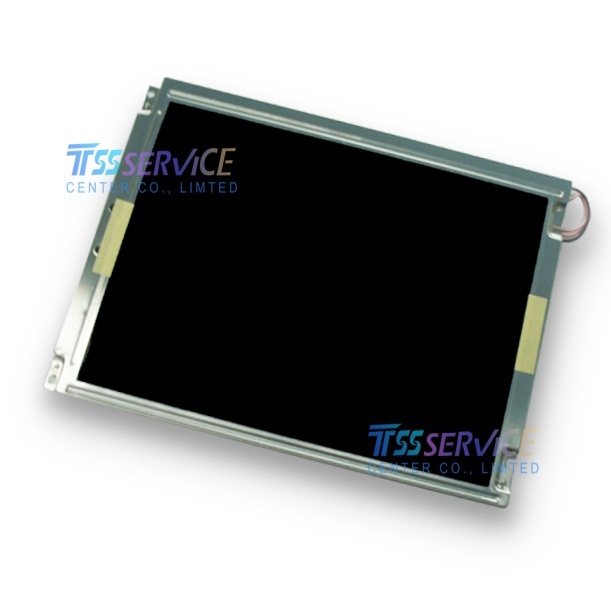

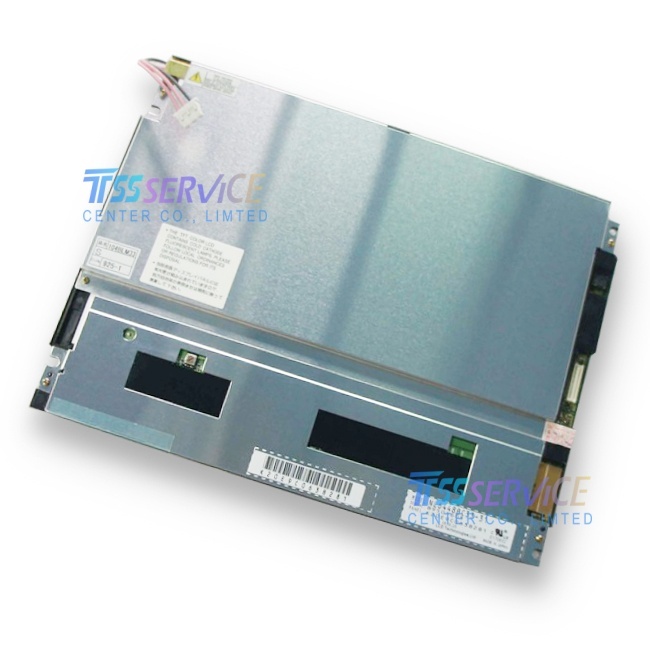

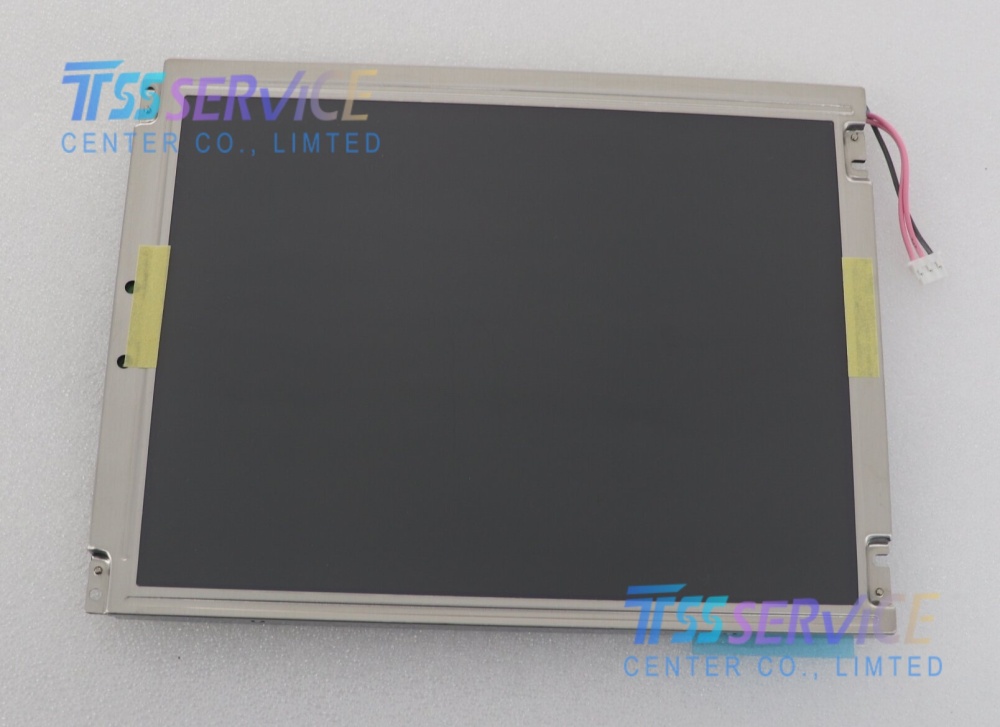

The NL6448BC33-31 is a high-quality, 10.4-inch amorphous silicon (a-Si) Thin-Film Transistor (TFT) Liquid Crystal Display (LCD) module originally manufactured by NEC . Designed for demanding environments, this module is engineered to deliver reliable performance and clear visibility, making it an ideal solution for a wide range of industrial application.
| Brand |
NEC |
| Model P/N |
NL6448BC33-31 |
| Diagonal Size |
10.4" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
640(RGB)×480, VGA 76PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
211.2(W)×158.4(H) mm |
| Bezel Opening |
215.4(W)×161.8(H) mm |
| Outline Size |
243(W)×185.1(H)×11.5(D) mm |
| Treatment |
Clear, Antireflection |
| Luminance |
350 cd/m² (Typ.) |
| Contrast Ratio |
350 : 1 (Typ.) (TM) |
| Viewing Angle |
50/50/40/45 (Typ.)(CR≥10) |
| Response |
15/70 (Typ.)(Tr/Td) ms |
| Good View at |
6 o'clock |
| Work Mode |
TN, Normally White, Transmissive |
| Color Depth |
262K 43% NTSC |
| Backlight |
2 pcs CCFL, No Driver |
| Mass |
530/550g (Typ./Max.) |
| Refresh Rate |
60Hz |
| Touchscreen |
Without |
| Signal Type |
CMOS (1 ch, 6-bit), 31 pins Connector |
| Voltage Supply |
3.3/5.0V (Typ.)(VCC) |
| Max. Ratings |
Storage Temp.: -20 ~ 60 °C; Operating Temp.: 0 ~ 50 °C; Vibration Level: 2.0G (19.6 m/s²) |
Applications
The NL6448BC33-31 is ideally suited for a variety of industrial and commercial applications where reliability and performance are critical. Typical uses include :
-
Industrial Control Systems and machinery interfaces
-
Process Controller Monitors
-
Industrial PCs (Personal Computers)
-
Measurement and test equipment
-
Medical devices.
