| Item | Value |
|---|---|
| Model | NL6448BC33-54 |
| Diagonal Size | 10.4 inches |
| Resolution | 640(RGB)×480 (VGA) |
| Panel Type | a‑Si TFT‑LCD, TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 350:1 (Typ.) |
| Display Colors | 262K 40% NTSC |
| Response Time | 15/23 ms (Tr/Td, Typ.) |
| Viewing Angle | 45/45/30/20 (Typ.)(CR≥10) |
| Backlight | 2pcs CCFL |

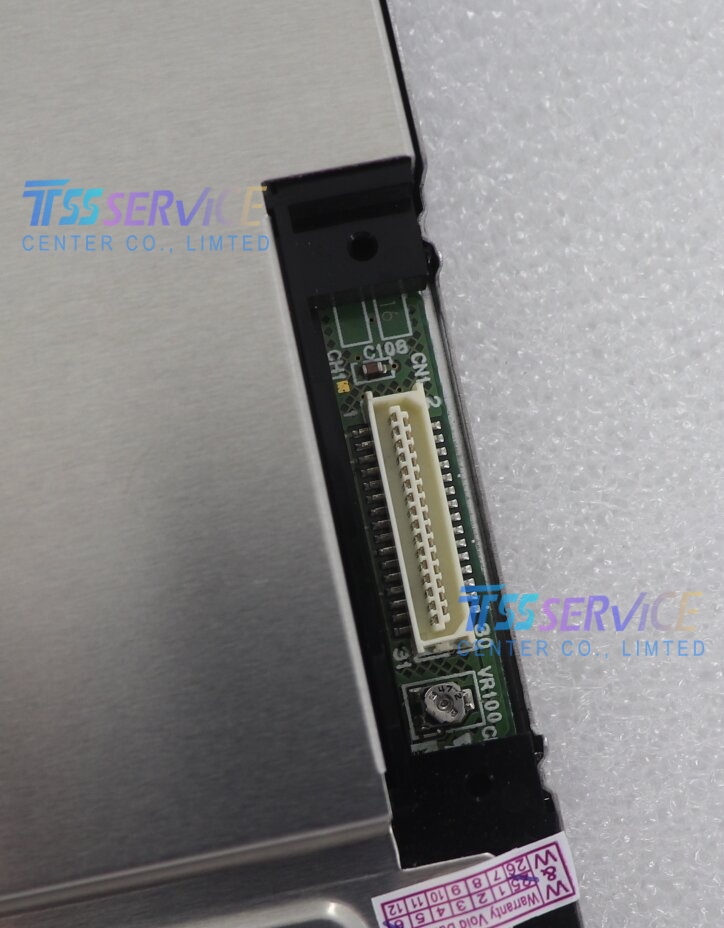

| Interface | CMOS (1‑channel, 6‑bit), 31 pins connector |
| Input Voltage | 3.3V / 5.0V |
| Module Dimensions | 243(H)×185.1(V) ×11(D) mm |
| Weight | 465/490g (Typ./Max.) |
| Refresh Rate | 60 Hz |
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
