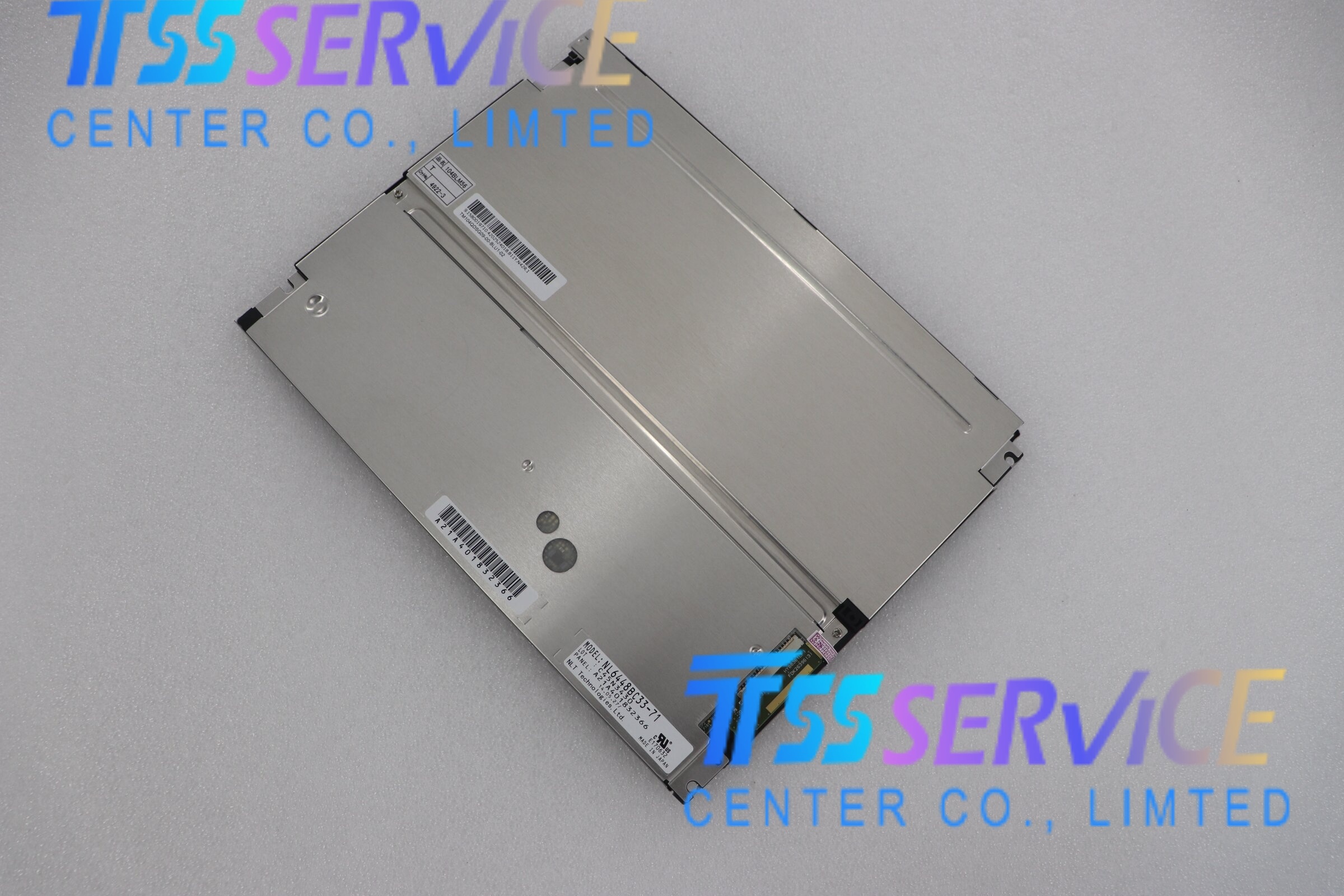

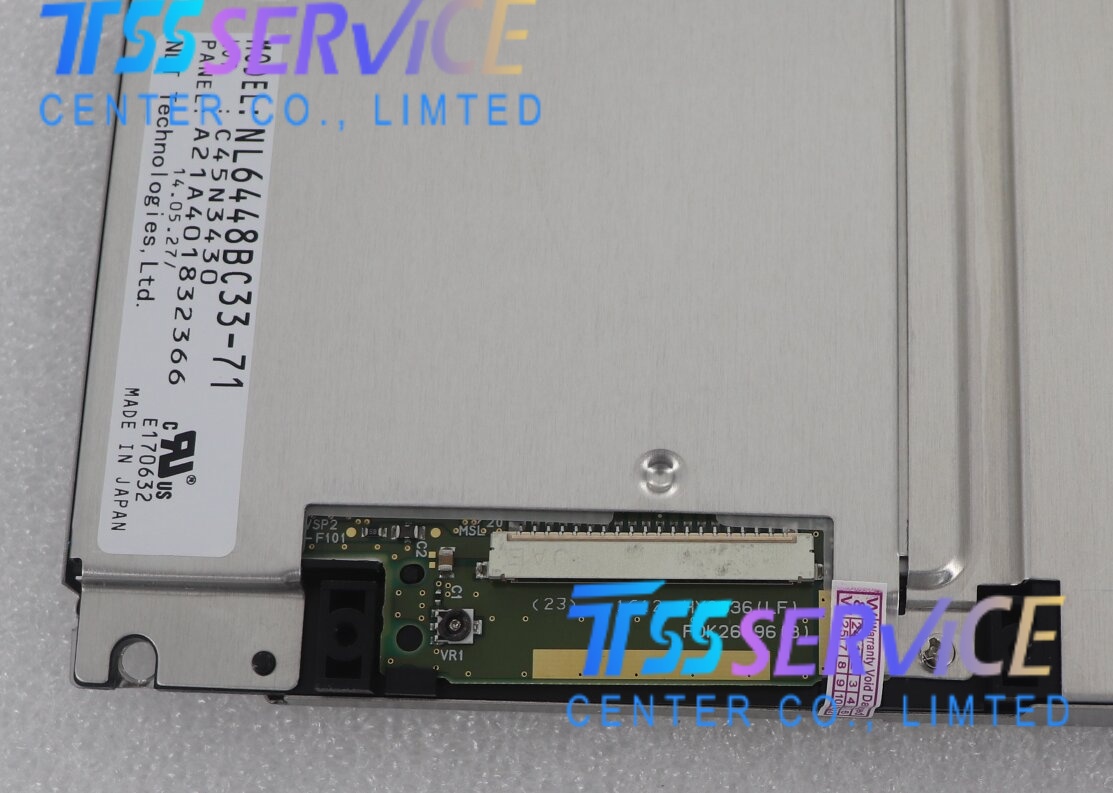

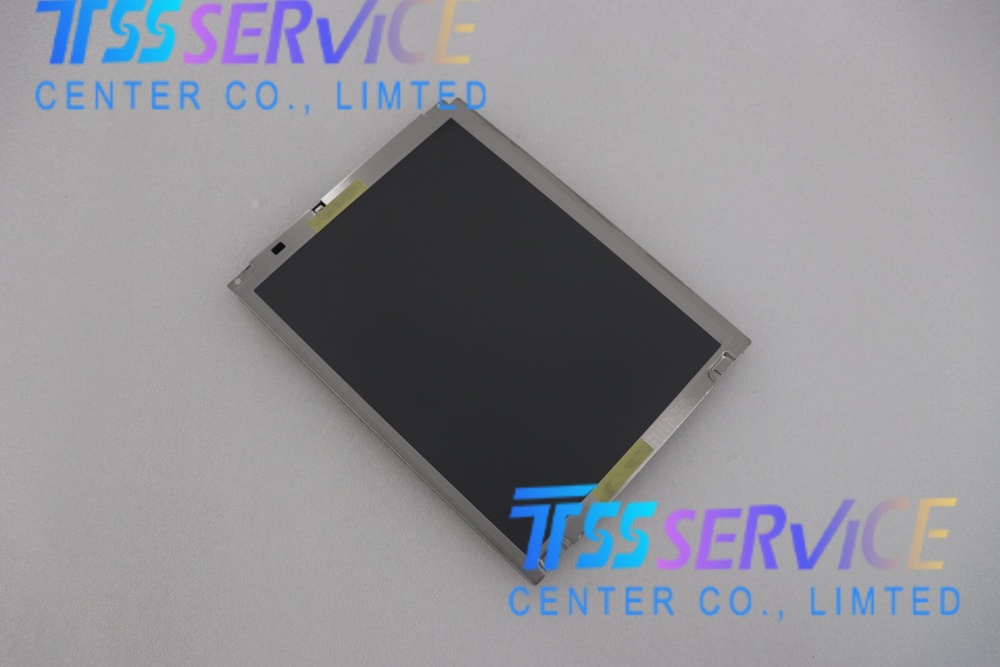

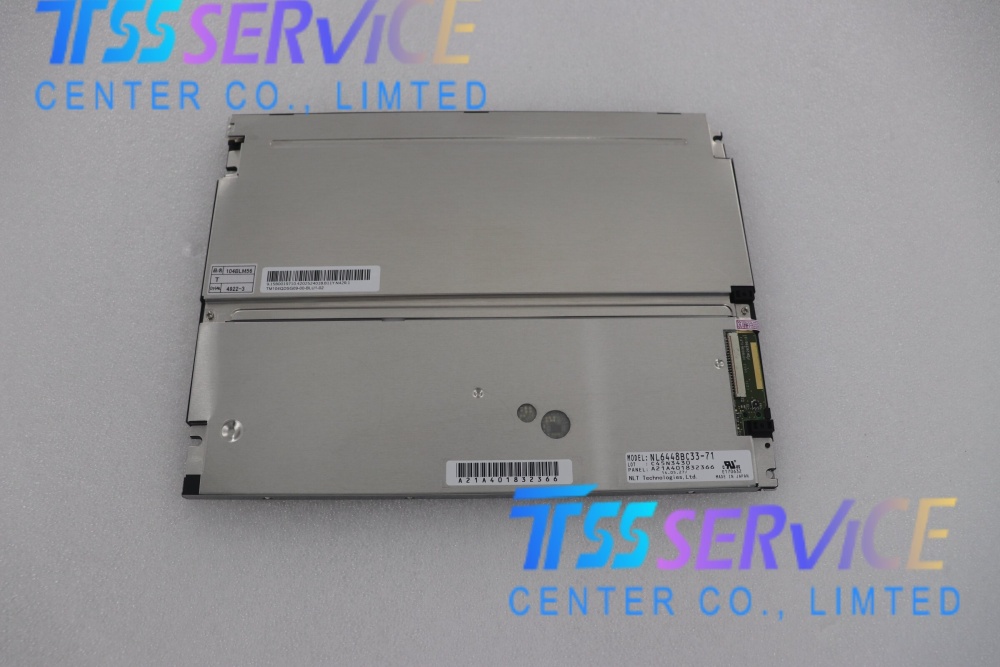

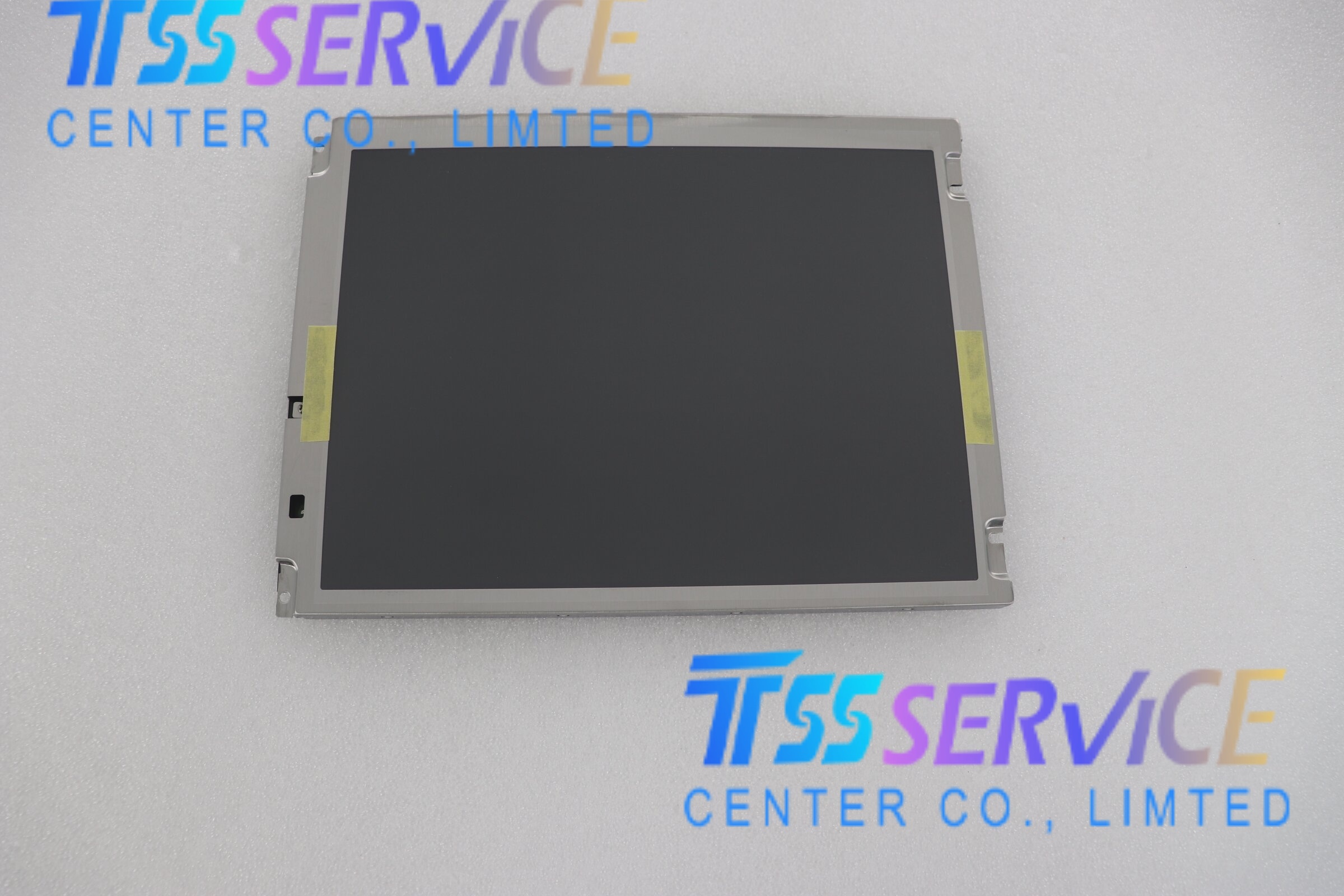

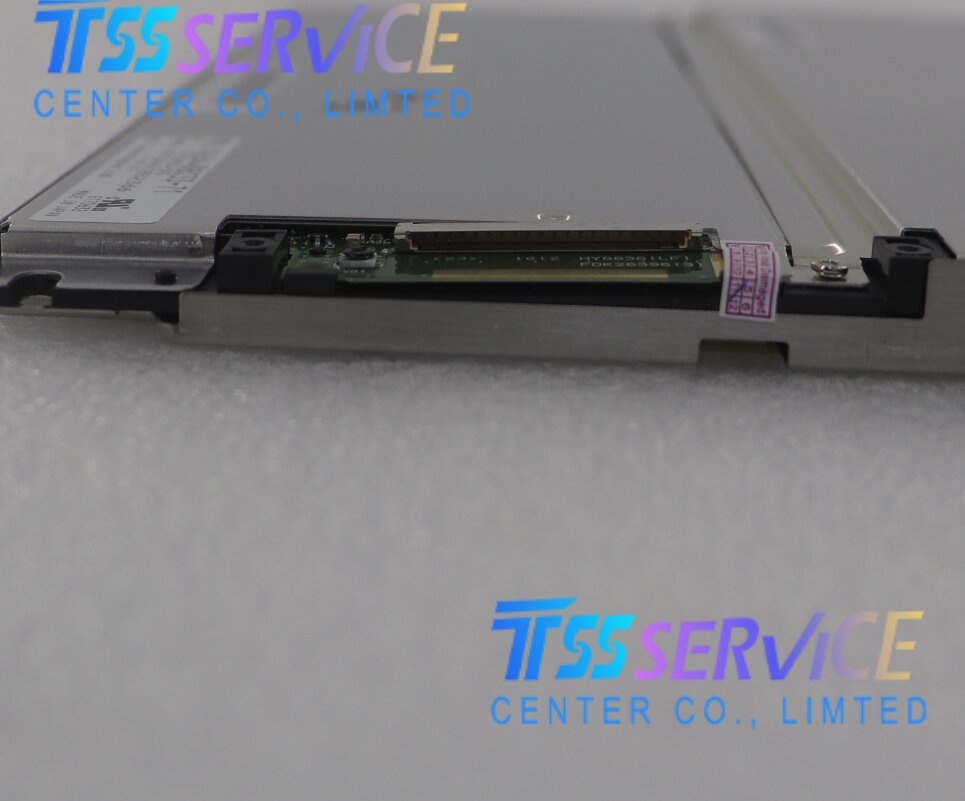

NEC/NLT 10.4 inch LCD Display Panel NL6448BC33-71 for Industrial NEW
The NL6448BC33-71 series is specifically engineere for demanding industrial and outdoor applications requiring high reliability, wide temperature operation, and excellent sunlight readability . Its specific applications include:
-
Industrial Control Systems and HMIs: Human-Machine Interfaces for factory automation and process control
-
CNC (Computer Numerical Control) Machinery: Machine tool displays requiring high visibility
-
Medical Diagnostic Equipment: Patient monitors and medical imaging devices
-
Outdoor Terminals and Kiosks: Banking terminals (ATMs), self-service kiosks, and information displays
-
Transportation and Marine Applications: Vehicle navigation systems, marine chart plotters, and avionics displays
-
Portable Field Equipment: Battery-powered field instruments due to low power consumption
-
Test and Measurement Instruments: Professional test equipment requiring wide temperature operation
-
Digital Signage: Indoor/outdoor informational displays requiring high brightness
-
Security and Surveillance: Control room monitors requiring wide viewing angle
-
Military and Defense: Ruggedized equipment requiring extended temperature range and vibration resistance
| Parameter |
Specification |
| Manufacturer |
NEC (NEC LCD Technologies) |
| Part Number |
NL6448BC33-71D (LED version) / NL6448BC33-71F (High-brightness version) -5-6 |
| Display Size |
10.4" (26 cm diagonal) |
| Display Type |
a-Si TFT-LCD (Amorphous silicon thin-film-transistor) |
| Resolution |
640 x 480 pixels (VGA) |
| Aspect Ratio |
4:3 |
| Pixel Arrangement |
RGB Vertical Stripe |
| Pixel Pitch (HxV) |
0.33 x 0.33 mm |
| Display Area (WxH) |
211.2 x 158.4 mm |
| Outline Dimensions (WxHxD) |
243.0 x 185.1 x 11.0 mm |
| Weight |
Approx. 475 g (Typ.) |
| Luminance (Brightness) |
450 cd/m² (Typ.) for -71D variant
900 cd/m² (Typ.) for -71F variant |
| Contrast Ratio |
600:1 (Typ.) for -71D variant
900:1 (Typ.) for -71F variant |
| Viewing Angle (CR≥10) |
80/80/80/80° (Typ.) - Ultra-wide symmetrical |
| Best View Direction |
Symmetric (Full viewing angle) |
| Display Mode |
TN, Normally White, Transmissive |
| Response Time (Tr/Td) |
3/15 ms (Typ.) for -71F variant
25 ms (Typ.) for -71D variant |
| Display Colors |
262K (6-bit) or 16.7M (6-bit + Hi-FRC) |
| Color Gamut |
40% NTSC (Typ.) |
| Signal Interface |
LVDS (1 ch, 6/8-bit), 20 pins |
| Backlight Type |
White LED (edge-light type) |
| Backlight Lifetime |
70,000 hours (Typ.) |
| Backlight Driver |
Not included (external driver required) |
| Supply Voltage (Logic) |
3.3V (Typ.) |
| Power Consumption |
4.6 W (Typ.) |
| Operating Temperature |
-30 to 80 °C |
| Storage Temperature |
-30 to 80 °C |
| Surface Treatment |
Clear, Hard coating (3H), Anti-glare / Anti-reflective |
| Vibration Resistance |
2.0G (19.6 m/s²) |
| Special Features |
ColorXcell technology, 180° flip display, Easy backlight replacement |
NEC/NLT
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
