NL6448BC33-74K NEC 10.4 Inch 640×480 Industrial TFT LCD Panel HMI Display Replacement

Name: NL6448BC33-74K NEC 10.4 Inch 640×480 Industrial TFT LCD Panel HMI Display Replacement
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL6448BC33-74K
Price: 180 USD
Availability: InStock

SKU: NL6448BC33-74K

Model No.: NL6448BC33-74K
Diagonal Size: 10.4 inch
Panel Type: a-Si TFT-LCD, Normally Black, Transmissive SA-SFT
Native Resolution: 640(RGB) × 480 VGA

0.0 (0 Reviews)

0 Sold

~~$185.00~~ $180.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

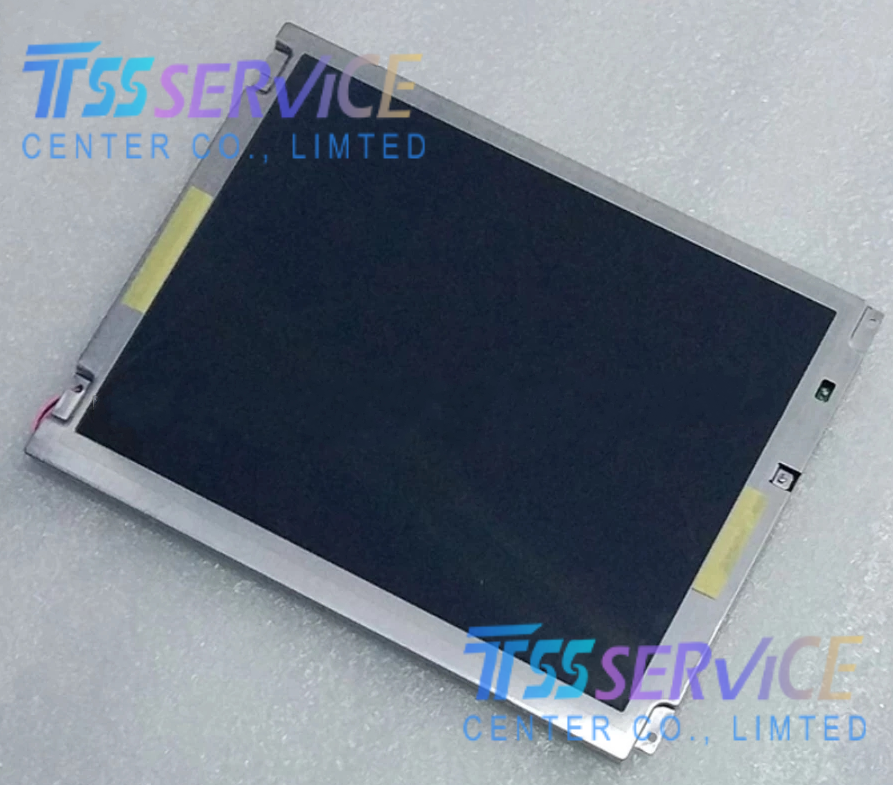

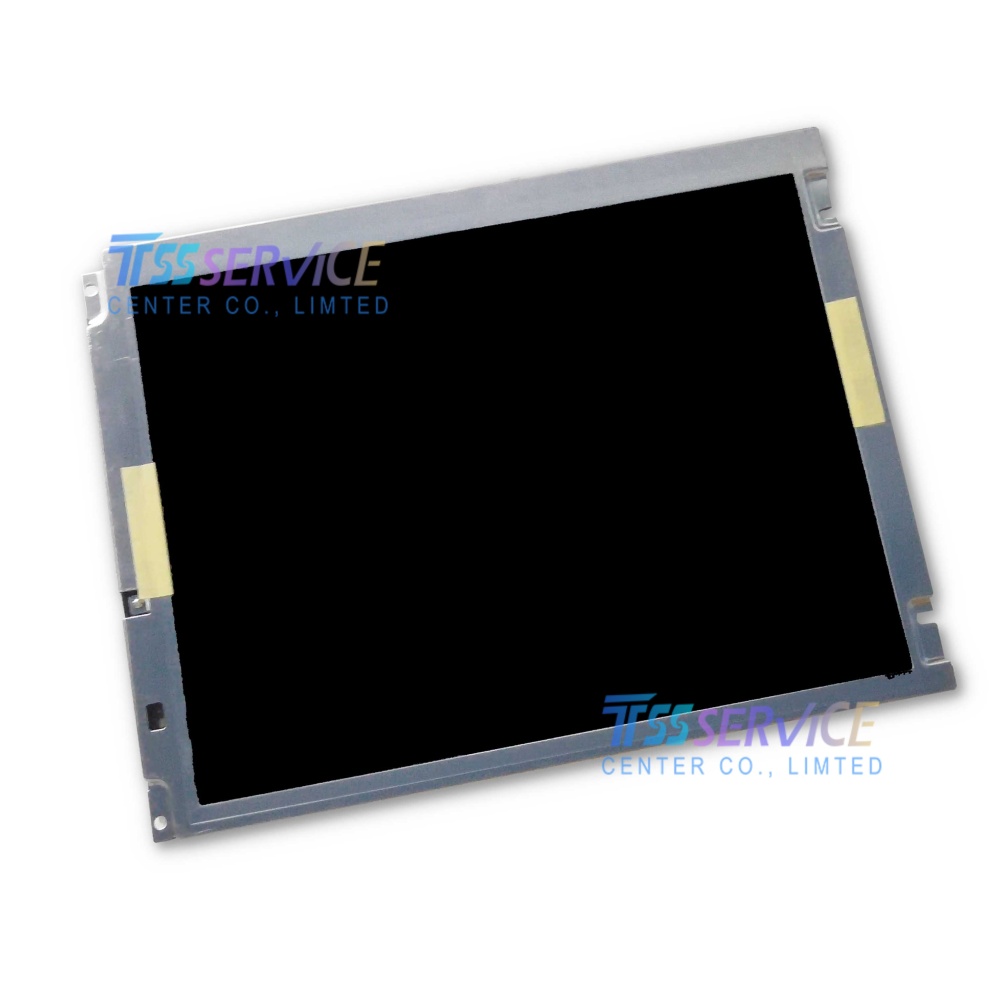

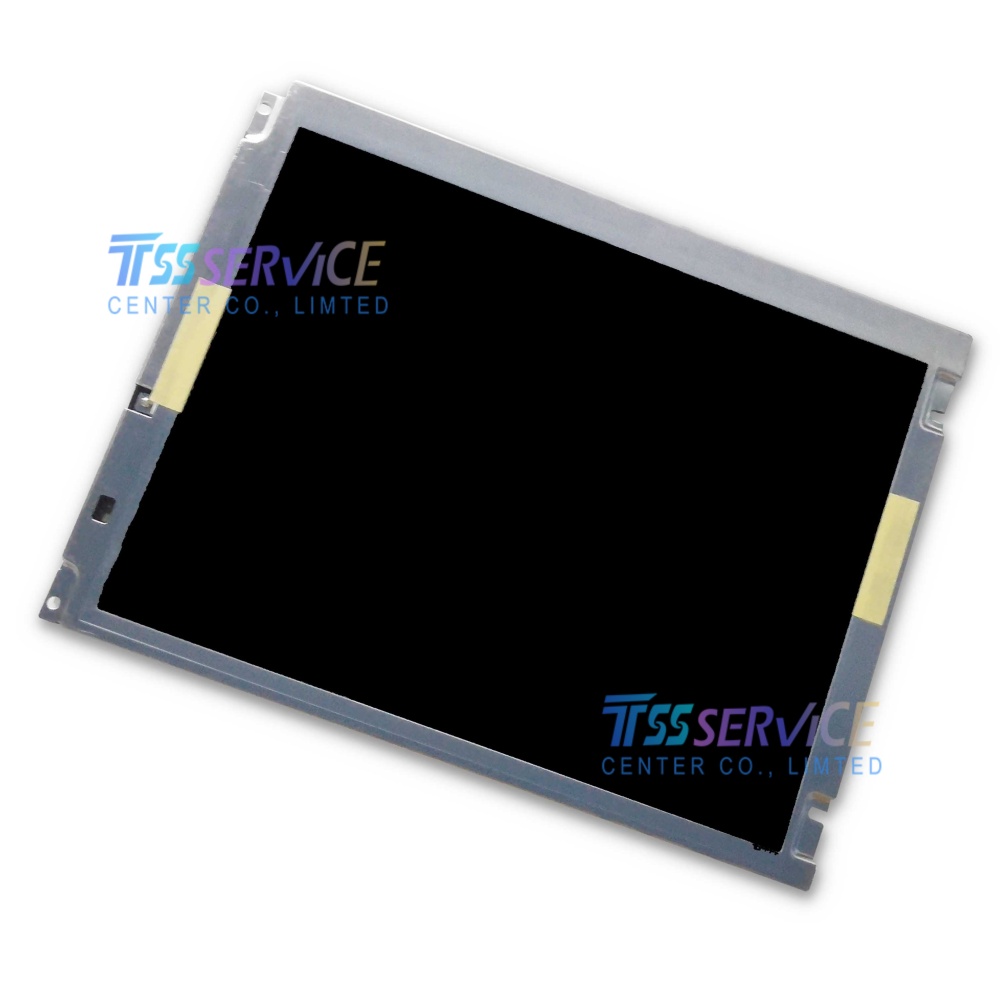

NL6448BC33-74K NEC 10.4 Inch 640×480 Industrial TFT LCD Panel HMI Display Replacement

Spec Item	Parameter Details
Model No.	NL6448BC33-74K
Brand	NEC / NLT Technologies
Diagonal Size	10.4 inch
Panel Type	a-Si TFT-LCD, Normally Black, Transmissive SA-SFT
Native Resolution	640(RGB) × 480 VGA
Pixel Pitch	0.33 × 0.33 mm
Active Display Area	211.2 (W) × 158.4 (H) mm
Outline Dimension	243.0 × 185.1 × 11.0 mm
Brightness	450 cd/m² (Typical)
Contrast Ratio	800:1 (Typ.)
Viewing Angle (L/R/U/D, CR≥10)	88°/88°/88°/88° Full Wide View
Response Time (Tr/Td)	14ms / 16ms (Typ.)
Color Depth	6-bit RGB, 262K Colors, 50% NTSC
Backlight	Dual CCFL Lamps, Lifespan 50,000 Hours, Without Built-in Driver
Signal Interface	Single Channel 6-bit CMOS, 31 Pins Connector
Supply Voltage	3.3V / 5.0V
Total Power Consumption	6.6W (Max)
Surface Treatment	Clear Polarizer, Hard Coating 3H
Net Weight	475g (Typ.), Max 500g
Operating Temperature	-20 ℃ ~ +70 ℃
Storage Temperature	-30 ℃ ~ +80 ℃
Vibration Resistance	2.0G Industrial Grade
Touch Compatibility	Non-Touch, Match External Resistive/Capacitive Touch Glass
