NL8060AC26-54D 10.4inch 800×600 TFT Lcd Panel

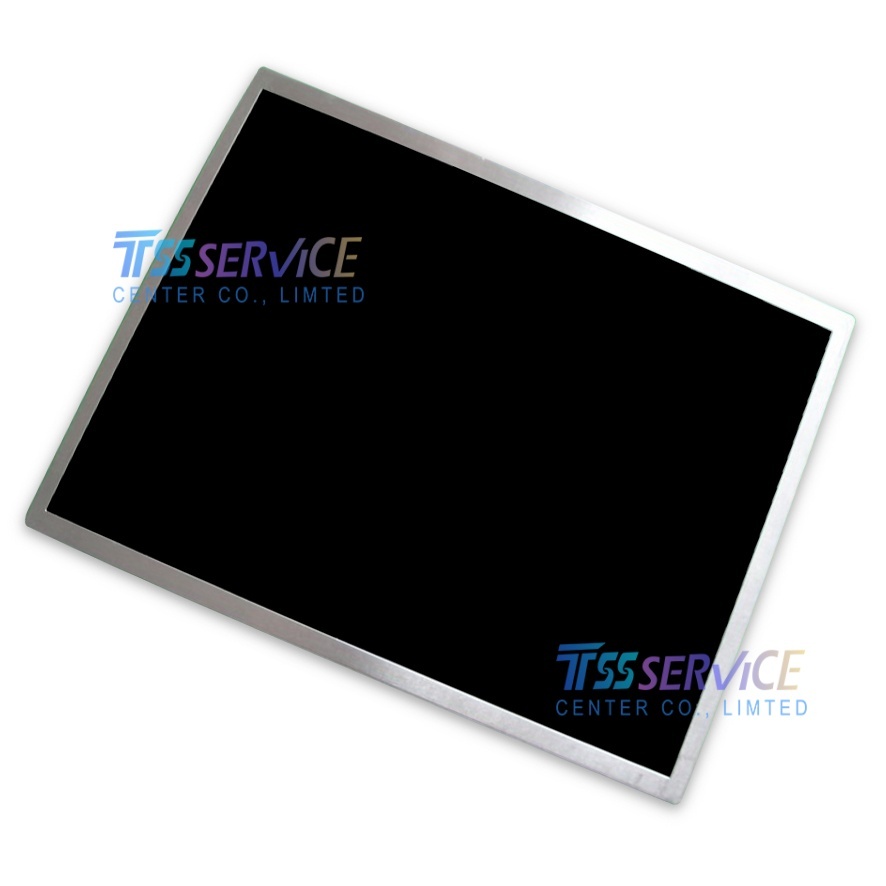

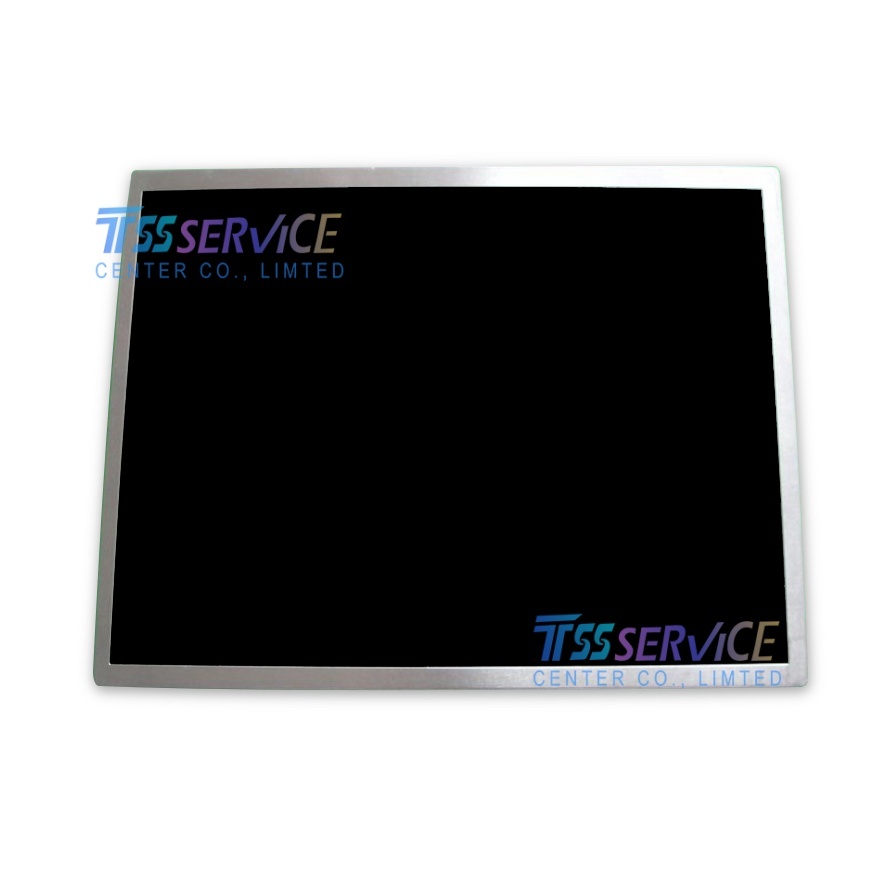

Name: NL8060AC26-54D 10.4inch 800×600 TFT Lcd Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL8060AC26-54D
Price: 148 USD
Availability: InStock

SKU: NL8060AC26-54D

Model P/N: NL8060AC26-54D
Diagonal Size： 10.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 96PPI
Signal Interface:LVDS (1 ch, 6/8-bit) , 20 pins Connector

0.0 (0 Reviews)

0 Sold

~~$150.00~~ $148.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The NLT NL8060AC26-54D is a 10.4-inch amorphous silicon (a-Si) thin-film transistor (TFT) liquid crystal display module engineered for demanding industrial applications . Originally manufactured by NLT Technologies (NEC LCD Technologies), this model features SVGA resolution of 800 × 600 pixels with 16.7 million colors display capability . It represents a modern LED-backlit evolution in the NL8060 series, offering enhanced performance characteristics compared to earlier CCFL-based models.

Parameter	Value
Brand	NLT
Model P/N	NL8060AC26-54D
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA, 96 PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.4(W)×161.8(H) mm
Outline Dim.	227.3(H)×177.5(V)×9.8(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	450 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	3/15 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K / 16.7M, 40% NTSC
Light Source	WLED, 100,000 hours, With LED Driver
Weight	375g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 80 °C; Storage Temperature: -30 ~ 80 °C

Applications

The NL8060AC26-54D is ideally suited for:

Industrial control systems and HMIs (Human-Machine Interfaces)
Factory automation and process controllers.
CNC machine tools and injection molding equipment.
Medical monitoring devices requiring wide temperature range.
Test and measurement instruments for field service.
Outdoor kiosks and information displays.
Marine and navigation systems.
Transportation and vehicle-mounted displays.

Q: Do you conduct tests before shipment?

A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.

Q: What if the product doesn't work ?

A: Please test the product as soon as you receive it. If it does not work, take clear photos and videos of the issue and contact us immediately. We will then provide technical support or arrange a return or exchange.
