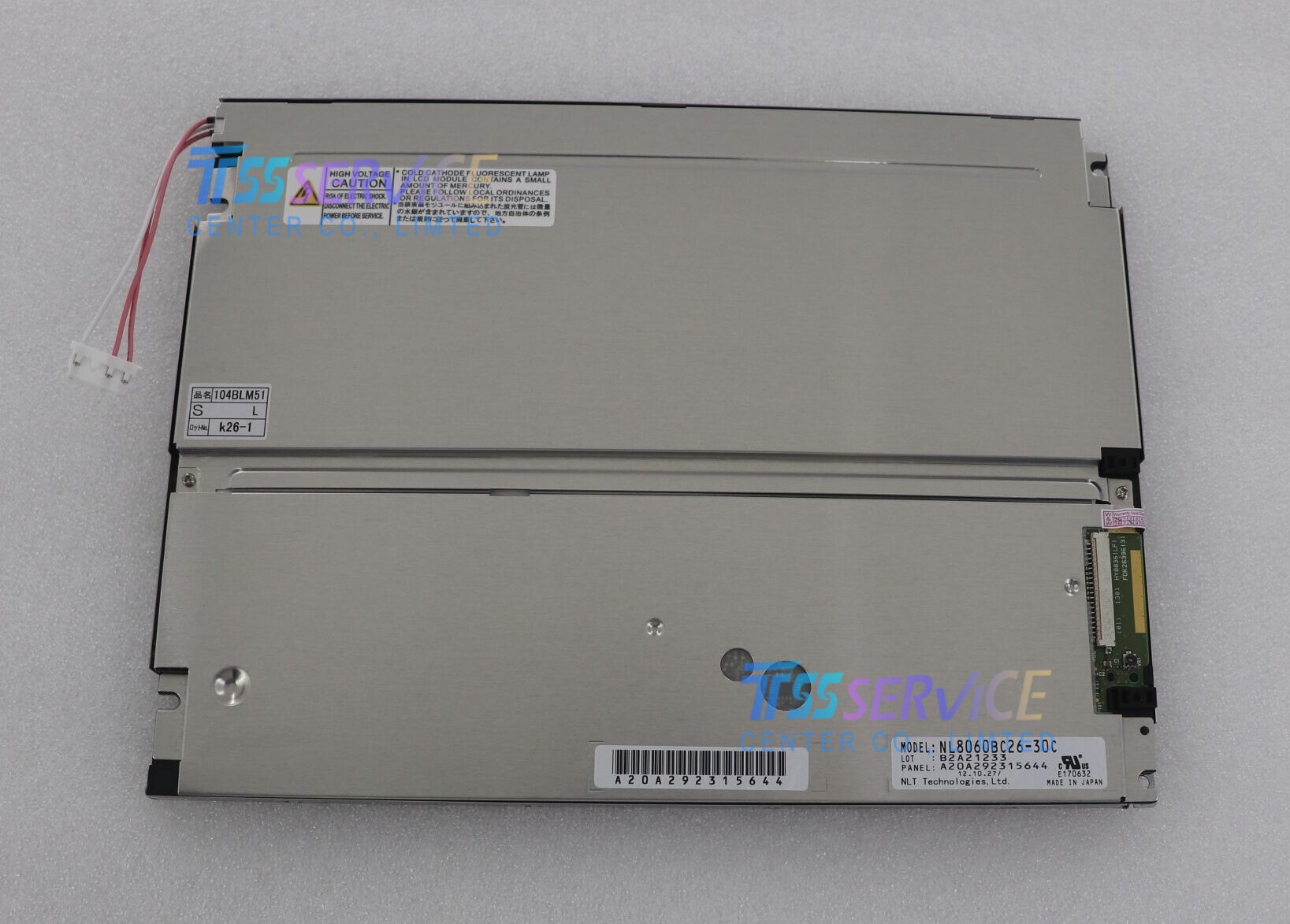

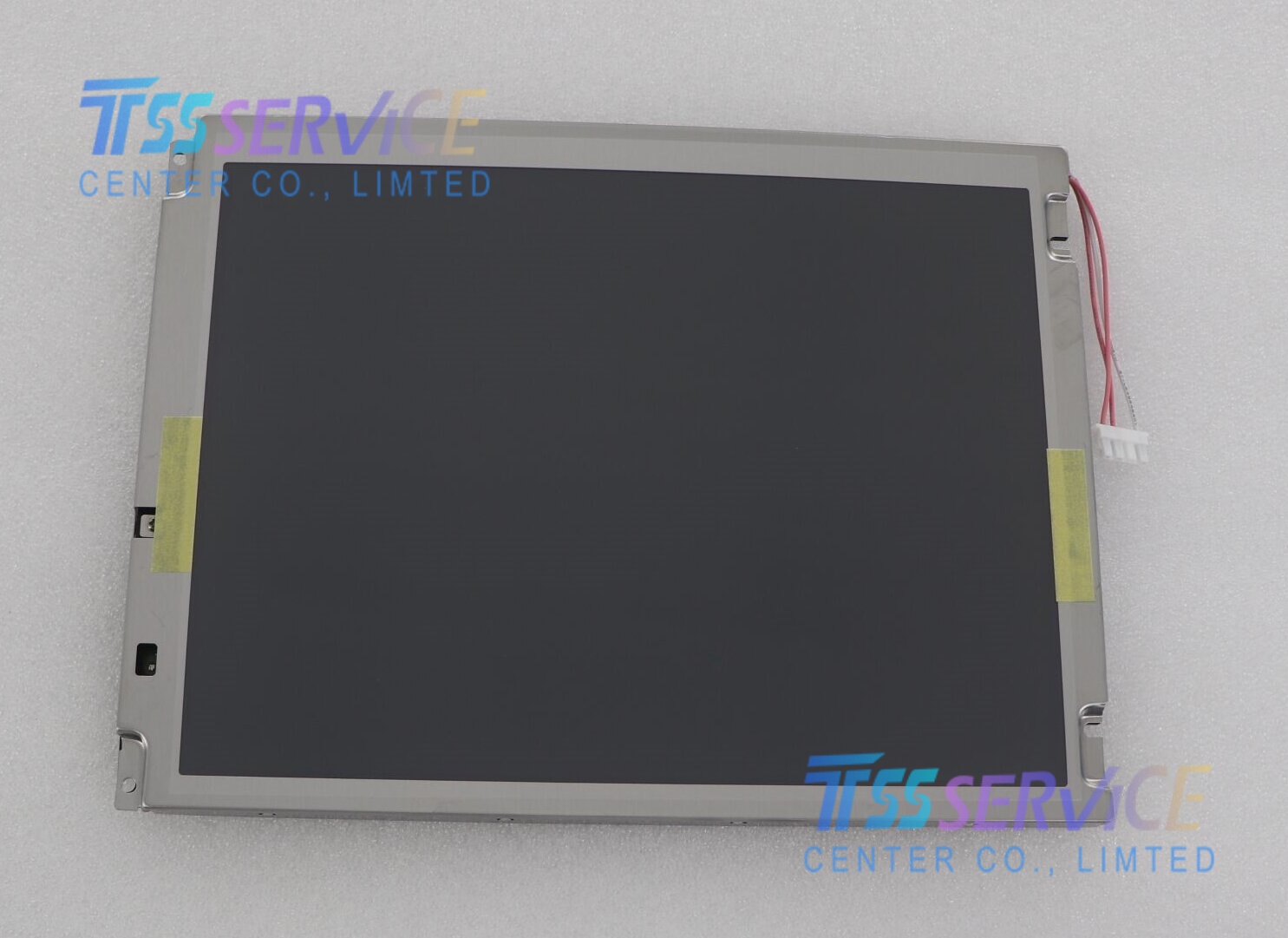

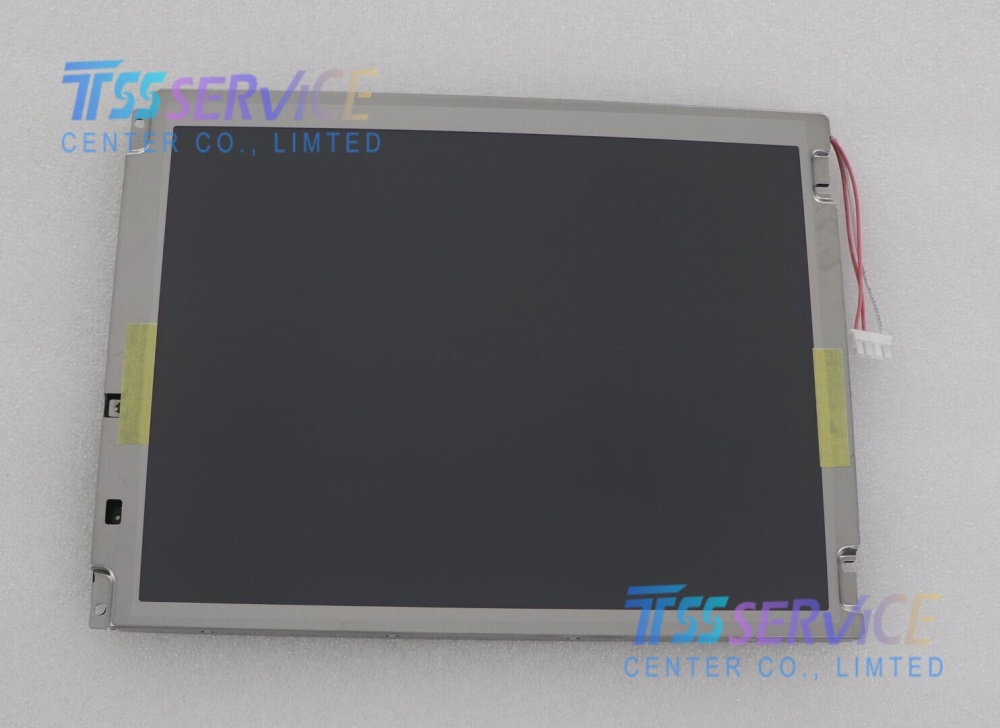

The NEC NL8060BC26-30C is a 10.4-inch amorphous silicon (a-Si) thin-film transistor (TFT) liquid crystal display module engineered for demanding industrial applications requiring high visibility in challenging lighting conditions.
Introduced by NEC LCD Technologies in Q4 2008, this model features SVGA resolution of 800 × 600 pixels with 16.7 million colors display capability and incorporates NEC's proprietary Super-Transmissive Natural Light TFT (ST-NLT) technology for enhanced outdoor readability
| Parameter |
Value |
| Brand |
NEC |
| Model P/N |
NL8060BC26-30C |
| Diagonal Size |
10.4" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA, 96 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
211.2(W)×158.4(H) mm |
| Bezel Opening |
215.4(W)×161.8(H) mm |
| Outline Dim. |
243.0(W)×185.1(H)×11.0(D) mm |
| Treatment |
Clear, Hard coating (2H), Antireflection |
| Luminance |
550 cd/m² (Typ.) |
| Contrast Ratio |
900:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
3/15 (Typ.)(Tr/Td) |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K / 16.7M, 40% NTSC |
| Light Source |
CCFL [2 pcs], 50,000 hours, Without Driver |
| Weight |
485/510g (Typ./Max.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Environment |
Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²) |
Applications
The NL8060BC26-30C is ideally suited for:
-
Industrial control systems and HMIs (Human-Machine Interfaces)
-
Factory automation and process controllers
-
CNC machine tools and injection molding equipment
-
ATMs (Automated Teller Machines) and banking terminals
-
Measuring devices and test instruments
-
Vending machines and kiosk systems
-
Outdoor information displays requiring high brightness
-
Marine and navigation systems.
