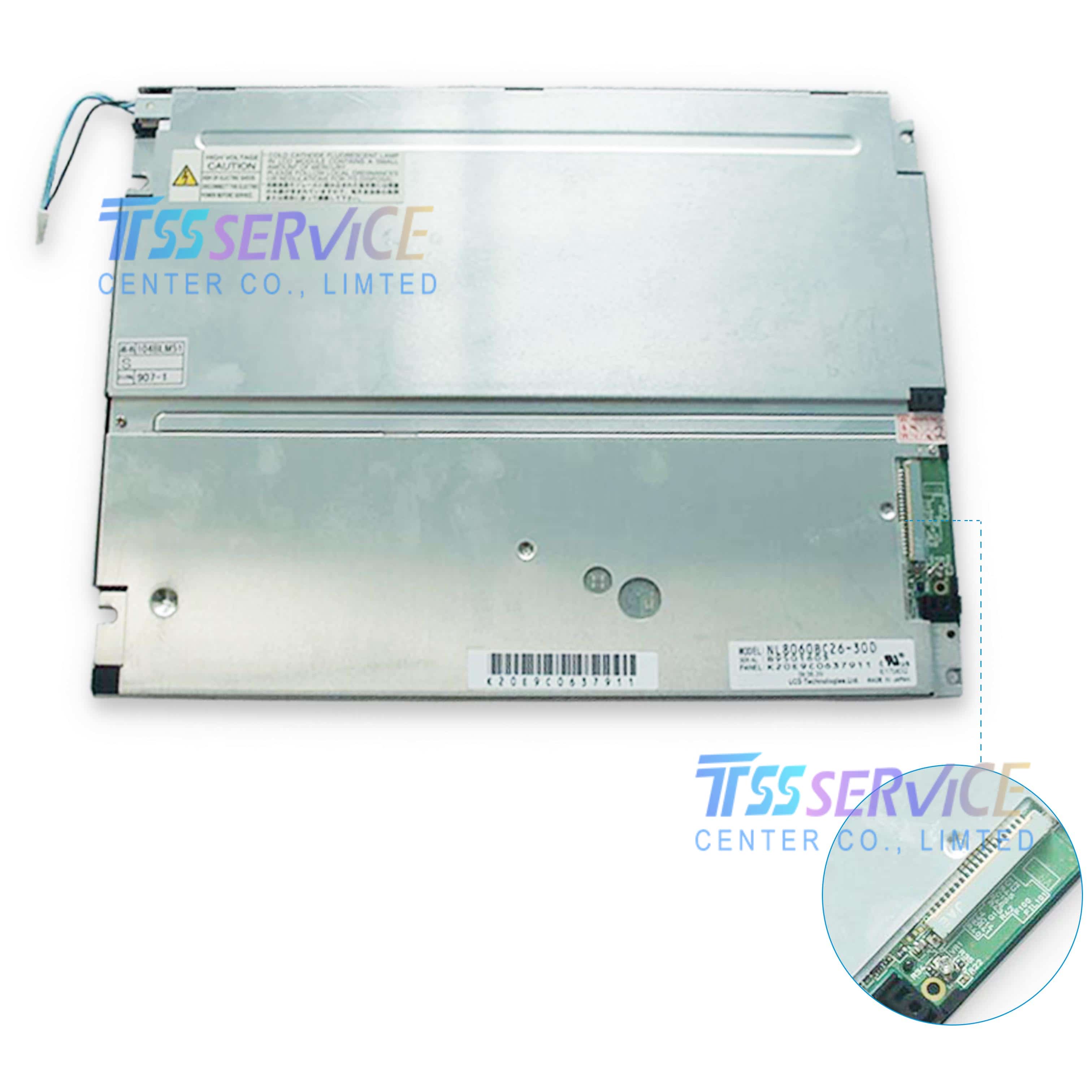

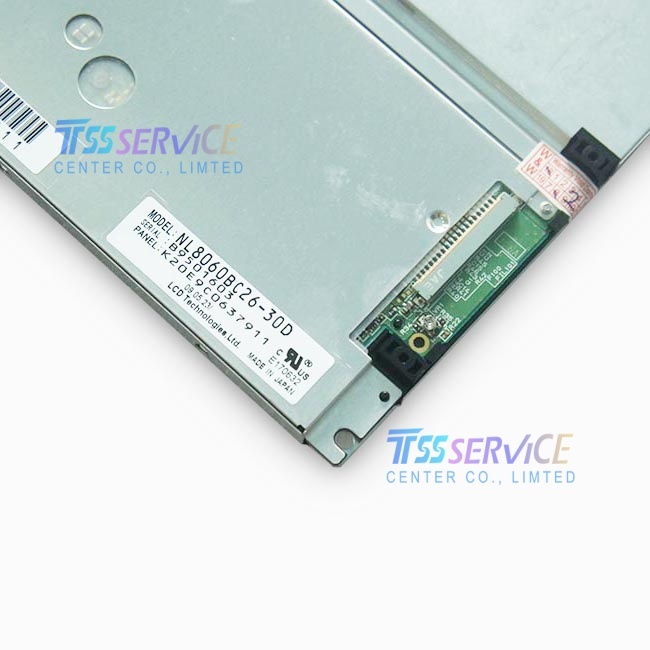

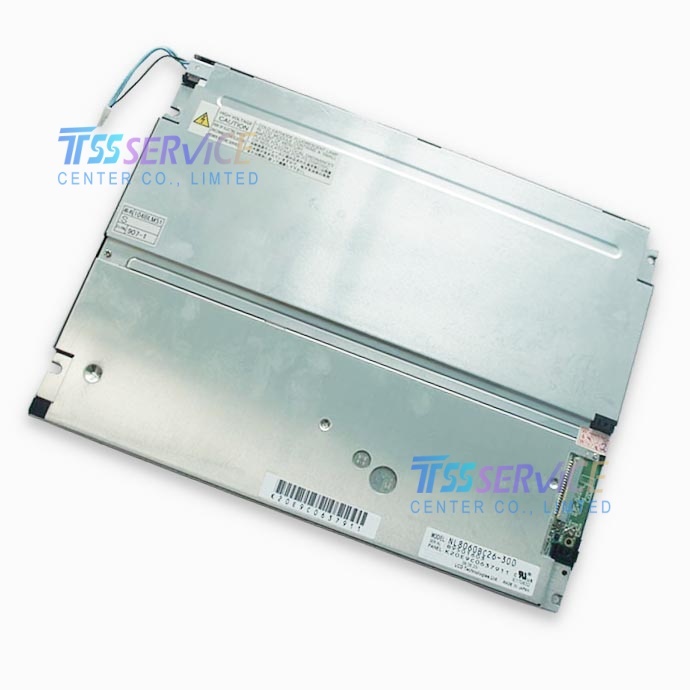

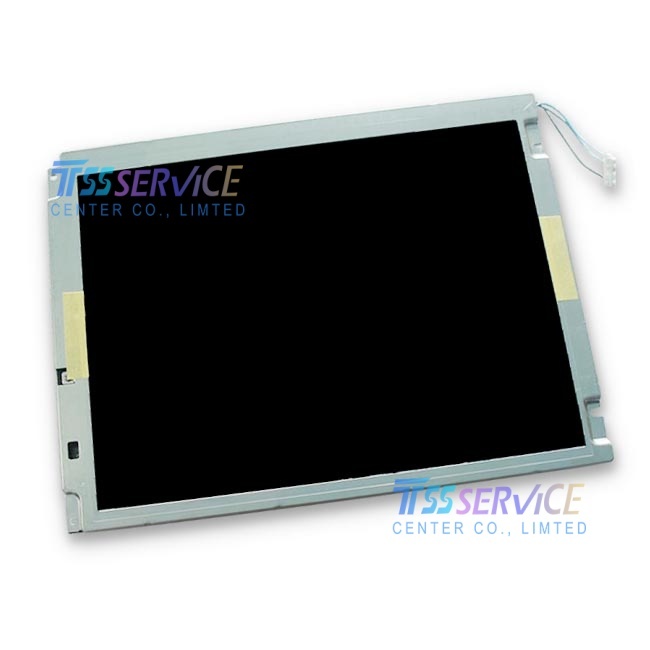

10.4'' 800×600 Tft LCD Liquid Crystal Display NL8060BC26-30D

Name: 10.4'' 800×600 Tft LCD Liquid Crystal Display NL8060BC26-30D
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL8060BC26-30D
Price: 178 USD
Availability: InStock

SKU: NL8060BC26-30D

Model P/N： NL8060BC26-30D
Diagonal Size：10.4"
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×600, SVGA 96PPI
Light Source： CCFL [2 pcs]

0.0 (0 Reviews)

0 Sold

~~$183.00~~ $178.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The NEC NL8060BC26-30D is a 10.4-inch amorphous silicon (a-Si) thin-film transistor (TFT) liquid crystal display module engineered for demanding industrial applications requiring reliable performance and long-term serviceability . Introduced by NEC LCD Technologies in Q1 2008, this model features SVGA resolution of 800 × 600 pixels with 16.7 million colors display capability and incorporates proven TN technology for robust optical performance . The module is designed with a focus on operational longevity, highlighted by its user-replaceable backlight system and integrated driver features.

Parameter	Value
Brand	NEC
Model P/N	NL8060BC26-30D
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA, 96 PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.4(W)×161.8(H) mm
Outline Dim.	243.0(W)×185.1(H)×11.0(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	3/15 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K / 16.7M, 40% NTSC
Light Source	CCFL [2 pcs], 50,000 hours, Without Driver
Weight	475/500g (Typ./Max.)
Designed For	Without
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²)
