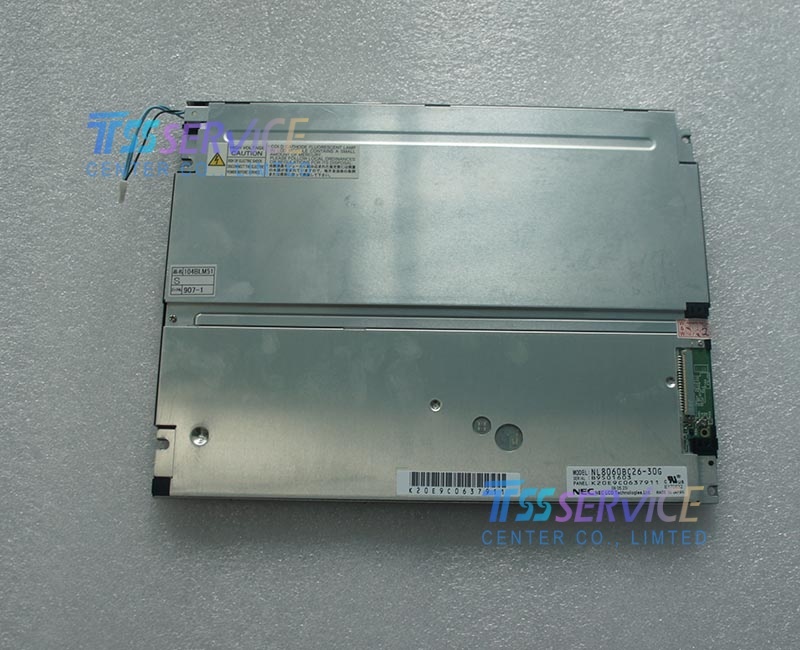

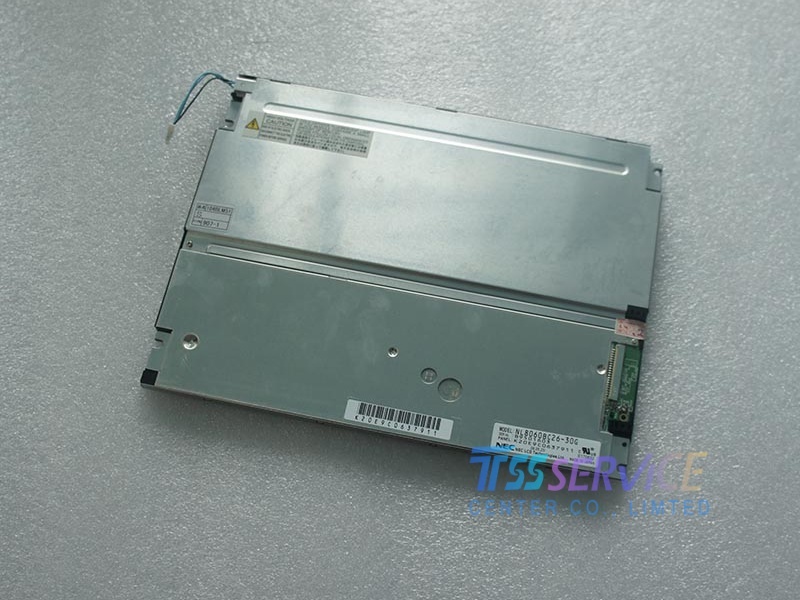

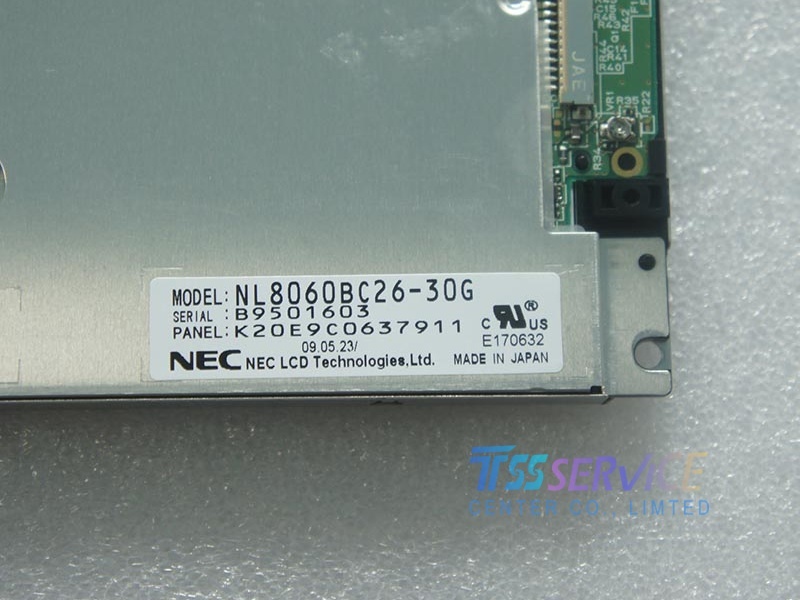

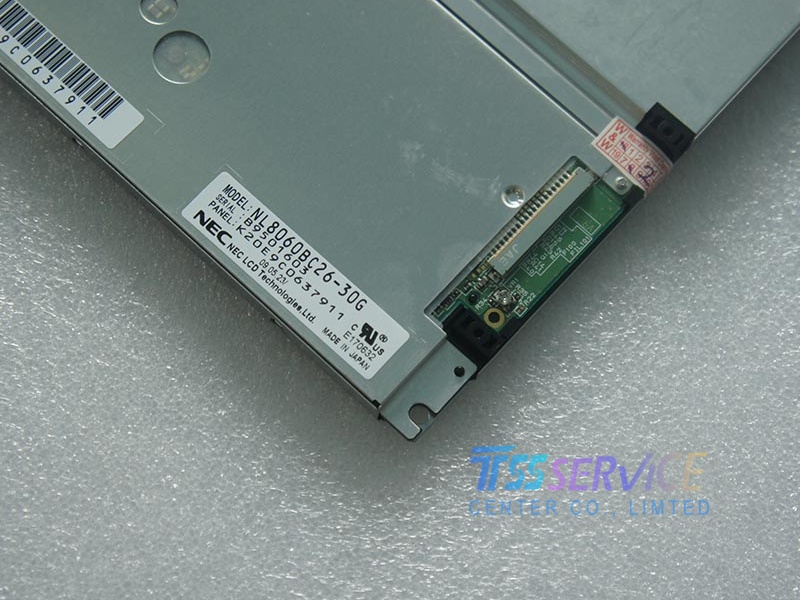

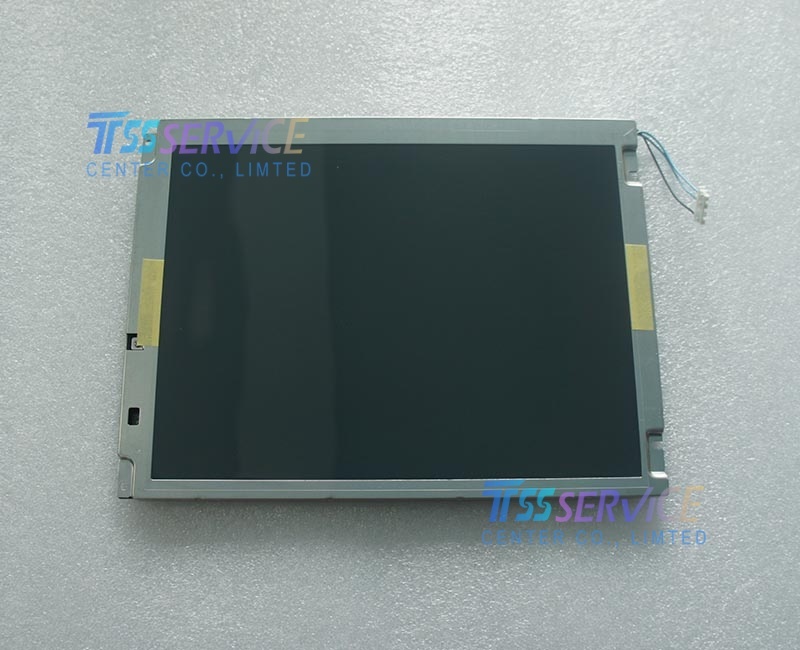

The NEC NL8060BC26-30G is a 10.4-inch amorphous silicon (a-Si) thin-film transistor (TFT) liquid crystal display module engineered for demanding industrial applications requiring high visibility and robust performance . This model features SVGA resolution of 800 × 600 pixels with 16.7 million colors display capability and incorporates proven TN technology for reliable optical performance . As part of NEC's industrial display portfolio, this panel is designed for long-term operational stability in challenging environments.
| Parameter |
Value |
| Brand |
NEC |
| Model P/N |
NL8060BC26-30G |
| Diagonal Size |
10.4" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA, 96 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
211.2(W)×158.4(H) mm |
| Outline Dim. |
243.0(H)×185.1(V) mm |
| Treatment |
Antiglare |
| Luminance |
550 cd/m² (Typ.) |
| Contrast Ratio |
900:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K / 16.7M |
| Light Source |
CCFL [2 pcs], Without Driver |
| Interface Type |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Environment |
Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
Applications
The NL8060BC26-30G is ideally suited for:
-
Industrial control systems and HMIs (Human-Machine Interfaces)
-
Factory automation and process controllers
-
CNC machine tools and injection molding equipment
-
Medical monitoring equipment and diagnostic instruments
-
Test and measurement instruments .
-
ATMs and banking terminals
-
Vending machines and kiosk systems
-
Legacy system modernization and drop-in replacement for older 10.4" SVGA displays .
