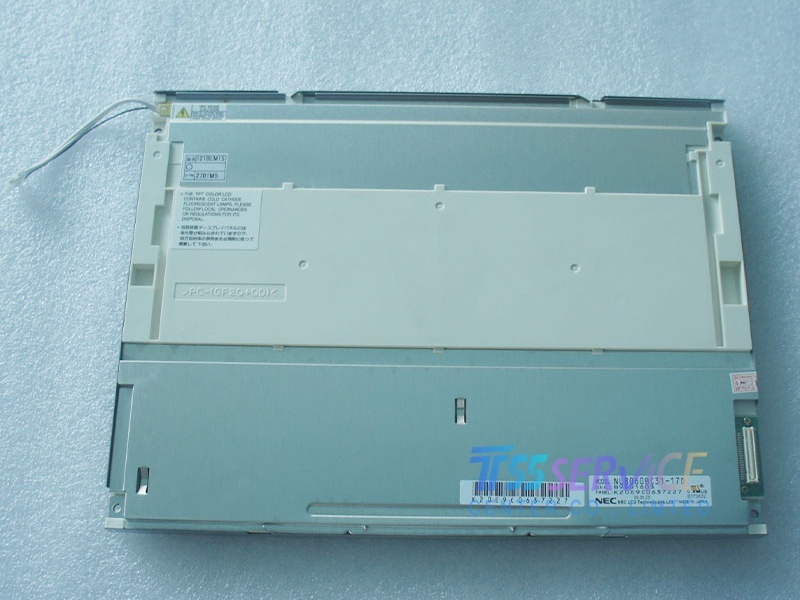

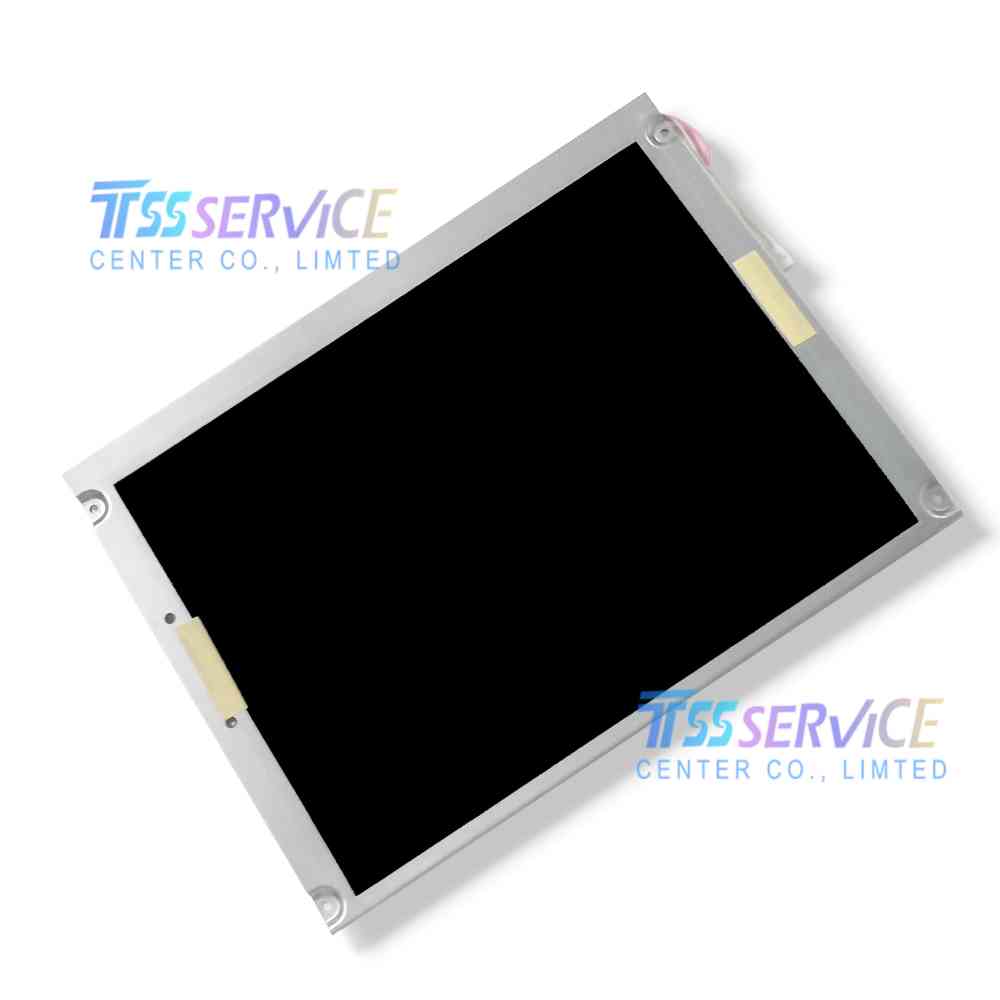

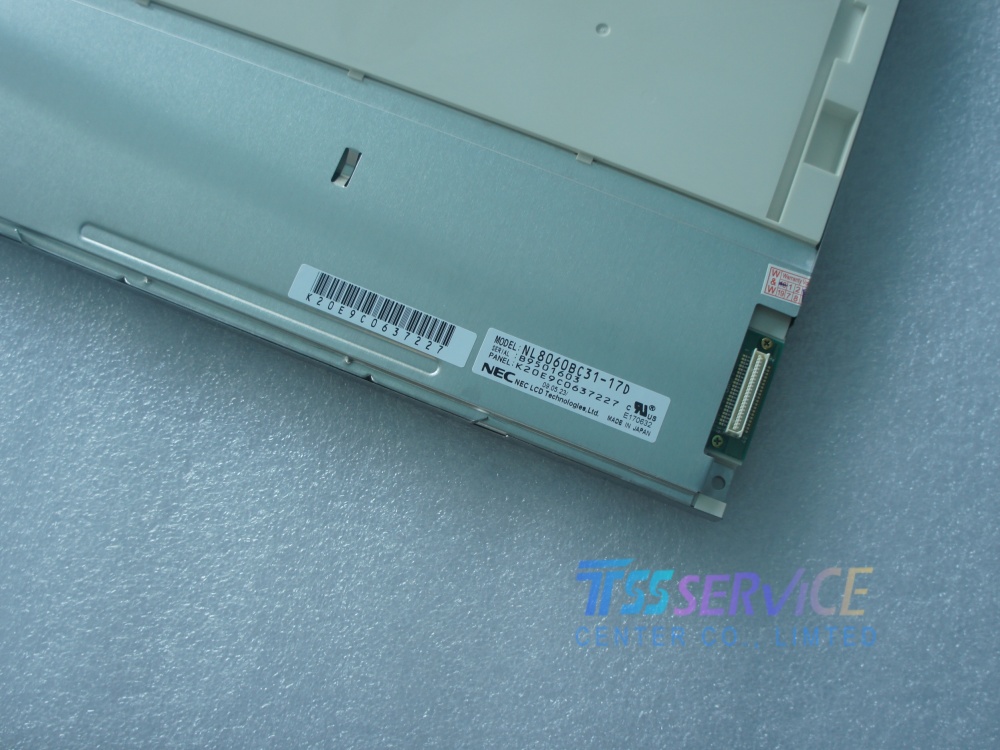

NL8060BC31-17D 12.1inch 800×600 TFT Lcd Screen in stock

Name: NL8060BC31-17D 12.1inch 800×600 TFT Lcd Screen in stock
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL8060BC31-17D
Price: 70 USD
Availability: InStock

SKU: NL8060BC31-17D

Model P/N：NL8060BC31-17D
Diagonal Size：12.1"
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×600, SVGA 82PPI
Pixel Format： RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Product Introduction: NEC NL8060BC31-17D 12.1" SVGA TFT-LCD Display (In Stock)

The NEC NL8060BC31-17D is a high-quality, 12.1-inch a-Si TFT-LCD module engineered for demanding industrial and embedded applications. Currently in stock and ready to ship, this model is a reliable choice for both new designs and legacy system replacements requiring a proven SVGA display solution.

Brand	NEC
Model P/N	NL8060BC31-17D
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI
Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm
Bezel Opening	249.0(W)×187.5(H) mm
Outline (mm)	280 × 210 × 13.7 (H×V×D)
Treatment	Antiglare, Hard coating (2H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	350 : 1 (Typ.)(TM)
Viewing Angle	55/55/40/50 (Typ.)(CR≥10)
Response	15/55 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K 43% NTSC
Backlight	2 pcs CCFL, No Driver
Mass	750/780g (Typ./Max.)
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	CMOS (1 ch, 6-bit), 41 pins Connector
Voltage Supply	3.3/5.0V (Typ.)(VCC)
Max. Ratings	Storage Temp.: -20 ~ 60 °C, Operating Temp.: 0 ~ 50 °C, Vibration Level: 2.0G (19.6 m/s²)

Applications

Industrial Control Panels & HMIs
Factory Automation Equipment
Medical Monitoring Systems
Test and Measurement Instruments
Legacy System Upgrades and Retrofits
