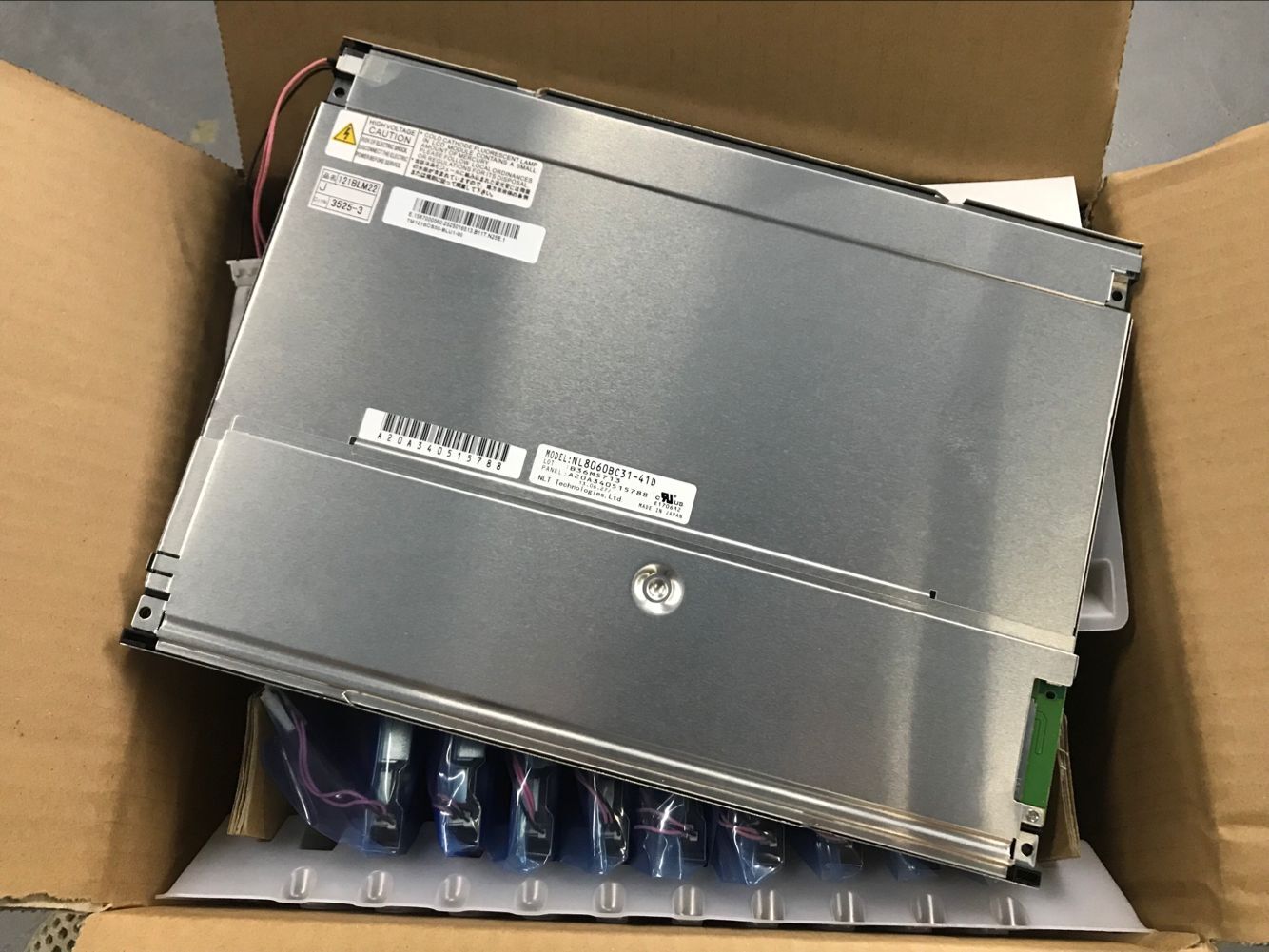

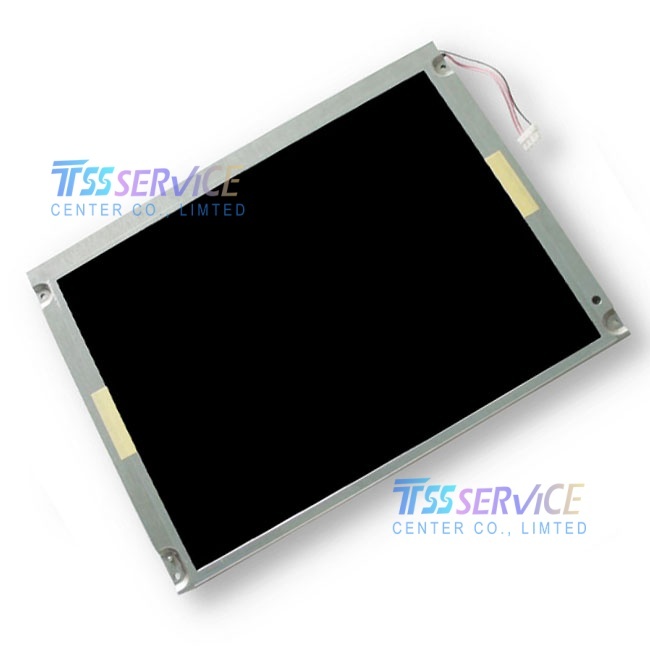

The NEC NL8060BC31-41C is a 12.1-inch amorphous silicon (a-Si) thin-film transistor (TFT) active matrix liquid crystal display module designed for demanding industrial and professional applications . This model features SVGA resolution of 800 × 600 pixels with 16.7 million colors display capability and incorporates NEC's advanced Super-Transmissive NLT (ST-NLT) technology for enhanced optical performance . Originally manufactured by NEC LCD Technologies (now part of Renesas Electronics), this panel delivers exceptional brightness of 550 cd/m², making it suitable for high-ambient-light environments .
| Parameter |
Value |
| Brand |
NEC |
| Model P/N |
NL8060BC31-41C |
| Diagonal Size |
12.1" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA, 82 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
246.0(W)×184.5(H) mm |
| Bezel Opening |
249.0(W)×187.5(H) mm |
| Outline Size |
280.0(W)×210.0(H)×11.5(D) mm |
| Surface |
Clear, Hard coating (2H), Antireflection |
| Brightness |
550 cd/m² (Typ.) |
| Contrast Ratio |
600:1 (Typ.) (TM) |
| Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
6 o'clock |
| Response Time |
6/19 (Typ.)(Tr/Td) |
| Display Colors |
262K / 16.7M, 40% NTSC |
| Lamp Type |
2 pcs CCFL, Without Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Panel Weight |
675/705g (Typ./Max.) |
| Signal Interface |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Environment |
Operating Temp.: -20 ~ 70 °C; Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s²) |
Applications
The NL8060BC31-41C is ideally suited for:
-
Industrial control systems and HMIs (Human-Machine Interfaces)
-
Factory automation and process controllers.
-
Medical monitoring equipment.
-
Test and measurement instruments.
-
Banking terminals and kiosk systems.
-
Outdoor information displays requiring high brightness.
-
Marine and navigation systems.
