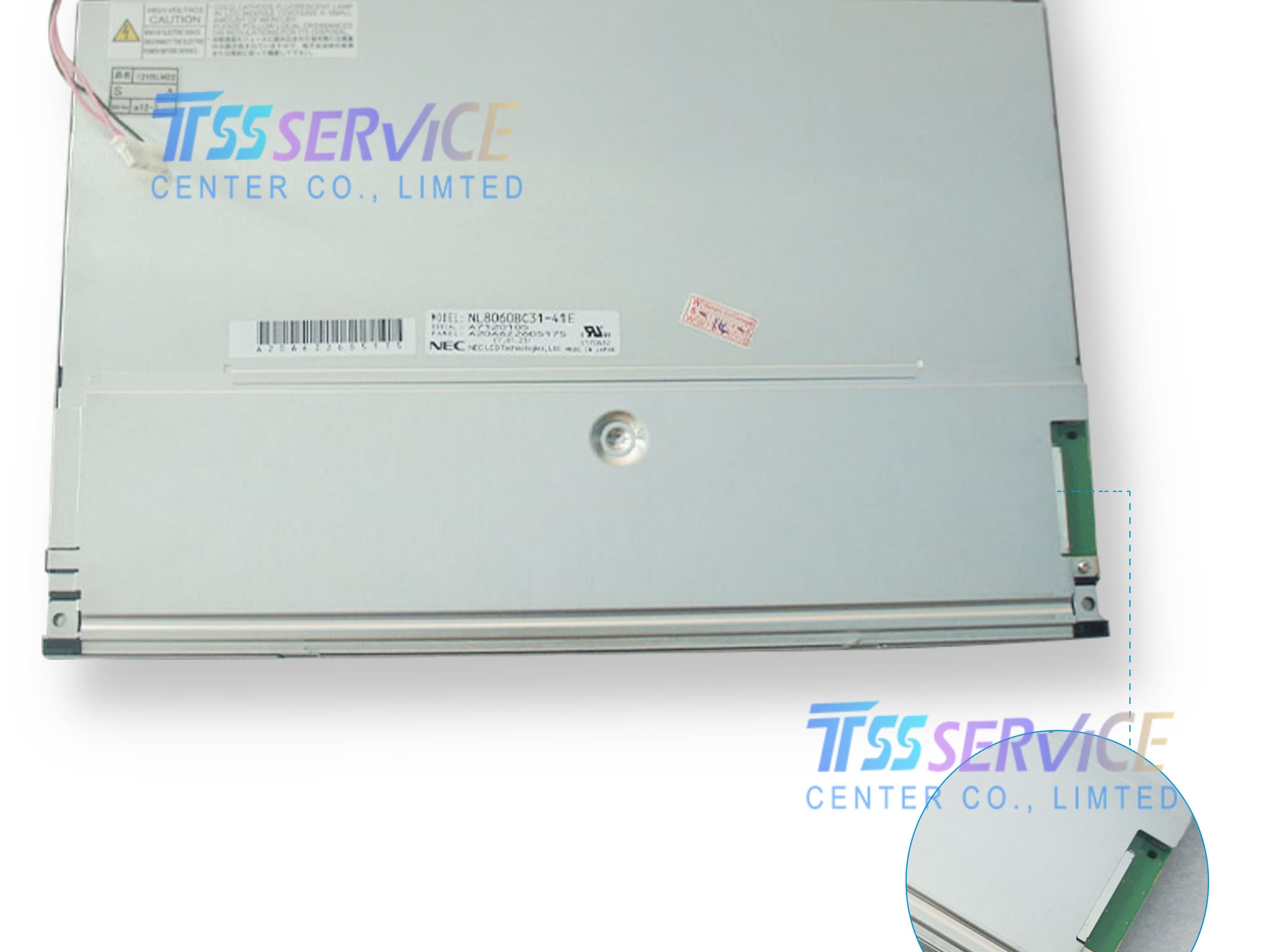

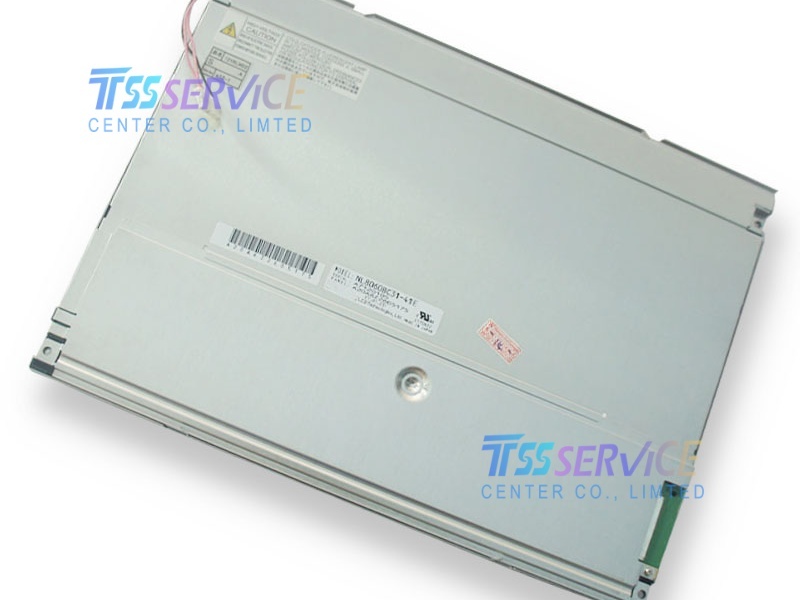

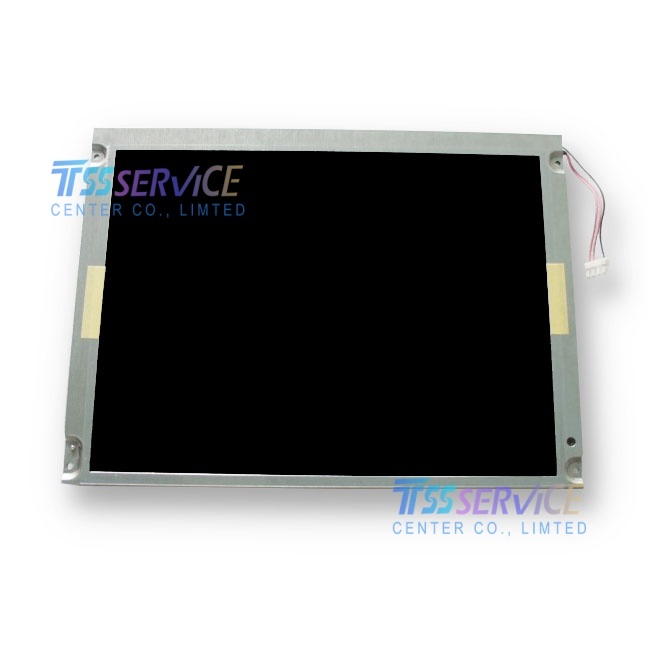

The NEC NL8060BC31-41E is a 12.1-inch amorphous silicon (a-Si) thin-film transistor (TFT) active matrix liquid crystal display module engineered for demanding industrial applications . This model features SVGA resolution of 800 × 600 pixels with 16.7 million colors display capability and incorporates proven TN technology for reliable optical performance . Designed for operational stability in fluctuating thermal conditions, this display provides a robust human-machine interface foundation where environmental resilience is a primary design driver .
| Parameter |
Value |
| Brand |
NEC |
| Model |
NL8060BC31-41E |
| Diagonal Size |
12.1" |
| Resolution |
800(RGB)×600, SVGA, 82 PPI |
| Panel Type |
a-Si TFT-LCD, LCM |
| Active Area |
246.0(W)×184.5(H) mm |
| Pixel Format |
RGB Vertical Stripe |
| Outline Dim. |
280.0(W)×210.0(H) mm |
| Bezel Opening |
249.0(W)×187.5(H) mm |
| Luminance |
400 cd/m² (Typ.) |
| Surface |
Antiglare |
| View Direction |
6 o'clock |
| Contrast Ratio |
600:1 (Typ.) (TM) |
| Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
| Response Time |
6/19 (Typ.)(Tr/Td) |
| Support Color |
262K / 16.7M |
| Operating Mode |
TN, Normally White, Transmissive |
| Light Source |
CCFL [2 pcs], Without Driver |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Power Supply |
3.3V (Typ.) |
Applications
The NL8060BC31-41E is ideally suited for:
-
Industrial automation panels on factory floors where ambient temperatures vary significantly
-
Process control systems in chemical plants, refineries, and utility centers
-
Human-Machine Interfaces (HMIs) for injection molding machines and CNC equipment
-
Medical monitoring equipment
-
Test and measurement instruments for field service or production lines
-
Banking terminals and kiosk systems
-
Vehicle-mounted displays in forklifts, agricultural machinery, or logistics vehicles .
