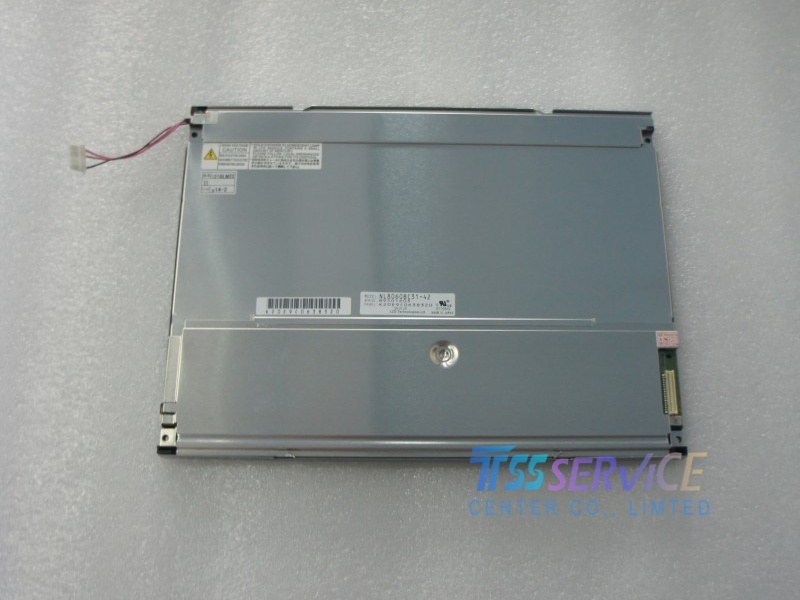

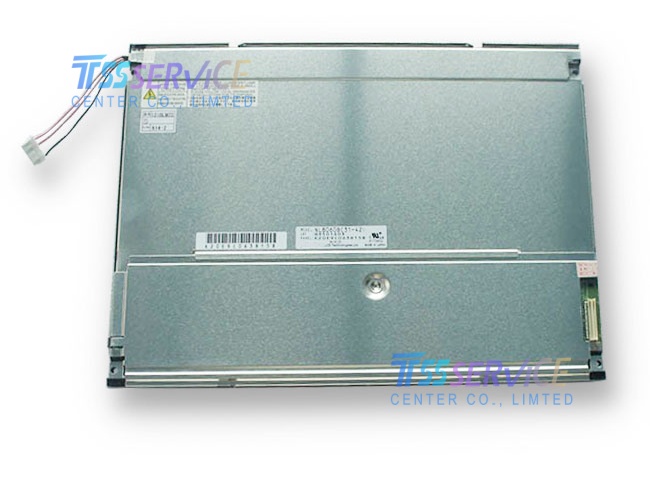

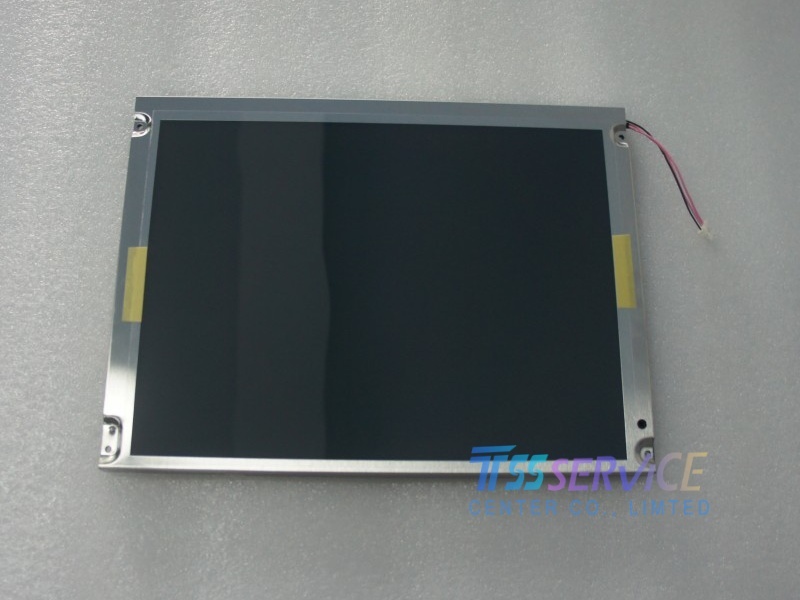

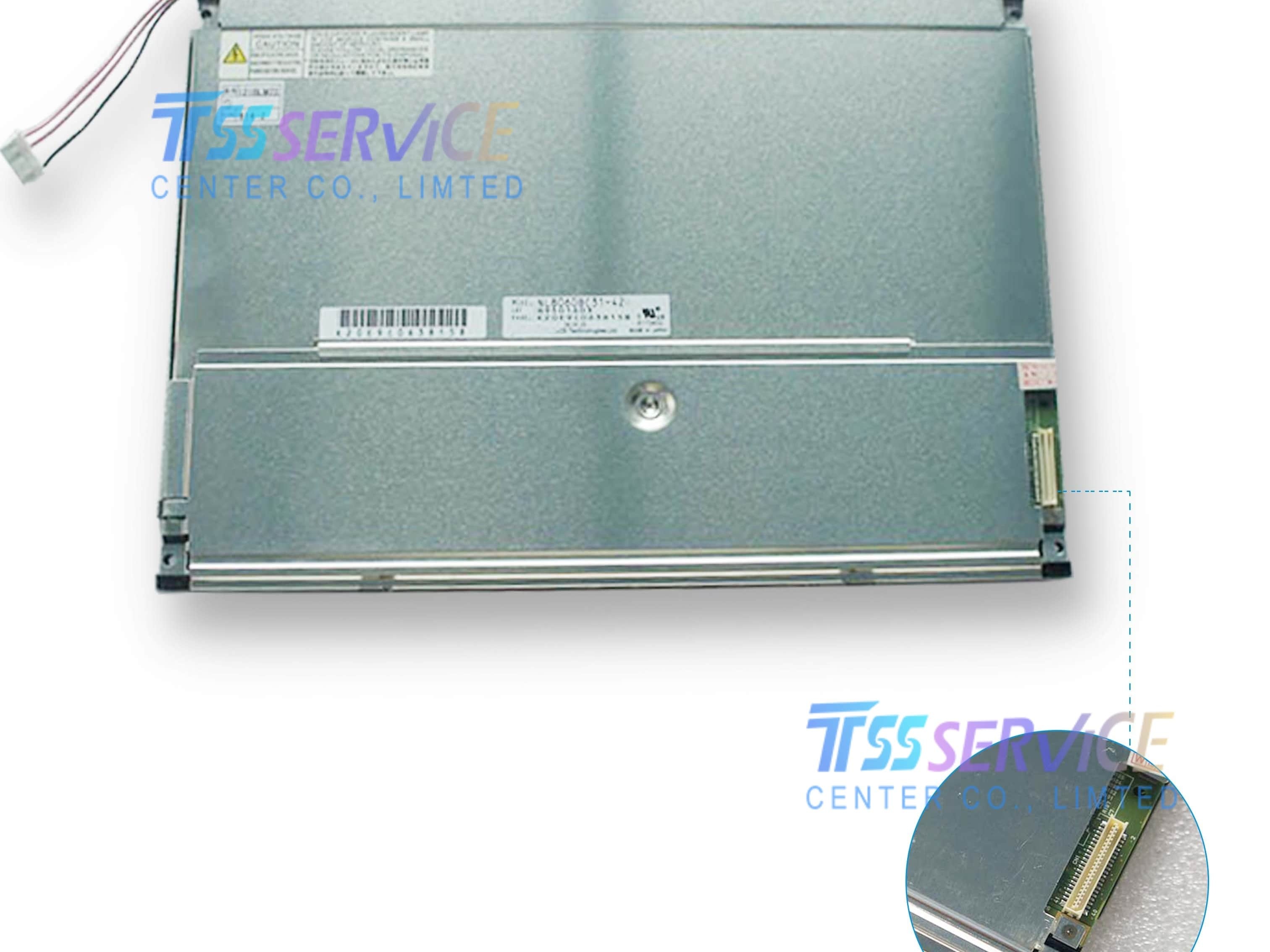

12.1inch 800*600 LCD Display Panel NL8060BC31-42

Name: 12.1inch 800*600 LCD Display Panel NL8060BC31-42
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL8060BC31-42
Price: 99 USD
Availability: InStock

SKU: NL8060BC31-42

Model P/N：NL8060BC31-42
Diagonal Size：12.1"
Panel Type：a-Si TFT-LCD, LCM
Resolution：800(RGB)×600, SVGA 82PPI
Pixel Format： RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $99.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The NL8060BC31-42 is a 12.1-inch amorphous silicon (a-Si) TFT-LCD module engineered by NEC LCD Technologies for demanding industrial applications . Released as a successor product in NEC's core industrial LCD lineup, this module is designed to deliver enhanced visibility and reliable performance across a wide range of operating environments .

As a key model in the 12.1-inch industrial display family, the NL8060BC31-42 features a standard CMOS interface and is specifically optimized for industrial equipment requiring durable, long-lifecycle display solutions

Brand	NEC
Model P/N	NL8060BC31-42
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 82PPI
Pixel Format	RGB Vertical Stripe
Active Area	246(W)×184.5(H) mm
Bezel Opening	249.0(W)×187.5(H) mm
Outline Size	280(W)×210(H)×11.5(D) mm
Surface	Clear, Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	6/19 (Typ.)(Tr/Td)
Display Colors	262K 40% NTSC
Lamp Type	2 pcs CCFL , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	670/700g (Typ./Max.)

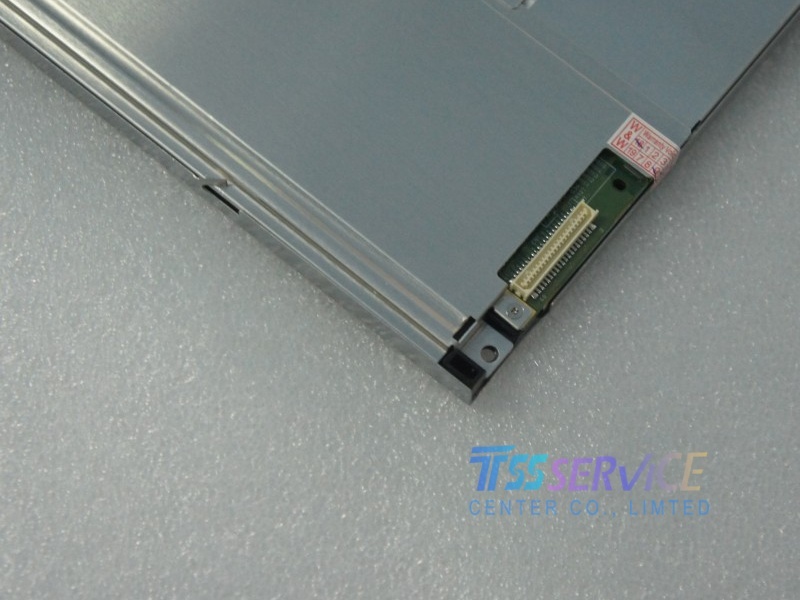

Signal Interface	CMOS (1 ch, 6-bit), 41 pins Connector
Input Voltage	3.3/5.0V (Typ.)(VCC)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

Target Applications：

The NL8060BC31-42 is specifically engineered for industrial use cases where reliability and longevity are paramount ：

Industrial HMIs (Human-Machine Interfaces): For machine controllers and process automation panels on factory floors .
Industrial PCs: As a reliable display component for embedded systems .
Test and Measurement Equipment: Where consistent performance and wide temperature tolerance are valued.
Communications Equipment: Suitable for network control and monitoring stations .
Legacy System Maintenance: An ideal replacement part for long-lifecycle industrial equipment requiring the 12.1" SVGA format with CMOS interface.
