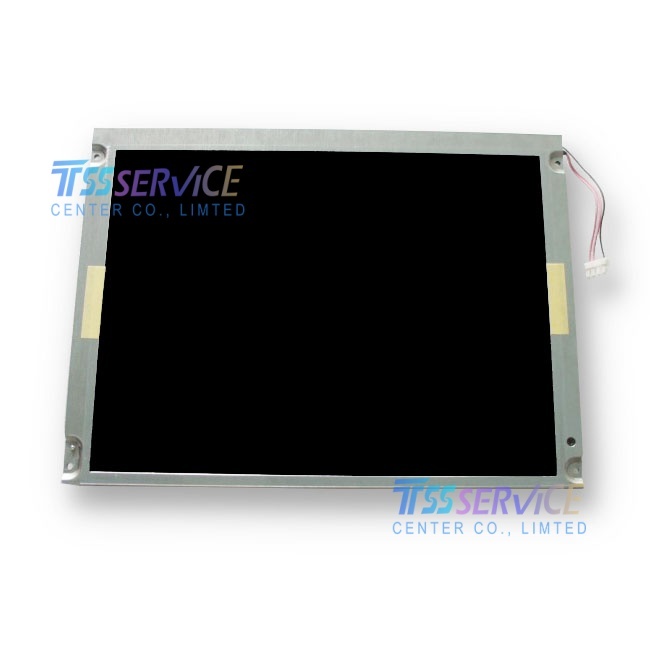

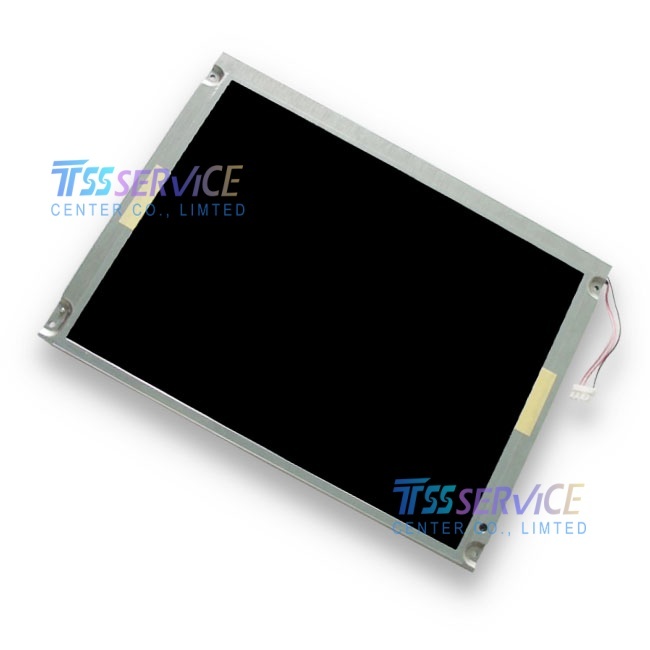

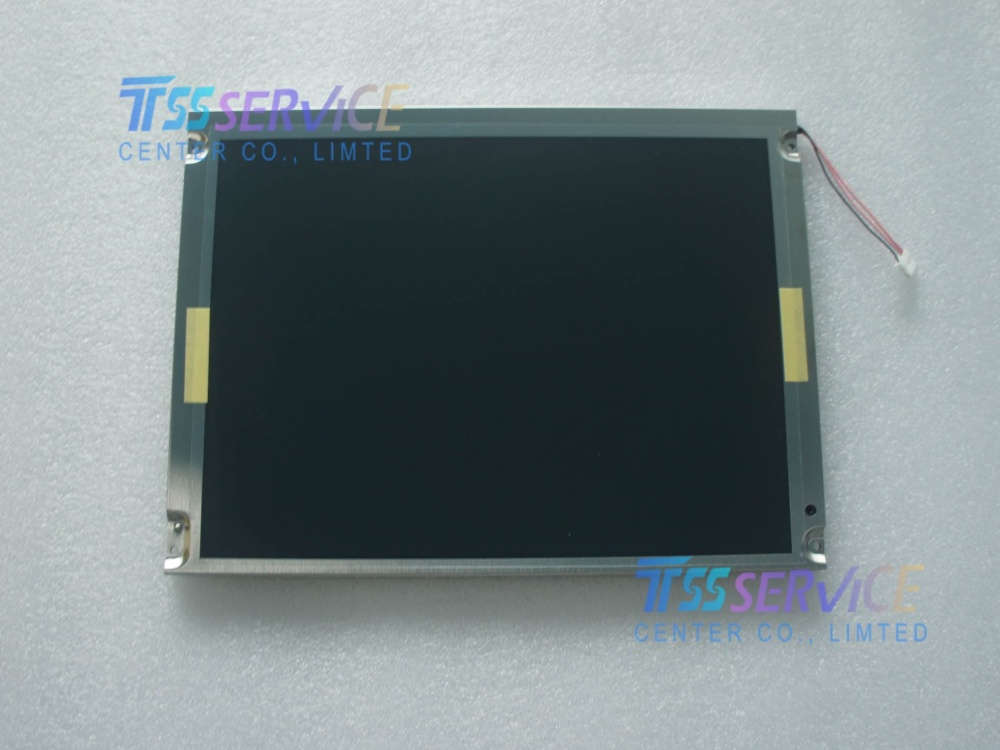

NL8060BC31-42B NEC 12.1 inch LCD Panel Screen for Industrial

Name: NL8060BC31-42B NEC 12.1 inch LCD Panel Screen for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL8060BC31-42B
Price: 118 USD
Availability: InStock

SKU: NL8060BC31-42B

Model P/N: NL8060BC31-42B
Diagonal Size: 12.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800 × 600 (SVGA)
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$120.00~~ $118.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

NL8060BC31-42B NEC 12.1 inch LCD Panel Screen for Industrial

Parameter	Details
Part Number	NL8060BC31-42B
Manufacturer	NLT Technologies (NEC)
Panel Type	a-Si TFT-LCD, TN, Normally White, Transmissive
Diagonal Size	12.1 inches
Resolution	800 × 600 (SVGA)
Pixel Format	RGB Vertical Stripe
Active Area	246.0 × 184.5 mm
Outline Dimensions	280.0 × 210.0 × 11.0 mm
Pixel Pitch	0.3075 × 0.3075 mm
Brightness	400 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Viewing Angle	80/80/80/60° (L/R/U/D) @ CR≥10:1
Response Time	6/19 ms (Tr/Td) (Typ.)
Refresh Rate	60 Hz
Display Colors	262K (6-bit)
Backlight	2-lamp CCFL, 50,000 hrs (Typ.), No Driver
Interface	CMOS (1 ch, 6-bit), 41-pin connector
Supply Voltage	3.3V / 5.0V (Typ.)
Weight	670 g (Typ.), 700 g (Max.)
Surface	Clear (Glossy) / Anti-glare (Matte, 3H)
Operating Temp.	-20 ~ +70 °C
Storage Temp.	-30 ~ +80 °C
Vibration Resistance	2.0G (19.6 m/s²)
RoHS	Compliant
