Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..

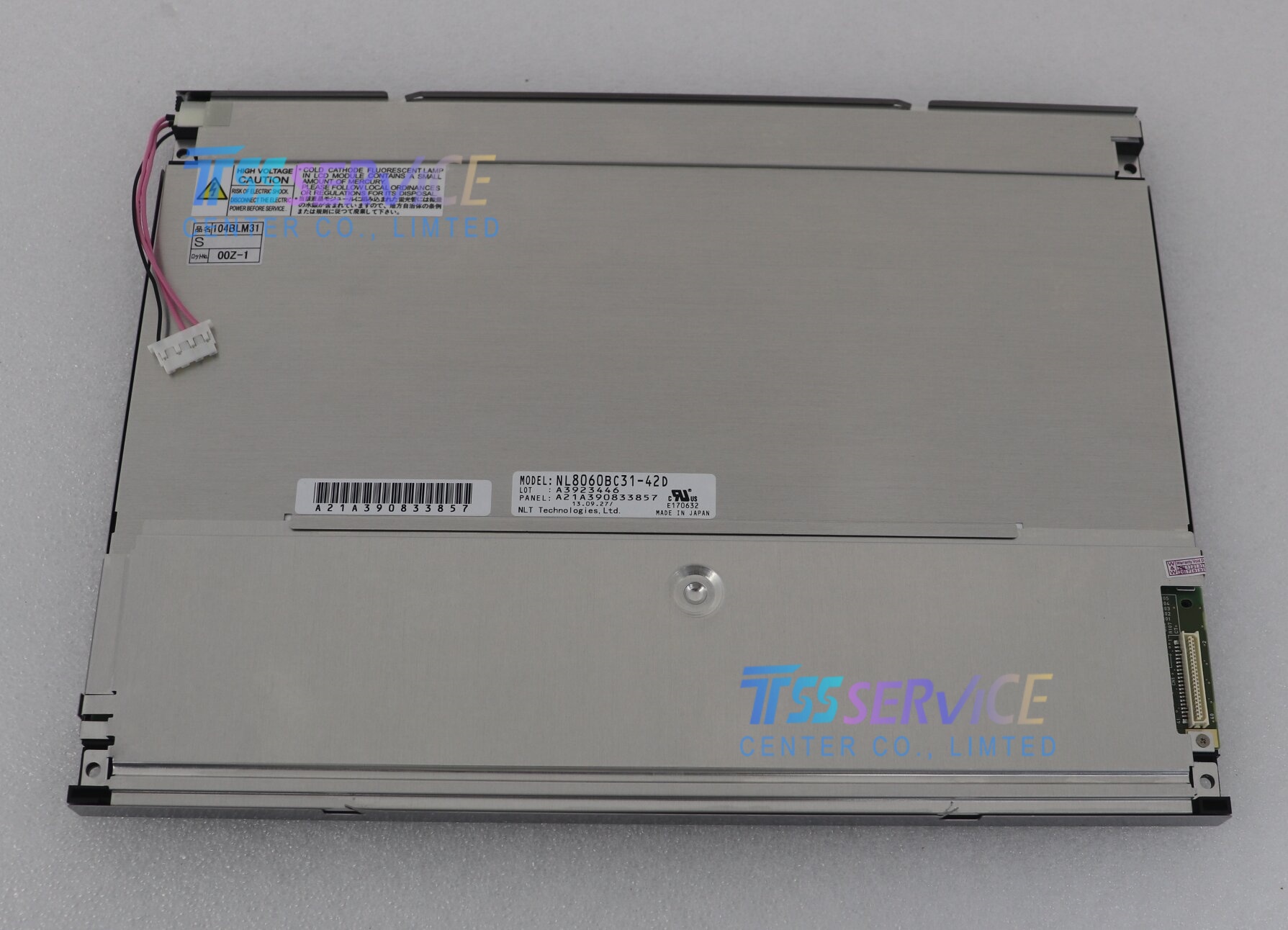

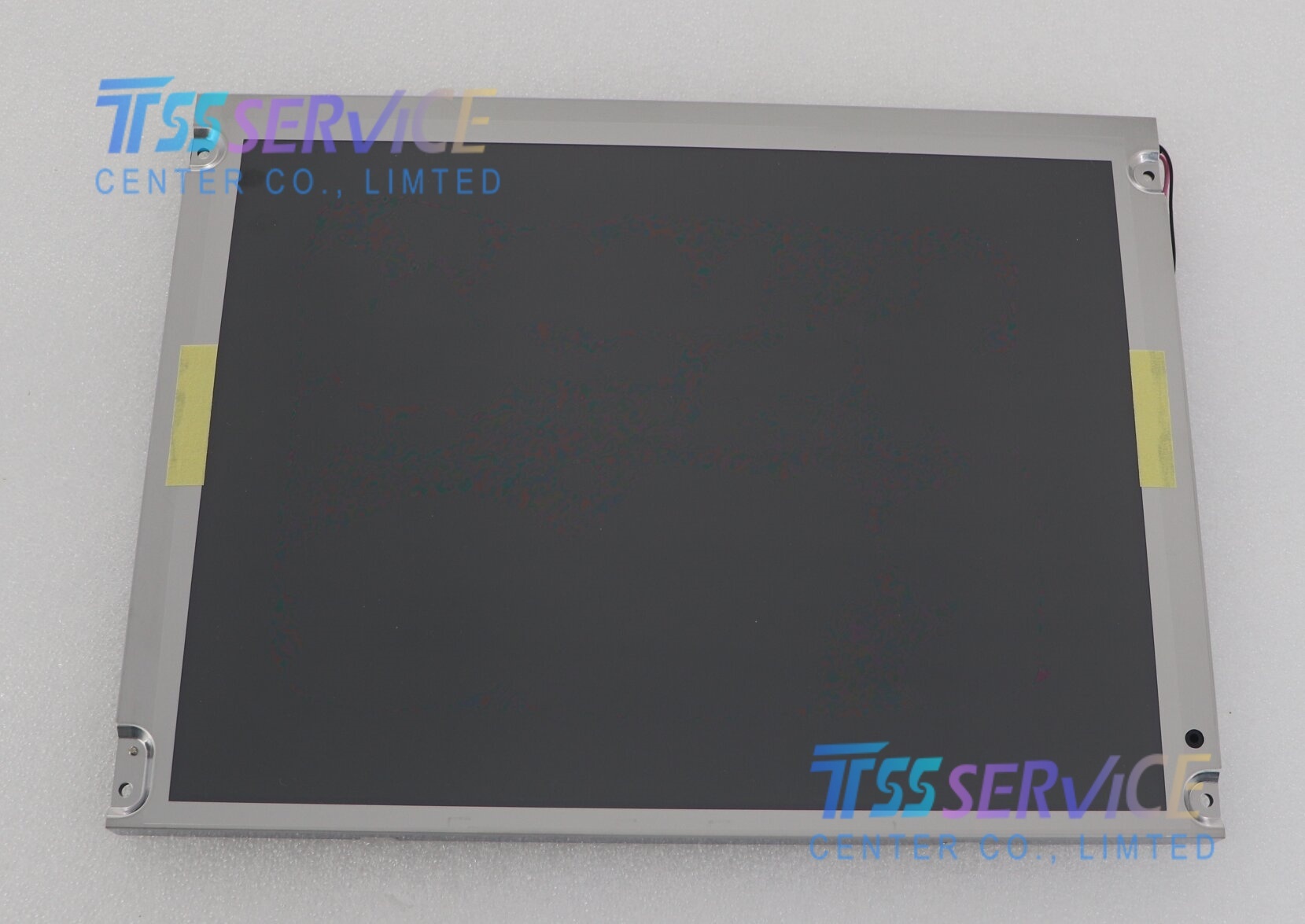

| Brand | NEC |
| Model P/N | NL8060BC31-42D |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Size | 280(W)×210(H) ×11.5(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Display Colors | 262K 40% NTSC |
| Lamp Type | 2 pcs CCFL , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 670/700g (Typ./Max.) |

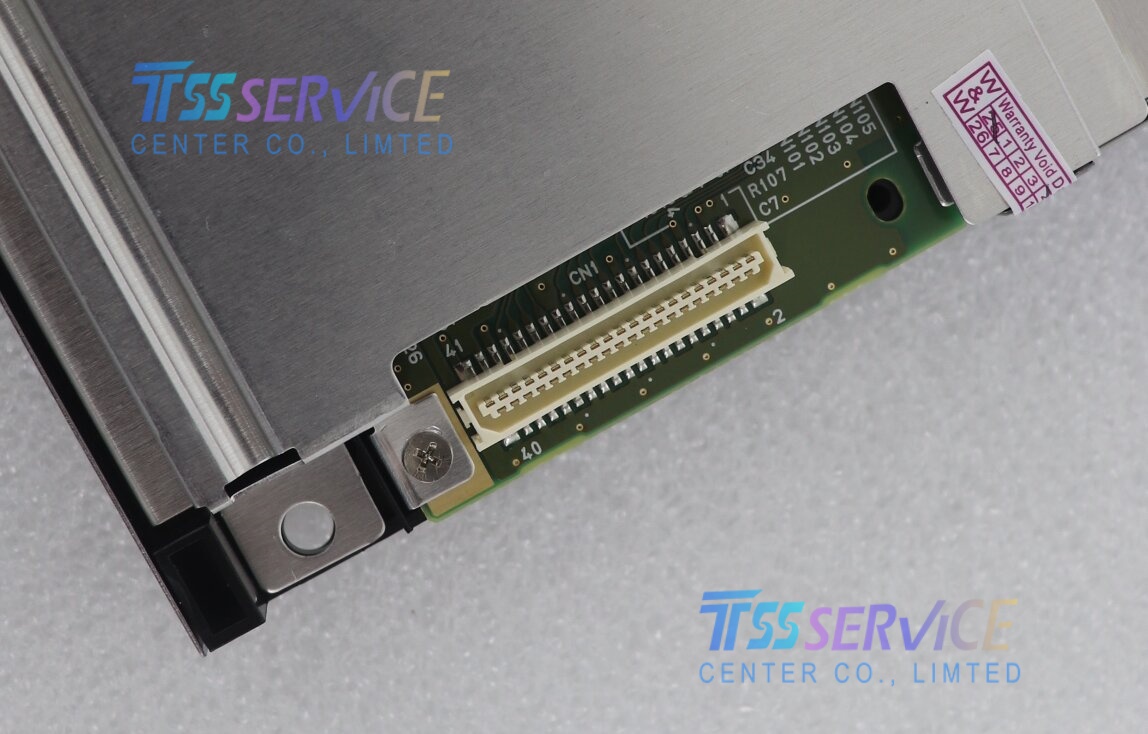

| Signal Interface | CMOS (1 ch, 6-bit), 41 pins Connector |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
This industrial-grade LCD module is well-suited for a variety of demanding environments and applications, including:
Industrial HMI displays
ATMs and vending machines
Point-of-sale (POS) systems
GPS navigators
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
