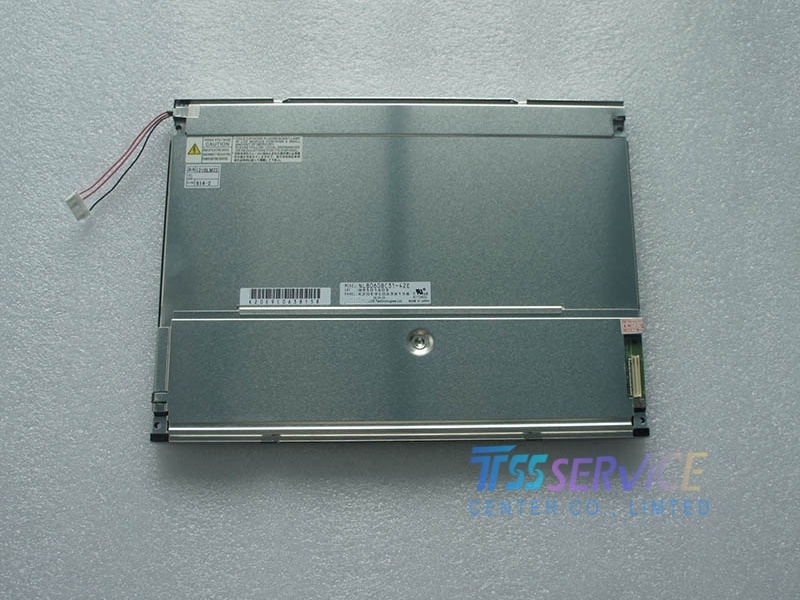

The NL8060BC31-42E is a 12.1-inch amorphous silicon (a-Si) TFT-LCD module engineered by NEC for demanding industrial environments . Designed as a reliable and durable display solution, it is particularly well-suited for applications requiring high visibility and stable performance across a wide range of operating conditions.
| Brand |
NEC |
| Model P/N |
NL8060BC31-42E |
| Diagonal Size |
12.1" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA 82PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
246(W)×184.5(H) mm |
| Bezel Opening |
249.0(W)×187.5(H) mm |
| Outline Dim. |
280(H)×210(V) mm |
| Treatment |
Antiglare |
| Luminance |
530 cd/m² (Typ.) |
| Contrast Ratio |
600:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
6/19 (Typ.)(Tr/Td) |
| Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K 40% NTSC |
| Light Source |
CCFL [2 pcs] |
| Designed For |
Without |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
CMOS (1 ch, 6-bit), 41 pins Connector |
| Power Supply |
3.3/5.0V (Typ.)(VCC) |
| Environment |
Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C |
Target Applications
Thanks to its rugged characteristics, this display is an optimal match for:
-
Industrial HMIs (Human-Machine Interfaces): For machine controllers and process automation panels on factory floors .
-
Medical Diagnostic Stations: Suitable for non-critical patient monitoring and lab equipment where consistent performance is valued .
-
Test and Measurement Equipment: Its wide viewing angles allow multiple users to read data accurately .
-
Outdoor Kiosks and Terminals: The high brightness and wide temperature range make it viable for outdoor applications .
-
Legacy System Upgrades: The 12.1" SVGA format provides a straightforward replacement path for older displays in long-lifecycle industrial equipment .
