Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..
| Brand | NEC |

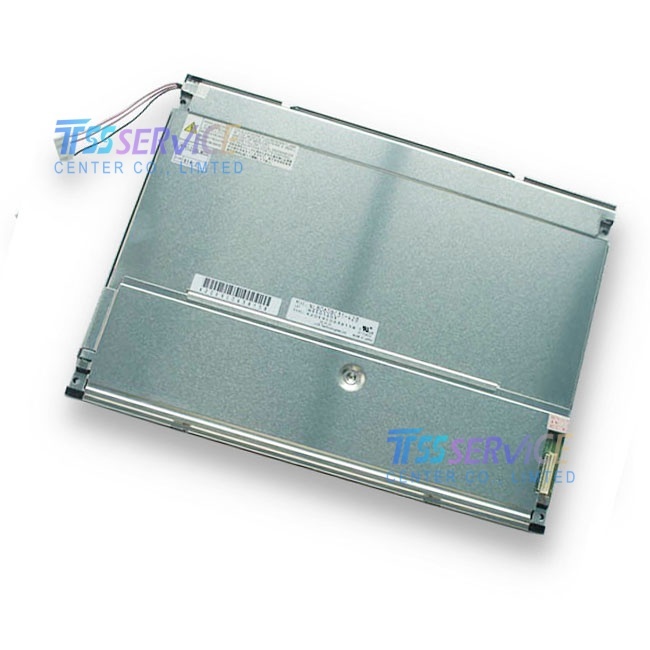

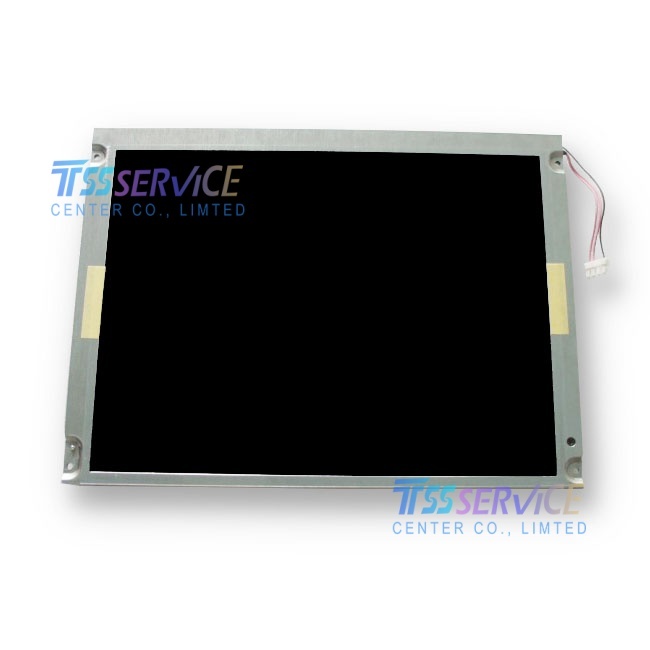

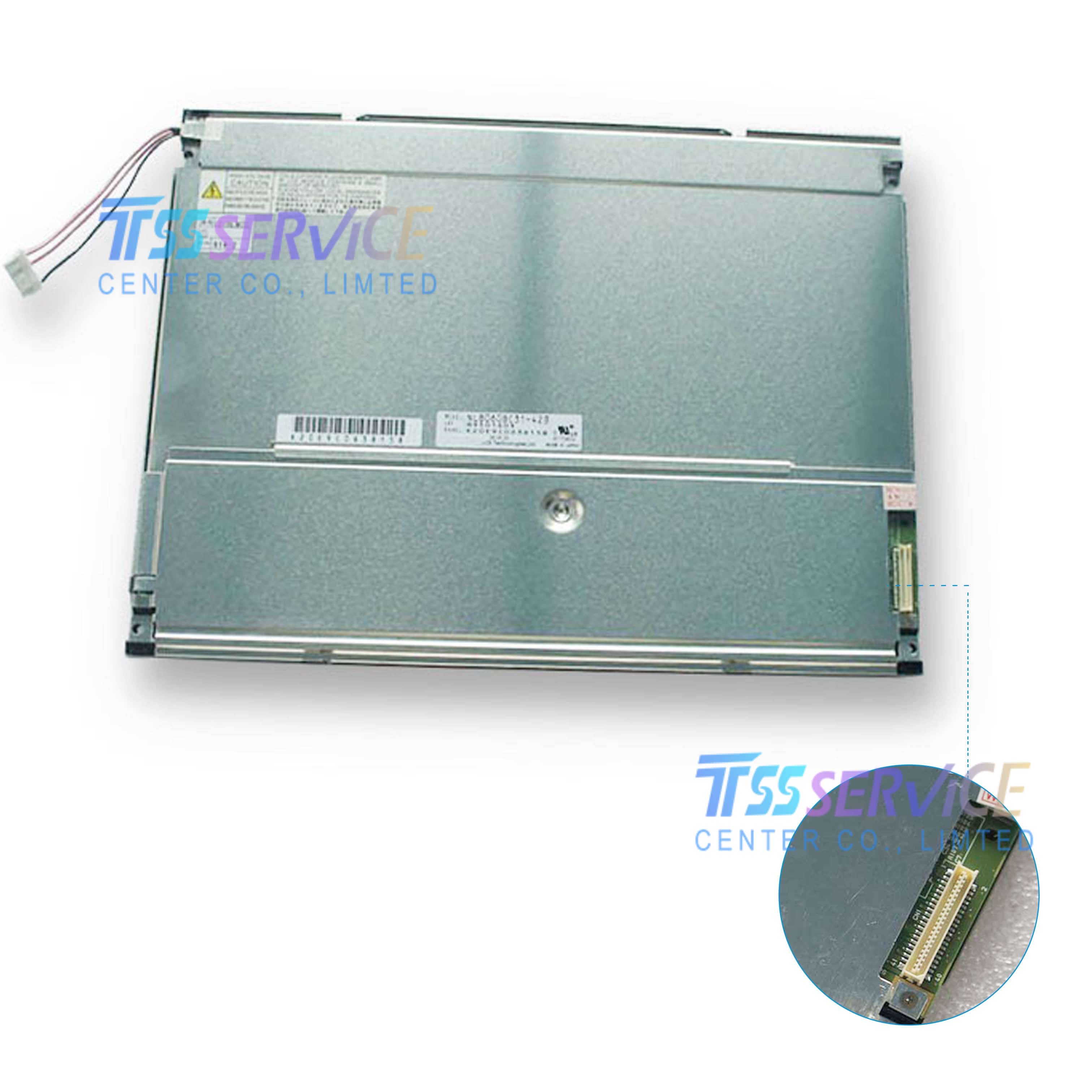

| Model P/N | NL8060BC31-42G |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Size | 280(W)×210(H) mm |
| Surface | Clear |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Display Colors | 262K 40% NTSC |
| Lamp Type | 2 pcs CCFL |
| Frequency | 60Hz |
| Application | [Icon] |
| Signal Interface | CMOS (1 ch, 6-bit) Connector |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temp.: -20 ~ 70 °C; Storage Temp.: -30 ~ 80 °C |
The NL8060BC31-42G is specifically designed for and recommended for use in industrial applications . Its wide operating temperature range, robust construction, and clear optical performance make it suitable for:
Industrial PCs
Human-Machine Interfaces (HMIs)
Factory automation equipment
Medical devices
Embedded systems requiring a reliable 12.1" display
Q: What if the product doesn't work ?
A: Please test the product as soon as you receive it. If it does not work, take clear photos and videos of the issue and contact us immediately. We will then provide technical support or arrange a return or exchange.
