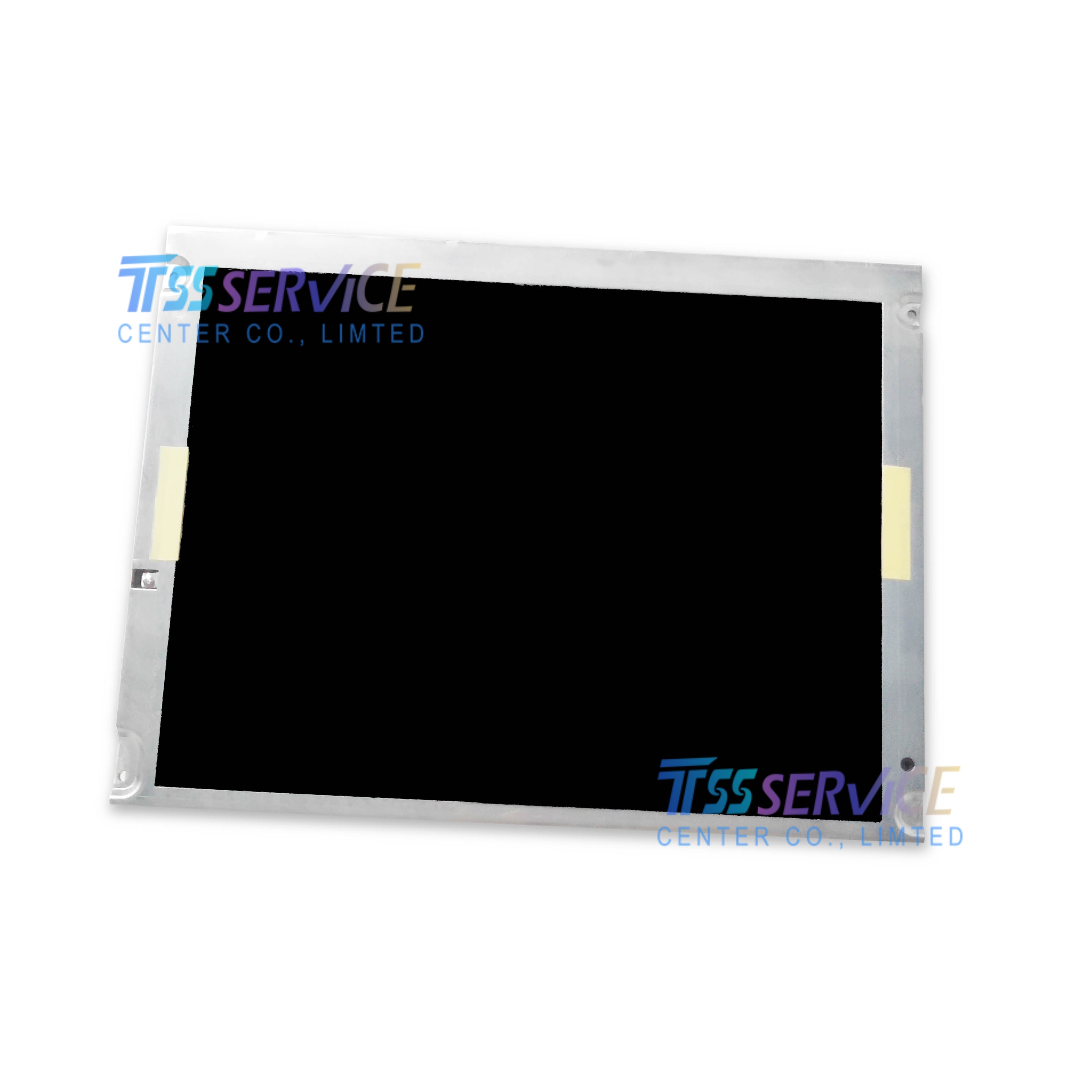

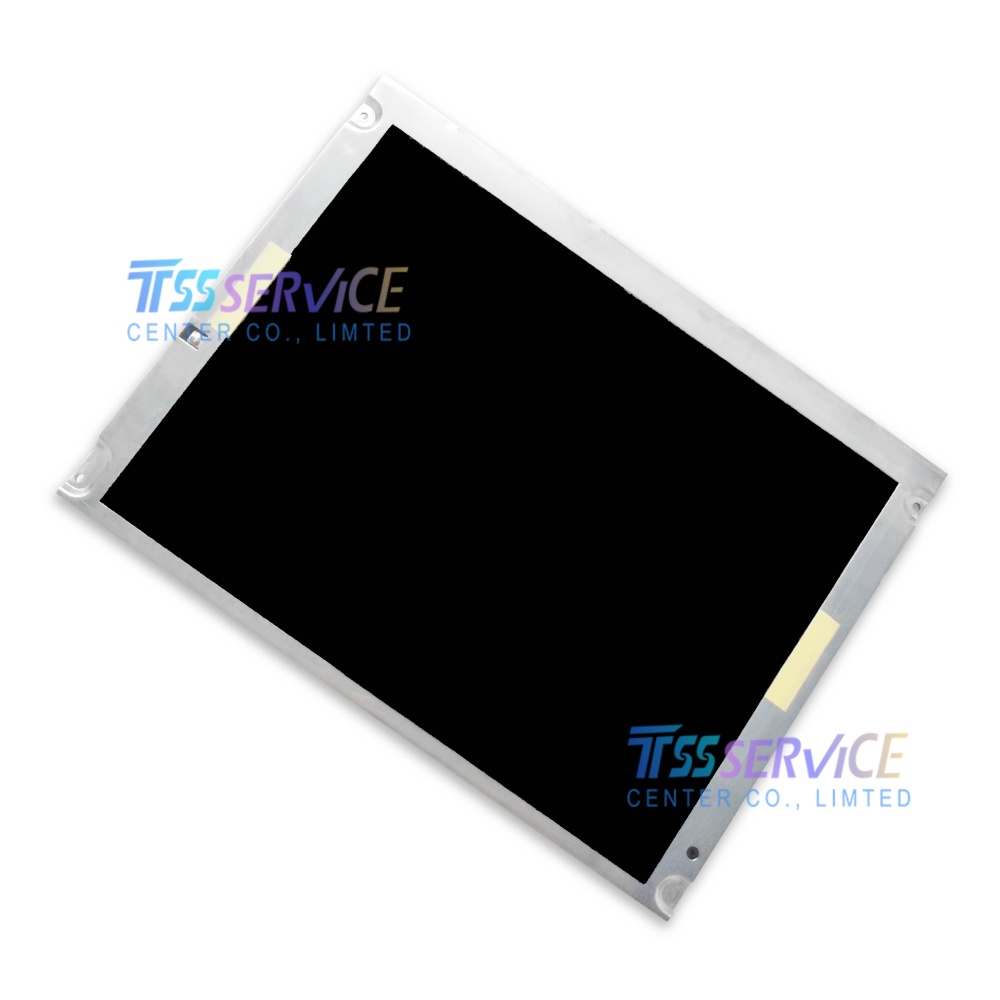

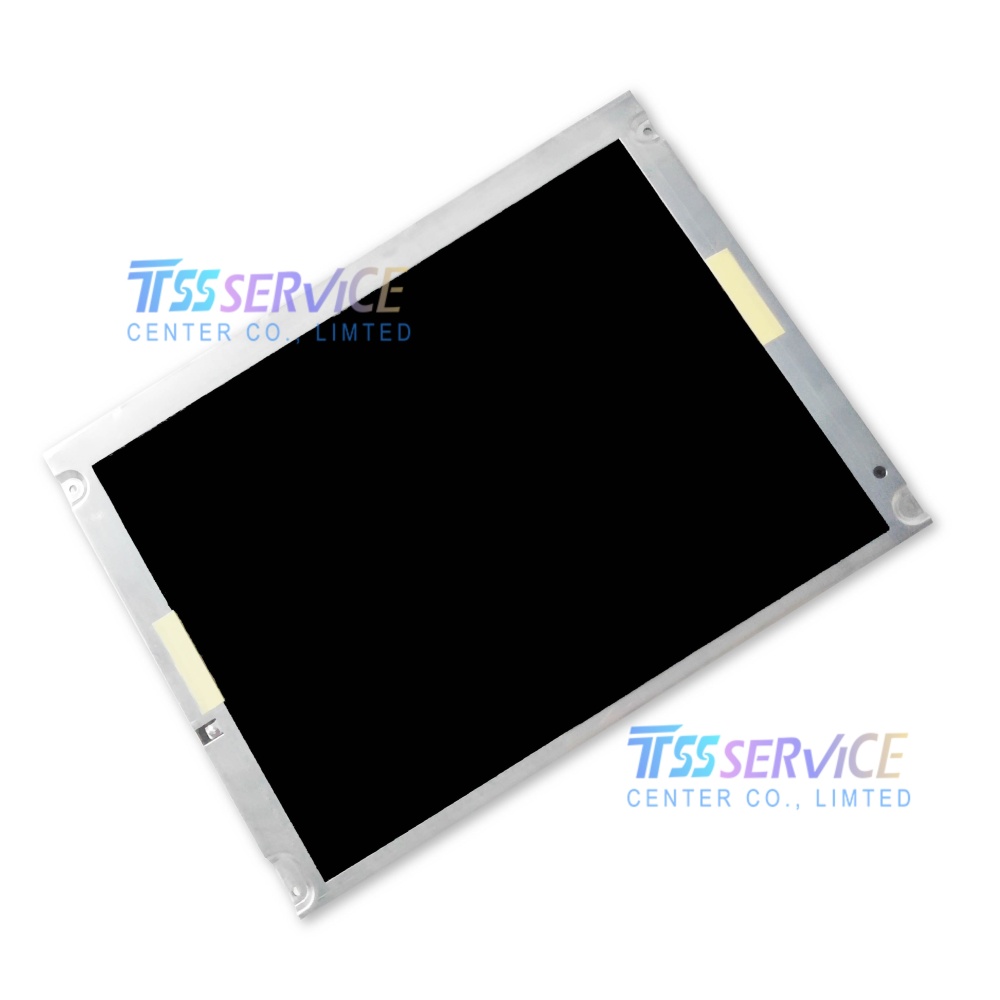

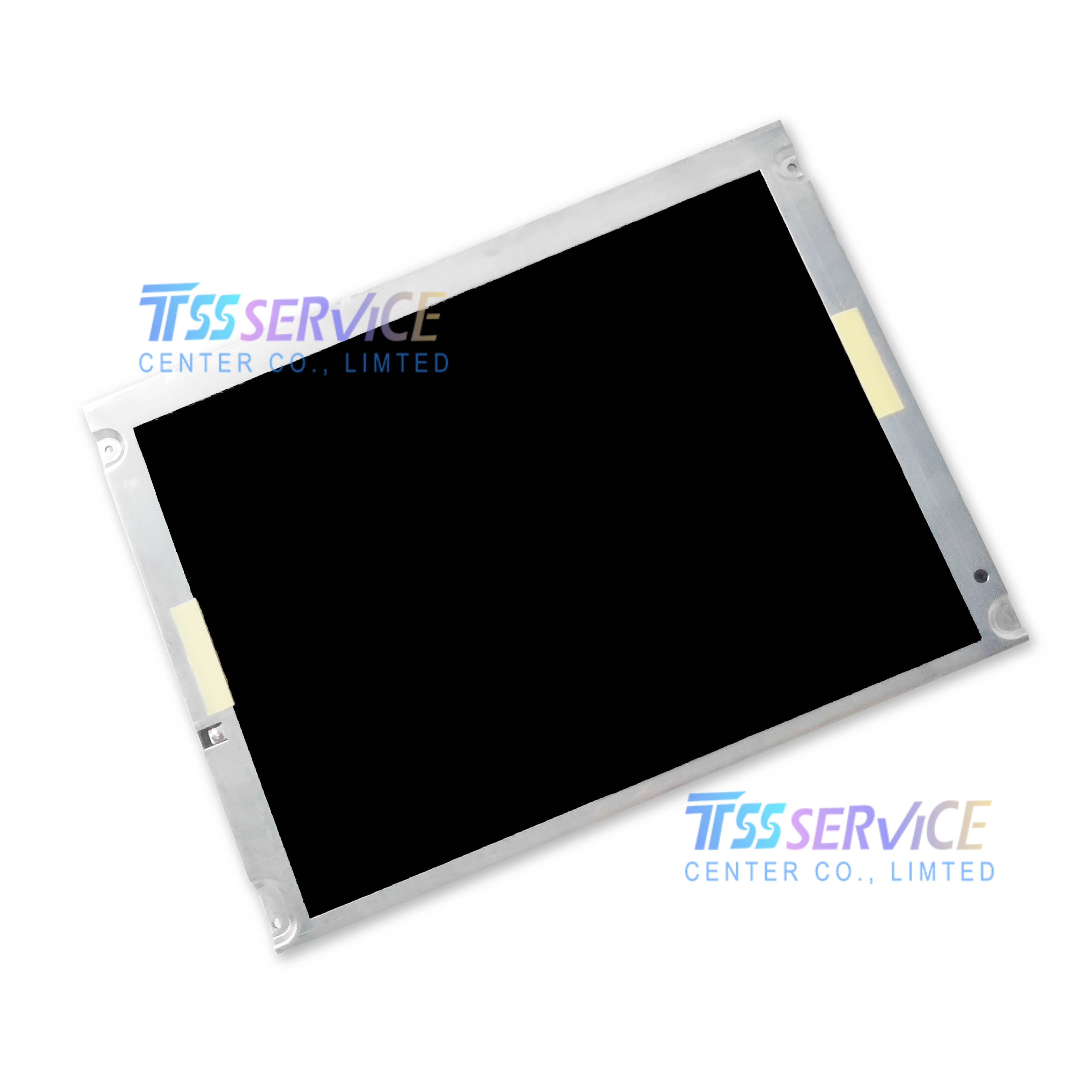

NEC NL8060BC31-47C 12.1 inch 800×600 LCD Display Panel Module for Industrial

Name: NEC NL8060BC31-47C 12.1 inch 800×600 LCD Display Panel Module for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: NL8060BC31-47C
Price: 110 USD
Availability: InStock

SKU: NL8060BC31-47C

Model: NL8060BC31-47C
Diagonal Size:12.1 inch
Display Type: a-Si TFT-LCD, Transmissive, TN Normally White
Native Resolution: 800 × 600 (SVGA, 4:3)

0.0 (0 Reviews)

0 Sold

~~$114.00~~ $110.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

NEC NL8060BC31-47C 12.1 inch 800×600 LCD Display Panel Module for Industrial

Parameter	Specification
Brand	NEC / NLT
Model	NL8060BC31-47C
Diagonal Size	12.1 inch
Display Type	a-Si TFT-LCD, Transmissive, TN Normally White
Native Resolution	800 × 600 (SVGA, 4:3)
Active Display Area	246.0 mm (W) × 184.5 mm (H)
Outline Dimension	280.0 mm (W) × 210.0 mm (H) × 9.6 mm (D)
Pixel Pitch	0.3075 mm × 0.3075 mm
Brightness	900 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.)
Viewing Angle	80°/80°/80°/60° (L/R/U/D, CR≥10)
Color Depth	262K colors (6-bit) / 16.7M colors (6-bit + Hi-FRC)
Backlight	WLED, 70,000 hours lifetime
Interface	Single channel LVDS, 6/8-bit, 20 pins
Touch Panel	Without touch
Surface Treatment	Clear, Hard coating (3H)
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Supply Voltage	3.3V / 5.0V (VCC)
Net Weight	Approx. 1.0 kg
Compliance	RoHS
