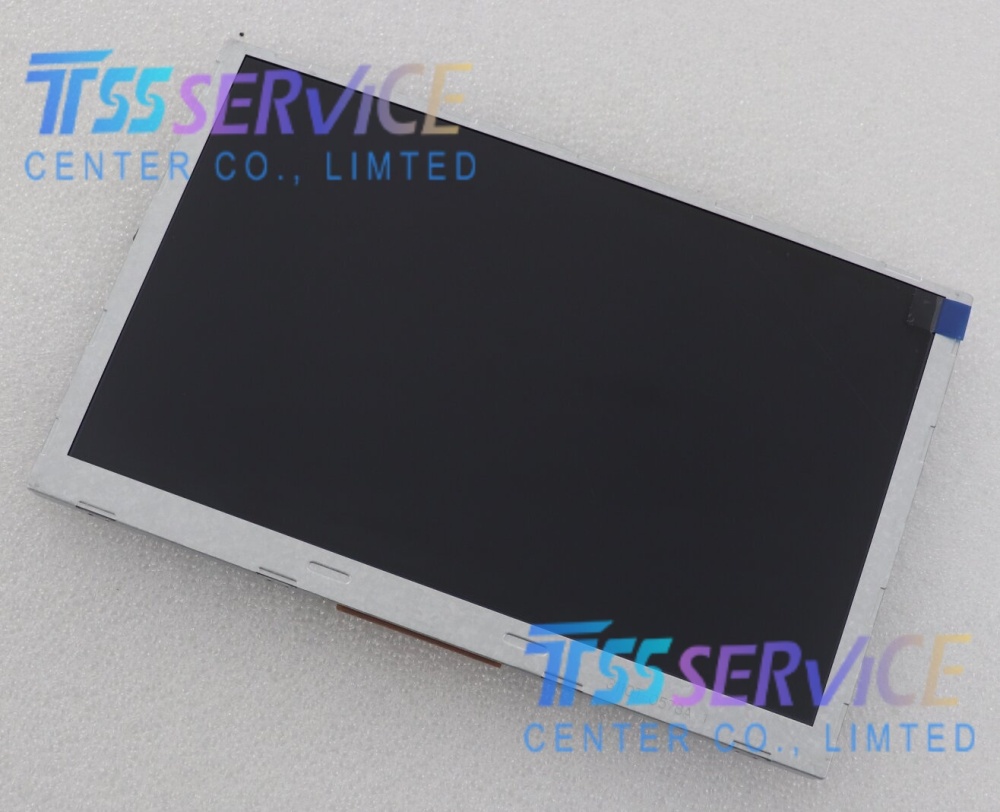

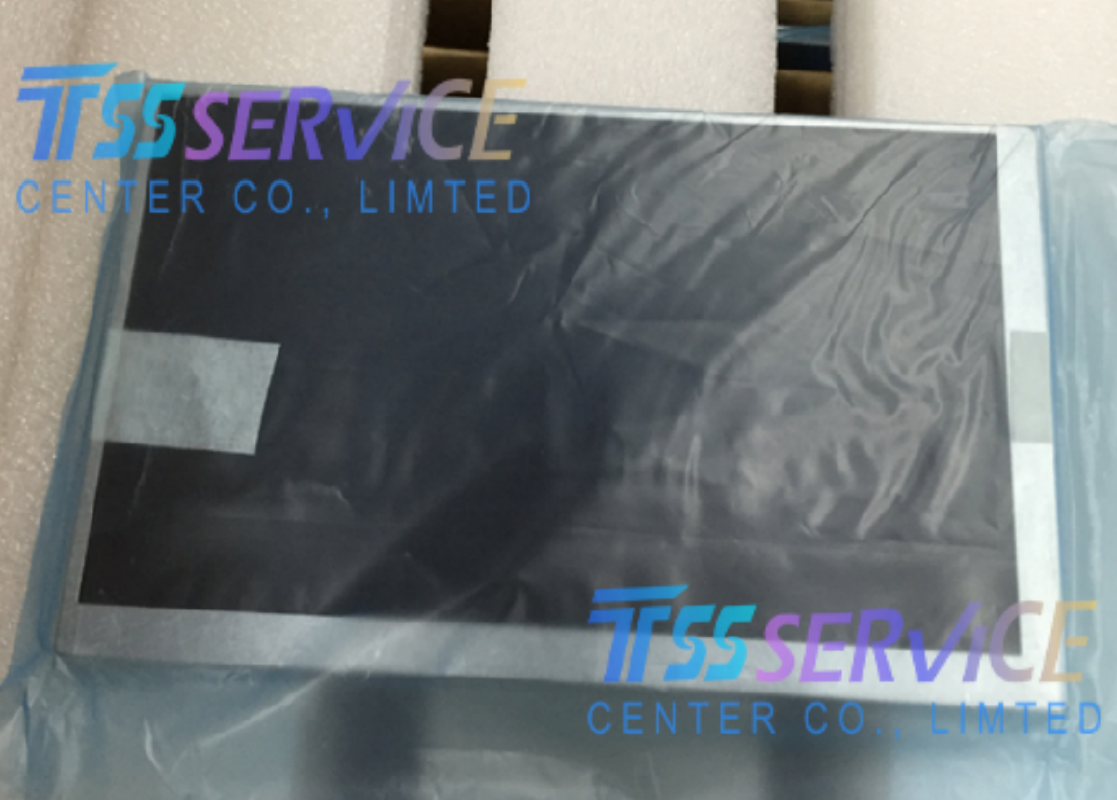

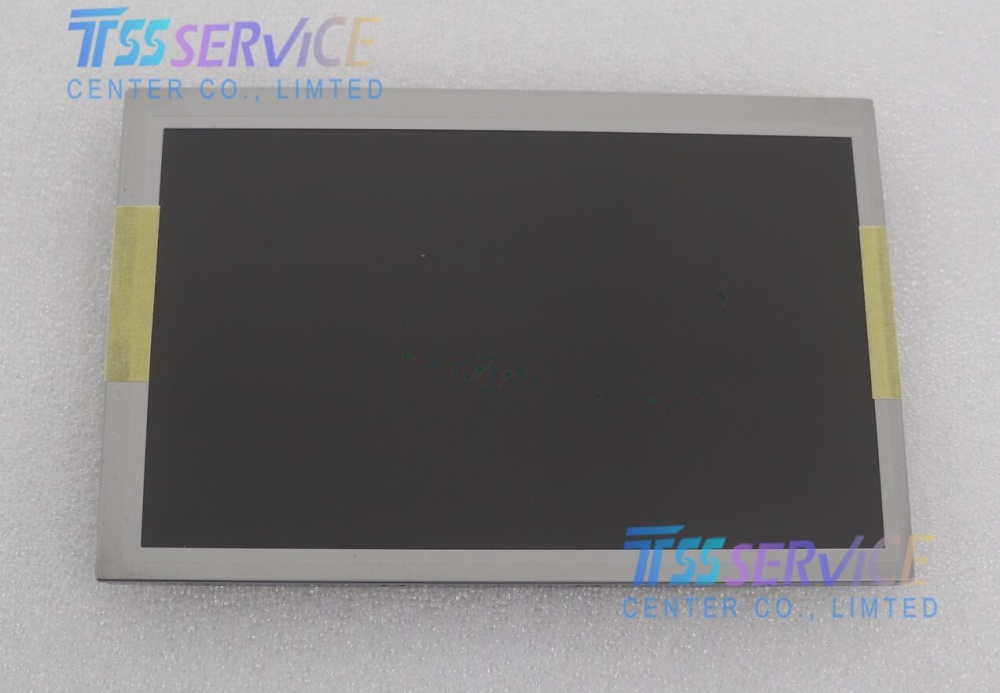

NLB070WV01C-01 NLT 7 inch 800×480 Industrial TFT LCD Display Screen
| Spec Item |
Detailed Parameter |
| Manufacturer |
NLT Technologies |
| Model Number |
NLB070WV01C-01 |
| Screen Size |
7.0 inch Landscape |
| Panel Technology |
a-Si TFT-LCD LCM, TN Mode, Normally White, Transmissive |
| Native Resolution |
800(RGB) × 480 WVGA, 16:9 Wide Ratio, 133 PPI |
| Dot Layout |
RGB Vertical Stripe |
| Active Display Area (W×H) |
152.4 × 91.44 mm |
| Net Weight |
160g (Typ.) / 175g (Max.) |
| Typical Luminance |
300 cd/m² |
| Contrast Ratio |
800:1 (Typ., TM Mode) |
| Viewing Angle (CR≥10) |
70°/70°/70°/70° Symmetric Full View |
| Display Color |
262K Colors, 6-bit RGB, 60% NTSC Gamut |
| Backlight |
WLED with Integrated Driver, 30,000 Hours Lifespan, Replaceable LED Lamp |
| Signal Interface |
1 Channel 6-bit CMOS Parallel, 40Pin FPC Connector |
| Refresh Rate |
60Hz |
| Touchscreen |
Without Touch Function |
| Supply Voltage |
3.3V Typical Input |
| Operating Temperature |
-20 ℃ ~ +70 ℃ Wide Industrial Grade |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Vibration Resistance |
2.0G Anti-Vibration Structure |
Application
1. Industrial Automation HMI Terminals
Portable CNC operation panels, injection molding auxiliary display screens, packaging machine parameter control terminals, factory production line monitoring displays, small PLC industrial touch control units.
2. Vehicle & Construction Machinery Onboard Displays
Engineering machinery operating screens, agricultural equipment control terminals, forklift monitoring display panels, industrial vehicle auxiliary data display units.
3. Portable Medical Testing Devices
Portable patient vital sign analyzers, field clinical diagnostic equipment, laboratory portable optical inspection instruments, compact ward monitoring terminals.
4. Field Portable Measuring Instruments
Environmental gas detection controllers, electrical fault diagnostic testers, logistics handheld data collectors, agricultural soil monitoring portable displays.
5. Equipment Repair & Refurbishment
Direct replacement spare LCD screen for broken original NLT NLB070WV01 series modules, aftermarket maintenance spare parts for discontinued portable industrial and vehicle equipment, second-hand machinery renovation projects.
