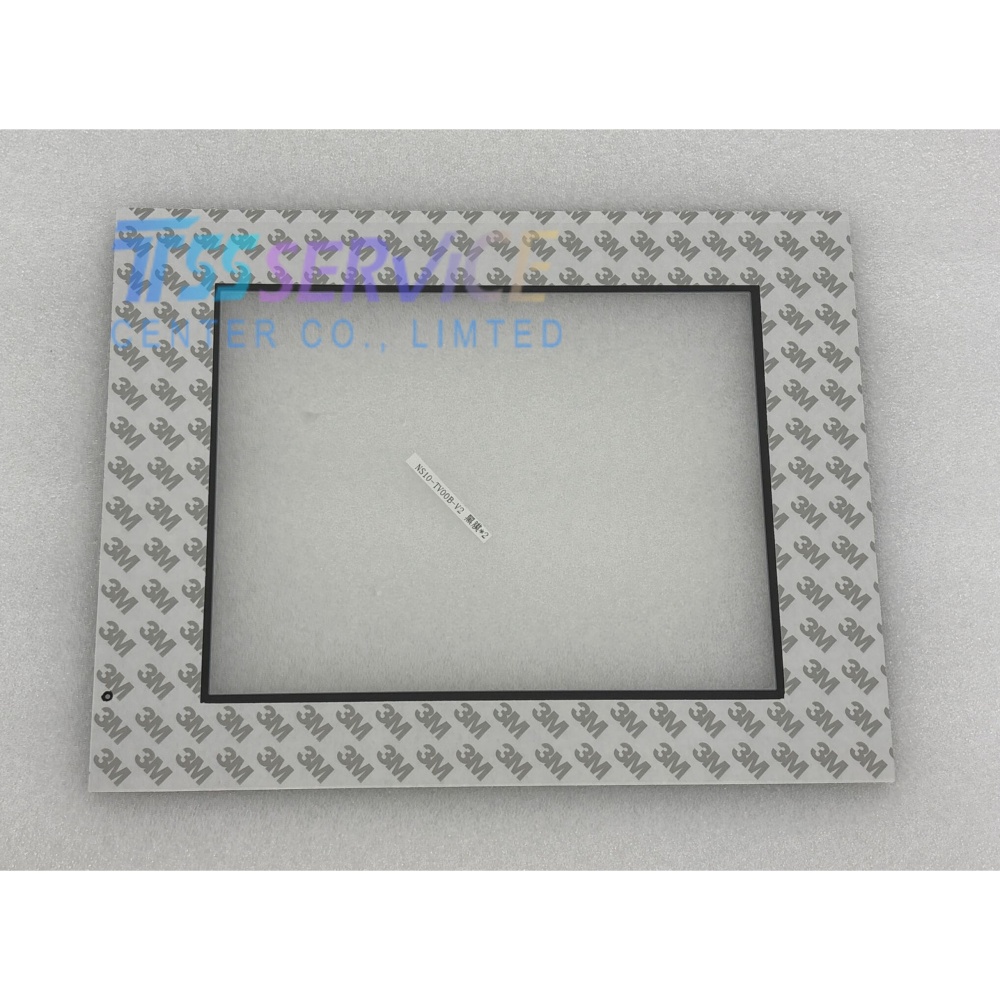

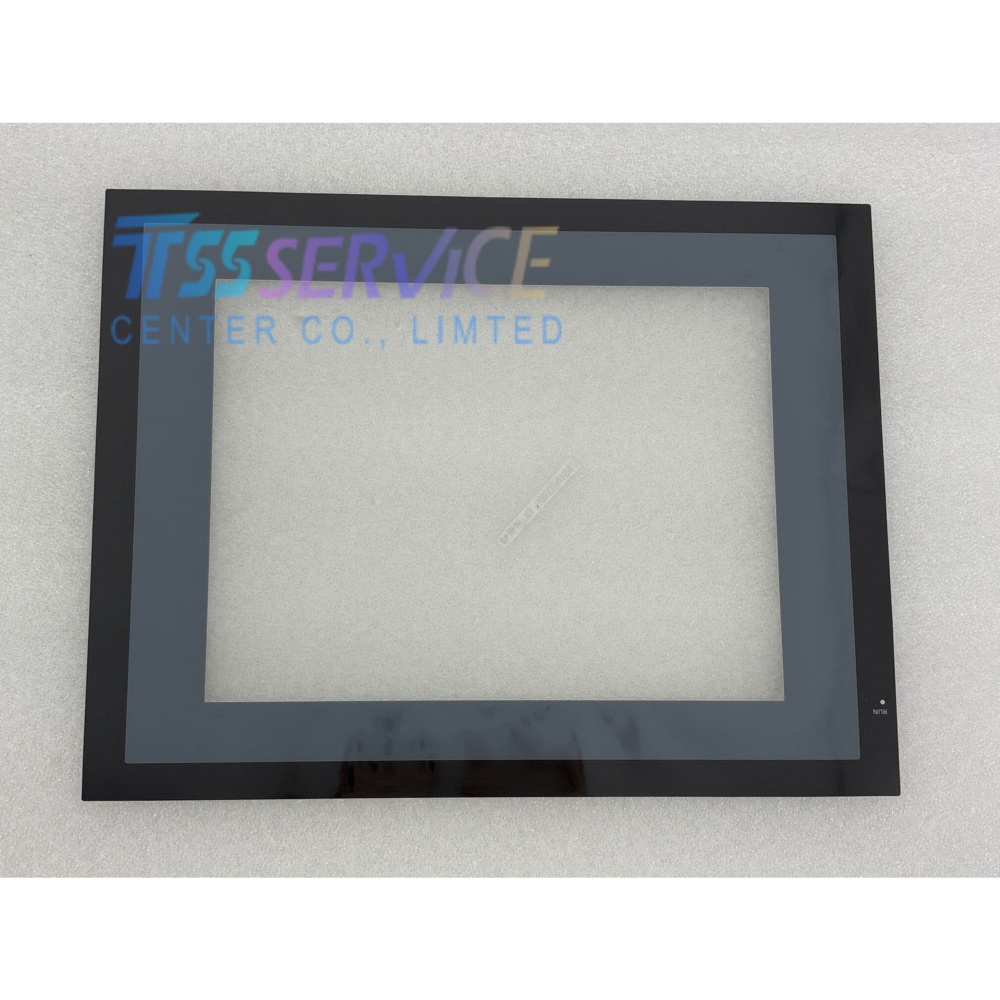

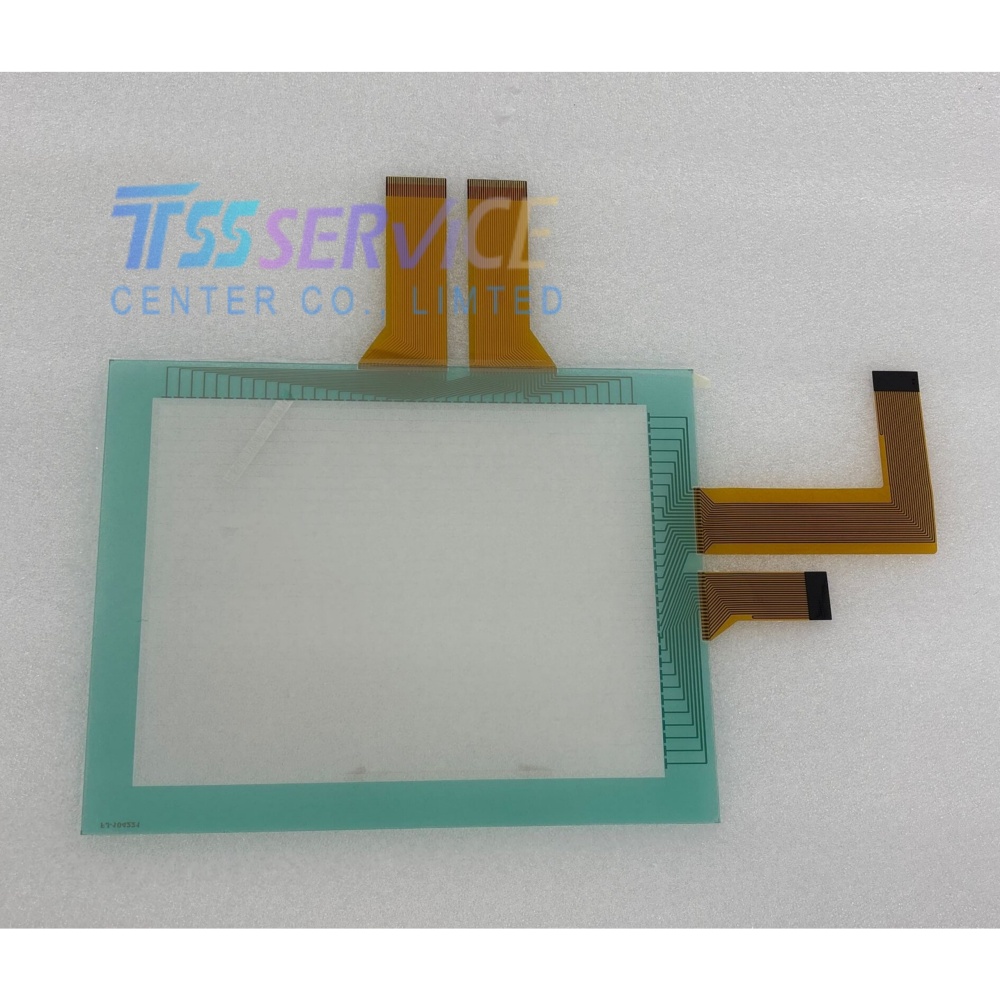

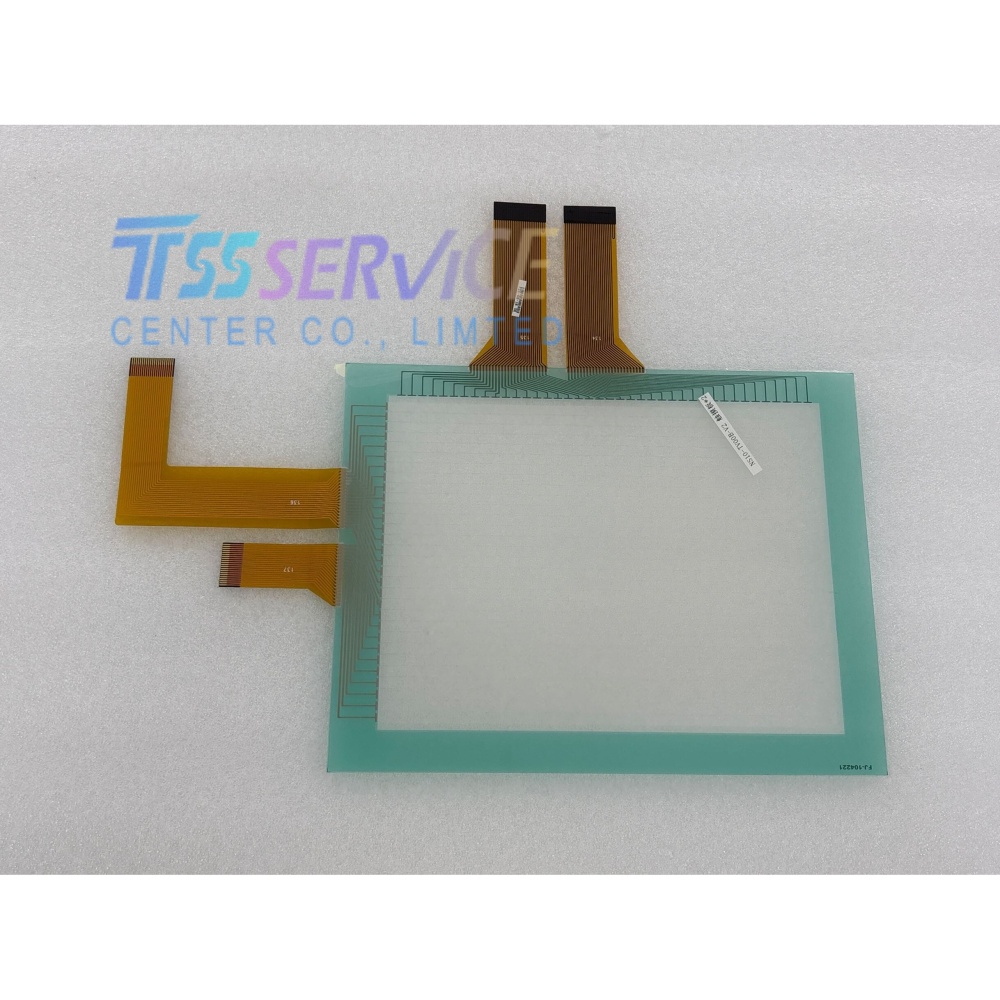

New Use for NS10-TV00B-V2 touch+frount layer with good quality
| Category |
Parameter |
Specification |
| Basic Info |
Manufacturer / Model |
OMRON / NS10-TV00B-V2 |
|
Device Type |
Programmable Terminal (HMI) |
|
Display Type |
10.4-inch Color TFT LCD |
| Touch & Structure |
Touch Panel Type |
Analog Resistive Touch Screen |
|
Front Protection Rating |
IP65 (Dustproof & Waterproof) / NEMA 4 Compliant |
|
Enclosure Color |
Black |
| Optical |
Resolution |
640 × 480 pixels |
|
Display Colors |
256 colors |
|
Active Area Size |
10.4 inches (effective display area) |
| Hardware |
Storage Interface |
Supports Memory Card interface |
|
Video Input |
Supports 4-channel video input |
|
Network Support |
Capable of connecting to ControllerLink networks |
| Electrical |
Supply Voltage |
24V DC |
| Environment |
Operating Temperature |
0°C to 50°C |
-
-
- Advanced Factory Automation: Used as the central command center on automated production lines. Operators can easily monitor real-time machine status, view dynamic graphical trends, and control complex manufacturing processes through its responsive resistive touch screen.
- PLC System Integration & Monitoring: Highly optimized for seamless integration with OMRON's CJ1 and CS1 series PLCs. A standout feature is its ability to directly monitor and display PLC ladder diagrams, allowing maintenance engineers to troubleshoot and debug control logic directly from the HMI without needing a separate laptop.
- Industrial Security & Video Surveillance: Thanks to its support for 4-channel video input, this terminal is uniquely suited for factory floor security. It can display live feeds from multiple surveillance cameras alongside standard operational data, providing a comprehensive overview of both machine performance and physical site safety.
- Large-Scale Networked Systems: With its ability to接入 (connect to) ControllerLink networks, the NS10 is perfect for large-scale industrial setups where data needs to be shared across multiple controllers and HMIs over a high-speed optical fiber or coaxial backbone.
- Data Logging & Recipe Management: Utilizing its memory card interface, the device can store vast amounts of historical alarm data, production logs, and operational recipes. This is essential for industries like packaging, automotive parts manufacturing, and material processing where batch tracking and quick parameter changes are required.
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
