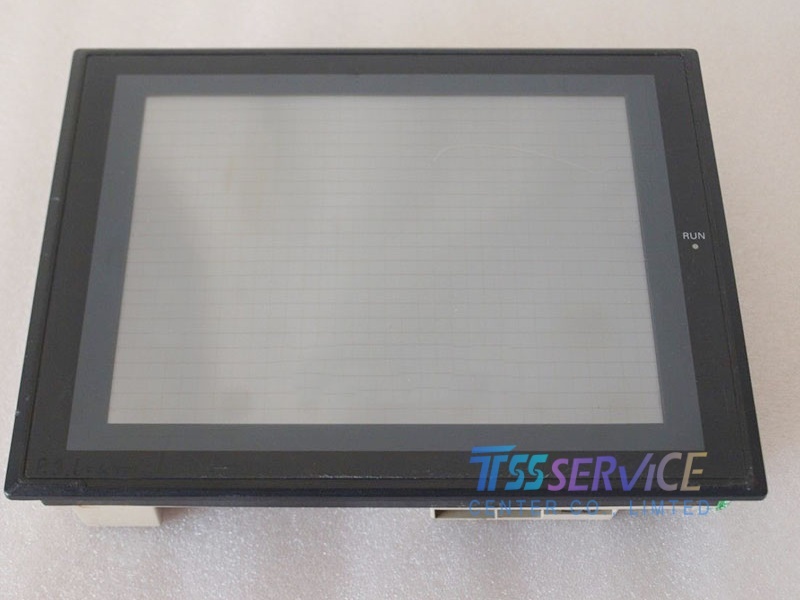

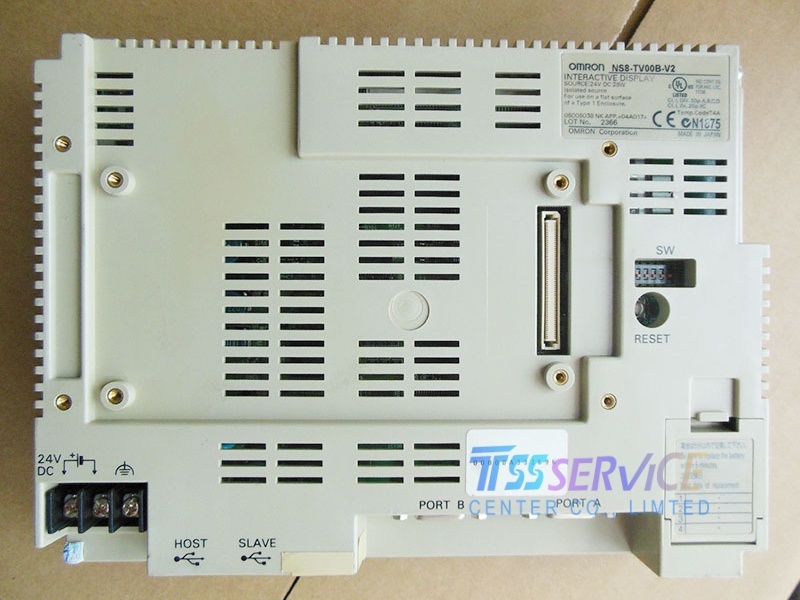

| Parameter | Specification |
|---|---|
| Display Size | 8.0 inches diagonal (203.2 mm) |
| Aspect Ratio | 4:3 (Standard) |
| Active Area | 162 mm (W) × 122 mm (H) |
| Resolution | 640 × 480 pixels (VGA) |
| Display Technology | TFT LCD (Color Active Matrix) |
| Color Depth | 4,096 colors (12-bit) - Improved from V1's 256 colors |
| Brightness | 350 cd/m² (typical) - Increased from V1's 300 cd/m² |
| Contrast Ratio | 400:1 (typical) - Improved from V1's 300:1 |
| Response Time | 35 ms (typical) - Faster than V1's 40 ms |
| Viewing Angles | 130° horizontal, 110° vertical (CR > 10) - Slight improvement |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) - later models may have LED |
| Backlight Lifetime | 40,000 - 60,000 hours (to half-brightness) - Improved longevity |
| Touch Technology | Analog Resistive (4-wire, single-touch) |
| Touch Life | >1.5 million touches - Increased from V1 |
| Front Protection | IP65 (Type 4X/12) when properly installed NEMA 4/4X/12 |
| Mounting | Panel mount (front), 4× M4 screws |
| Cutout Dimensions | 212 mm × 160 mm (8.35" × 6.30") |
| Overall Dimensions (W×H×D) | 226 mm × 174 mm × 49 mm (8.90" × 6.85" × 1.93") |
| Weight | 1.15 kg (2.54 lbs) - Slight increase from V1 |
| Parameter | Specification | Improvement from V1 |
|---|---|---|
| Processor | Enhanced RISC processor | Faster clock speed |
| Clock Speed | 300 - 400 MHz (estimated) | ~50% faster than V1 |
| RAM | 64 MB | Double V1's 32 MB |
| Flash Memory | 128 MB | Double V1's 64 MB |
| User Memory | Approx. 32 MB available | Double V1's 16 MB |
| Real-Time Clock | Built-in with improved capacitor backup | Longer retention time |
| Expansion | SD Card slot (replaces CompactFlash in V1) | More modern, better compatibility |
| Interface | Specification | Notes vs V1 |
|---|---|---|
| Serial Port 1 | RS-232C (9-pin D-Sub) • For: Computer connection |
Similar to V1 |
| Serial Port 2 | RS-232C/RS-422A/485 (configurable, terminal block) • Enhanced baud rates |
Supports higher speeds than V1 |
| Video Input | Composite Video (NTSC/PAL) (RCA connector) • Improved video processor |
Better image quality, less latency |
| Optional Interfaces | Same optional boards as V1: • Ethernet (NS-AL002) • Controller Link (NS-AL001) • DeviceNet (NS-AL003) • PROFIBUS-DP (NS-AL004) |
Compatible with V1 accessories |
| USB Port | Not available on base model | Same limitation as V1 |
| Parameter | Specification | Improvement from V1 |
|---|---|---|
| Input Type | Composite Video (CVBS) | Same interface |
| Signal Standards | NTSC and PAL (auto-detection) | Improved auto-detection |
| Resolution Support | NTSC: 720 × 480 (480i) PAL: 720 × 576 (576i) |
Same |
| Frame Rate | NTSC: 29.97 fps PAL: 25 fps |
Same |
| Video Processing | Enhanced digital processing | Better image quality, noise reduction |
| Display Modes | • Full screen • Window mode • Overlay mode • Picture-in-Picture (PiP) |
Added PiP capability |
| Video Controls | • Advanced image adjustments • Digital zoom • Freeze with timestamp • Image capture to SD card |
More controls than V1 |
| Latency | < 80 ms | Reduced from V1's <100 ms |
| Parameter | Specification | Notes vs V1 |
|---|---|---|
| Input Voltage | 24 V DC (nominal) | Same |
| Voltage Range | 20.4 V DC to 26.4 V DC | Same |
| Current Consumption | 300 mA typical @ 24 V DC (7.2 W) 450 mA maximum (10.8 W) |
More efficient than V1 |
| Inrush Current | 5 A maximum for 20 ms | Same |
| Connection | Removable 2-pin terminal block | Same |
| Protection | Enhanced protection circuits | Improved reliability |
| Efficiency | >85% | Better power management |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Vibration Resistance | 10 - 57 Hz: 0.075 mm amplitude 57 - 150 Hz: 1.0 g acceleration |
| Shock Resistance | 15 g, 11 ms duration |
| Altitude | Up to 2000 m (6560 ft) |
| MTBF | >60,000 hours (calculated) - Improved from V1 |
