| Part Number |
6FC5203-0AF03-0AA0 |
| Product Type |
Operator Panel Front (HMI) |
| Product Line |
SINUMERIK OP 015 |
| Display Type |
15-inch TFT color display |
| Resolution |
1024 x 768 pixels (XGA) |

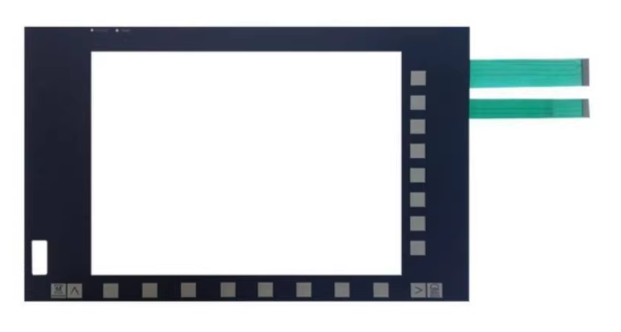

| Keypad Type |
Membrane keypad |
| Soft Keys |
8 horizontal + 4 additional horizontal soft keys, 8 vertical soft keys |
| Interface |
USB port (front) |
| Power Supply |
24V DC (supplied via PCU, TCU, or VL receiver) |
| Power Consumption |
24 W (max) |
| Protection Rating (Front) |
IP65 (EN 60529) |
| Protection Rating (Rear) |
IP00 (EN 60529) |
| Operating Temperature |
0°C to 50°C |
| Brightness |
300 cd/m² |
| Contrast Ratio |
500:1 |
| Viewing Angle |
160° horizontal / 140° vertical |
| Response Time |
25 ms |
| Weight |
Approx. 3.63 kg (8.00 lbs) |
| Compatibility |
SINUMERIK 840D sl, 840Di sl, 810D powerline, 840D powerline, PCU 20/50.3, NCU 710.2/720.2/730.2 |
