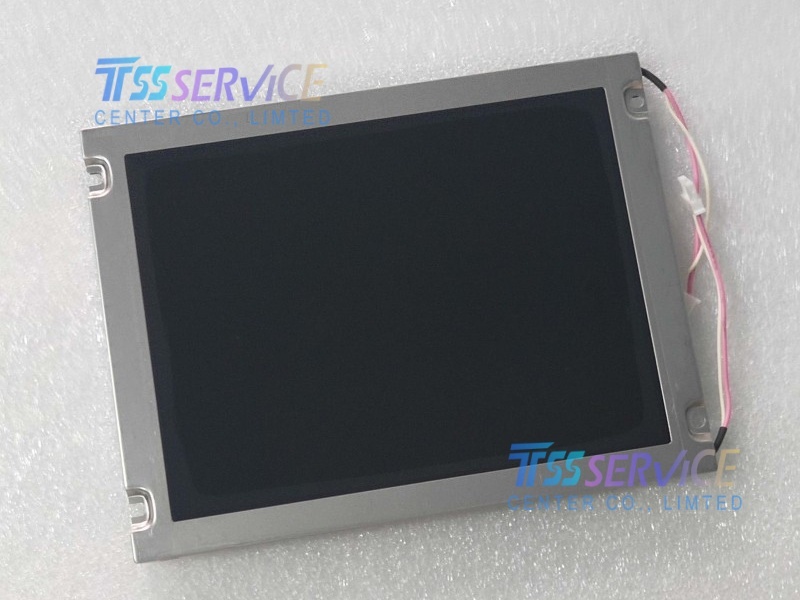

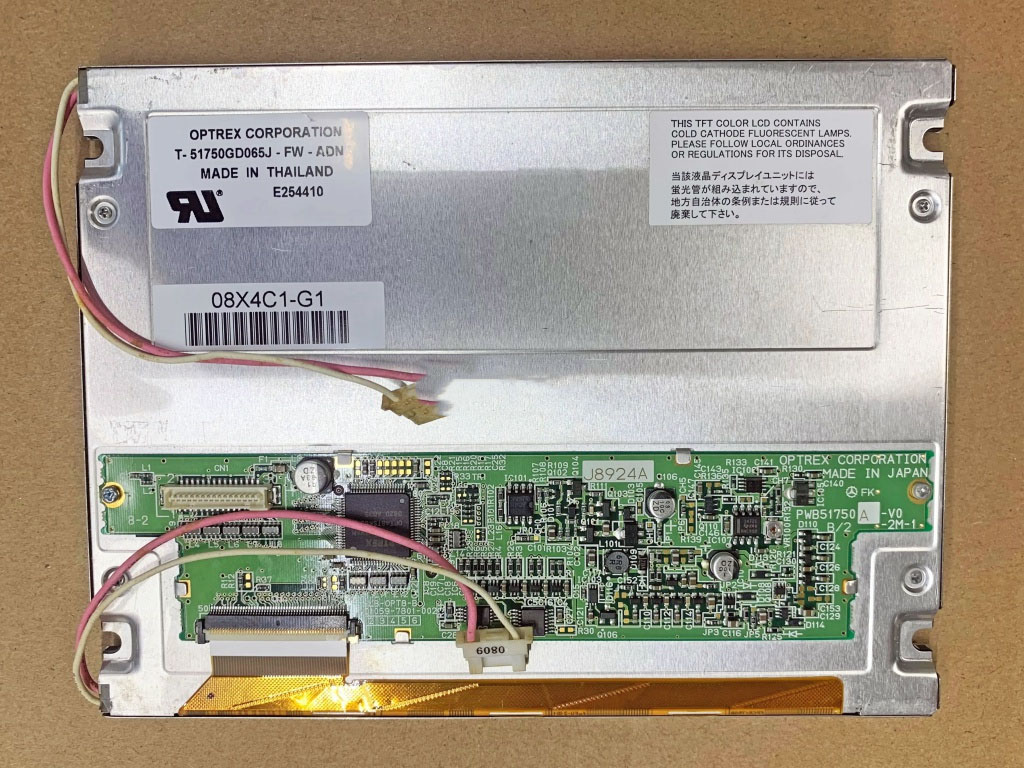

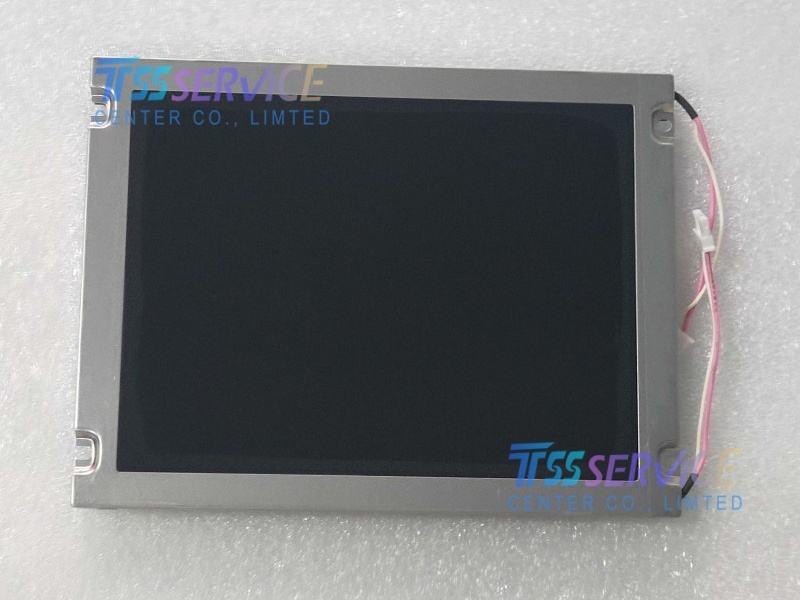

T-51750GD065J-FW-ADN OPTREX 6.5 inch 640×480 LCD Panel Display

Name: T-51750GD065J-FW-ADN OPTREX 6.5 inch 640×480 LCD Panel Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-51750GD065J-FW-ADN
Price: 110 USD
Availability: InStock

SKU: T-51750GD065J-FW-ADN

Model:T-51750GD065J-FW-ADN
Size:6.5"
Resolution:640(RGB)×480
Interface:Parallel RGB (1 ch, 6-bit) , 31 pins Connector
Temperature(℃):-25 ~ 75 °C

0.0 (0 Reviews)

0 Sold

~~$115.00~~ $110.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

OPTREX Display T-51750GD065J-FW-ADN General Features
T-51750GD065J-FW-ADN is a high-performance 6.5-inch TFT-LCD module (LCM) from OPTREX, engineered for rugged industrial applications. Designed for reliable operation in demanding environments, it delivers stable, clear visuals ideal for industrial control systems, medical equipment, automotive displays, and handheld terminals. With robust construction and OPTREX's industry-proven reliability, this module ensures consistent performance, excellent durability, and superior optical quality, making it a dependable choice for critical systems where resilience and long-term visual clarity are essential.

Brand	OPTREX
Model	T-51750GD065J-FW-ADN
Panel-type	a-Si TFT-LCD, LCM
Size	6.5"
Resolution	640(RGB)×480, VGA, 122PPI
Configuration	RGB Vertical Stripe
Active Area	132.48(H)×99.36(V) mm
Outline Dim.	158(H)×120.36(V) mm
Treatment	Antiglare (Haze 9%)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/16 (Typ.)(Tr/Td)
Viewing Angle	55/55/30/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K , 39% NTSC
Light Source	CCFL [2 pcs] , 50K hours , W/O Driver
Weight	190g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Power Supply	3.3/5.0V (Typ.)(VCC)
Environment	Operating Temperature: -25 ~ 75 °C ; Storage Temperature: -25 ~ 85 °C

1.Question: Is this T-51750GD065J-FW-ADN a TFT screen or an STN screen? Does it support color display?
Answer: This screen is typically an STN (Super-Twisted Nematic) type LCD, featuring monochrome or pseudo-color display modes, not full-color TFT. It features low power consumption and wide viewing angles, and is often used in industrial instruments, medical devices, or equipment requiring high-contrast text display.

2.Question: This is an older bare panel with fragile glass. How do you package it to prevent breakage?
Answer: We are fully aware of the fragility of such older panels. Each T-51750GD065J-FW-ADN is individually sealed in an anti-static bag and placed in a custom foam tray, ensuring there is sufficient cushioning around the screen and stress points. It is then packed into a thick cardboard box for shipping.
