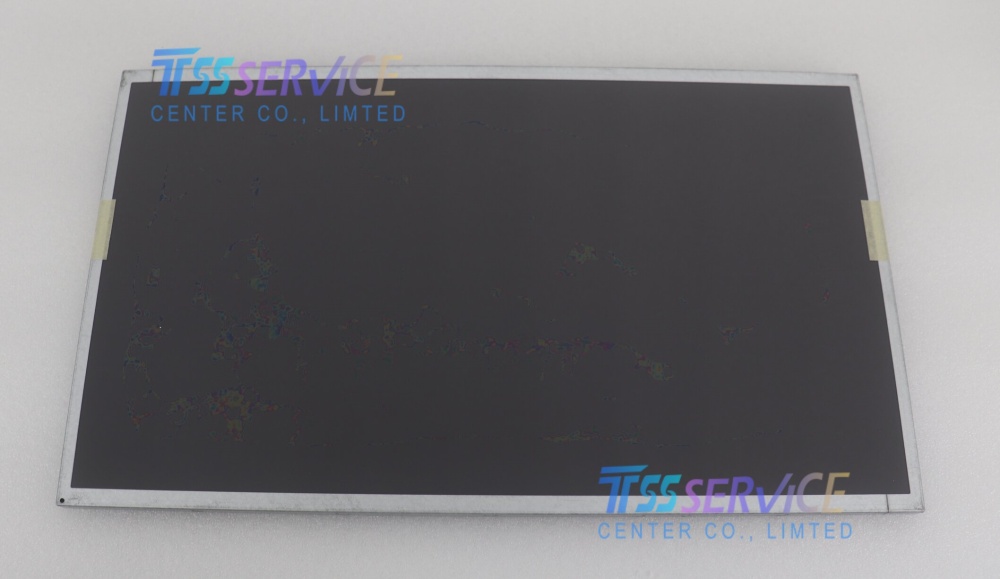

P215HVN01.2 AUO 21.5 Inch 1920×1080 LCD Panel Screen For Industrial

Name: P215HVN01.2 AUO 21.5 Inch 1920×1080 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: P215HVN01.2
Price: 120 USD
Availability: InStock

SKU: P215HVN01.2

Model P/N: P215HVN01.2
Diagonal Size: 21.5"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1920(RGB)×1080, FHD 102PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$125.00~~ $120.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

P215HVN01.2 AUO 21.5 Inch 1920×1080 LCD Panel Screen For Industrial

Parameter Category	Parameter Name	Specification	Unit
Basic Info	Model	P215HVN01.2	-
	Panel Type	a-Si TFT-LCD (VA Mode, Normally Black)	-
	Size (Diagonal)	21.5	Inch
	Active Area	476.64 (H) × 268.11 (V)	mm
	Resolution	1920 (RGB) × 1080	Pixels
	Aspect Ratio	16:9	-
	Pixel Pitch	248.25 × 248.25	μm
Optical Performance	Brightness	250 (Typ.)	cd/m²
	Contrast Ratio	3000:1 (Typ.)	-
	Response Time	13/5 (Typ.) (Tr/Td)	ms
	View Angle (H/V)	89°/89°/89°/89° (Typ.)	-
	Color Gamut	72% NTSC (Typ.)	-
	Color Depth	16.7M Colors	-
Electrical & Interface	Interface	Dual-channel LVDS (2ch, 8-bit), 30 Pins	-
	Supply Voltage (VDD)	5.0 (Typ.)	V
	Power Consumption (Module)	14.3~15.2 (Typ.)	W
	Backlight Type	WLED	-
	Backlight Current	65 (Typ.)	mA
Mechanical & Environment	Outline Dimension	495.6 (H) × 292.2 (V) × 10.6 (D)	mm
	Weight	1670 (Typ.)	g
	Operating Temperature	0 ~ 50	°C
	Storage Temperature	-20 ~ 60	°C
	Typical Frame Rate	60	Hz

Key Features Summary:

Wide Viewing Experience: 178° horizontal/vertical viewing angles ensure consistent color and brightness from all directions.
Efficient Power Design: WLED backlight with optimized current control reduces energy consumption while maintaining uniform light output.
Robust Compatibility: Standard LVDS interface simplifies connection to mainstream display controllers, supporting quick system integration.
Long-Lasting Performance: 30,000-hour typical service life meets the durability requirements of continuous commercial operation.
