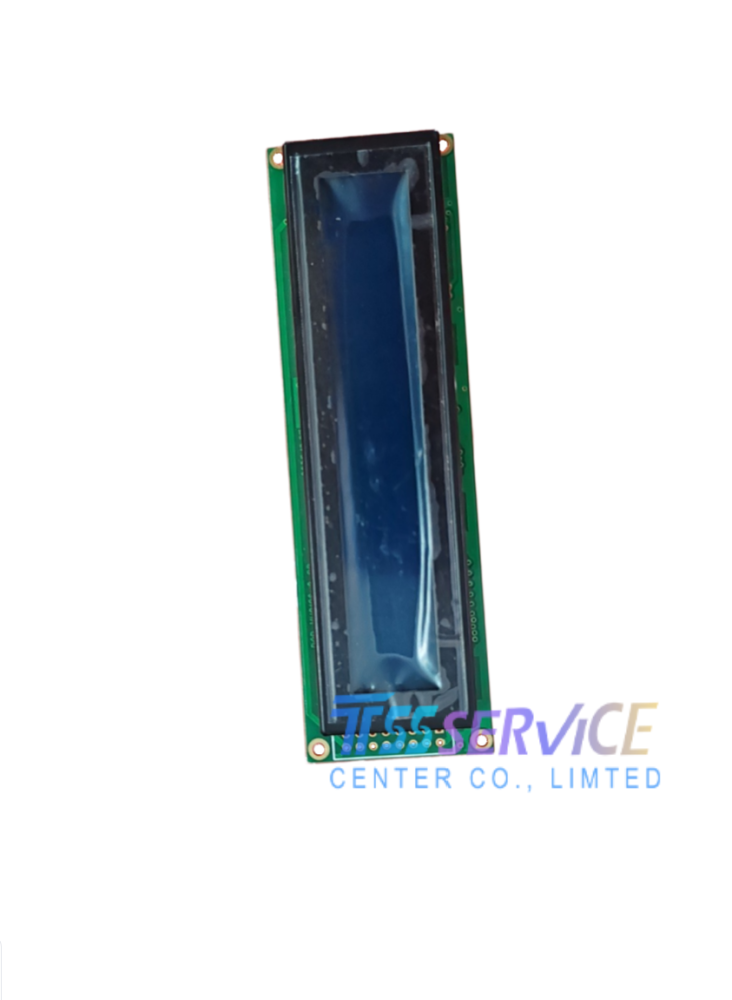

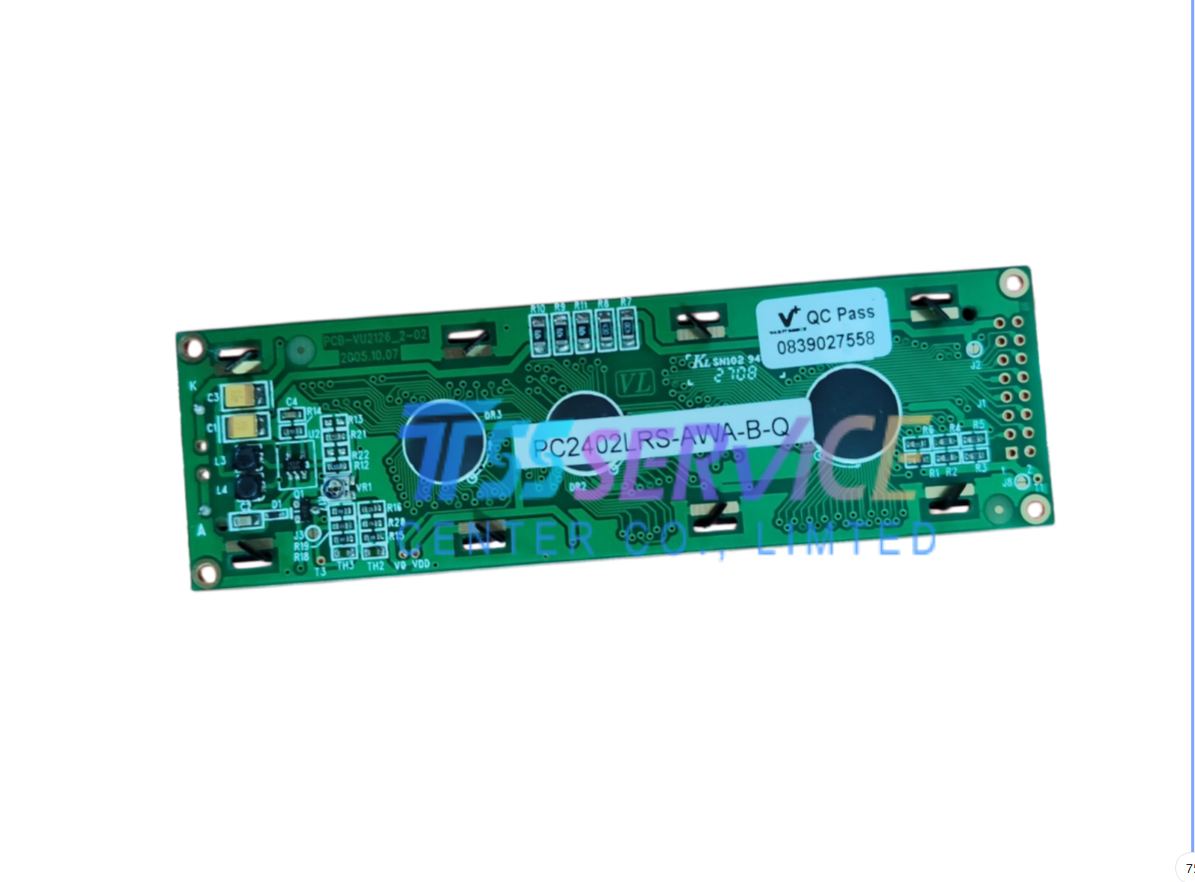

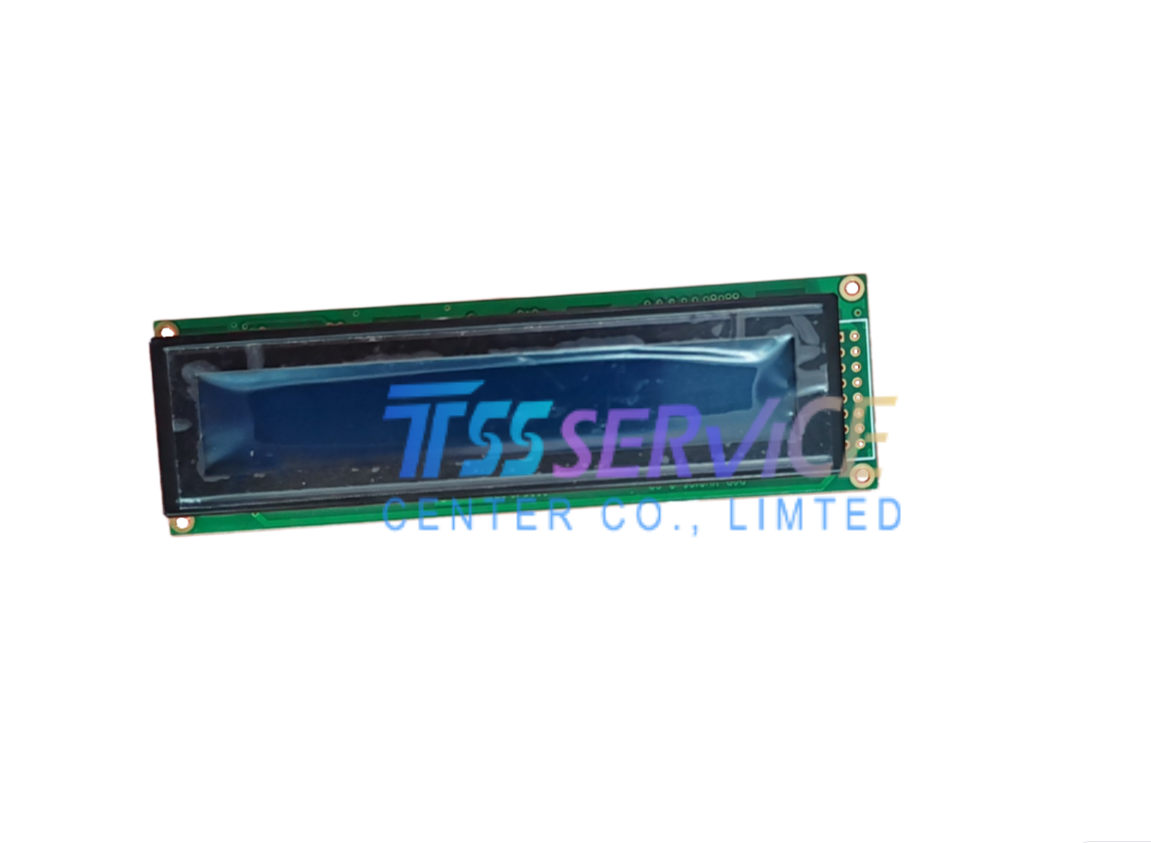

PC2402LRS-AWA-B-Q LCD Display Screen For Industrial
| Parameter |
Specification |
Unit |
| Brand |
Powertip Technology |
– |
| Model |
PC2402LRS-AWA-B-Q |
– |
| Display Type |
Alphanumeric Character LCD |
– |
| Configuration |
24 characters × 2 lines (24×2) |
– |
| Panel Technology |
STN, Positive (Gray), Transflective |
– |
| Controller |
ST7066U (or compatible) |
– |
| Active / Viewing Area |
94 (W) × 16 (H) |
mm |
| Outline Dimensions |
118 (W) × 36 (H) × 13.5 (D) |
mm |
| Character Size |
5.6 (W) × 3.2 (H) |
mm |
| Dot Size / Pitch |
0.6 × 0.65 / 0.65 × 0.7 |
mm |
| Backlight |
LED, Yellow‑Green |
– |
| Interface |
8‑bit Parallel, Standard Connector |
– |
| Supply Voltage (VDD) |
5.0 (Typ., 4.5–5.5) |
V DC |
| Operating Current |
75–90 |
mA |
| Operating Temperature |
0 ~ +50 |
°C |
| Storage Temperature |
−10 ~ +60 |
°C |
| Construction |
COB (Chip-on-Board) |
– |
| Weight |
~150 |
g |
| Status |
Active / Standard Production |
– |
Typical applications include:
- Industrial Control Panels – PLC terminals, machine interfaces, and factory automation displays.
- Consumer Electronics – Home appliances, audio/video equipment, and smart device interfaces.
- Test & Measurement – Bench instruments, power supplies, and environmental monitors.
- Medical Devices (Basic) – Portable diagnostic tools, patient data displays, and lab equipment.
- Office & Retail Equipment – Printers, copiers, POS terminals, and vending machines.
- Automotive & Marine – Dashboard displays, vehicle control units, and marine instrumentation.
