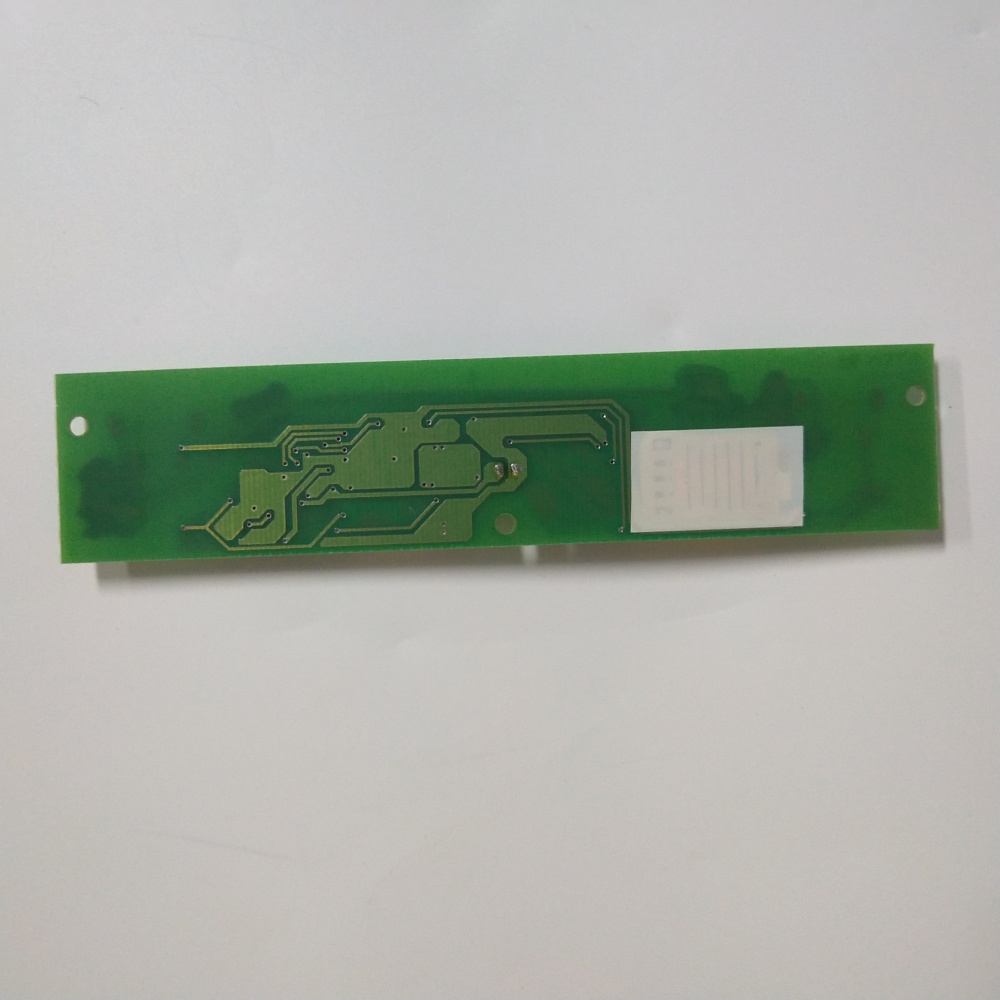

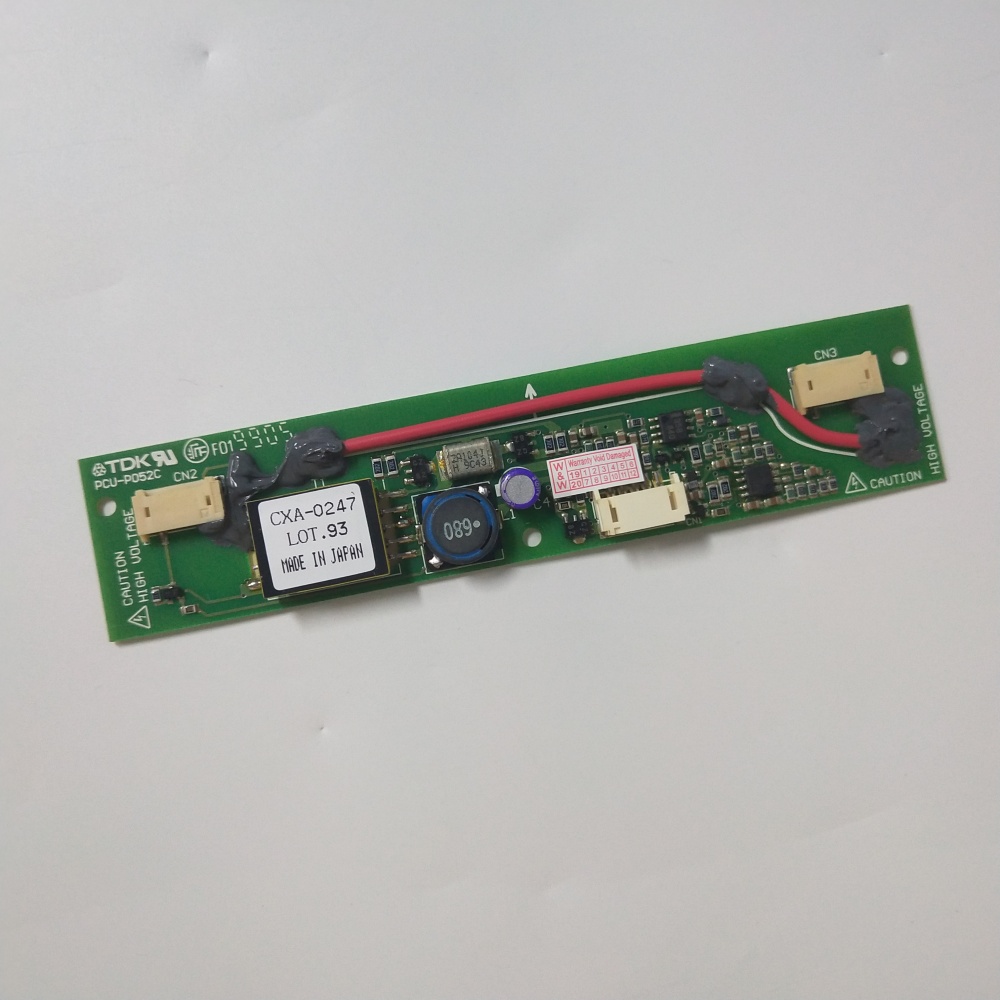

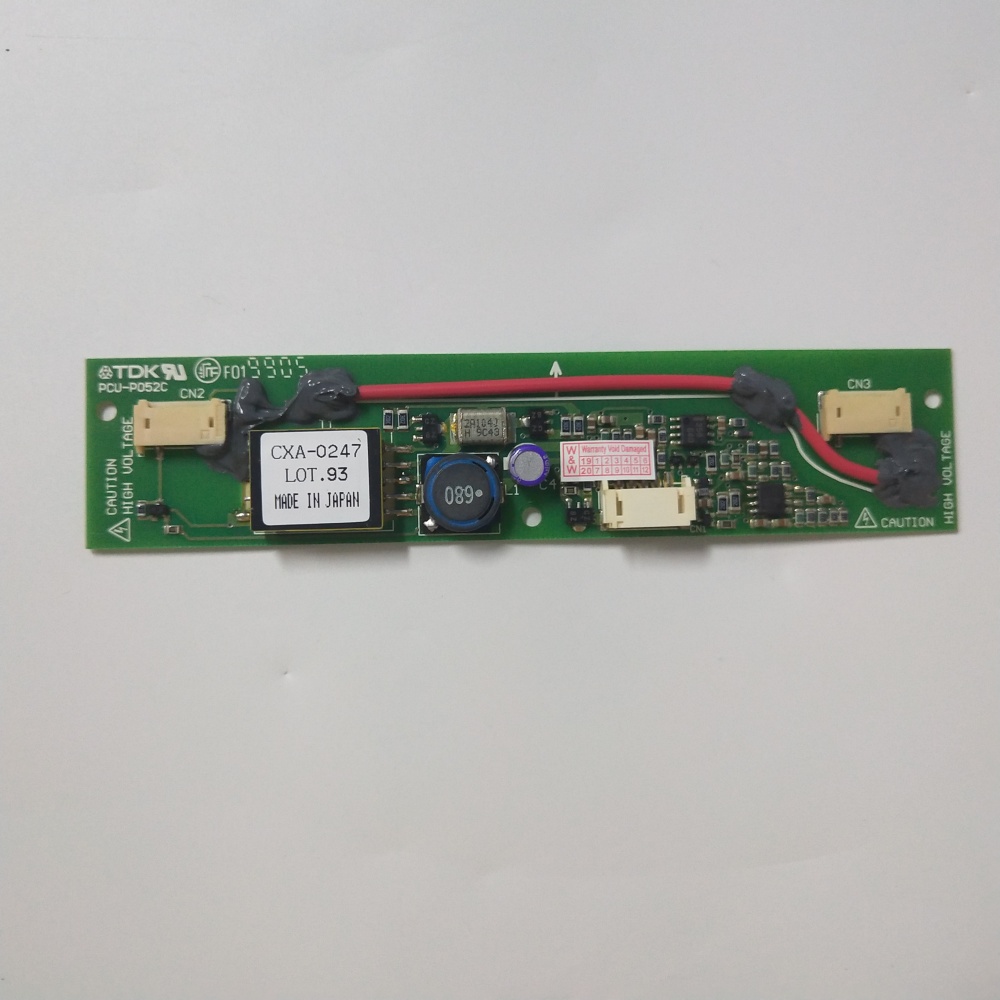

New LCD Inverter for TDK CXA-0247 CXA0247 0KP2 Inverter PCU-P052D
| Parameter |
Specification |
| Manufacturer |
TDK / Power Systems |
| Part Number |
TDK CXA-0247 CXA0247 0KP2 Inverter PCU-P052D |
| Type |
DC-AC Inverter Unit (CCFL Inverter) |
| Input Voltage |
12V DC (Range: 10.8V ~ 13.2V) |
| Output Power |
8W |
| Output Configuration |
Dual Outputs (Designed for 2 CCFL bulbs) |
| Output Voltage |
1700V (Open Circuit) |
| Output Current |
6mA (Typical) |
| Frequency |
40kHz (Typical) |
| Key Features |
Dimming function (Voltage or Resistance control), Over-voltage protection |
| Dimensions (LxWxH) |
6.02" x 0.85" x 0.33" (153mm x 21.5mm x 8.5mm) |
| Mounting Type |
Chassis Mount / Connector type |
The TDK CXA-0247 CXA0247 0KP2 Inverter PCU-P052D is specifically engineered to power Cold Cathode Fluorescent Lamps (CCFL) in various display and industrial technologies. Its primary applications include:
- Medical Equipment Displays: It is widely used in older medical patient monitors (such as the Philips MP20 monitor) to provide stable backlighting for the LCD screen, ensuring clear visibility of vital signs.
- Industrial Control Panels & HMIs: Integrated into industrial machinery interfaces, such as Heidelberg printing machine touchscreens and other Human-Machine Interfaces (HMIs), where reliable and regulated high-voltage power is critical for factory environments.
- LCD Monitor & TV Backlighting: Commonly found in older LCD monitors, industrial displays, and specific Sharp industrial control units (often cross-referenced with part number PCU-P091B) to power dual-lamp backlight systems.
- Legacy Display Repair: A highly sought-after replacement part for technicians repairing "black screen but with image" or "flickering backlight" issues in vintage LCD equipment.
