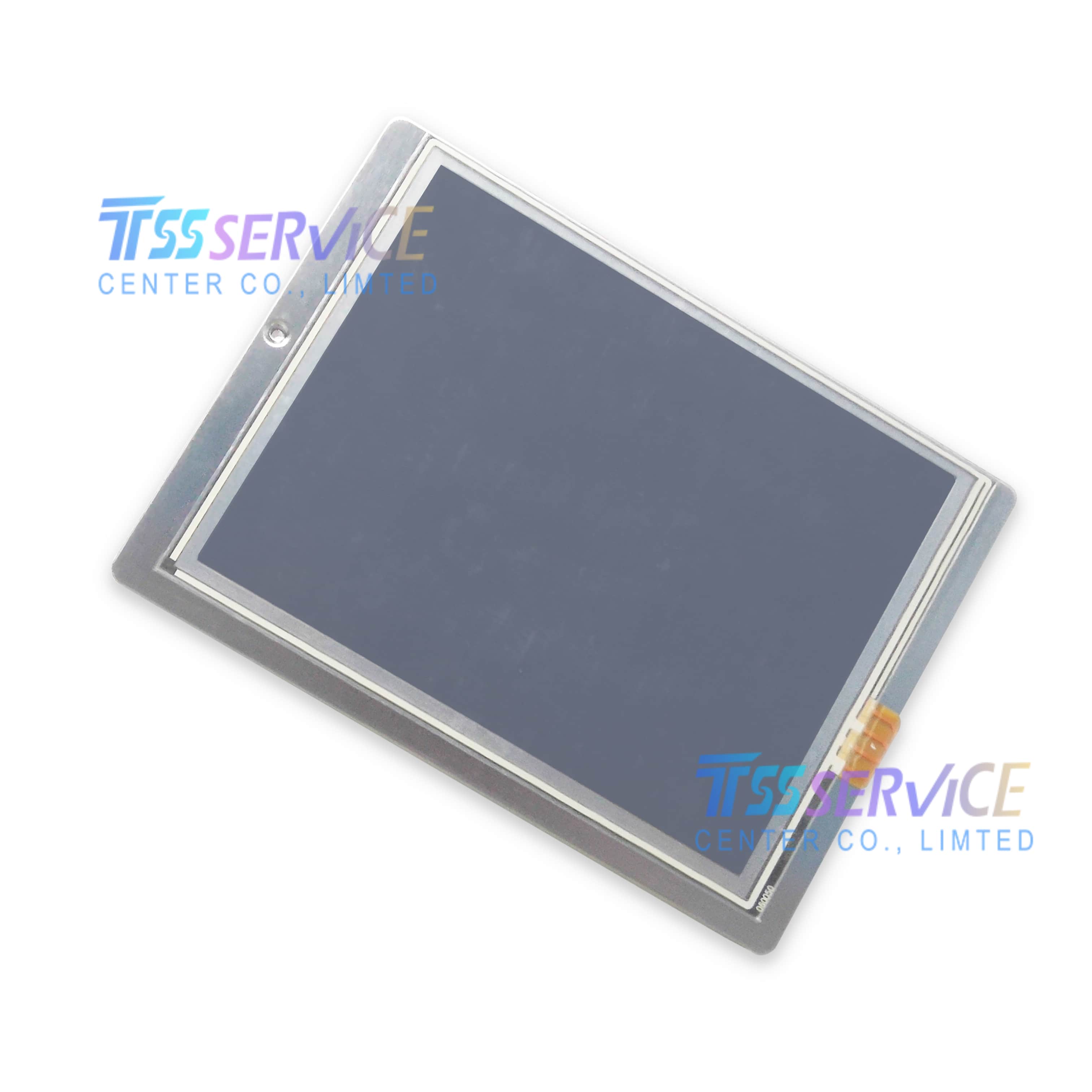

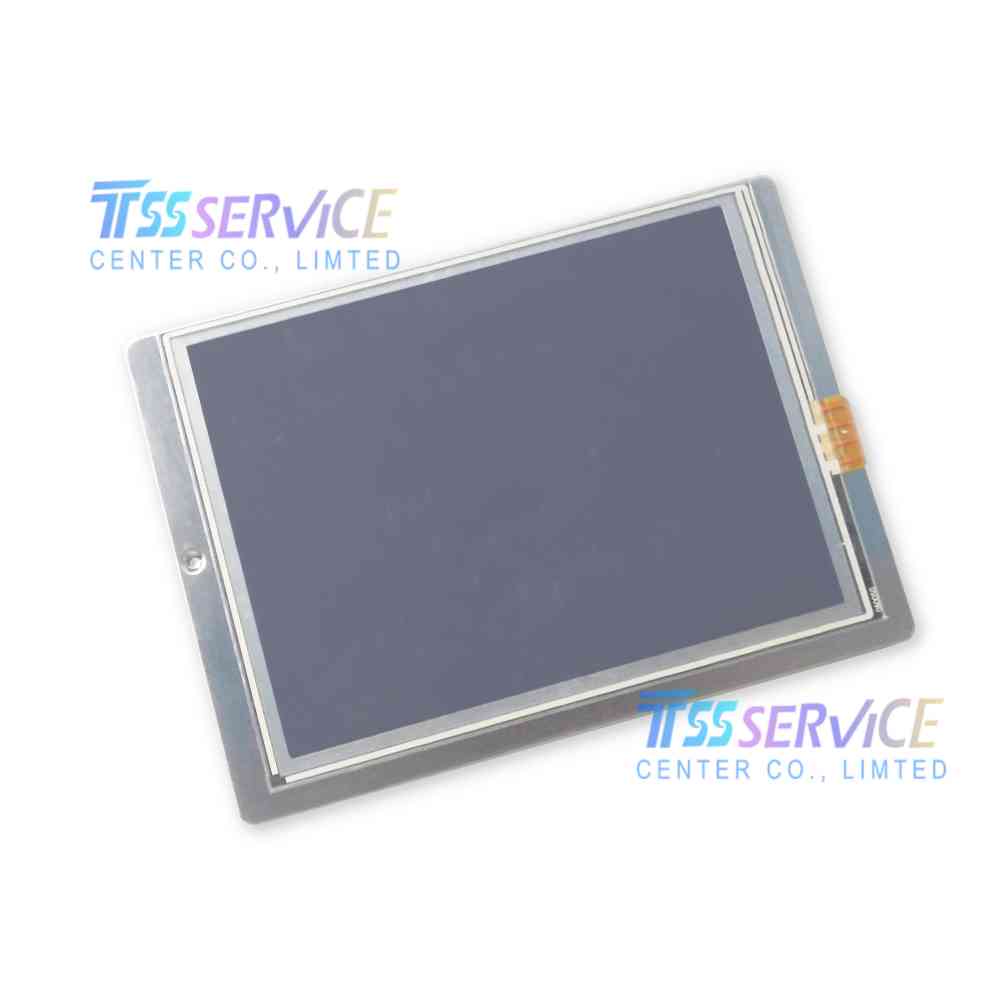

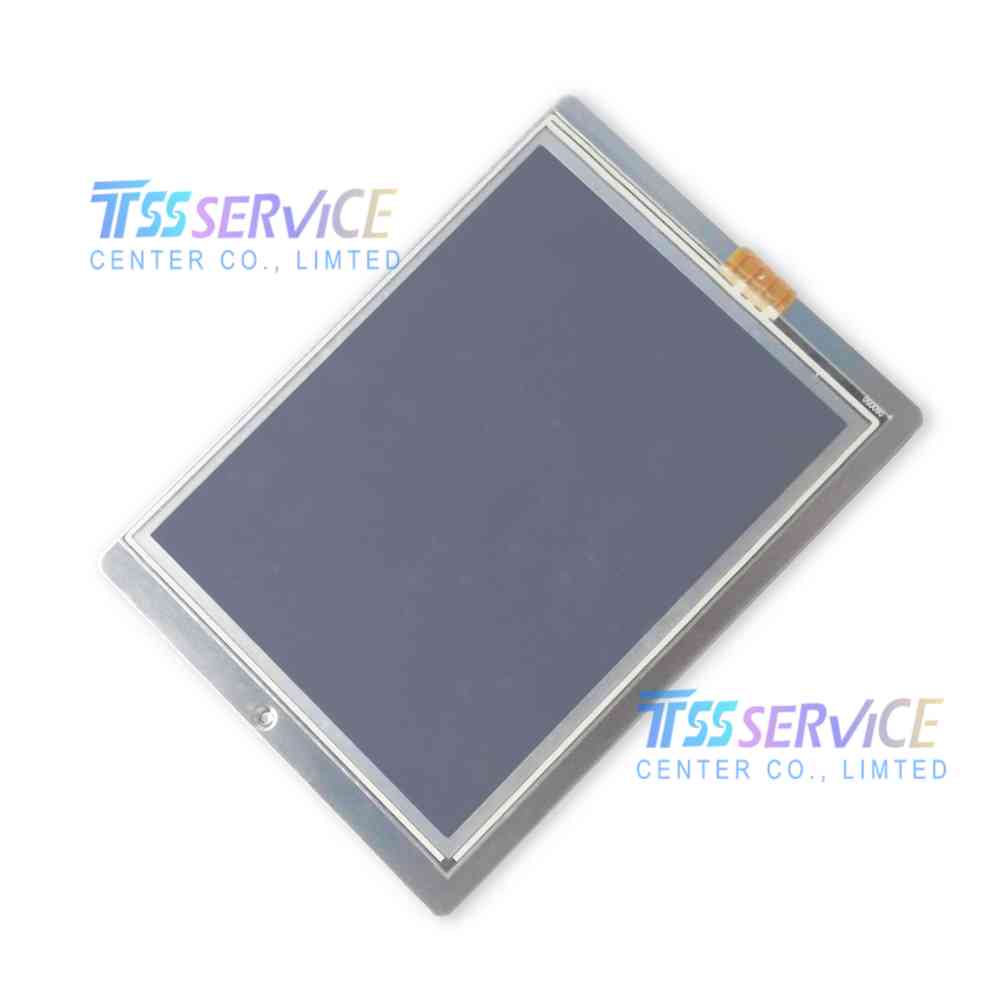

PD057VU4(LF) | PVI 5.7" QVGA TN Industrial TFT-LCD Module

PD057VU4(LF) is a lead-free 5.7-inch QVGA industrial TFT LCD module manufactured by Prime View International (PVI). It features high 500 cd/m² brightness, single CCFL backlight, 33-pin parallel TTL RGB interface, matte anti-glare surface, metal shielding frame and wide industrial temperature tolerance. The LF suffix stands for lead-free construction fully compliant with RoHS, widely applied for industrial HMI, injection molding machinery, portable test instruments, medical equipment and legacy screen replacement projects.

Parameter Item	Specification Details
Full Part Number	PD057VU4(LF) (LF=Lead-free version)
Manufacturer	PVI (Prime View International, 元太)
Diagonal Size	5.7 inch, landscape, 4:3 aspect ratio
Native Resolution	320(RGB) × 240 pixels (QVGA)
Display Technology	a-Si TFT-LCD, TN mode, Normally White, Transmissive
Pixel Arrangement	RGB vertical stripe
Pixel Pitch	0.36 mm (W) × 0.36 mm (V)
Active Area (AA)	115.2 mm (W) × 86.4 mm (H)
Overall Outline Dimension	144.0 × 104.6 × 13.0 mm
Typical Brightness	500 cd/m² (high brightness for indoor bright workshop)
Typical Contrast Ratio	400:1
Viewing Angle (L/R/U/D, CR≥10)	60° / 60° / 50° / 40°
Response Time (Tr/Td)	15 ms / 25 ms (Typical)
Display Color Depth	262K colors (6-bit single channel)
Backlight System	Single CCFL lamp, service life ≥ 50,000 hours, without built-in inverter
Signal Interface	Parallel TTL RGB (6-bit), 33-pin FPC connector
Logic Supply Voltage	5.0 VDC
Typical Power Consumption	4.16 W
Refresh Rate	60 Hz
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Touch Function	Without touch panel (4-wire resistive touch overlay customizable)
Surface Treatment	Matte anti-glare polarizer, 3H scratch-resistant hard coating
Housing	Full metal shielding frame, anti-electromagnetic interference
Net Weight	202 g ±10 g
Compliance Standard	RoHS Lead-free (LF marking), CE certified
Production Status	Mass stocked legacy industrial module, mainly for equipment maintenance replacement

KCS3224ASTT-X8-5X-10 介绍参数，要表格输出 和英文具体应用

KCS3224ASTT-X8-5X-10 | Kyocera 5.7" QVGA CSTN Industrial LCD Module

Short English Description

KCS3224ASTT-X8-5X-10 is a classic 5.7-inch QVGA color CSTN LCD module manufactured by Kyocera, fully compatible with X7/X8/X9/X10 sub-models of the same series. It features single CCFL backlight, 8-bit parallel 15-pin data interface, stable industrial optical performance, metal shield housing, and standard industrial temperature range. Widely used as original and replacement screen for injection molding machines, legacy industrial HMIs, medical testing equipment, and embedded control terminals.

KCS3224ASTT Series Module Front

Module Back Metal Shell

Specification Parameter Table

表格

Parameter Item	Specification Details
Full Part Number	KCS3224ASTT-X8-5X-10 (Compatible alias: KCS057QV1 series)
Manufacturer	Kyocera Corporation (Japan)
Display Diagonal	5.7 inch, landscape, 4:3 aspect ratio
Native Resolution	320(RGB) × 240 pixels (QVGA, 70 PPI)
Display Technology	Color CSTN-LCD, Normally Black, Transmissive passive matrix
Pixel Arrangement	RGB vertical stripe
Pixel Pitch	0.120 mm (W) × 0.360 mm (H)
Active Area (AA)	115.2 mm (W) × 86.4 mm (H)
Overall Outline Dimension	154.6 mm (W) × 114.8 mm (H) × 9.0 mm (Thickness)
Typical Brightness	110 cd/m²
Typical Contrast Ratio	25:1 (CR≥2 standard)
Viewing Angle (L/R/U/D, CR≥2)	50° / 50° / 30° / 30°
Response Time (Tr/Td)	390 ms / 100 ms (Typical)
Display Color	262K simulated color
Backlight System	Single CCFL lamp, service life ≥ 30,000 hours, without built-in inverter
Signal Interface	Parallel 8-bit CPU bus, 15-pin edge connector
Logic Supply Voltage	5.0 VDC (Industrial standard)
Refresh Rate	60 Hz
Operating Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +60°C
Touch Function	Without integrated touch panel (external resistive touch customizable)
Surface Treatment	Standard glossy polarizer, 2H hard scratch coating
Housing Structure	Full metal shielding frame, anti-electromagnetic interference
Net Weight	Approx. 480 g
Compliance Standard	RoHS compliant
Production Status	Discontinued legacy industrial panel, mass inventory for equipment maintenance replacement

Detailed English Applications

1. Injection Molding & Plastic Machinery HMI (Core Application)

This is the original matching display for most domestic and foreign injection molding machine controllers. The QVGA color screen clearly displays molding parameters, pressure curves, temperature data and fault alarm prompts. The metal shielding shell resists strong electromagnetic interference from servo motors and heating circuits inside the injection workshop, supporting 24/7 continuous long-term operation.

2. Legacy Industrial Automation Control Panels

Designed for textile looms, packaging equipment, printing machinery and early PLC embedded control cabinets. The mature parallel 8-bit interface perfectly matches old industrial single-chip microcomputer control systems; unified mechanical outline size realizes direct drop-in replacement without cabinet structural modification.

3. Medical Auxiliary Testing & Portable Diagnostic Equipment

Widely integrated into ward multi-parameter patient monitors, biochemical laboratory analyzers and portable medical testing instruments. Stable low-power CSTN display accurately presents medical waveforms, test indicators and numerical data, adapting to long-term stable indoor clinical operation in hospitals and laboratories.

4. Test & Measurement Laboratory Precision Instruments

Perfect for desktop oscilloscopes, industrial data loggers, electronic aging testers and optical measuring devices. The 5.7-inch moderate size balances embedded installation space and data display area, reserved as standard spare replacement screen for a large number of legacy laboratory equipment.

5. Small Banking & Vending Self-Service Terminals

Suitable for traditional ATM auxiliary screens, small bank counter query terminals and industrial vending machine control panels. Long-life CCFL backlight reduces maintenance frequency for unattended all-day operation scenarios, and the simple parallel interface simplifies embedded drive circuit design.

6. Old Automation Equipment Screen Maintenance & Upgrade

Serves as universal replacement spare part for all KCS3224ASTT-X7/X8/X9/X10 series broken screens. Consistent outline dimension, backlight connector and 15-pin parallel signal avoid complicated driver board rewiring, greatly shorten equipment maintenance downtime and reduce spare part procurement cost.

DV370FBM-N10 介绍参数，要表格输出 和英文具体应用

DV370FBM-N10 | BOE 37" Ultra-Wide Bar ADS Industrial TFT-LCD Panel

Short English Description

DV370FBM-N10 is a 37-inch ultra-wide bar-type a-Si ADS TFT LCD panel manufactured by BOE. It features a special stretched 32:9 ratio with 1920×540 resolution, 700 cd/m² high brightness, full symmetrical 89° wide viewing angle, dual-channel 8-bit LVDS 51-pin interface, matte anti-glare 3H hard coating and long-life WLED backlight. Designed for commercial bar digital signage, traffic guidance terminals, supermarket shelf displays, factory industrial monitoring and embedded long-strip information screens, it delivers consistent clear visuals under bright indoor lighting with stable industrial temperature performance.

Specification Parameter Table

表格

Parameter Item	Specification Details
Part Number	DV370FBM-N10
Manufacturer	BOE Technology (京东方)
Diagonal Size	37.0 inch, landscape, ultra-wide 32:9 aspect ratio
Native Resolution	1920(H) × 540(V) pixels
Display Technology	a-Si TFT-LCD, ADS mode, Normally Black, Transmissive
Pixel Arrangement	RGB vertical stripe
Pixel Pitch	0.1562 mm (H) × 0.4686 mm (V)
Active Area (AA)	899.712 mm (W) × 253.044 mm (H)
Overall Outline Dimension	914.9 × 280.9 × 22.7 mm
Typical Brightness	700 cd/m²
Typical Contrast Ratio	1000:1
Viewing Angle (L/R/U/D, CR≥10)	89° / 89° / 89° / 89°, full symmetrical wide angle
Response Time (G-to-G)	14 ms typical
Display Color Depth	16.7M true colors (8-bit RGB)
Color Gamut	72% NTSC
Backlight System	WLED backlight, service life ≥ 50,000 hours, without built-in driver
Signal Interface	Dual-channel LVDS, 8-bit, 51-pin FPC connector
Logic Supply Voltage	12.0 VDC (typical)
Refresh Rate	60 Hz
Operating Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +60°C
Touch Function	Without integrated touch panel (capacitive/resistive touch overlay customizable)
Surface Treatment	Matte anti-glare polarizer (Haze 25%), 3H scratch-resistant hard coating
Net Weight	Max 5.10 kg
Compliance Standard	RoHS compliant
Production Status	Mass production industrial bar display panel

Detailed English Applications

1. Supermarket & Retail Shelf Bar Digital Signage (Core Application)

This ultra-wide stretched bar panel is specially developed for supermarket shelf edge advertising screens, price tag displays and product promotion information strips. 700 cd/m² high brightness ensures text and pictures remain legible under store ceiling lighting; matte anti-glare coating eliminates lamp reflection, 3H hard coating resists frequent customer contact and daily cleaning disinfection. The 32:9 long narrow outline perfectly fits shelf layout without occupying merchandise space.

2. Transportation Station Guidance & Information Terminals

Widely deployed in subway, bus station, airport and high-speed rail passageway long-strip information screens, platform arrival time displays and passenger route guidance panels. Full symmetrical 89° wide viewing angle delivers consistent image quality for passengers walking from left or right sides; long-life WLED backlight supports 24/7 unattended operation in busy public transit environments.

3. Elevator Interior Floor & Media Advertising Displays

Applied to elevator car top and side embedded long bar screens for floor number indication, safety notice playback and elevator media advertising. Slim 22.7mm thickness fits limited elevator internal installation space, stable 0~50°C temperature tolerance adapts to seasonal temperature changes inside elevator shafts.

4. Factory Production Line Central Monitoring Strips

Suitable for workshop assembly line overhead real-time data display screens, logistics warehouse cargo status bar monitors and equipment alarm rolling information terminals. The ultra-wide single strip can continuously display multi-group production parameters, output statistics and fault warning text; industrial LVDS interface stably connects PLC and industrial control host for long-term workshop operation.

5. Shopping Mall Corridor & Window Long Digital Signage

Used for mall corridor wall embedded advertising strips, store window edge promotional screens and scenic spot long strip information boards. High contrast ratio restores vivid advertising video and graphic colors, uniform WLED backlight avoids partial darkening after thousands of hours of continuous playback.

6. Custom Embedded Industrial & Medical Long Information Terminals

Perfect for hospital ward corridor patient notice display strips, building fire alarm linkage rolling information screens and laboratory equipment parameter long display terminals. Standard dual LVDS signal matches mainstream industrial drive boards, unified mechanical outline simplifies structural design for custom long narrow embedded equipment integration.

PD057VU4(LF) 介绍参数，要表格输出 和英文具体应用

PD057VU4(LF) | PVI 5.7" QVGA TN Industrial TFT-LCD Module

Short English Description

PD057VU4(LF) is a lead-free 5.7-inch QVGA industrial TFT LCD module manufactured by Prime View International (PVI). It features high 500 cd/m² brightness, single CCFL backlight, 33-pin parallel TTL RGB interface, matte anti-glare surface, metal shielding frame and wide industrial temperature tolerance. The LF suffix stands for lead-free construction fully compliant with RoHS, widely applied for industrial HMI, injection molding machinery, portable test instruments, medical equipment and legacy screen replacement projects.

PD057VU4(LF)背面

模组整体外观

Specification Parameter Table

表格

Parameter Item	Specification Details
Full Part Number	PD057VU4(LF) (LF=Lead-free version)
Manufacturer	PVI (Prime View International, 元太)
Diagonal Size	5.7 inch, landscape, 4:3 aspect ratio
Native Resolution	320(RGB) × 240 pixels (QVGA)
Display Technology	a-Si TFT-LCD, TN mode, Normally White, Transmissive
Pixel Arrangement	RGB vertical stripe
Pixel Pitch	0.36 mm (W) × 0.36 mm (V)
Active Area (AA)	115.2 mm (W) × 86.4 mm (H)
Overall Outline Dimension	144.0 × 104.6 × 13.0 mm
Typical Brightness	500 cd/m² (high brightness for indoor bright workshop)
Typical Contrast Ratio	400:1
Viewing Angle (L/R/U/D, CR≥10)	60° / 60° / 50° / 40°
Response Time (Tr/Td)	15 ms / 25 ms (Typical)
Display Color Depth	262K colors (6-bit single channel)
Backlight System	Single CCFL lamp, service life ≥ 50,000 hours, without built-in inverter
Signal Interface	Parallel TTL RGB (6-bit), 33-pin FPC connector
Logic Supply Voltage	5.0 VDC
Typical Power Consumption	4.16 W
Refresh Rate	60 Hz
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Touch Function	Without touch panel (4-wire resistive touch overlay customizable)
Surface Treatment	Matte anti-glare polarizer, 3H scratch-resistant hard coating
Housing	Full metal shielding frame, anti-electromagnetic interference
Net Weight	202 g ±10 g
Compliance Standard	RoHS Lead-free (LF marking), CE certified
Production Status	Mass stocked legacy industrial module, mainly for equipment maintenance replacement
