Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..

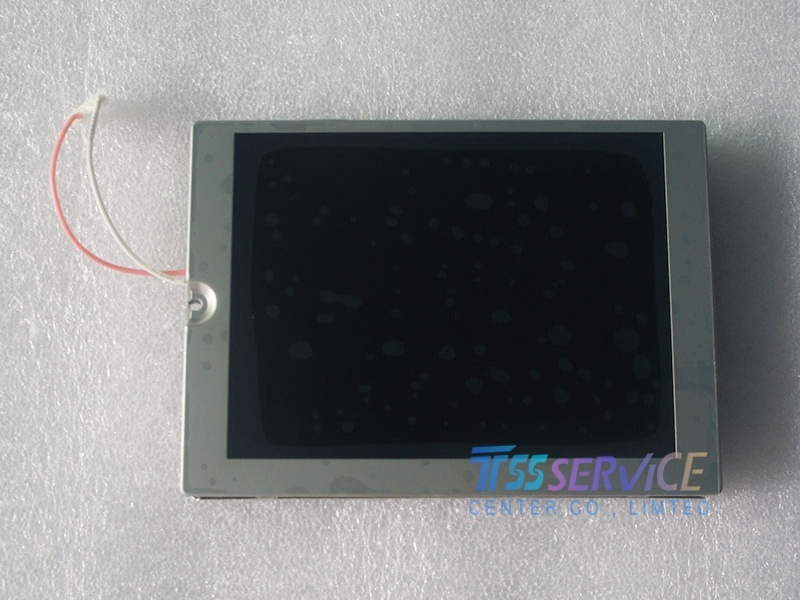

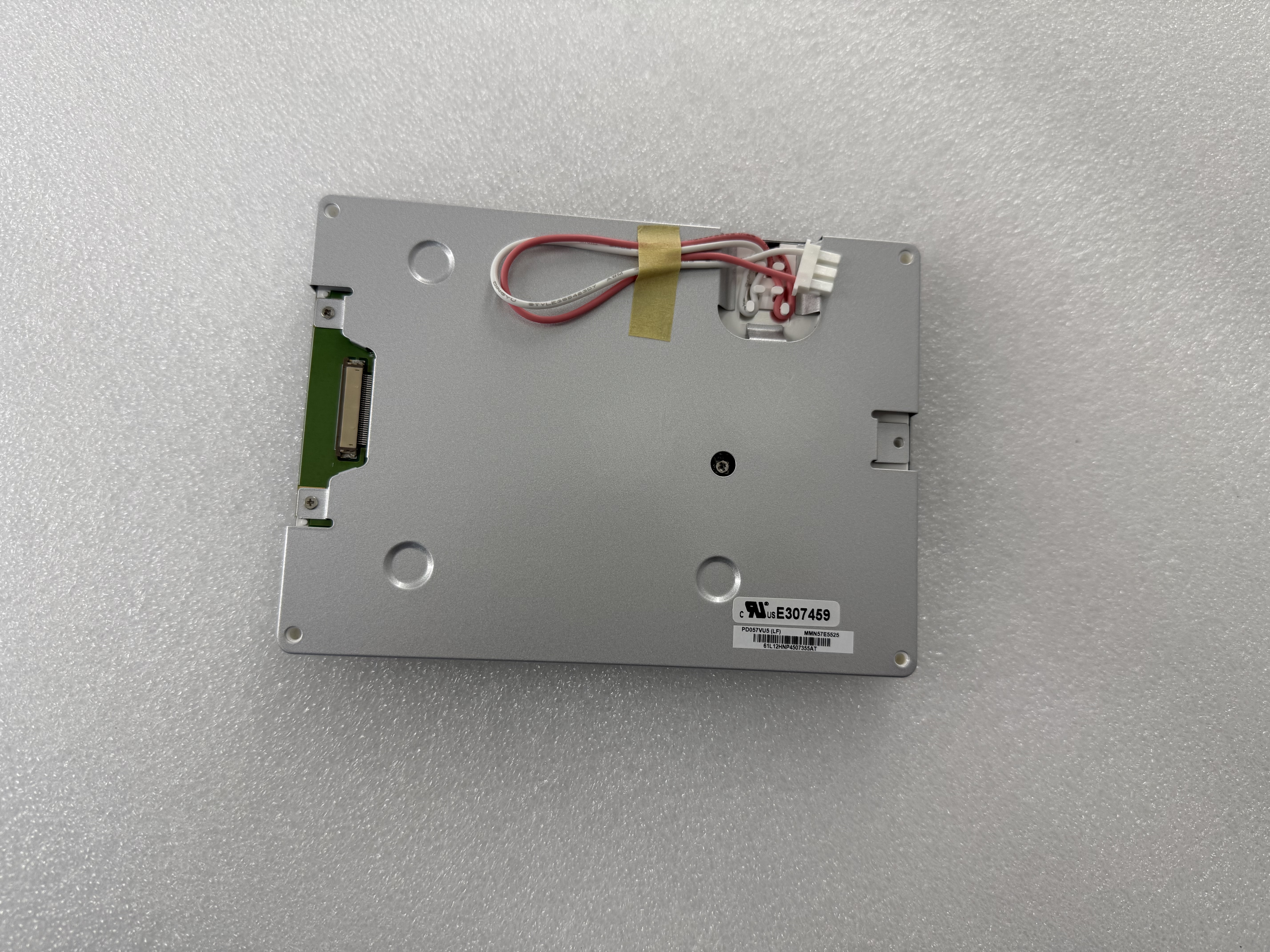

| Brand | PVI |
| Model P/N | PD057VU5 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA, 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W) × 86.4(H) mm |
| Bezel Opening | 117.2(W) × 88.4(H) mm |
| Outline Dim. | 144(W) × 104.6(H) × 13.3(D) mm |
| Treatment | Antiglare |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 15/25 ms (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/50 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | WLED [3S12P], 20K hours, Without Driver |
| Weight | 206 ± 10g |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6-bit), 33 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C; Storage Temperature: -40 ~ 85 °C |
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
