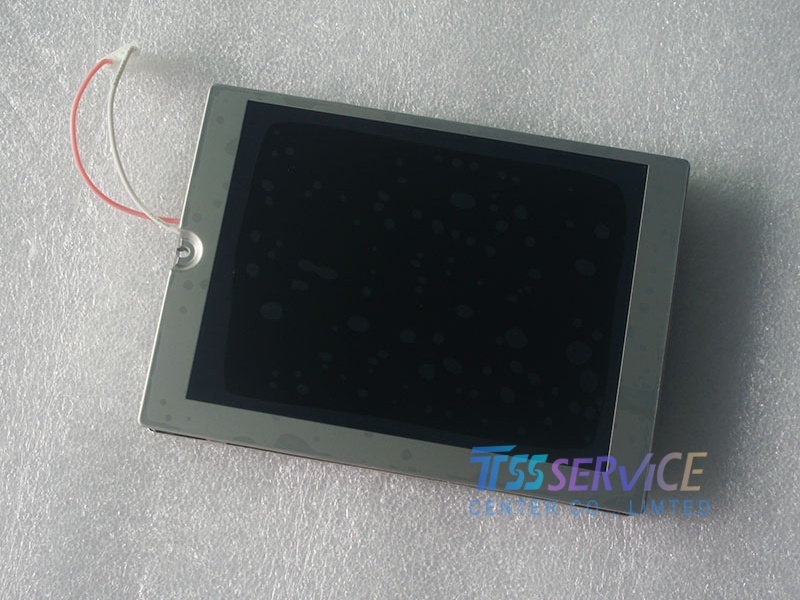

PD057VU9 5.7inch 640×480 industrial Lcd Dispaly Panel for PVI

Name: PD057VU9 5.7inch 640×480 industrial Lcd Dispaly Panel for PVI
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: PD057VU9
Price: 95 USD
Availability: InStock

SKU: PD057VU9

1，Condition: New，Grade A

2，Description: PD057VU9 5.7inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

PD057VU9 5.7" 640×480 Industrial LCD Display Panel for PVI

The PD057VU9 is a high-performance 5.7-inch industrial LCD display panel manufactured by PVI (Prime View International). Designed for demanding industrial environments, this panel delivers excellent readability, durability, and reliability.

Parameter	Specification
Brand	PVI
Model P/N	PD057VU9
Compatibility	1Compatible
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)x480, VGA (139PPI)
Pixel Format	RGB Vertical Stripe
Active Area	116.16(W) x 87.12(H) mm
Bezel Opening	120.2(W) x 91.2(H) mm
Outline Dim.	135(H) x 104.6(V) x 10.8(D) mm
Treatment	Hard coating (3H)
Luminance	800 cd/m² (Typ.)
Contrast Ratio	850:1 (Typ.) (TM)
View Direction	—
Response Time	3/15 (Typ.) (Tr/Td)
Viewing Angle	80/80/80/80 (Typ.) (CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED [9S2P×2CN], 50K hours, w/Driver
Weight	162±10 g
Frame Rate	60Hz
Touch Panel	Without
Interface Type	TTL (1ch, 6-bit), 33 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temp: -30~80°C; Storage Temp: -40~80°C; Vibration Level: 2.0G (19.6 m/s²)

Applications:

The PD057VU9 is ideally suited for:

Industrial control panels and HMIs
Medical equipment displays
Test and measurement instruments
Outdoor kiosks and terminals
Military and ruggedized applications
Automotive and transportation systems
