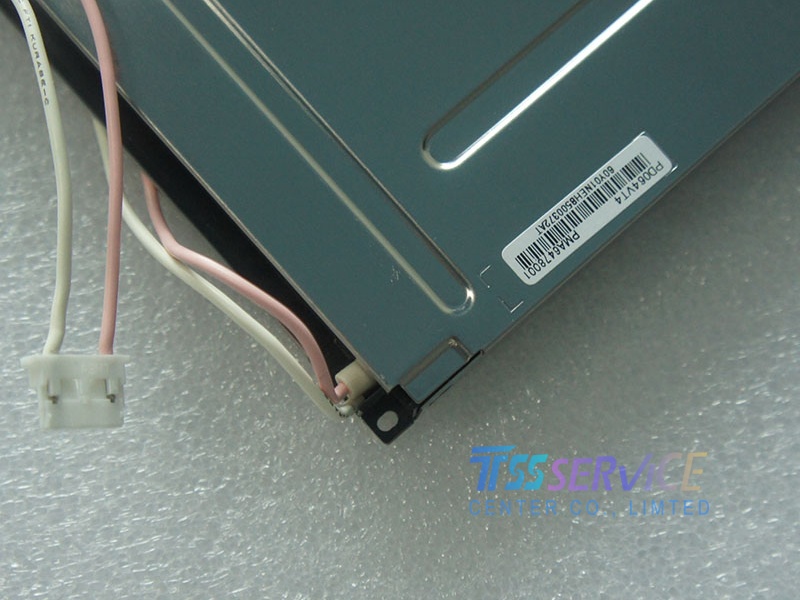

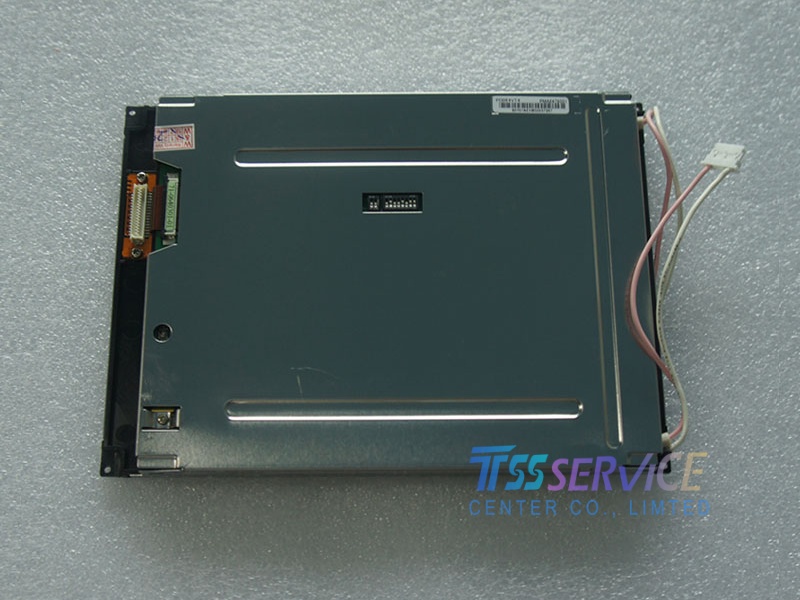

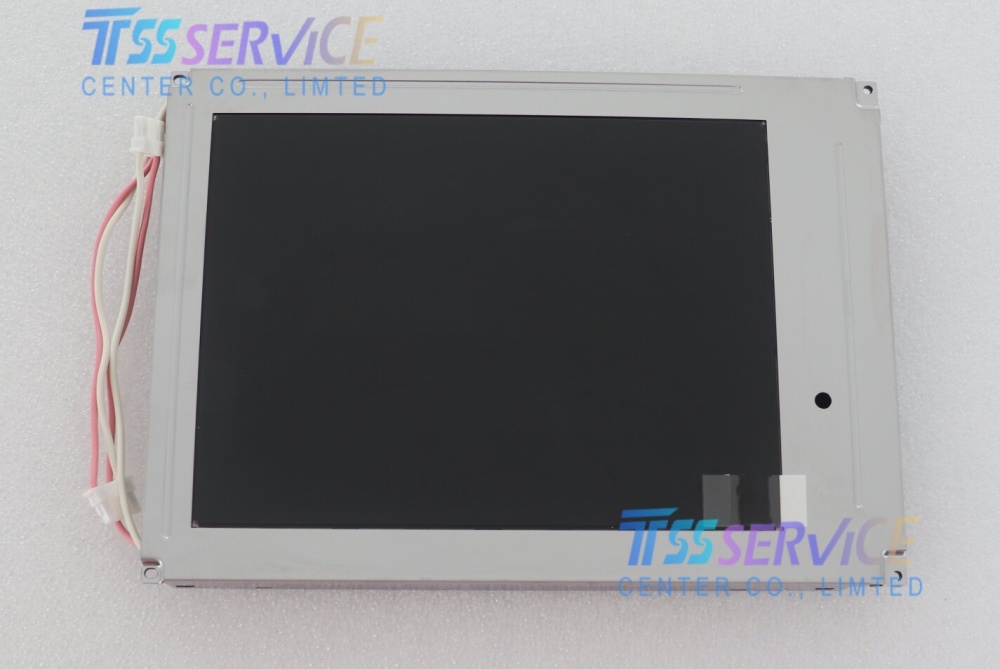

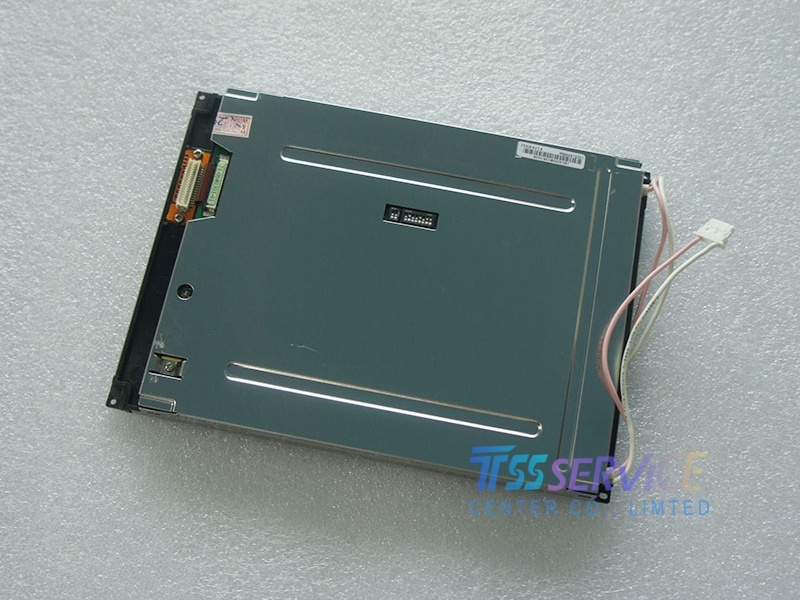

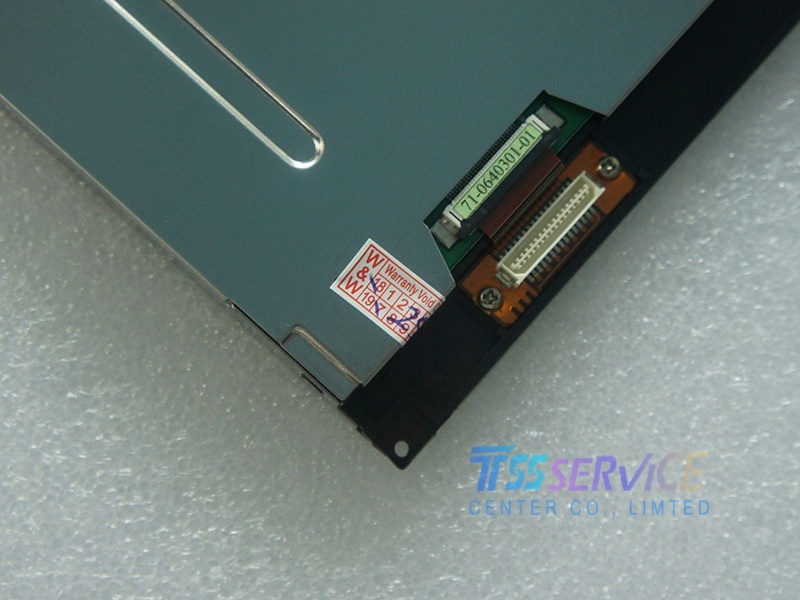

PD064VT4 6.4inch 640×480 PVI Lcd Display Panel

Name: PD064VT4 6.4inch 640×480 PVI Lcd Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: PD064VT4
Price: 88 USD
Availability: InStock

SKU: PD064VT4

Model P/N: PD064VT4
Diagonal Size: 6.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA 125PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $88.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The PVI PD064VT4 is a 6.4-inch a-Si TFT-LCD module engineered by PVI (Prime View International, now part of E Ink Holdings) for demanding industrial applications . This model represents a mature and reliable display solution designed for factory automation, industrial control systems, and other professional environments requiring proven performance and long-term reliability .

Brand	PVI
Model P/N	PD064VT4
Diagonal Size	6.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 125PPI
Pixel Format	RGB Vertical Stripe
Active Area	129.6(W)×97.44(H) mm
Bezel Opening	134.8(W)×101.8(H) mm
Outline(mm)	175.4 × 126.9 × 13 (H×V×D)
Treatment	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	55/55/40/55 (Typ.)(CR≥10)
Response	15/25 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	2 pcs CCFL, 50K hours, No Driver
Mass	340±10g
Used for	Touchscreen
Signal Type	TTL (1 ch, 6-bit), 31 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C; Operating Temp.: -20 ~ 70 °C

Applications:
With its robust industrial design and standardized TTL interface, the PVI PD064VT4 is particularly well-suited for industrial control panels, factory automation equipment, medical devices, test and measurement instrumentation, and other embedded systems requiring a durable and reliable display solution . The TTL interface is especially valuable for legacy system upgrades and applications designed around older display technologies .
